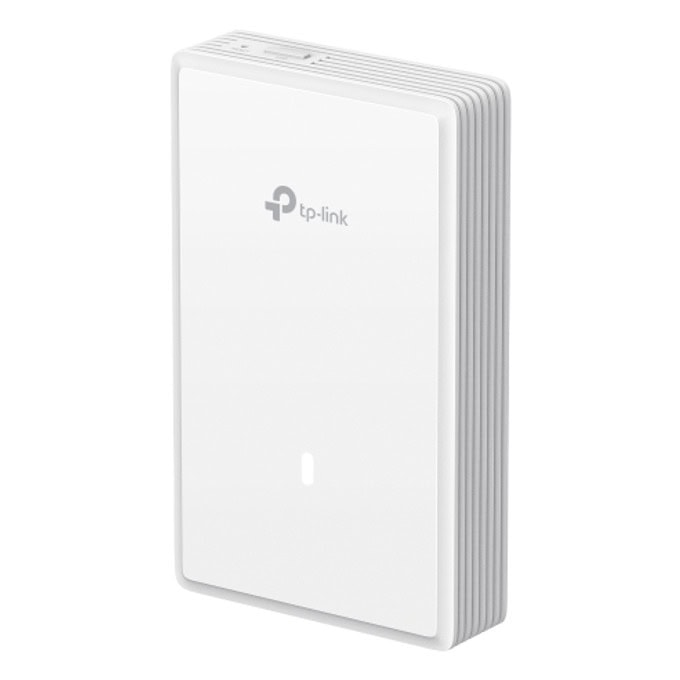

EAP725-Wall
BE3600 Wall Plate Wi-Fi 7 Access Point
- BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).

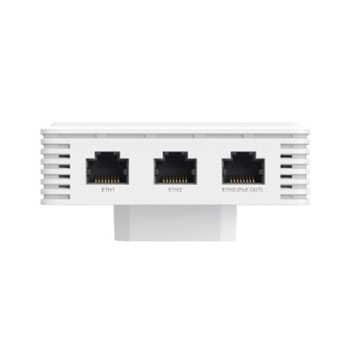

- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 160 MHz bandwidth enables many more simultaneous transmissions.
- Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Dedicated and Complete,
Private WiFi Networks for Every Room
| Category | Specification |
|---|---|
| HARDWARE FEATURES | |

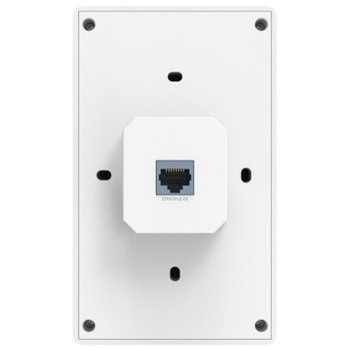

| Interface | • Uplink: 1× 2.5G Ethernet Port• Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports(2.5G port supports PoE pass-through, requires 802.3at/bt input) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | • 802.3bt: 17W (PoE Out support 15.4W)• 802.3at: 17W (PoE Out support 7W) |

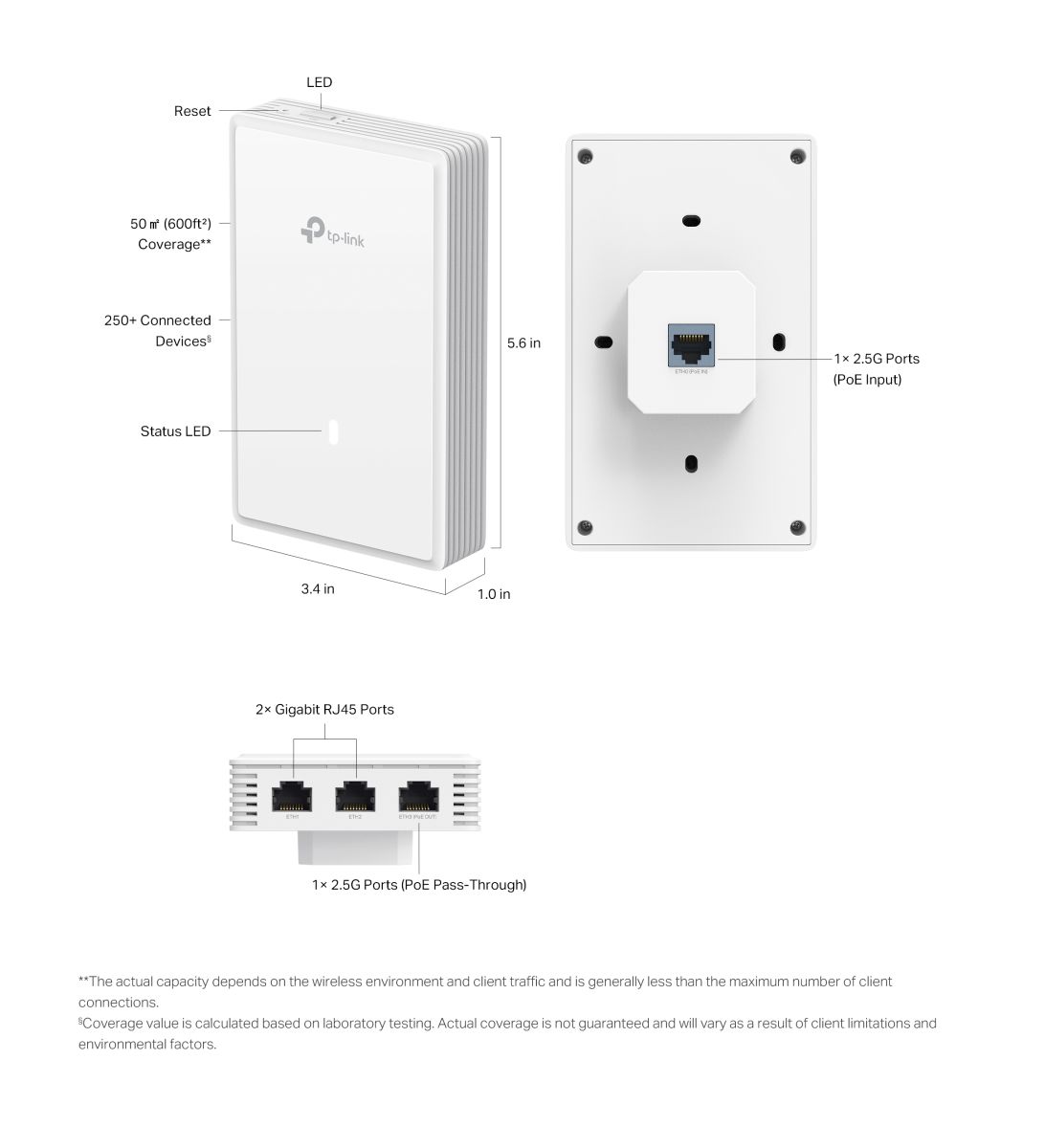

| Dimensions (W×D×H) | 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna | 4× Internal Antennas • 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi |
| Mounting | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 50 ㎡ (600 ft²)** |
| Concurrent Clients | 250+§ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2882 Mbps• 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 per band)• Enable/Disable Radio• Auto Channel Assignment• Transmit Power Control• QoS (WMM)• Seamless Roaming△• Beamforming• Rate Limit• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△• Access Control• MAC Filtering• Client Isolation• VLAN• Rogue AP Detection• WPA/WPA2/WPA3 - Personal/Enterprise |
| Transmission Power | • <20 dBm (2.4GHz, EIRP)• <23 dBm (5GHz bands 1 & 2, EIRP)• <25 dBm (5GHz band 3, EIRP) |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300/OC200)• Omada Software Controller• Omada Cloud-Based Controller |
| Cloud Access | Yes (Requires OC300, OC200, Cloud-Based Controller, or Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) |
| OTHERS | |
| Certification | CE, RoHS |
| Package Content | • BE3600 Wall Plate Wi-Fi 7 Access Point• Installation Guide• Mounting Kits |
| System Requirements | Microsoft Windows XP/Vista/7/8/10/11, Linux |
Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията
Технически характеристики
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За вътрешен монтаж |
| Безжична скорост: | 3600 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 7 (802.11be) |
| Честота: | 2.4 & 5 GHz |
| Антени: | 4 Вътрешни |
| dBi на антена/и: | 5 |
| PoE: | In & Out |
| Интерфейс: | 4x 2500 |
| Други: | Няма |
