EAP623-Outdoor HD
AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.
- Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc.
- High-density connectivity up to 1,000+ clients.
- Long-range coverage with the high-power amplifier and smart antennas.
- IP67 weatherproof enclosure for various outdoor environments.
- Advanced Functions: Centralized management, Omada mesh, and seamless roaming.
- PoE+ Powered: Supports 802.3at PoE (adapter not included).

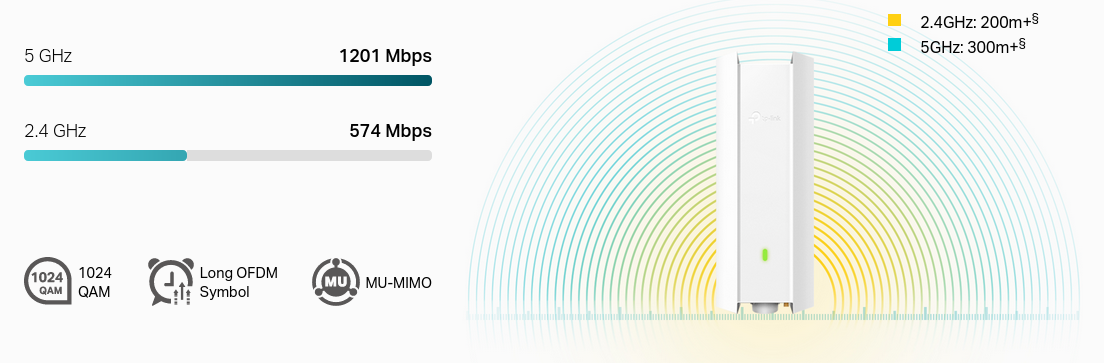

Long-Range, High-Speed WiFi 6
Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.

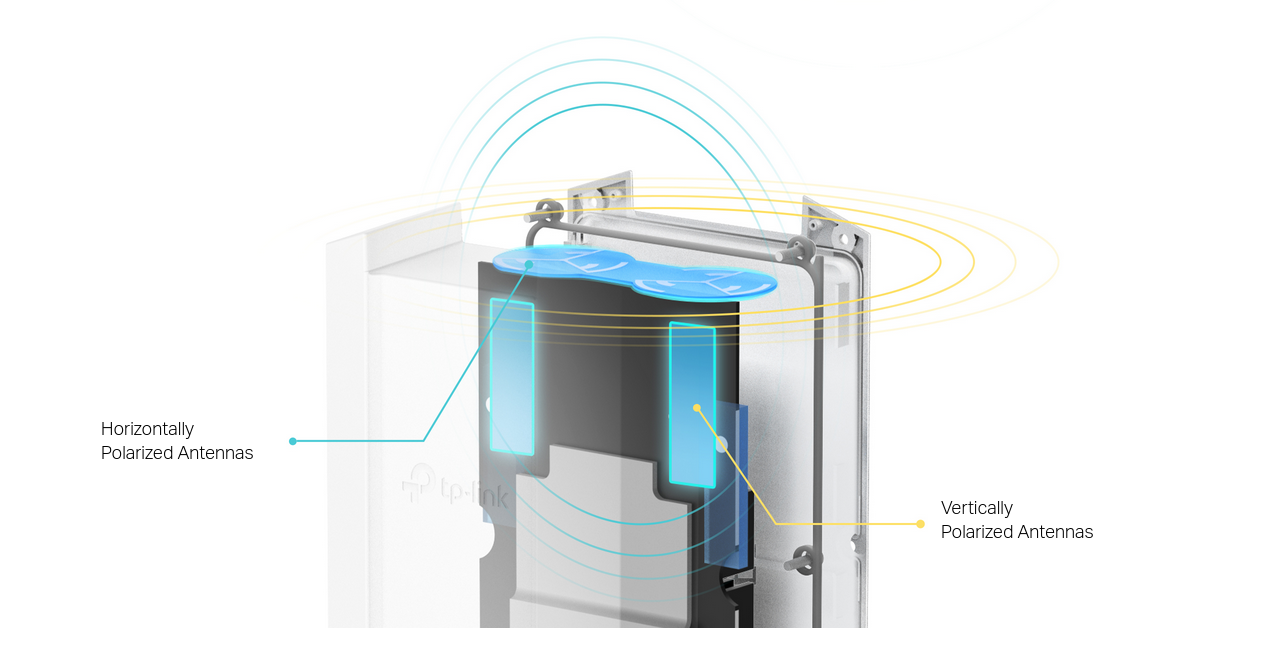

Explore More with Smart Antennas
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.
| ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | |
|---|---|
| Интерфейс | 1x Gigabit Ethernet Port |
| Бутон | Reset |
| Захранване | • 802.3at PoE • 48V Passive PoE Note: PoE adapter is not included. |
| Размери (Ш x Д x В ) | 11.0 x 4.2 x 2.2 in (280.4 × 106.5 × 56.8 mm) |
| Тип антена | 2× Internal Dual-Band Omni Antennas • 2.4 GHz: 4.0 dBi; • 5 GHz: 5.0 dBi |
| Weatherproof Enclosure | IP67 |
| Монтаж | Ceiling / Wall Mounting (Kits Included) |
| БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ | |
|---|---|
| Concurrent Clients | 1,000+** |
| Безжични стандарти | IEEE 802.11 a/b/g/n/ac/ax |
| Честотa | 5 GHz, and 2.4 GHz |
| Скорост на сигнала | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Безжични функции | • Mesh • Seamless Roaming • Automatic Channel Assignment • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Безжична сигурност | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • 802.1X Support |
| Предавателна мощност | • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); • FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| Сигнали по електронна поща | Yes |
| Управление Вкл/Изкл на LED | Yes |
| Управление на контрола на достъпа по МАС адрес | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Уеб-базирано управление | Yes |
Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията
Технически характеристики
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За външен монтаж |
| Безжична скорост: | 1800 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 6 (802.11ax) |
| Честота: | 2.4 & 5 GHz |
| Антени: | 2 Вътрешни |
| dBi на антена/и: | 5 |
| PoE: | In |
| Интерфейс: | 1x 1000 |
| Други: | Няма |
