EAP683 LR
AX6000 Ceiling Mount WiFi 6 Access Point
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Integrates with Omada SDN platform for centralized management.

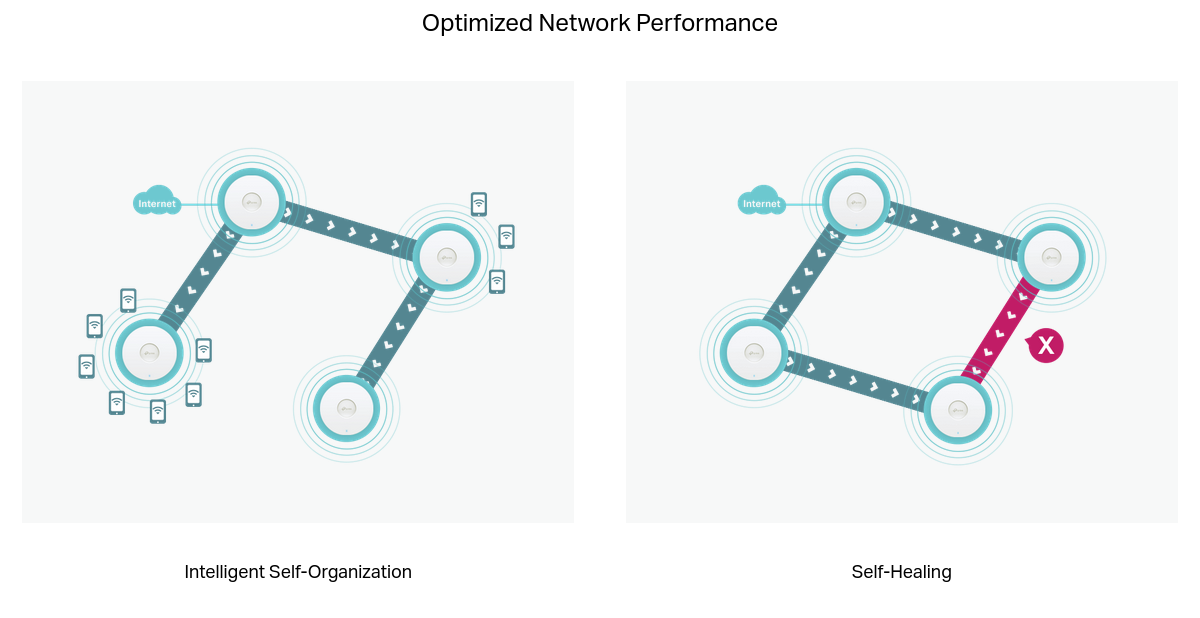

- Advanced Features: Omada Mesh, Seamless Roaming, and more.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included).


Спецификации:
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | |
---|---|
Интерфейс | 1× 2.5 Gigabit PoE+ Port |
Бутон | Reset |
Захранване | • 802.3at PoE • 12 V / 2 A DC Note:Power adapter is not included. |
Консумирана енергия | • EU: 20.43W • US: 23.69W |
Размери (Ш x Д x В ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
Тип антена | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
Монтаж | Ceiling /Wall Mounting (Kits included) |
БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ | |
---|---|
Concurrent Clients | 512** |
Безжични стандарти | IEEE 802.11ax/ac/n/g/b/a |
Честотa | 2.4 GHz and 5 GHz |
Скорост на сигнала | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps |
Безжични функции | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
Безжична сигурност | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Предавателна мощност | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <28 dBm(5 GHz, band3, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz) |
MANAGEMENT | |
---|---|
Omada App | Yes |
Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Сигнали по електронна поща | Yes |
Управление Вкл/Изкл на LED | Yes |
Управление на контрола на достъпа по МАС адрес | Yes |
SNMP | v1, v2c, v3 |
Влизане в системата Локално/Отдалечение | Local/Remote Syslog |
SSH | Yes |
Уеб-базирано управление | HTTP/HTTPS |
L3 управление | Yes |
Управление на множество сайтове | Yes |
Управление на VLAN | Yes |
Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията
Тип: | Аксес пойнт |
---|---|
Монтаж: | За вътрешен монтаж |
Безжична скорост: | 5900 Mbps |
Wi-Fi Стандарт: | Wi-Fi 6 (802.11ax) |
Честота: | 2.4 & 5 GHz |
Антени: | 4 Вътрешни |
dBi на антена/и: | 5 |
PoE: | In |
Интерфейс: | 1x 2500 |
Други: | Няма |
