Суич Tenda TEG5310P-8-150W, 1000Mbps, 10 порта, 8x 10/100/1000М Mbps, 1x GE + 1x SFP, VLAN

Tenda TEG5310P-8-150W

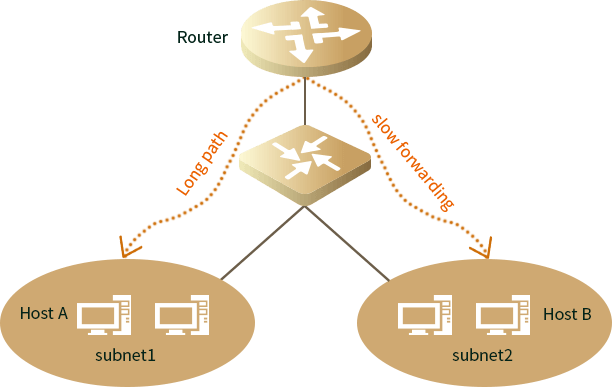

Layer-3 Routing Engine，High-Efficiency Fast Forwarding

Supports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!

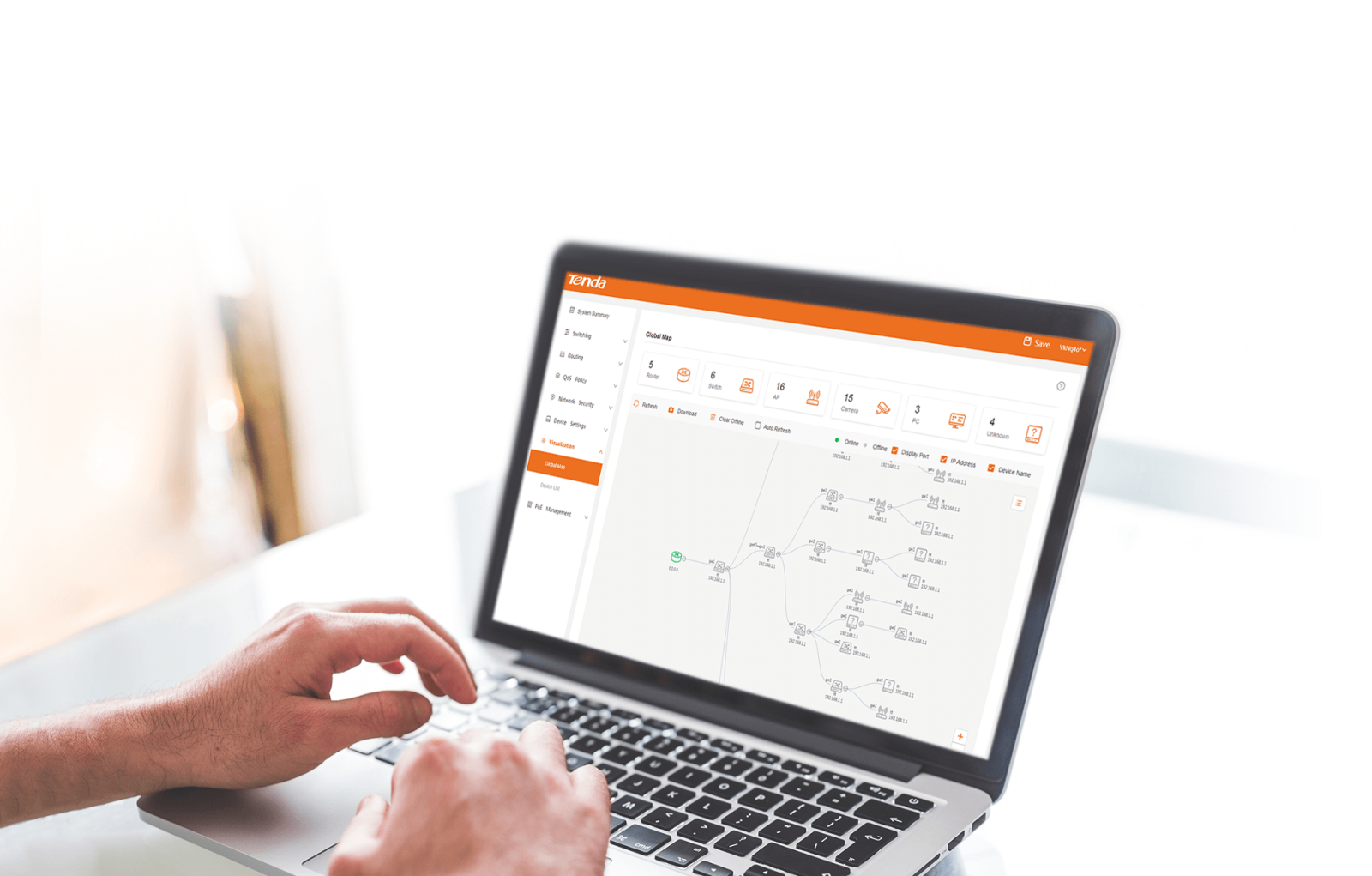

Map Visualization

It supports auto discovery of ONVIF based IP camera and access point, and also supports automatically topology generate.

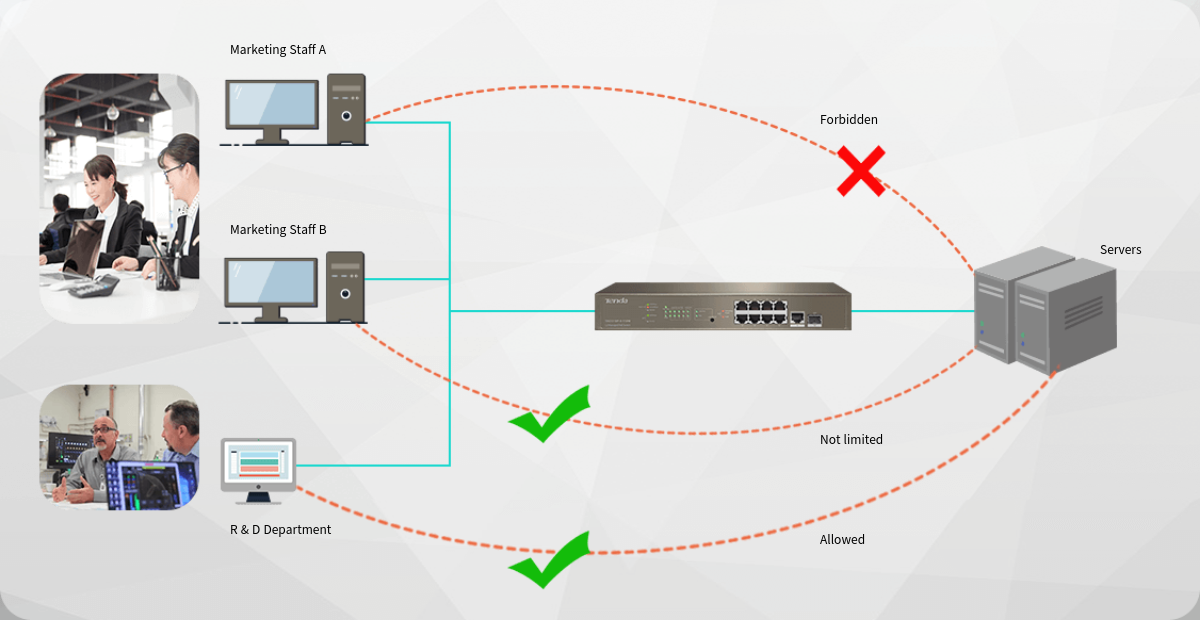

Supports Layer 2 And Layer 3 ACL，For More Secure Access

Support strict access control based on MAC address or IP address, which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of government, medical and other units.





Specifications:

Network standards	IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、 IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s
LED Indicator	1*Link/Act or PoE LED indicator  1*Link/1*Link/Act mode converting LED indicator  1*PoE mode converting LED indicator  1*PoE Max LED indicator  1*Power LED indicator  1*SYS LED indicator
Interfaces	8*10/100/1000 Base-T Ethernet ports (Data/Power)  1*10/100/1000 Base-T Ethernet ports (Data)  1*1000 Base-X SFP ports (Data)
Transmission media	Recommended: CAT5/5e UTP or better
Fan quantity	N/A
Level of protection	Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD:  Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	20Gbps
Packet forwarding rate	14.90Mpps
Buffer	12Mb
MAC address table	16K
Jumbo frame	10K
PoE power supply management	Support
PoE budget	Single port: AF: 15.4W, AT: 30W Whole device: 130W
Input voltage	100-240V AC 50/60Hz
Power consumption	Full load: ＜160W Empty load: ＜12W
Dimension	294.0mmx179.6mmx44.0mm
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Energy Efficient	Support
Environment	Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing
Certification	FCC、CE、RoHS
L3 Features	VLAN-based routing IPv4 static routing adding Static ARP adding/deleting ARP aging time configuration
PoE power supply management	Supports port PoE configuration and power supply with priority Supports PoE over-temperature protection Supports PoE scheduled management Supports intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status)
Security features	ARP receiving limit Unknown MAC address discard DoS attack defense 802.1x security authentication Radius security authentication
VLAN	IEEE 802.1Q VLAN VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid
DHCP Server	DHCP Server DHCP Relay DHCP Snooping Supports Option 82 policy configuration
Port aggregation	Static aggregation LACP dynamic aggregation
Spanning tree	IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics
Multicast	IGMP Snooping V1/V2/V3 Supports port fast leave
Port Mirroring	Supports N: 1 port mirroring
Quality of Service	SP (Strict Priority) SWRR (Simple Weighted Round Robin) WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8-queue service quality mapping
ACL	Supports MAC ACL and IP ACL
Loading and upgrade	Supports FTP/TFTP/HTTP upgrade Supports configuration import and export
Management and maintenance	Supports Telnet Supports SNMP V1/V2/V3 Supports WEB management and maintenance Supports Ping/Tracert/Connection Detection CPU Monitoring and memory monitoring Local visualization management
