Суич Tenda TEF1118P-16-150W, 1000Mbps, 18 порта, 16x 10/100 Mbps, 2x 10/100/1000 Mbps, 1x SFP, VLAN

Tenda TEF1118P-16-150W

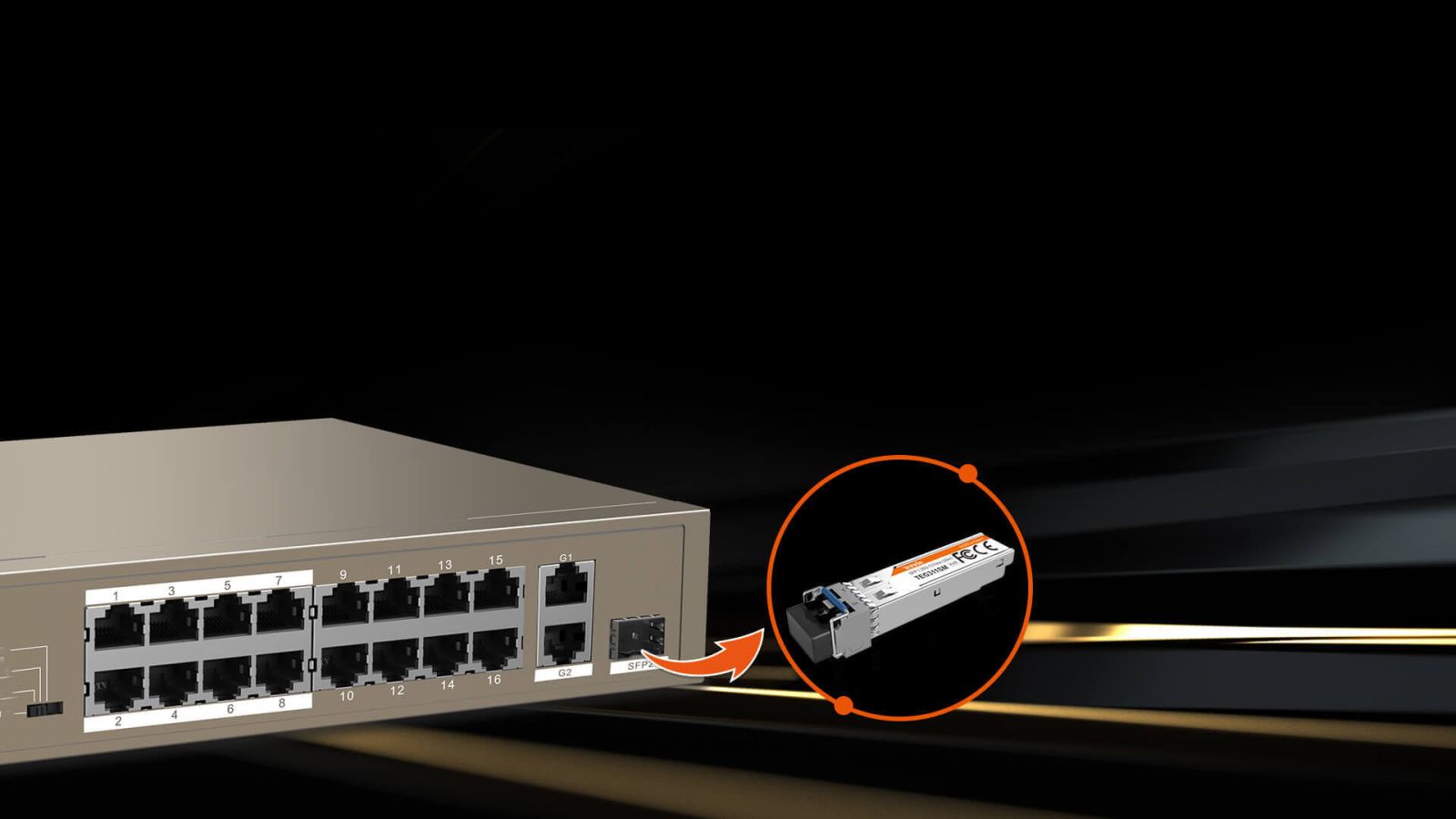

GE & SFP uplink ports，Large Buffer of Nearly 3M

With one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fibermodule TEG311SM, the switch supports a maximum transmission distance up to 20km.





6KV Excellent Lightning Protection

The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc, and these greatly protect the switch from being damaged by thunderstorm. Besides, it supports wide voltage input, AC：100-240V~50/60Hz.

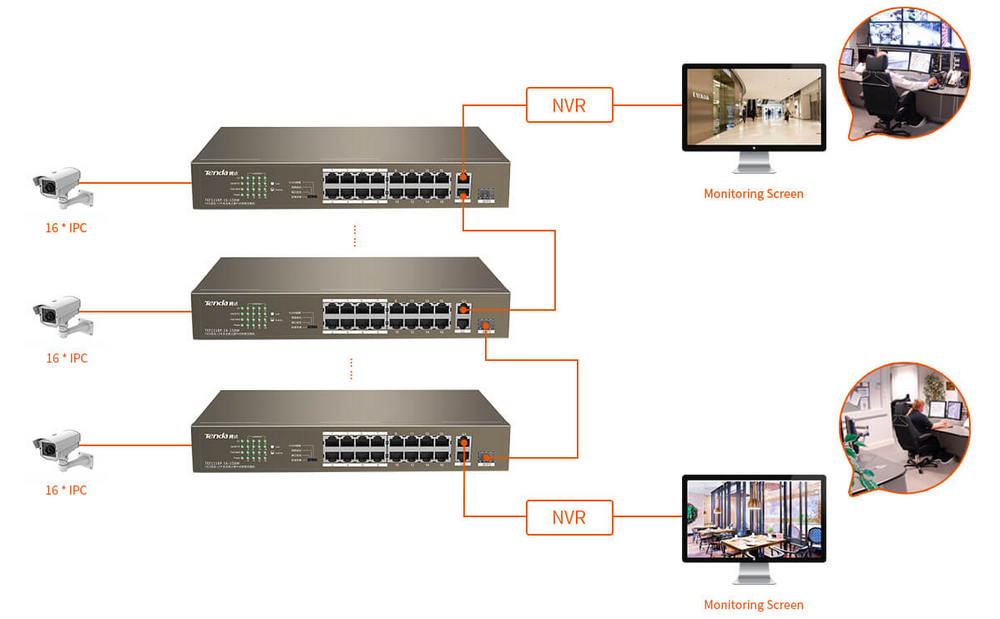

Cascading with 6 Devices
Can Support IP Surveillance Project of up to 96 Cameras

In the number of about 100 terminals accessed to the network, cascading 6 devices through the G1、G2/SFP2can achieve up to 96-channel monitoring, according to the project , it supports 300W/500W IP Caccessed and ensure stable video transmission without breaking up.If the both ends of devices are connected to the NVR, the video can be watched locally.

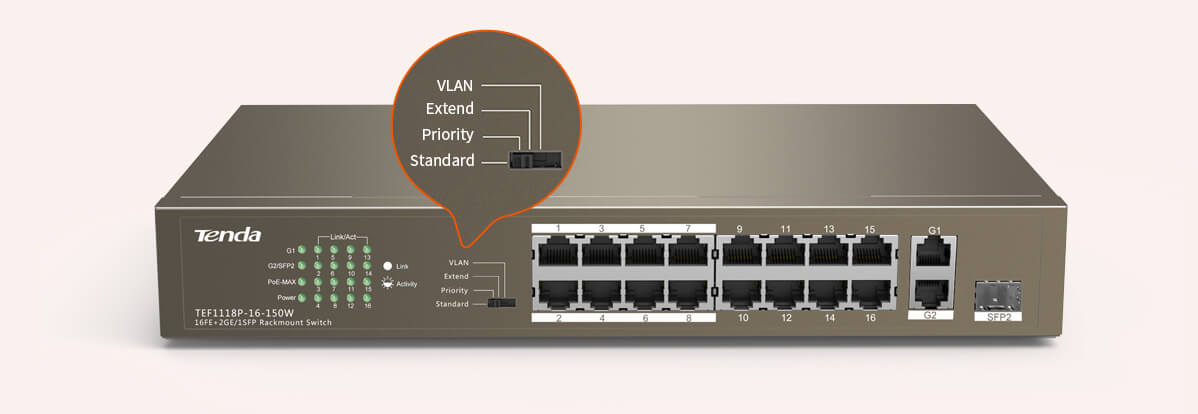

4 Modes for Different Networks

Standard mode, Port-based Priority mode, Port-based VLAN mode and Extend mode make TEF1118P-16-150W be able to deal with different networks，special for small & Medium-sized IP surveillance & WI-FI coverage project.









Specifications:

Network standards	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at
LED Indicator	16 * Link/Act LEDs  1 * G1 LED  1 * G2/SFP2 LED  1 * PoE-MAX LED  1 * Power LED
Interfaces	16 * 10/100 Base-TX Ethernet ports (Data/Power)  2 * 10/100/1000 Base-T Ethernet ports (Data)  1 * 1000 Base-X SFP port (Combo)
Transmission media	Recommended: CAT5/5e UTP or better
Fan quantity	N/A
Dimension	294.0mmx178.8mmx44.0mm
Level of protection	Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD:  Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	7.2 Gbps
Packet forwarding rate	5.36 Mpps
Buffer	1.25Mb
MAC address table	4K
Jumbo frame	N/A
PoE budget	Single port: AF: 15.4W, AT: 30W Whole device: 130W
Power consumption	/
Input voltage	100-240V AC 50/60Hz
Mounting	Desktop mounting: support Wall mounting: support Rack mounting : support
Environment	Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing  Storage Humidity: 5%~90% non-condensing
Certification	FCC、CE、RoHS
