Суич Tenda S16, 16x порта, 100Mbps, 16x 10/100Mbps RJ-45

Tenda S16



The Tenda S16 16-Port 10/100Mbps Switch provides simple and ideal solution to expand network for large home, building, leased or rented house and SMB. S16 connects with a router and connect with fifteen additional computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy plastic case with compact size, it is the best choice for desktop installation.







Space-saving Design

The switch is solidly built in small size that is easy to position on any flat surface with limited space.





Secure &Reassuring

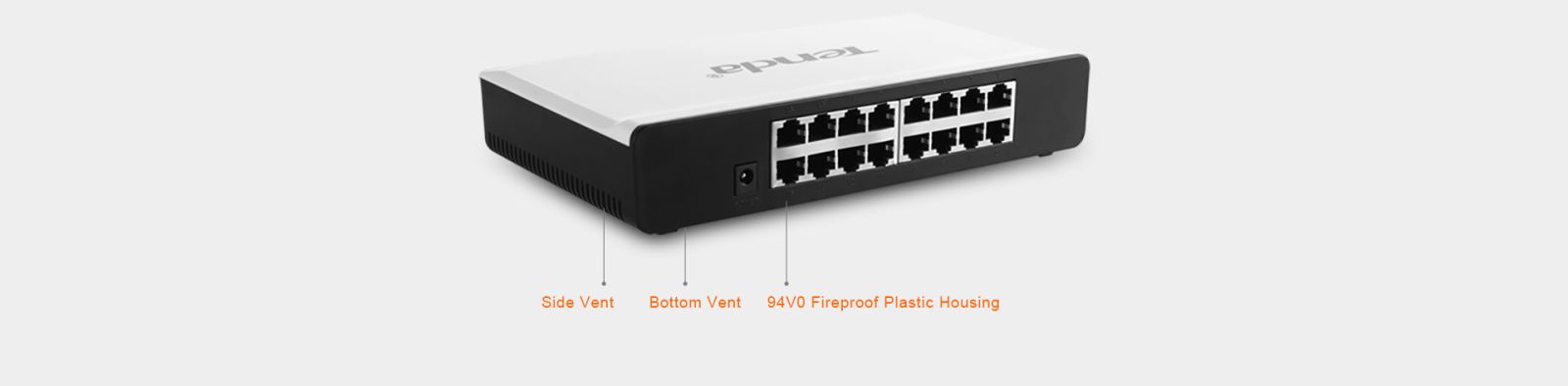

The switch is built with reduced heat and a longer product life without sacrificing performance or functionality in mind. With superb heat dissipation capability and manufactured with fire proof materials, the switch maintains optimum performance even in extreme environment.



Specifications:



Hardware

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x



LED Indicator

1* Power, 16* Link/Act



Interfaces

16*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)



Transmission media

Recommended: CAT5/5e UTP or better



Fan quantity

N/A



Dimension

218.0mmx135.0mmx41.6mm



Material

Plastic



Level of protection

ESD:
Air discharge: ±8kV
Contact discharge: ±6kV



Forwarding mode

Store-and-forward



Switch capacity

3.2Gbps



Packet forwarding rate

2.38Mpps



Buffer

1.25Mb



MAC address table

4K



Jombo frame

N/A



Power

Input: 100-240V AC 50/60Hz
Output: 9V 0.6A (External power adapter)



Power consumption

/



Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support



Environment

Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing



Certification

CE, FCC, RoHS





Software

Protocols

CDMA/CD



MAC address learning

Auto-Learning and Auto-Aging



Funtions

plug-and-play
