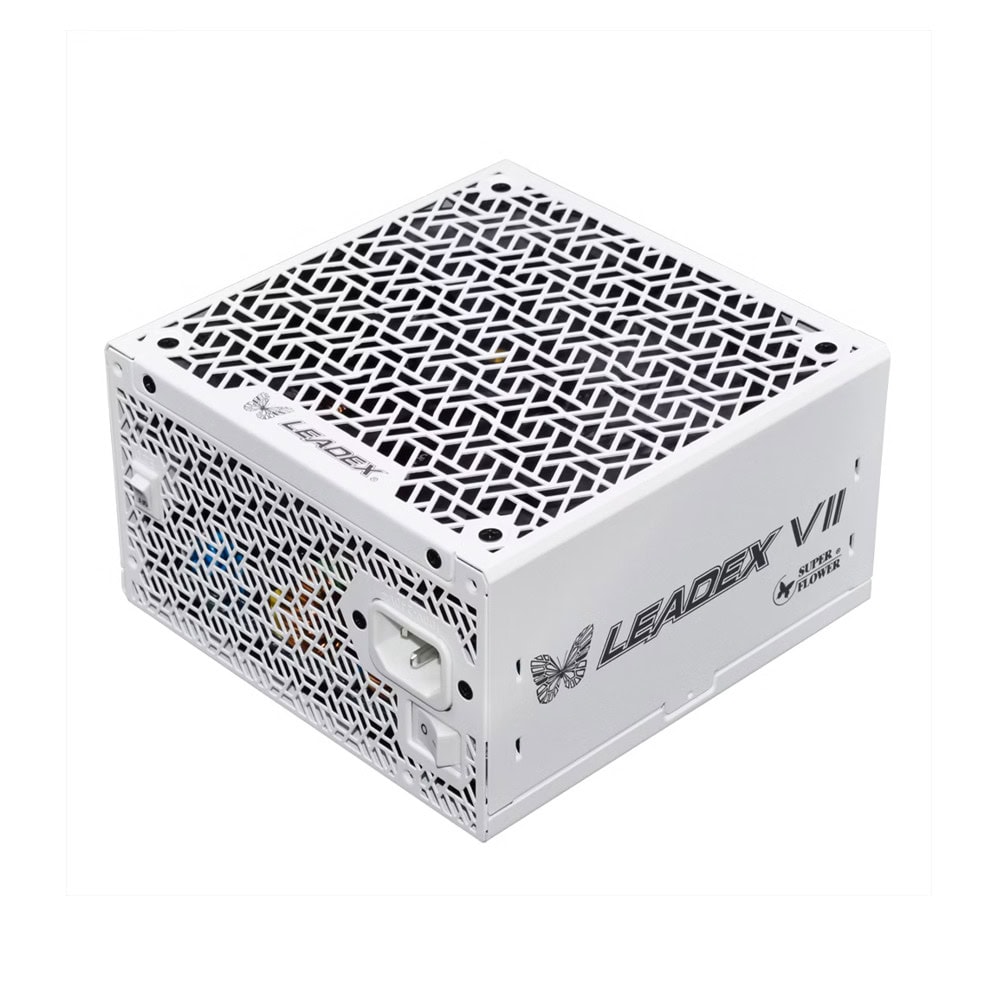

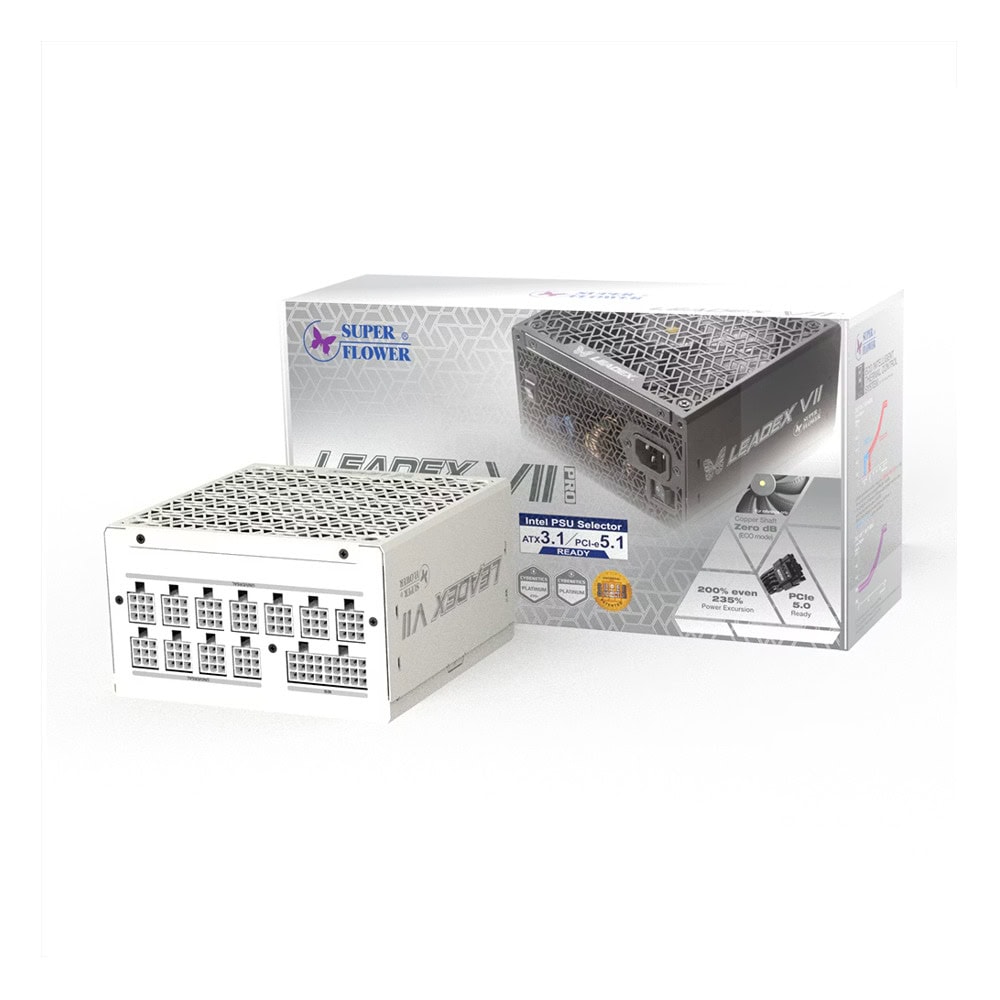

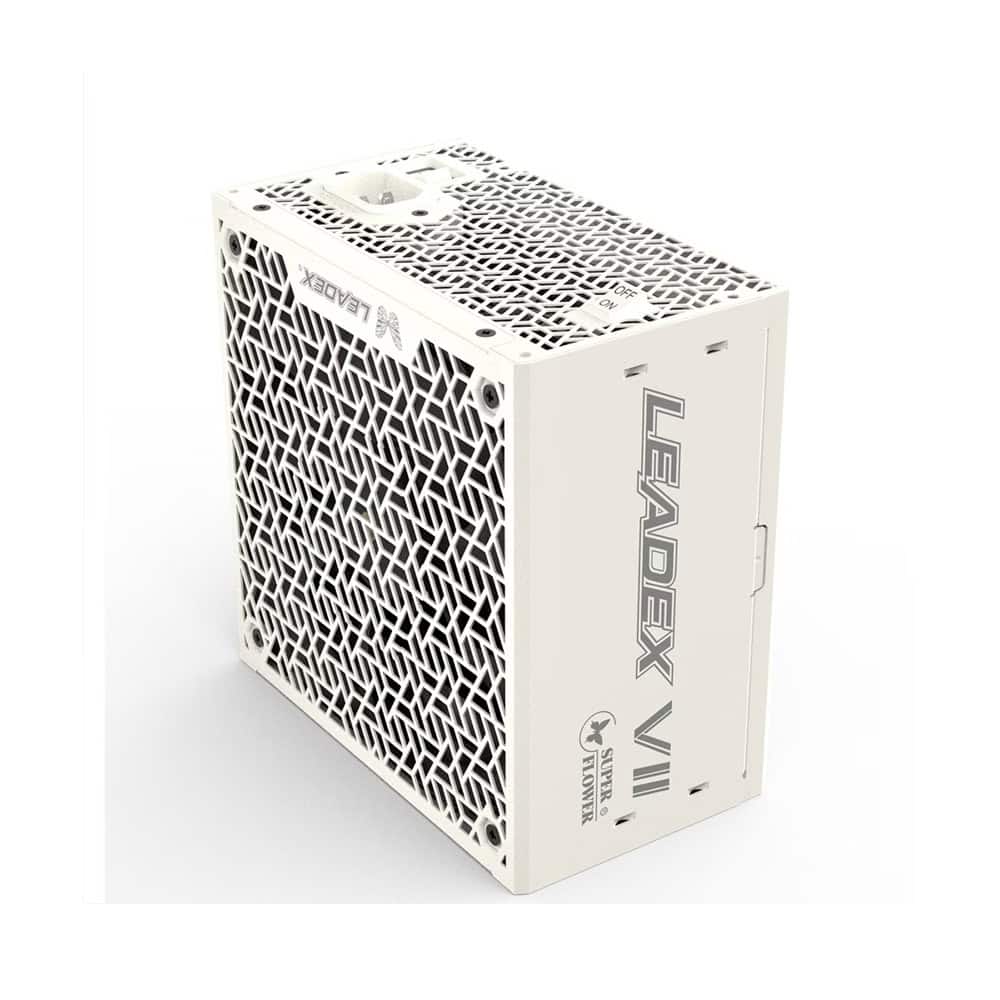

Захранване Super Flower Leadex VII Platinum PRO White, 850W, Active PFC, 80 Plus Platinum, 140mm вентилатор

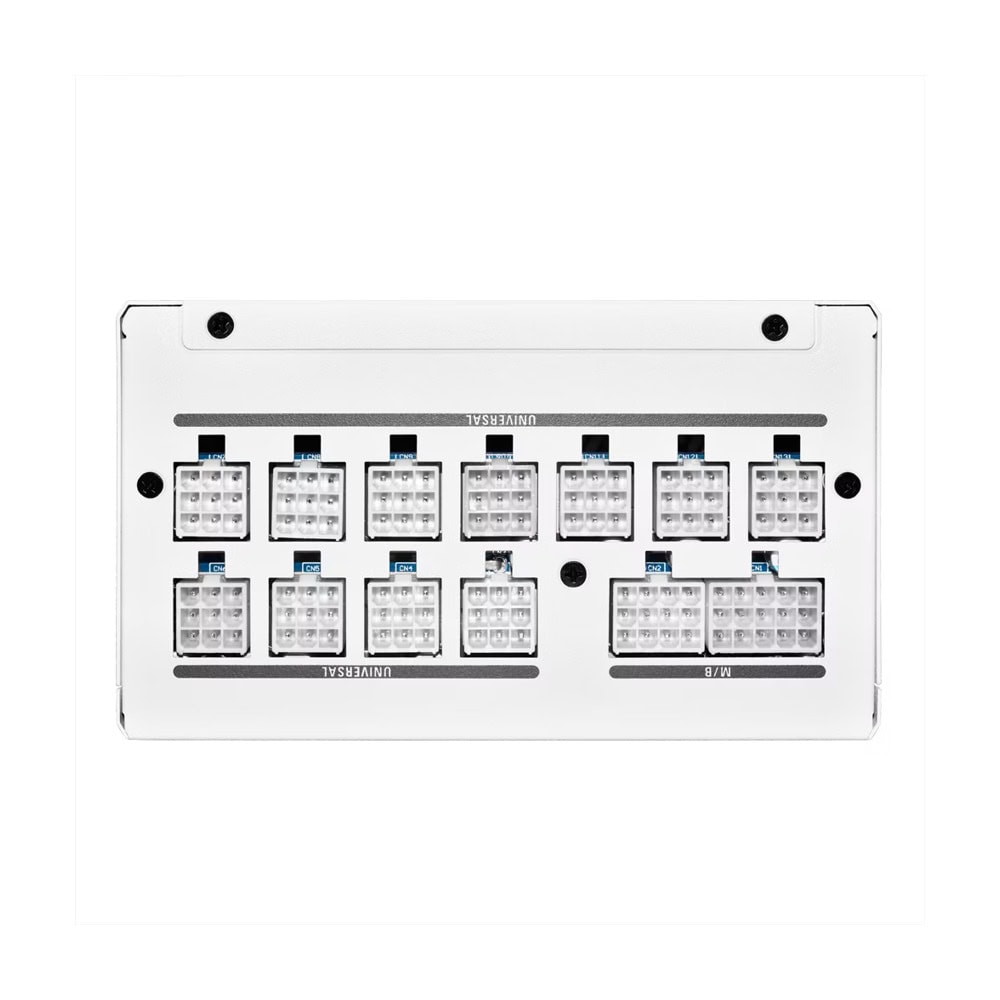

LEADEX VII Platinum is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 9-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode

Transform Efficiency

20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency

Cybernetics Certified

Efficiency: Platinum  /  Efficiency 230V: Platinum

Intel Power Design Guide

EPS Ver. 2.92 & ATX 3.1

AC Input | Frequency

100V-240V | 60 / 50Hz , Full Range APFC

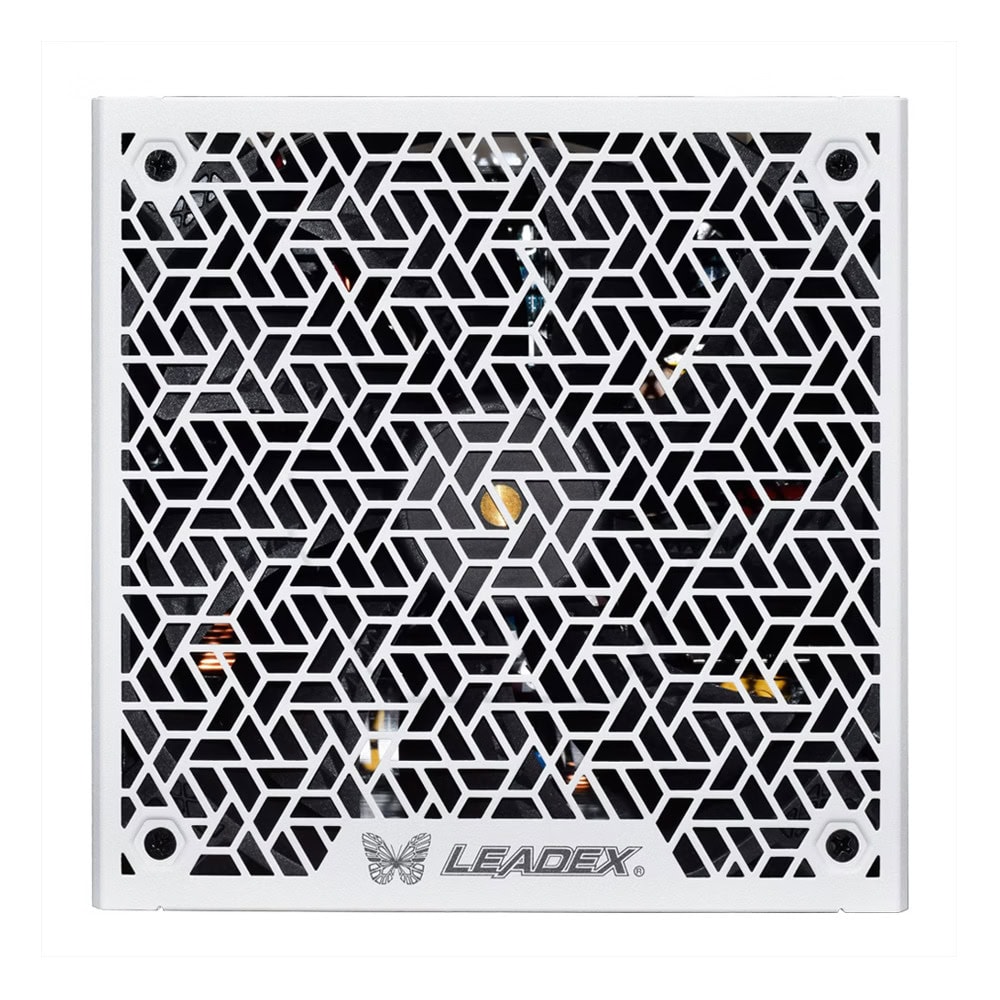

Fan Size

14cm FDB FAN

Dimension

150mm(L) x 150mm(W) x 86mm(H)

Protection

OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP

Safety Certificates

cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC

Temperature

Passed 50℃ Hot Testing

Cable Wires

20+4 Pin

Detachable

One Cable (600mm)

8(4+4) Pin CPU

Two Cables (700mm)

PCI 6+2 Pin

Three Cables (700mm)

4 SATA

Three Cables (550+130+130+130mm)

4 Molex

One Cable (550+150+150+150mm)

PCIe 12+4 Pin

One Cable (700mm)

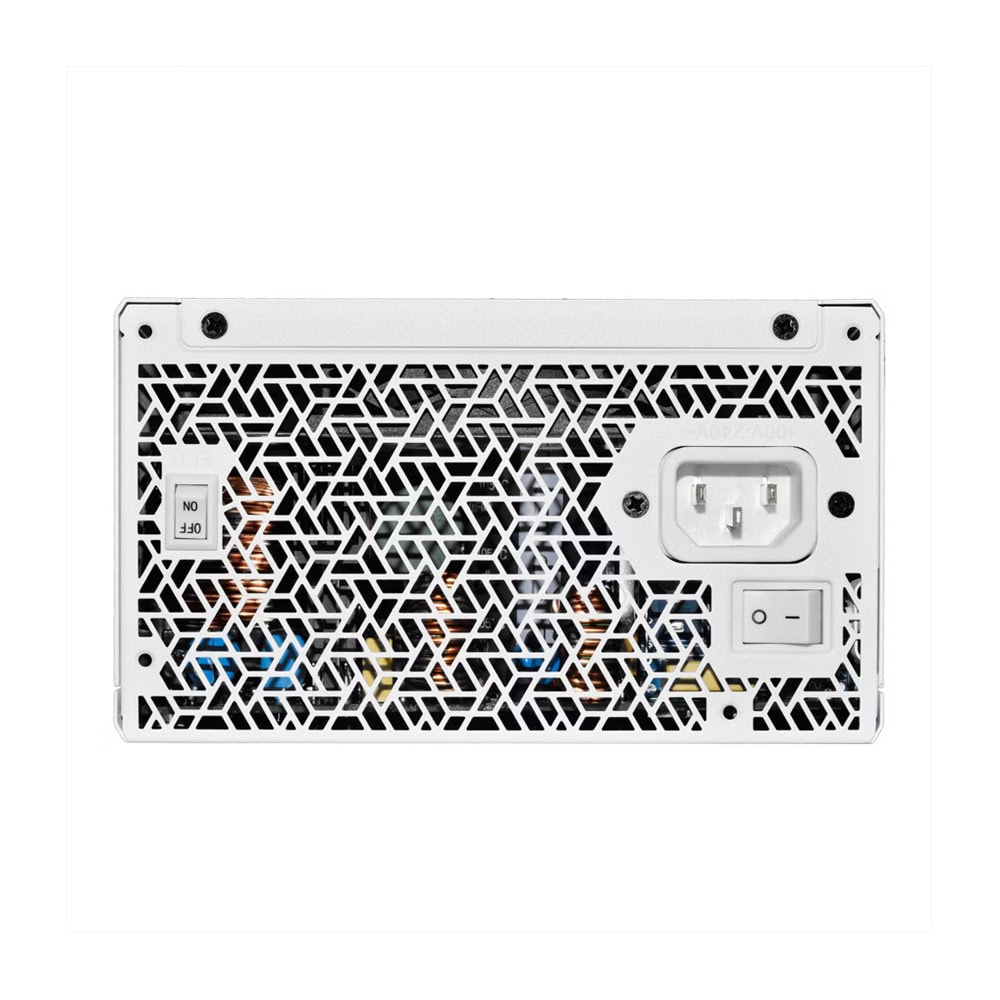

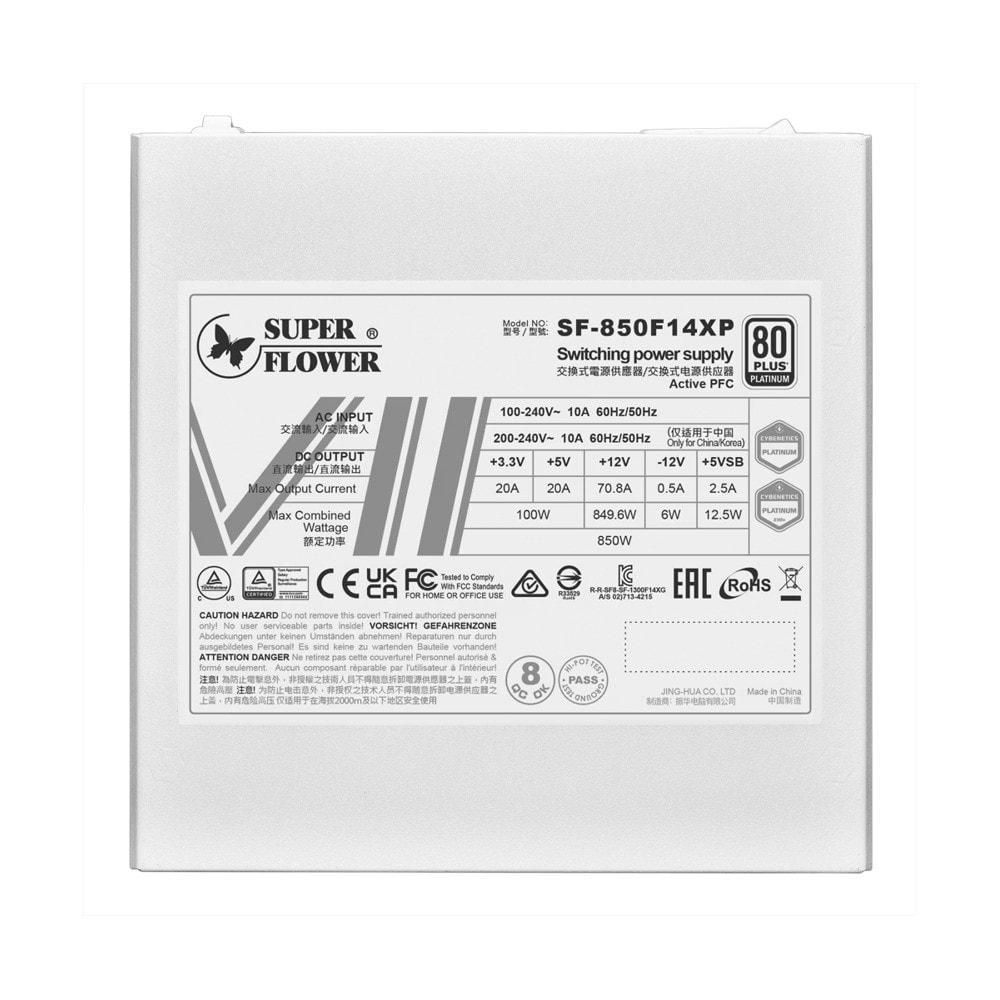

AC INPUT

100-240V~  10A  60Hz/50Hz

200-240V~  10A  60Hz/50Hz (Only for China/Korea)

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5VSB

850W

Max Output Current

20A

20A

70.8A

0.5A

2.5A

Max Combined Wattage

100W

849.6W

6W

12.5W

850W
