Захранване Super Flower Leadex VII XG, 1000W, Active PFC, 80+ Gold, 140mm вентилатор

Super Flower Leadex VII XG 1000W

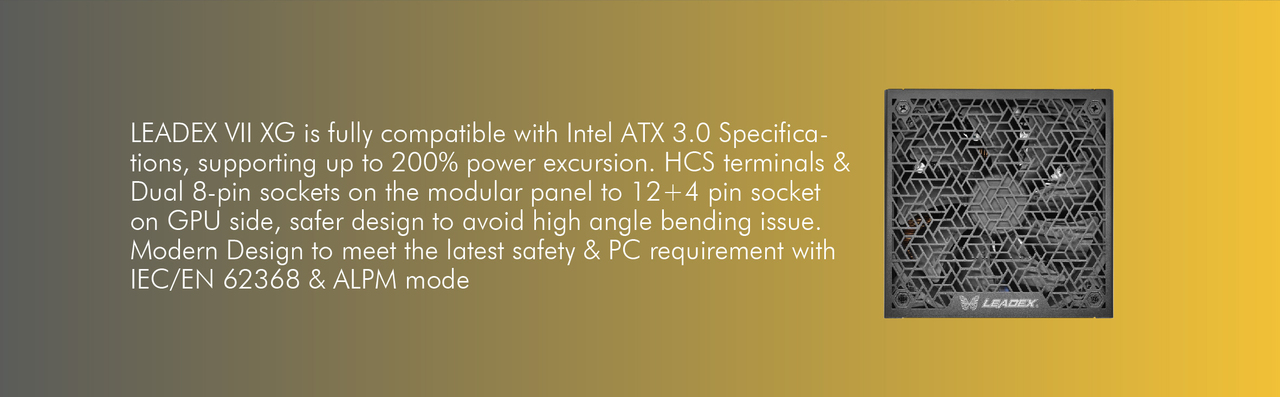

LEADEX VII XG is fully compatible with Intel ATX 3.0 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode



★ 140mm F.D.B Fan: Unique 9-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).

★ New patented technology of Buckle (20+4) Pin connector  (Patent No.: Taiwan M563575 ; China 7566010,USA)

★ Innovative Design for gaming System & PSU protection
1. DC output +12V/ +5V/ +3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements

4. Low Output Voltage Ripple
★ ECO-design
1. Auto & ECO Fan control
2. High efficiency on all rails, including 5VSB

★ 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.

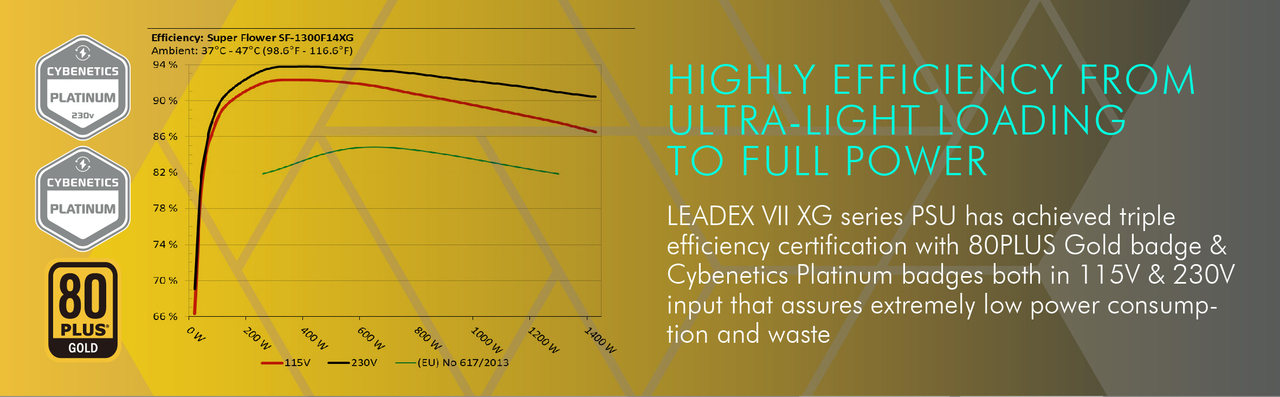

★ 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.

★ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)

★ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)

★ Comply With ATX 12V v3.0, EPS 12V v2.92 Specification.

★ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation

★ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection

★ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)

★ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card

★ More than 2,000 times On/Off test

★ Lead-free Green Materials with RoHS / WEEE Compliance

★ Perfect For Professional & High Performance Gaming System

★ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.

★ Complete Japanese Capacitors.
