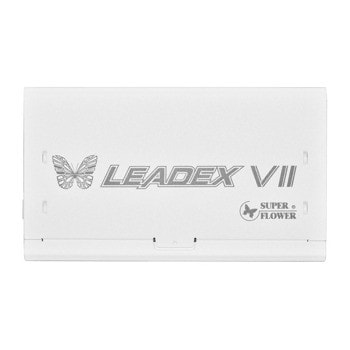

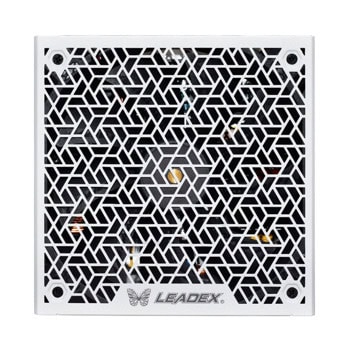

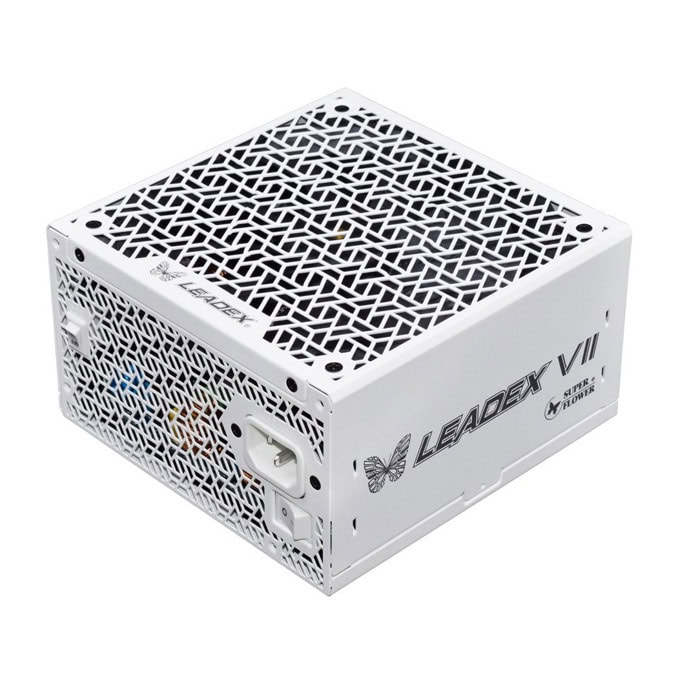

Name: Захранване Super Flower Leadex VII White, 1200W, Active PFC, 80 Plus Platinum, 140mm вентилатор
Brand: Super Flower
SKU: PWRPCSUPERFLOWERSF1200F14XPWH
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

★ 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.

★ 80 PLUS® Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.

★ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)

★ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)

★Comply With ATX 12V v3.0, EPS 12V v2.92 Specification.

★ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation

★ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection

★ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)

★ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card

★ More than 2,000 times On/Off test

★ Lead-free Green Materials with RoHS / WEEE Compliance

★ Perfect For Professional & High Performance Gaming System

★ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.

Specification

Transform Efficiency	20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency
Cybernetics Certified	Efficiency: Platinum / Efficiency 230V: Platinum
Intel Power Design Guide	EPS Ver. 2.92 & ATX 3.0
AC Input \| Frequency	100V-240V \| 60 / 50Hz , Full Range APFC
Fan Size	14cm FDB FAN
Dimension	150mm(L) x 150mm(W) x 86mm(H)
Protection	OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP
Safety Certificates	cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC
Temperature	Passed 50℃ Hot Testing
Cable Wires
20+4 Pin	One Cable (600mm)
8(4+4) Pin CPU	Two Cables (700mm)
PCI 6+2 Pin	Four Cables (700mm)
4 SATA	Three Cables (550+130+130+130mm)
4 Molex	One Cable (550+150+150+150mm)
PCIe 12+4 Pin	One Cable (700mm)

AC INPUT		100-240V~ 15A 60Hz/50Hz
		200-240V~ 10A 60Hz/50Hz (Only for China/Korea)
DC OUTPUT		+3.3V	+5V	+12V	-12V	+5VSB
1200W	Max Output Current	20A	20A	99.9A	0.5A	2.5A
	Max Combined Wattage	100W		1198.8W	6W	12.5W
		1200W
