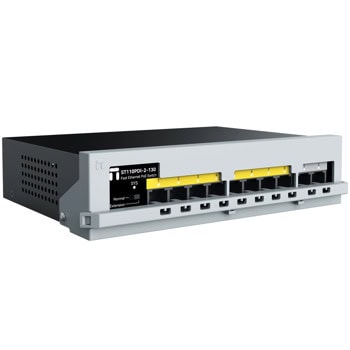

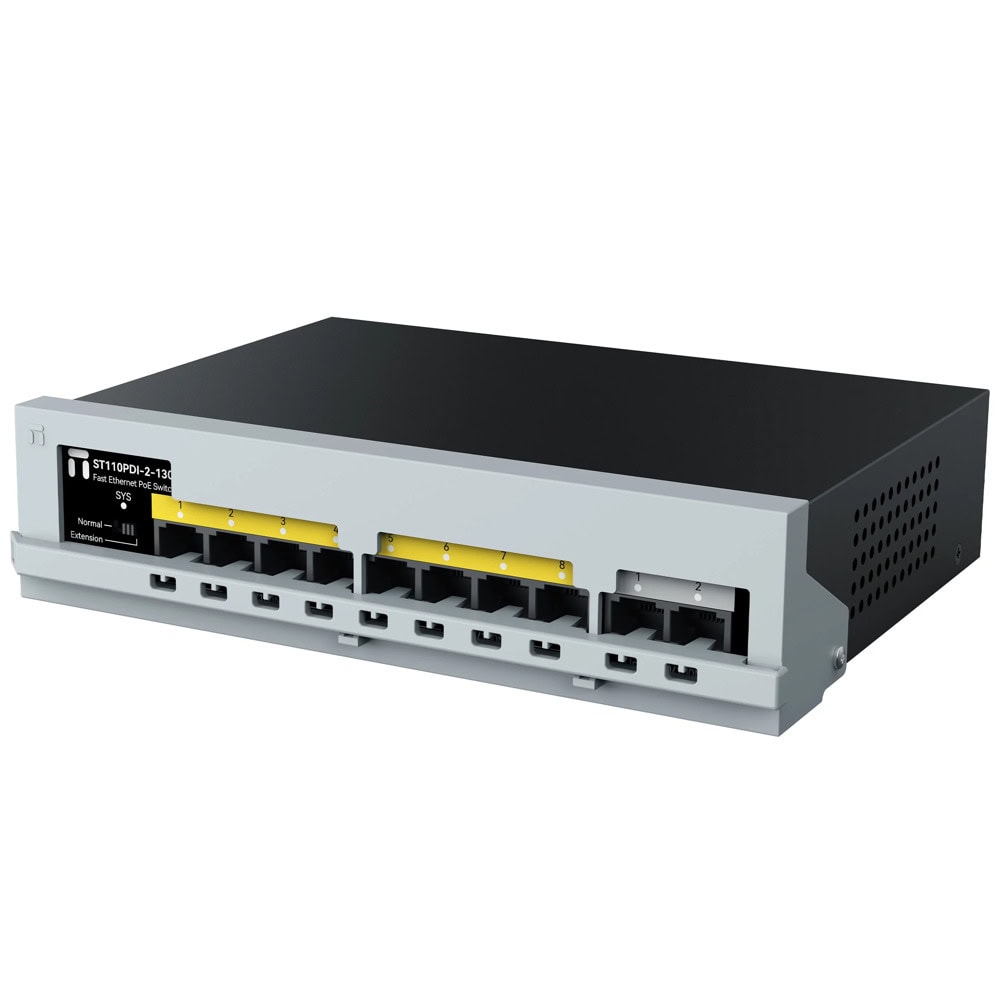

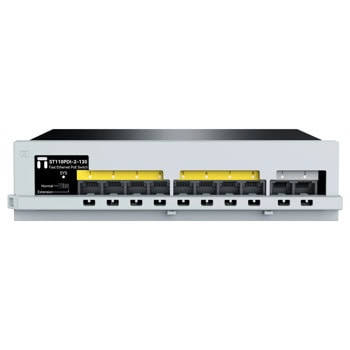

Name: Суич Stonet ST110PDI-2-130, 100Mbps, 10 порта, 8x 10/100Mbps RJ45 (PoE), 2x uplink
Brand: Stonet
SKU: NTLHSTONETST110PDI2130
Price: 43.29 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

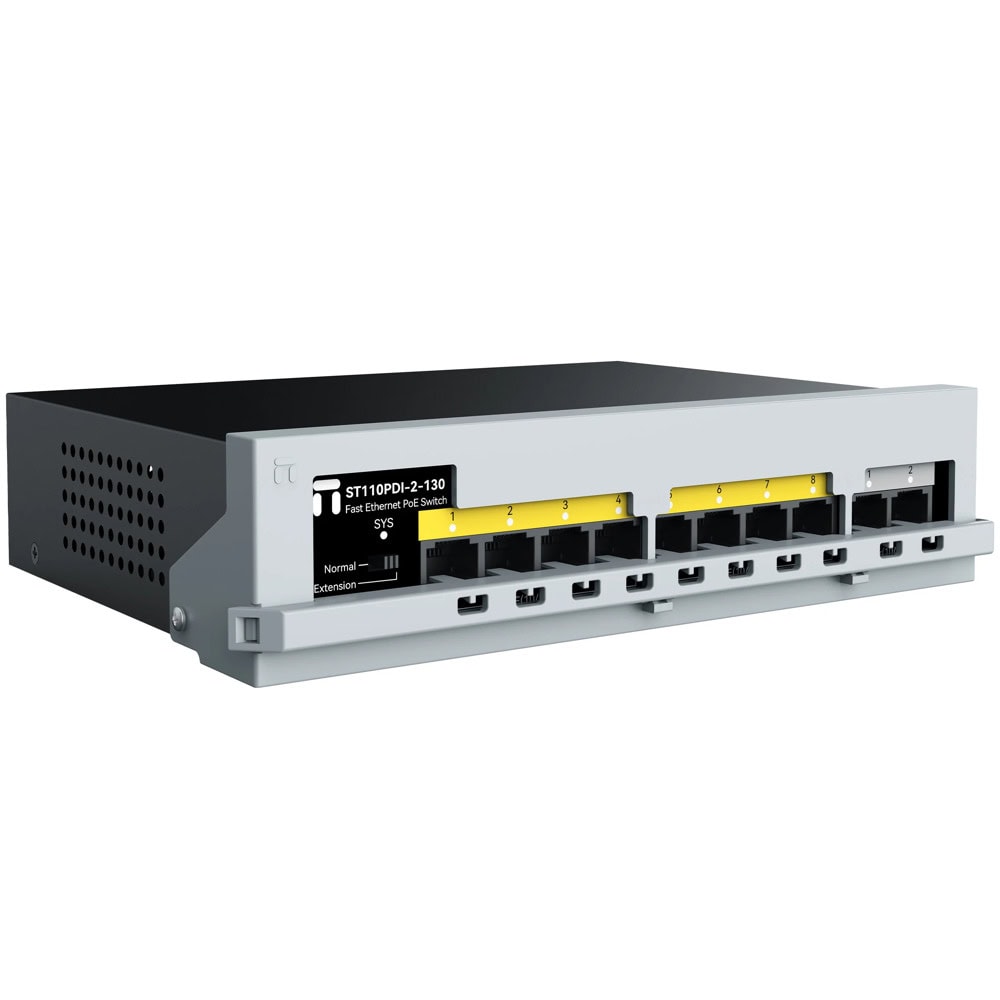

ST110PDI-2-130

Fast Ethernet PoE Switch with Attached Safety Lock

Attached safety lock, more stable connection.
10*10/100M ports: 8 PoE ports+2 uplink ports.
Built-in 130W power supply with up to 30W PoE output per port.
Durable steel shell for better heat dissipation.
Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
All ports support auto MDI/MDI-X function.
Equipped with a convenient DIP switch that can be easily switched between normal mode and extend mode.

More Durable!

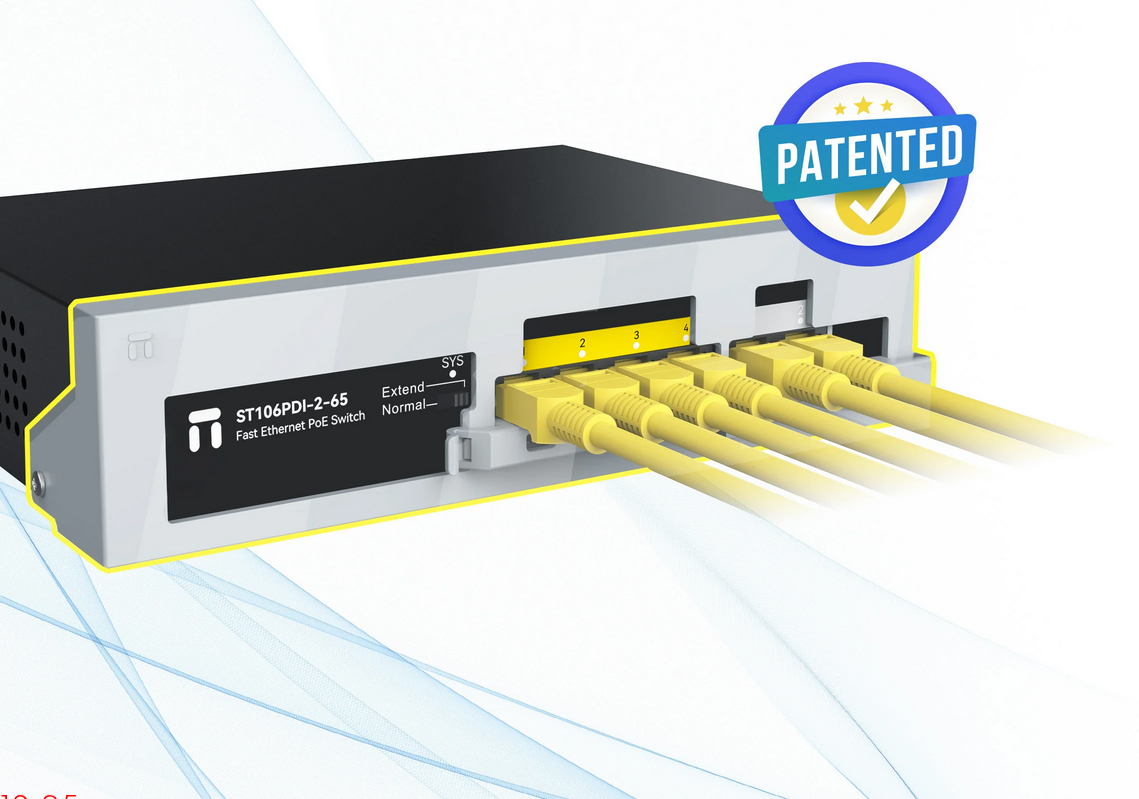

Attached safety lock design, no need to install, it will keep your network cable fixed stable with the switch.

*Attached safety lock with exclusive patent certification, 100% quality assured.

Standard PoE Power Supply

Up To 30W PoE Output Per Port

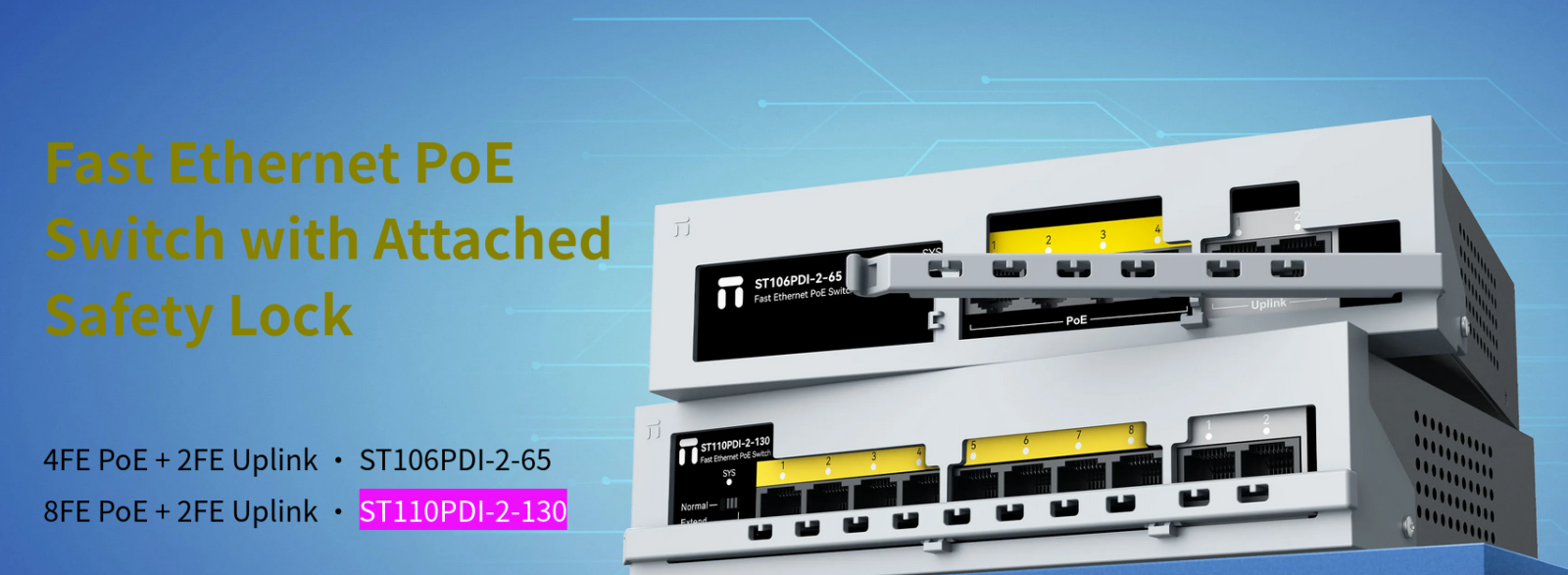

ST106PDI-2-65 has a total power of 65W with 4*100M PoE ports and 2*100M uplink ports.

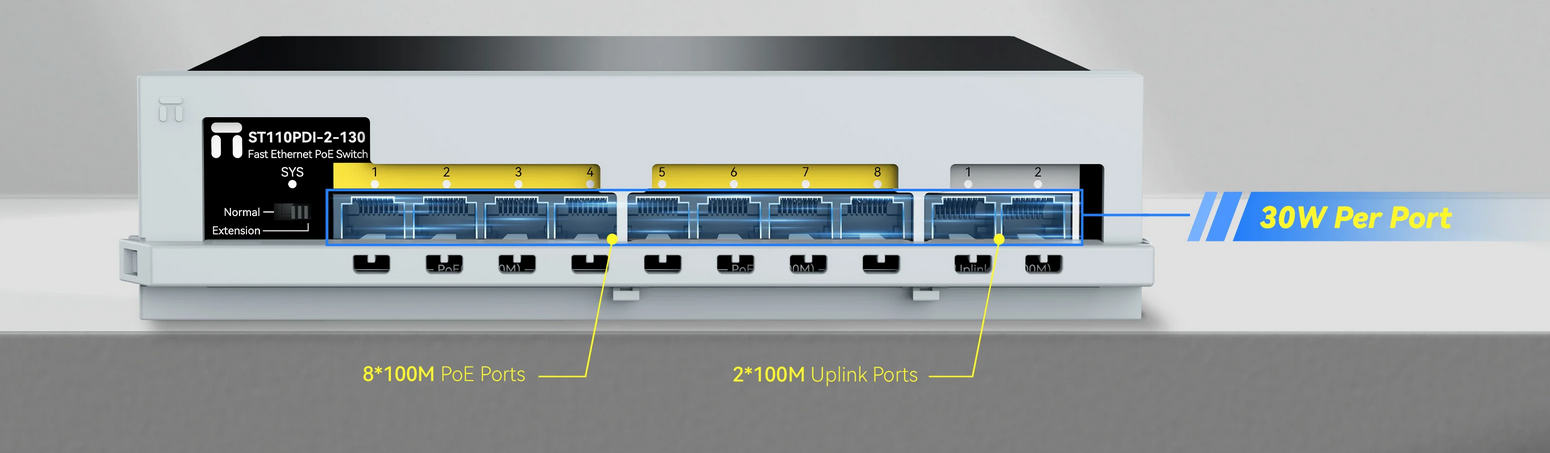

ST110PDI-2-130 has a total power of 130W with 8*100M PoE ports and 2*100M uplink ports.

It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.

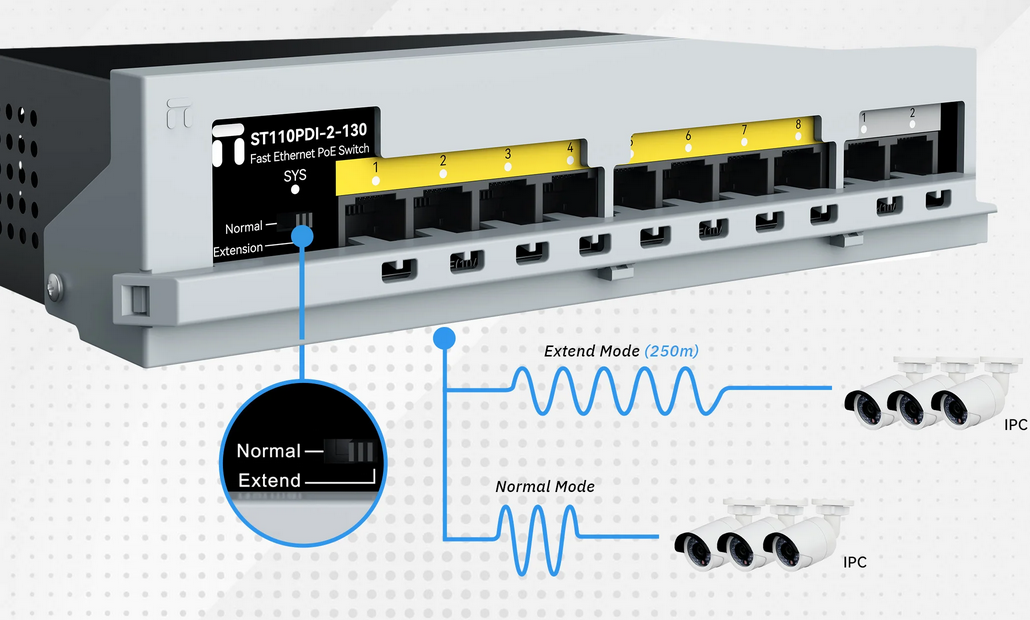

Extend to 250M

Unlocking More Possibilities

Equipped with a convenient DIP switch. It can be easily switched between normal mode and extend mode to meet network needs in different environments and improve deployment flexibility.

Ingenious Design Lowers Failure Rates

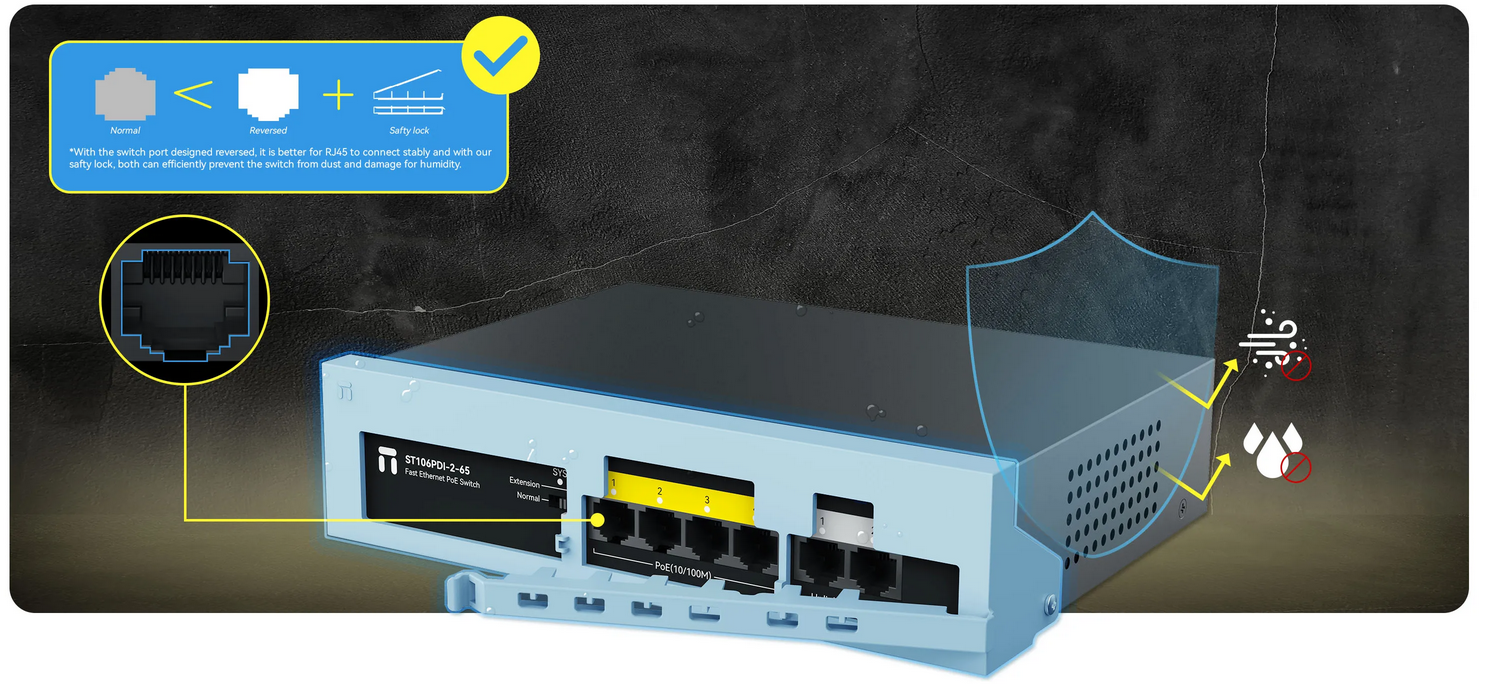

With the port designed upside down, it reduces the risk of damages from dust/humidity when connecting with cables. The attached safety lock also helps preventing dust from entering the switch, in order to avoid metal corrosion/board short circuit. Meanwhile in thunderstorm/humid environments, it helps to reduce product failure rates.

Multiple Protections

Ensure Safety without Worries

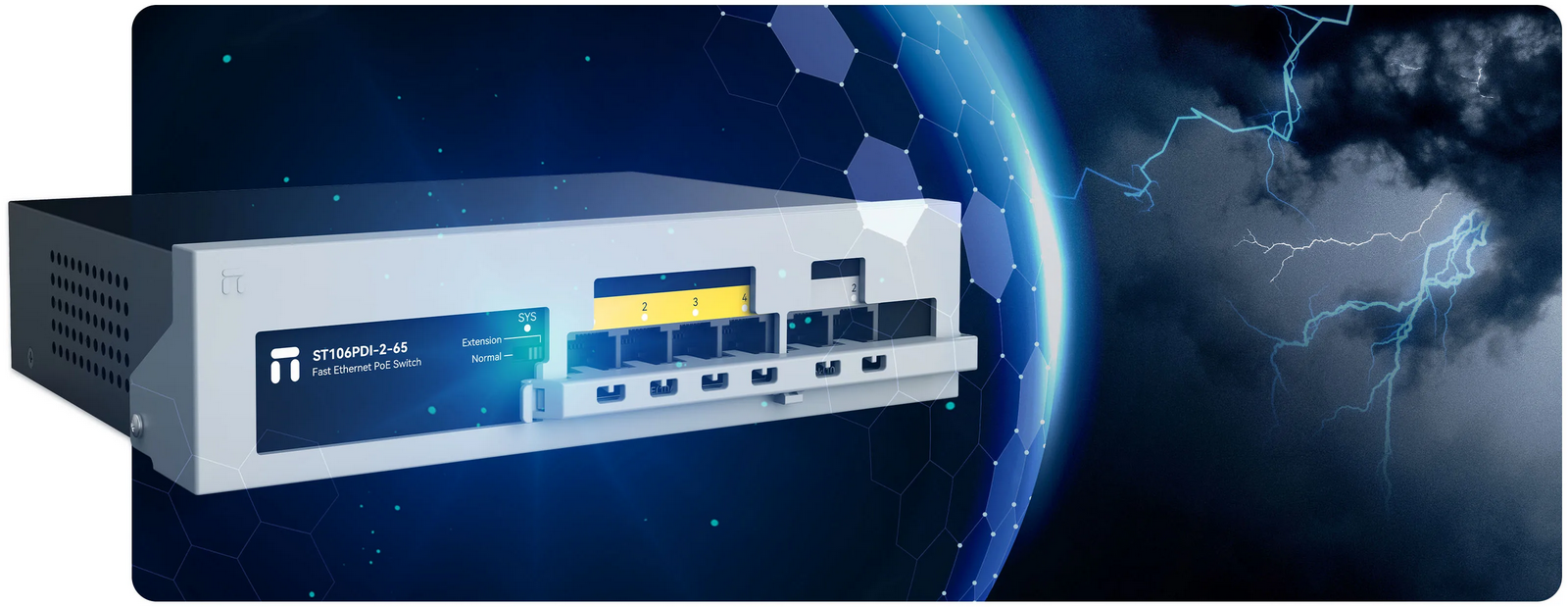

Built-in 4KV common-mode and differential-mode lightning protection module can effectively resist lightning strikes and surges.
At the same time, it has overcurrent, overload and short-circuit protection functions.

Specification Item	Details
Power Indicator	Lights up when the device is powered on
Function Indicator	Lights up when the extended transmission function is enabled
Switch Ports	Normal mode / Cable Extension mode
Ports	8 × 100Mbps PoE ports + 2 × 100Mbps uplink ports
Backplane Bandwidth	2 Gbps
MAC Address Table	2K

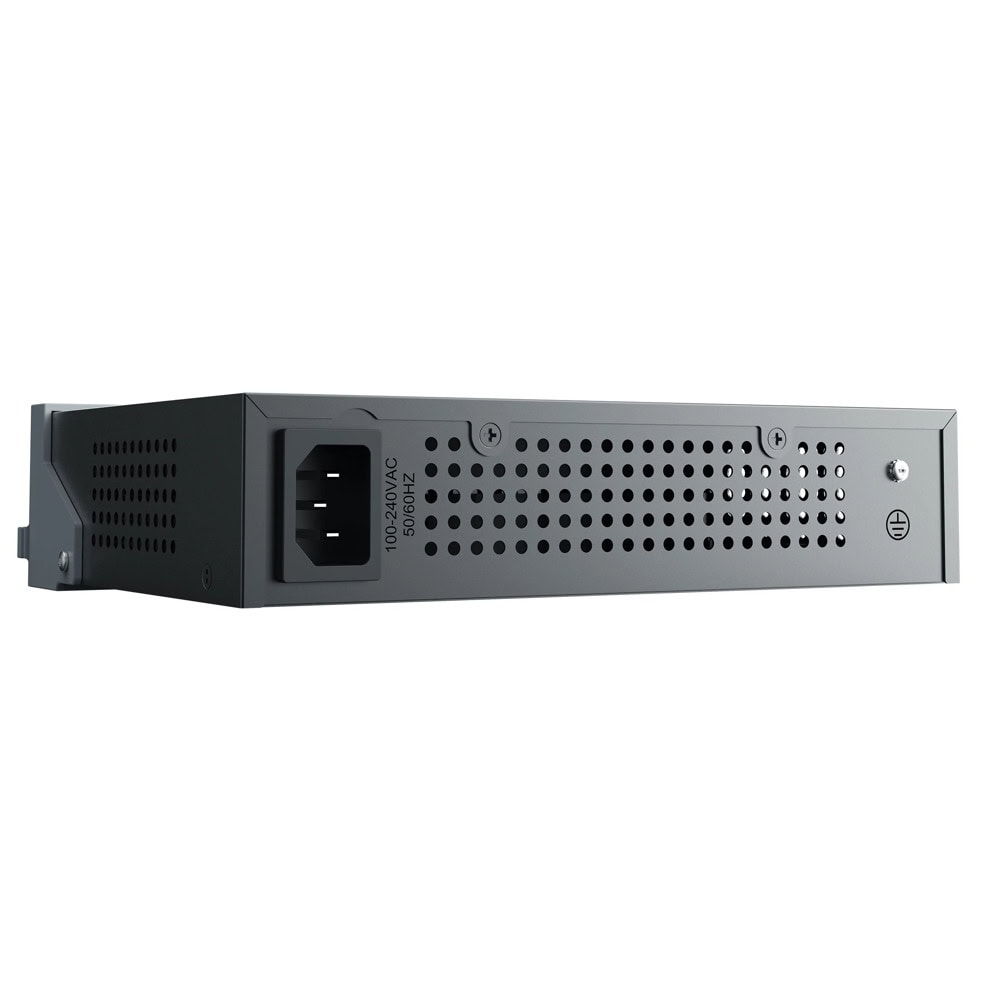

Input Power	100–240V ~ 50/60Hz
Power Supply	130W, 54V / 2.4A
Maximum PoE Output Power	120W
Network Media & Transmission Distance	100Base-TX: Cat5 or higher UTP/STP (≤100m); 10Base-TX: Cat6 or higher UTP/STP (≤250m)
Basic Functions	IEEE 802.3 / 802.3u compliant; supports IEEE 802.3af/at PD devices; compatible with non-standard PD; store-and-forward switching; automatic MAC learning & aging; extended transmission; IEEE 802.3X flow control; backpressure half-duplex control
Ethernet Protocols & Standards	IEEE 802.3, 802.3i (10BASE-T), 802.3u (100BASE-TX), 802.3af, 802.3at, 802.3x
Data Transfer Rates	10/100 Mbps (full-duplex & half-duplex)
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% RH (non-condensing)
Storage Humidity	5% ~ 90% RH (non-condensing)
Altitude	Operating: max 2000m; Storage: max 2000m
Differential Mode	4KV
Common Mode	4KV
Dimensions (W × D × H)	190 × 140 × 43 mm
Protective Packing	EPE protection
Stacking Limit	Maximum 4 layers (fully packaged)
Humidity	5% ~ 90% RH (non-condensing)
Storage Temperature	-40°C ~ 70°C (room temperature recommended)
Storage Precautions	Store in clean, ventilated area; avoid corrosive gases, flammable/explosive materials, heat sources, and vibration
Storage Period	Up to 1 year; re-test recommended after 2 years
