Захранване Seasonic Focus GX-750, 750W, 80 PLUS Gold, Active PFC, 120mm вентилатор

Seasonic FOCUS GX-750



The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables.

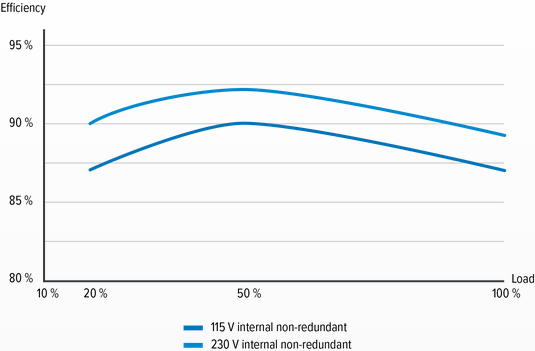

80 PLUS Gold   The FOCUS GX achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.





Cable-free Connection Design

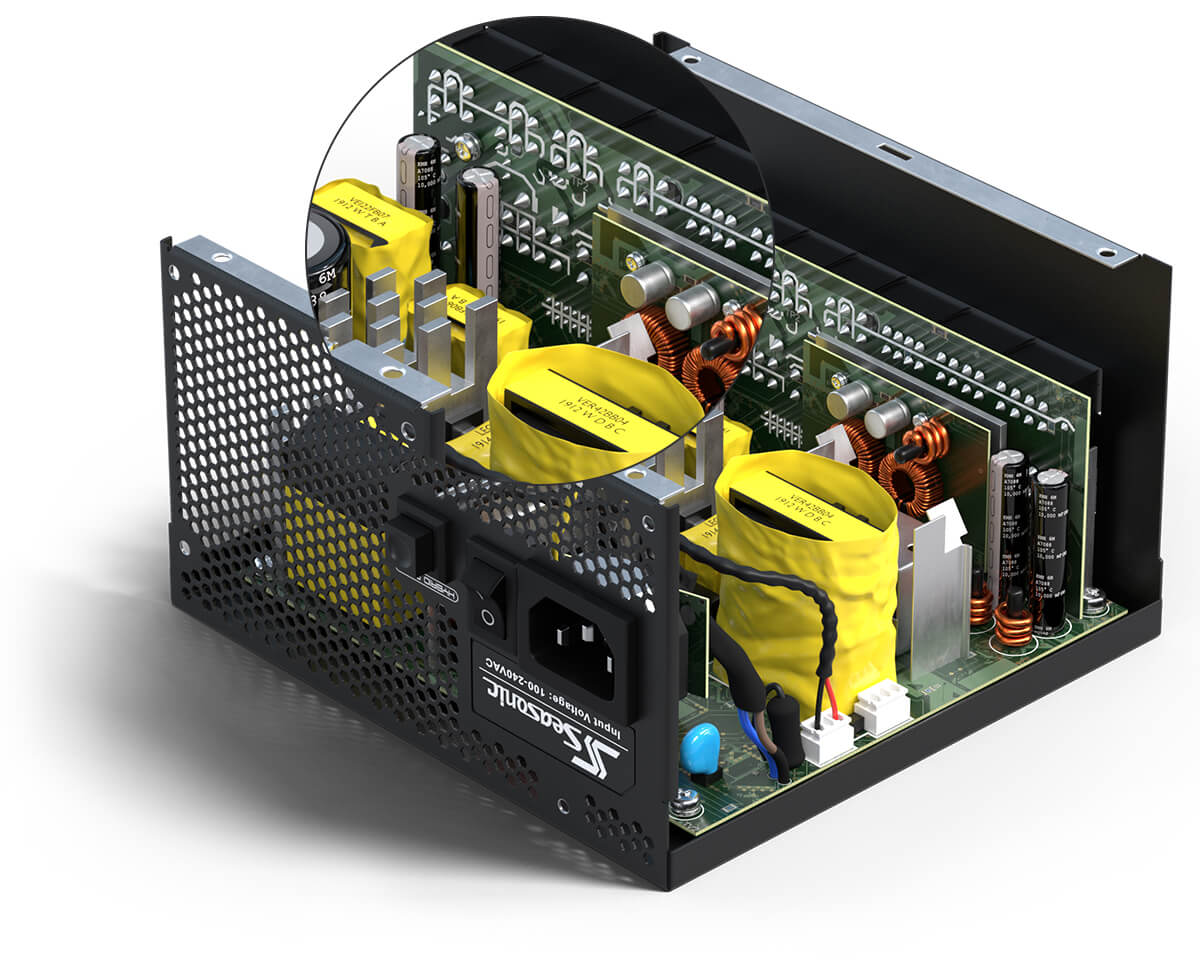

Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.

Hybrid Silent fan Control

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Technical Specifications
80PLUS		Gold
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	S3FC - Fanless until 30 % load
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 10 - 5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	62 A	0.3 A	3 A
		100 W		744 W	3.6 W	15 W
	Total continuous power	750 W
