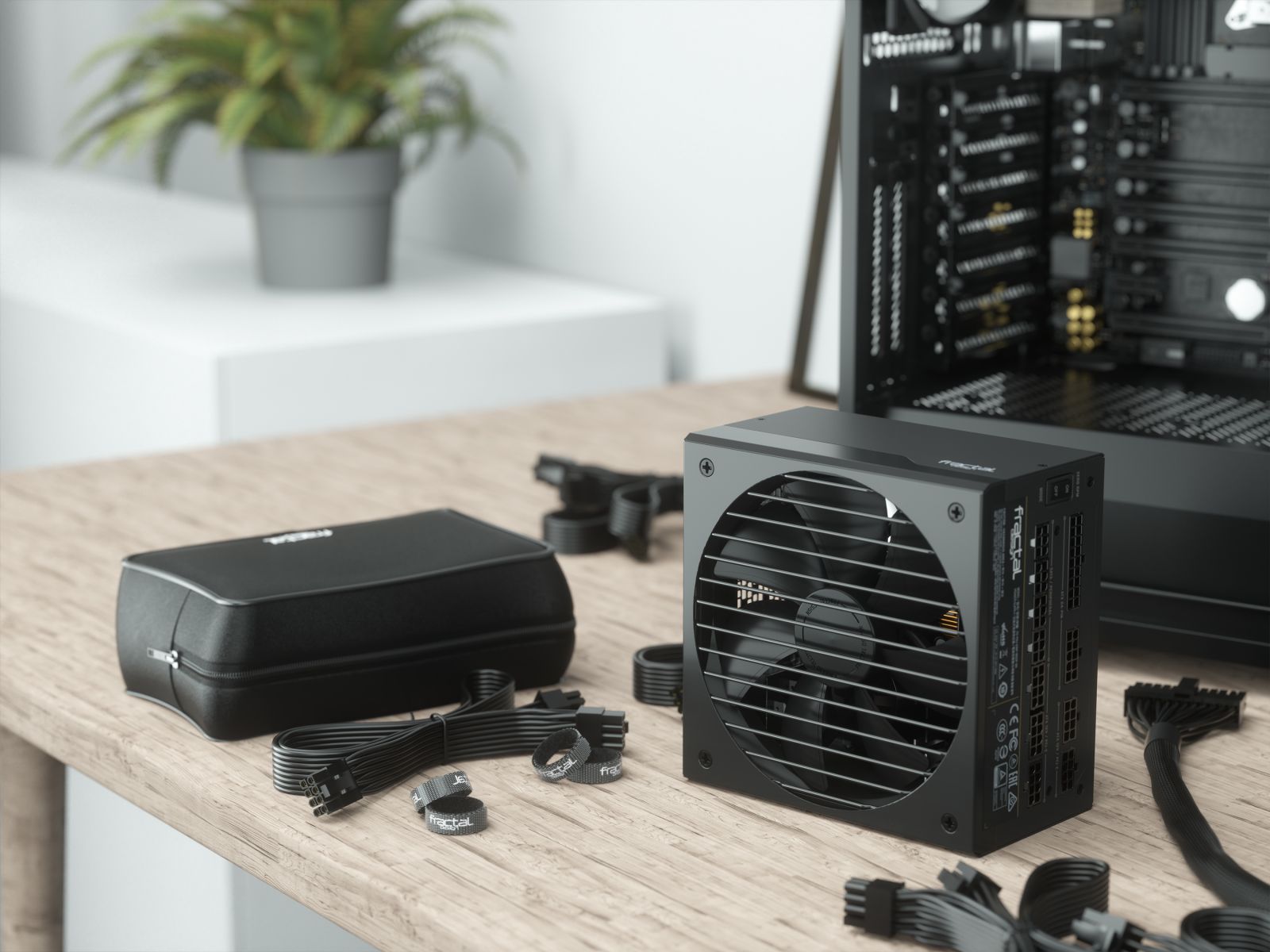

Захранване Fractal Design Ion+, 860W, Active PFC Platinum 80 Plus, 140mm вентилатор













The power of silence

A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and under heavy use the custom-tailored 140 mm fan with FDB bearings barely breaks a whisper. The revolutionary UltraFlex cable bends and twists effortlessly to make installation and cable-routing a breeze, thanks to an ultra-high strand count wire and special insulation

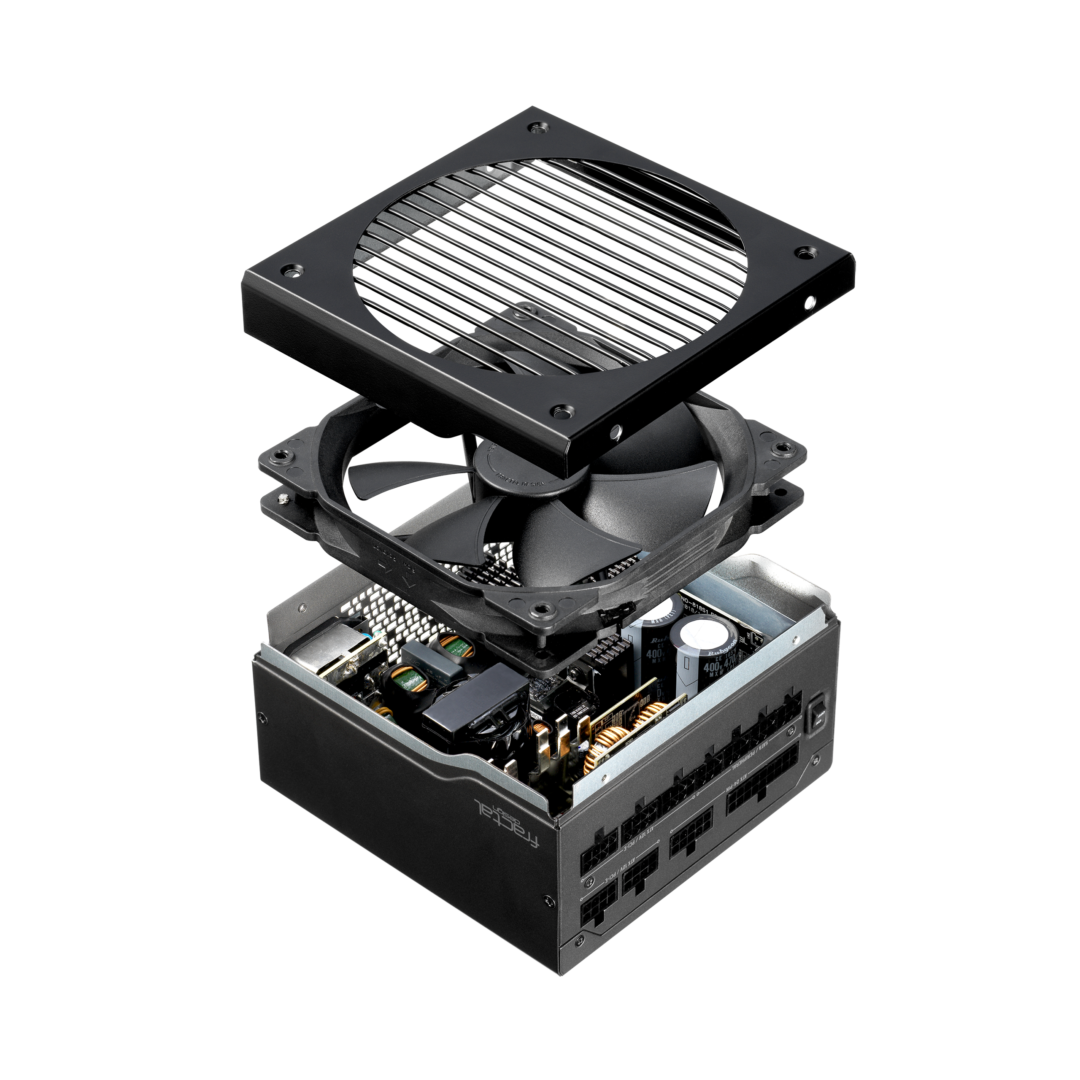

Slow, silent and smooth The Ion+ Platinum comes equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan that offers exceptionally low minimum speed as well as true long-life Fluid Dynamic Bearing. Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling









Specifications

80 PLUS® Certification:  Platinum

Modular cables:  Fully modular

Cable type:  Modular 24-pin: Braided sleeve UltraFlex wire. Others: Flat UltraFlex wire

Fan type:  Customized 140 mm FDB bearing Fractal Design Dynamic Series fan

Maximum operating temperature at full load:  50°C

Semi-passive operation:  Yes, user selectable (Zero RPM)

Sleep State Compliance:  C6/C7

Protection features:  Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection

Approvals & Certifications:  CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE

Life expectancy (MTBF) at max output load:  100,000 hours

Input voltage:  100-240V AC

Input frequency:  50-60 Hz

Input current:  10A/5A

Number of 12V rails:  1

PSU specification compliance:  ATX12V 2.4 / EPS12V 2.92

Standby efficiency:  ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)

Unit measurements:  150 x 150 x 86 mm

Unit weight (unit only):  1.665 kg



Connectors

ATX 24-pin:  1

ATX12V 4+4 pin / EPS12V 8-pin:  2

PCIe 6+2 pin:  6

SATA:  10

Peripheral:  4



Cable configuration (length between connectors)

ATX 24-pin:  600 mm

ATX12V 4+4 pin:  700 mm

EPS12V 8-pin:  600 mm

PCIe 6+2 pin:  550+120 mm x2

SATA:  400+120+120+120 mm & 650+120 mm

Peripheral:  400+120+120+120



DC output

3.3 V:  22 A

5 V:  22 A

3.3 V and 5 V combined:  120 W

12 V:  71.6 A

-12 V:  0.3 A

5 V Standby (+5 Vsb):  3 A

Total Power:  860 W



Other

Package content:  Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual

Package dimensions (W x H x D):  325 x 110 x 210 mm

Package weight:  2.975 kg
