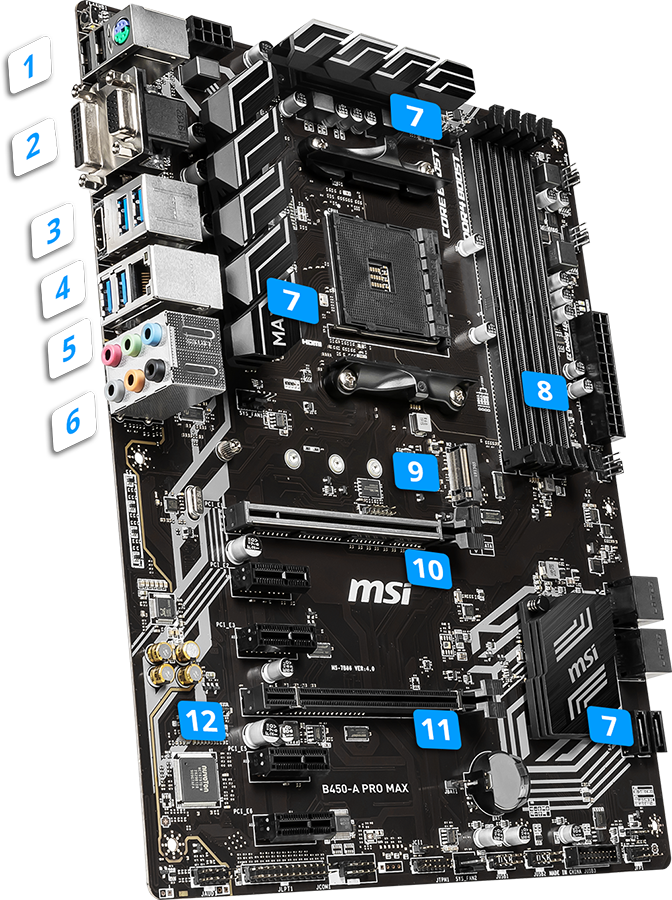

Дънна платка MSI B450-A PRO MAX, AM4, DDR4, PCI-E 3.0(VGA, DVI, HDMI)(CF),2x SATA 6Gb/s, 1x M.2 slot, 1x USB 3.1 Gen1 Type A, ATX

Inspired from architectural design, B450-A PRO MAX motherboard is equipped with Core Boost, DDR4 Boost, Turbo M.2 and USB 3.2 Gen2 connector

• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

• Supports DDR4 Memory, up to 4133(OC) MHz

• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

• DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.

• Audio Boost: Reward your ears with studio grade sound quality.

• Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

• Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

• AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

​

Specifications

PROCESSOR
Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

CHIPSET
AMD® B450 Chipset

MEMORY
4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.1
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE)
For AMD Other CPU
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Please refer to Compatibility for more information on compatible memory

SLOTS
1 x PCIe 3.0 x16 slot (PCI_E1)
1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
Athlon™ with Radeon™ Vega Graphics support x4 mode
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
4 x PCIe 2.0 x1 slots1
PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.

ONBOARD GRAPHICS
1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz1,2
1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2
Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processorsMaximum shared memory of 2048 MB

MULTI-GPU
Supports 2-Way AMD® CrossFire™ Technology

STORAGE
AMD® CPU
2 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)1
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device
AMD® B450 Chipset
4 x SATA 6Gb/s ports
SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

RAID
AMD® B450 Chipset
Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
USB
AMD® B450 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN
1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Parallel port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x 5050 RGB LED strip 12V connector

BACK PANEL PORTS
Flash BIOS Button
PS/2 Combo Port
VGA Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
USB 2.0 ports
DVI-D Port
HDMI Port
USB 3.2 Gen2
MSI B450-A PRO MAX back panel ports

DIMENSIONS
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

MOUNTING
9 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
