Wi-Fi 7:
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.
5G Network Solution:
Featuring premium 5G LAN to deliver better network experience.
EZ M.2 Shield Frozr II:
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
EZ Antenna:
EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
Lightning Gen 5:
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Extended Heatsink Design:
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Frozr AI Cooling:
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.

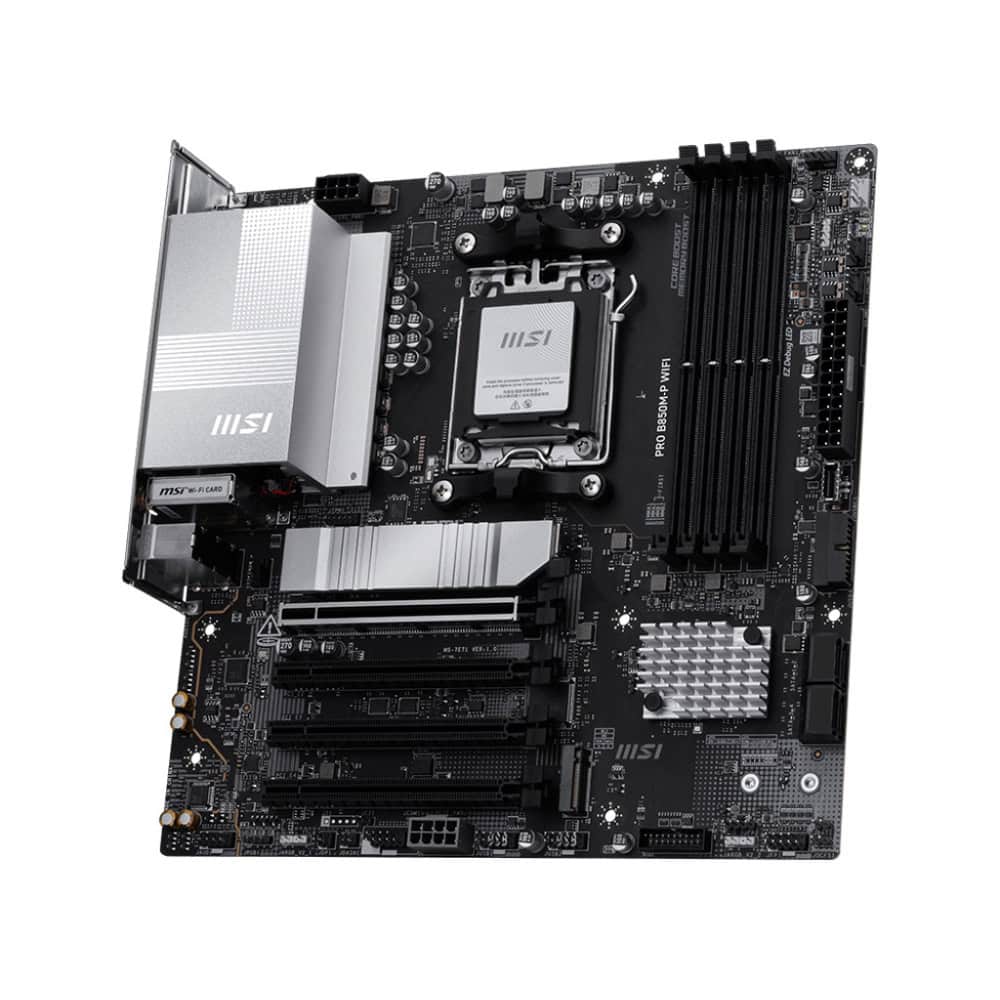

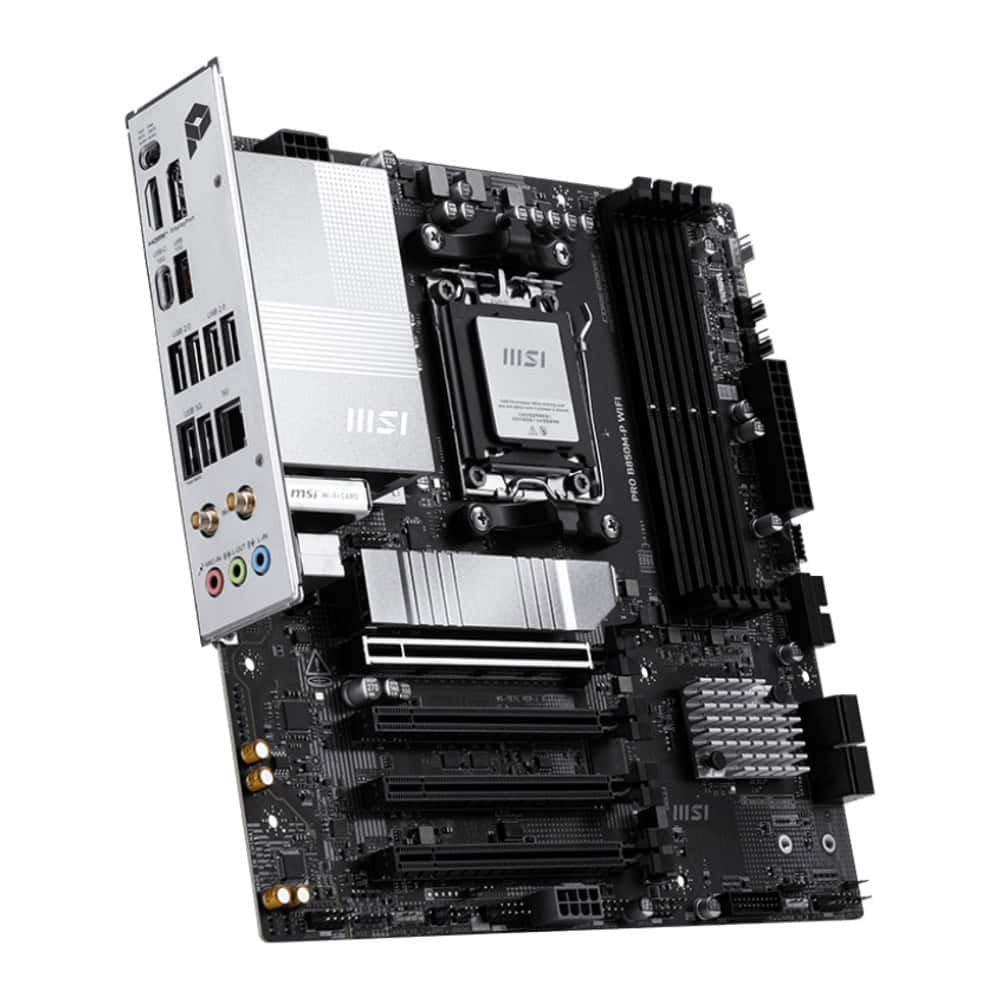

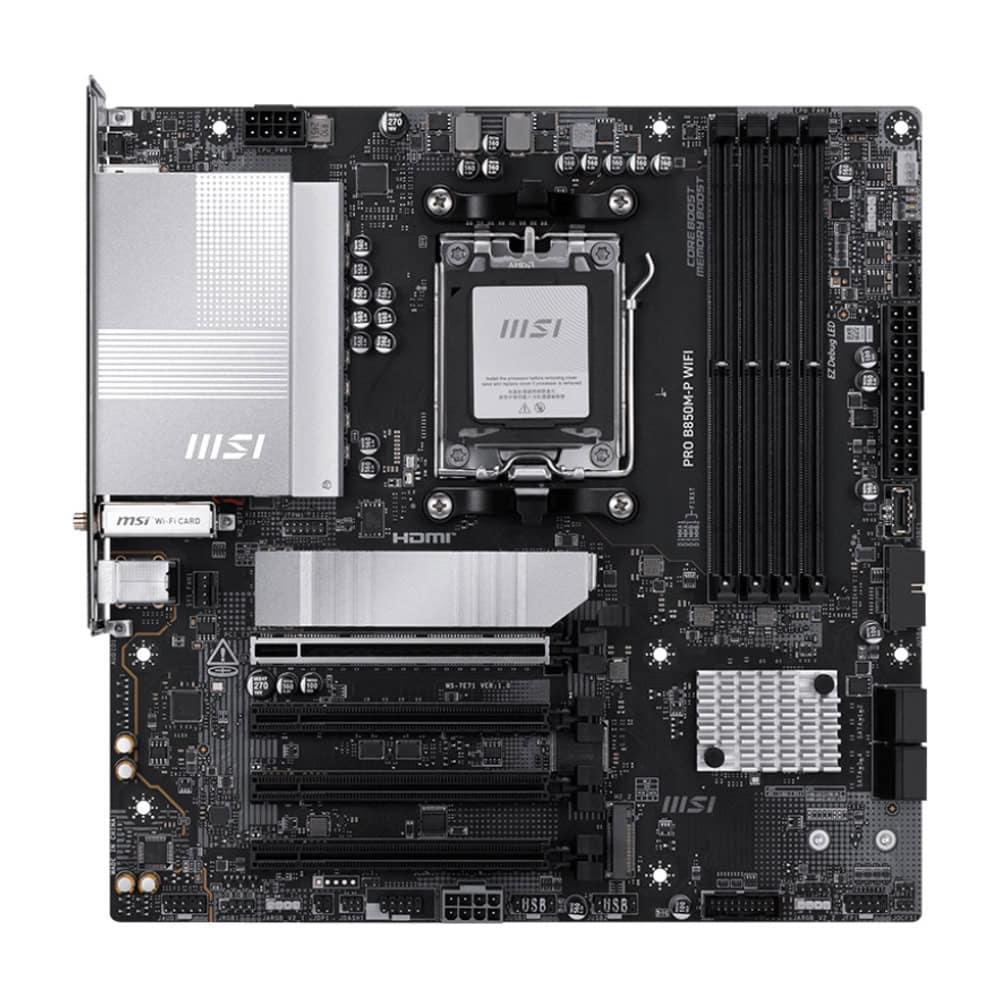

Specifications:
CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket
Socket AM5
Chipset
AMD B850 Chipset
Expansion Slots
1 x PCIe 5.0 x16 slot
3 x PCIe 3.0 x1 slots
Display Interface
Support 4K@60Hz as specified in HDMI 2.1
DisplayPort 1.4 – Requires Processor Graphics
Memory
Support 4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC)
Storage
1 x M.2 Gen5 x4 128Gbps slot,
1 x M.2 Gen4 x4 64Gbps slot,
1 x M.2 Gen4 x2 32Gbps slot,
4 x SATA 6Gbps ports
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

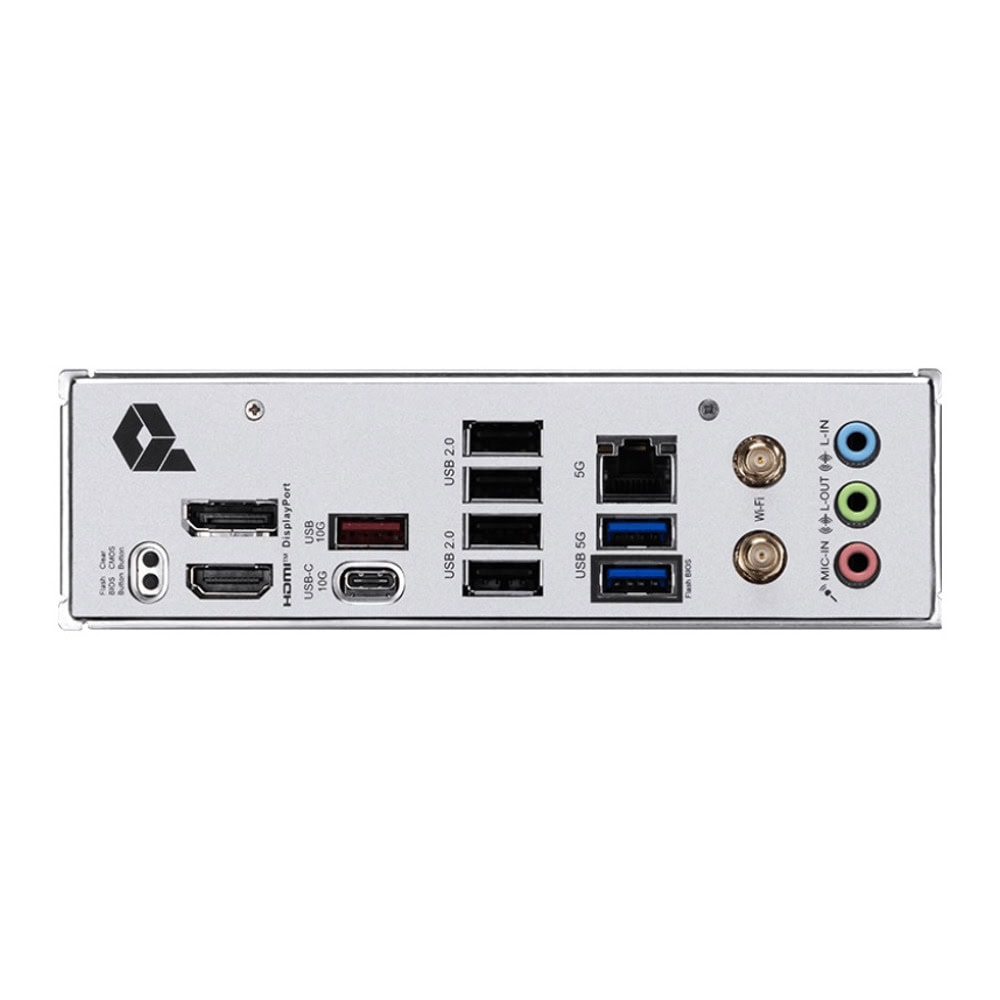

USB ports
3 x USB 10Gbps (1 Type-A + 2 Type-C)
6 x USB 5Gbps (6 Type-A)
8 x USB 2.0
LAN
Realtek 8126 5G LAN
WiFi / BT
Wi-Fi 7 Solution, Bluetooth 5.4
Audio
8-Channel (7.1) HD Audio with Audio Boost
PCB Info
mATX
243.84mmx243.84mm
Виж още Дънни платки за AMD процесори MSI
Виж всички Дънни платки за AMD процесори в категорията
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.
5G Network Solution:
Featuring premium 5G LAN to deliver better network experience.
EZ M.2 Shield Frozr II:
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
EZ Antenna:
EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
Lightning Gen 5:
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Extended Heatsink Design:
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Frozr AI Cooling:
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Specifications:
CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket
Socket AM5
Chipset
AMD B850 Chipset
Expansion Slots
1 x PCIe 5.0 x16 slot
3 x PCIe 3.0 x1 slots
Display Interface
Support 4K@60Hz as specified in HDMI 2.1
DisplayPort 1.4 – Requires Processor Graphics
Memory
Support 4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC)
Storage
1 x M.2 Gen5 x4 128Gbps slot,
1 x M.2 Gen4 x4 64Gbps slot,
1 x M.2 Gen4 x2 32Gbps slot,
4 x SATA 6Gbps ports
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB ports
3 x USB 10Gbps (1 Type-A + 2 Type-C)
6 x USB 5Gbps (6 Type-A)
8 x USB 2.0
LAN
Realtek 8126 5G LAN
WiFi / BT
Wi-Fi 7 Solution, Bluetooth 5.4
Audio
8-Channel (7.1) HD Audio with Audio Boost
PCB Info
mATX
243.84mmx243.84mm
Виж още Дънни платки за AMD процесори MSI
Виж всички Дънни платки за AMD процесори в категорията
Технически характеристики
| Процесор сокет: | AM5 |
|---|---|
| Чипсет: | B850 |
| Поддържана памет: | DDR5 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | Wi-Fi 7 (802.11be) |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DP HDMI |
| Форм фактор: | Micro ATX |
| Видеокарта: | Вградена |
