EZ PCIe Clip II:
Allows for easy removal of the graphics card by pressing the tail-
like lock with one finger, even in the cramped case spaces.
Frozr AI Cooling:
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
EZ Debug LED
Easiest way to troubleshoot.
Memory Boost:
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost:
With premium layout and fully digital power design to support
more cores and provide better performance.
Specifications
CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket
AMD Socket AM5
Chipset
AMD B840
Expansion Slots
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot

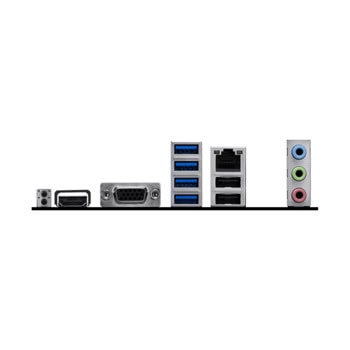

Display Interface
1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
**Requires Processor Graphics
Memory
Support 2 DIMMs, Dual Channel DDR5 – 8000+ MT/s (OC)
Storage
2 x M.2 Gen4 x4 64Gbps slots
4 x SATA 6Gbps ports
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB ports
4 x USB 5Gbps Type-A
2 x USB 2.0
LAN
Realtek ALC897 (Realtek 8125D 2.5G LAN)
Audio
8-Channel (7.1) HD Audio with Audio Boost
PCB Info
mATX
226mmx243.84mm
Виж още Дънни платки за AMD процесори MSI
Виж всички Дънни платки за AMD процесори в категорията
Allows for easy removal of the graphics card by pressing the tail-
like lock with one finger, even in the cramped case spaces.
Frozr AI Cooling:
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
EZ Debug LED
Easiest way to troubleshoot.
Memory Boost:
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost:
With premium layout and fully digital power design to support
more cores and provide better performance.
Specifications
CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket
AMD Socket AM5
Chipset
AMD B840
Expansion Slots
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot
Display Interface
1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
**Requires Processor Graphics
Memory
Support 2 DIMMs, Dual Channel DDR5 – 8000+ MT/s (OC)
Storage
2 x M.2 Gen4 x4 64Gbps slots
4 x SATA 6Gbps ports
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB ports
4 x USB 5Gbps Type-A
2 x USB 2.0
LAN
Realtek ALC897 (Realtek 8125D 2.5G LAN)
Audio
8-Channel (7.1) HD Audio with Audio Boost
PCB Info
mATX
226mmx243.84mm
Виж още Дънни платки за AMD процесори MSI
Виж всички Дънни платки за AMD процесори в категорията
Технически характеристики
| Процесор сокет: | AM5 |
|---|---|
| Чипсет: | B840 |
| Поддържана памет: | DDR5 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI VGA (D-Sub) |
| Форм фактор: | Micro ATX |
| Видеокарта: | Вградена |
