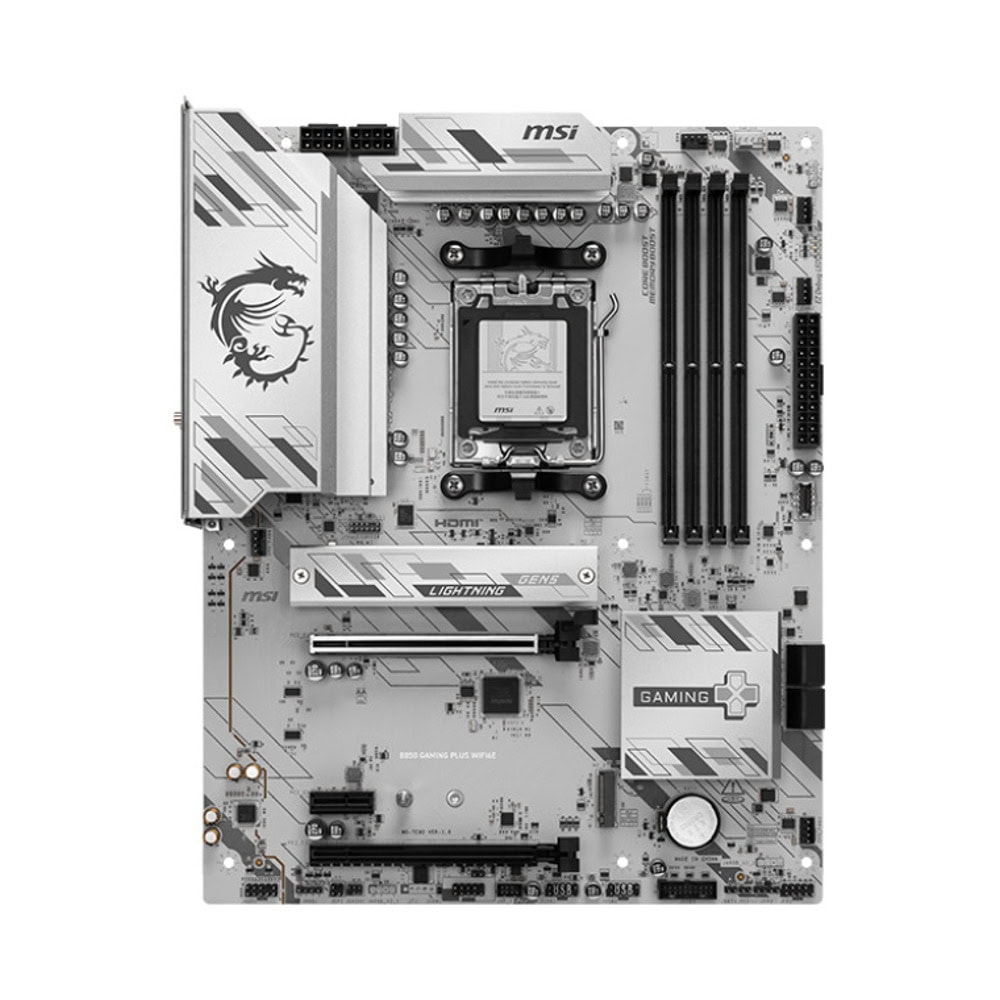

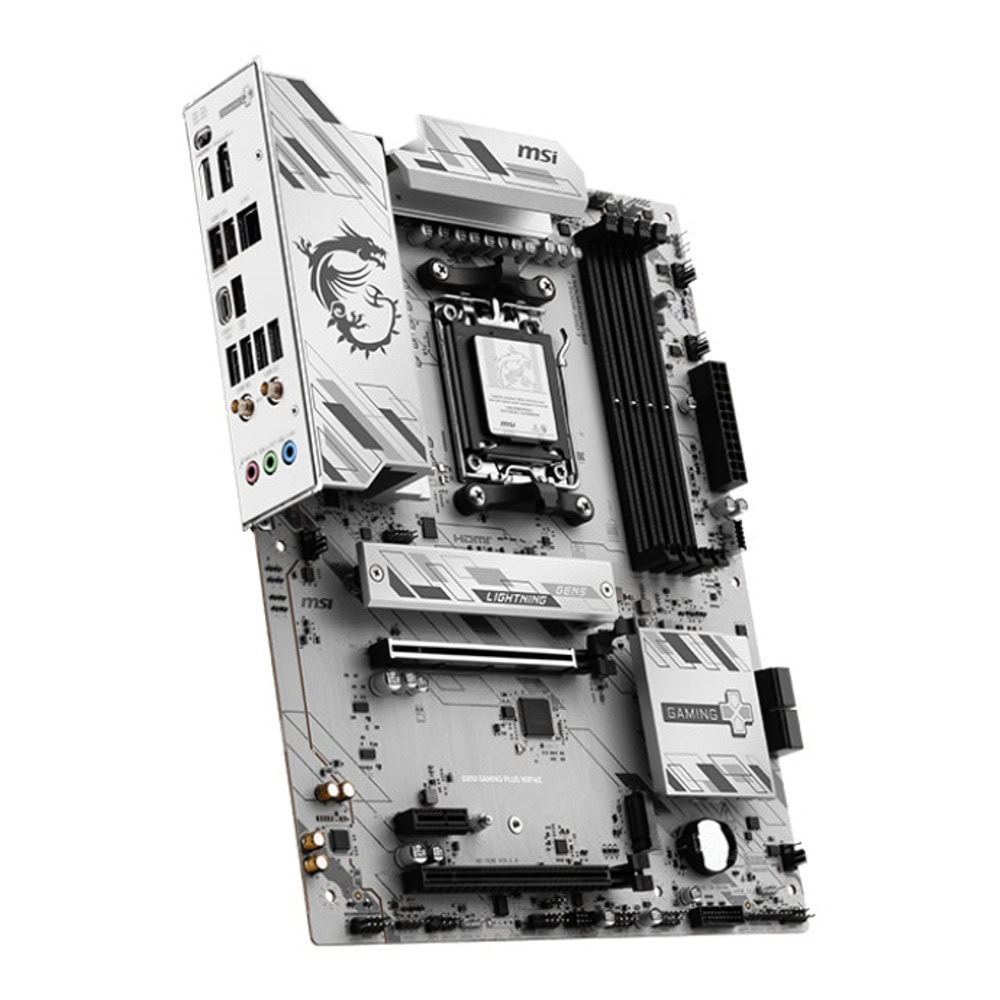

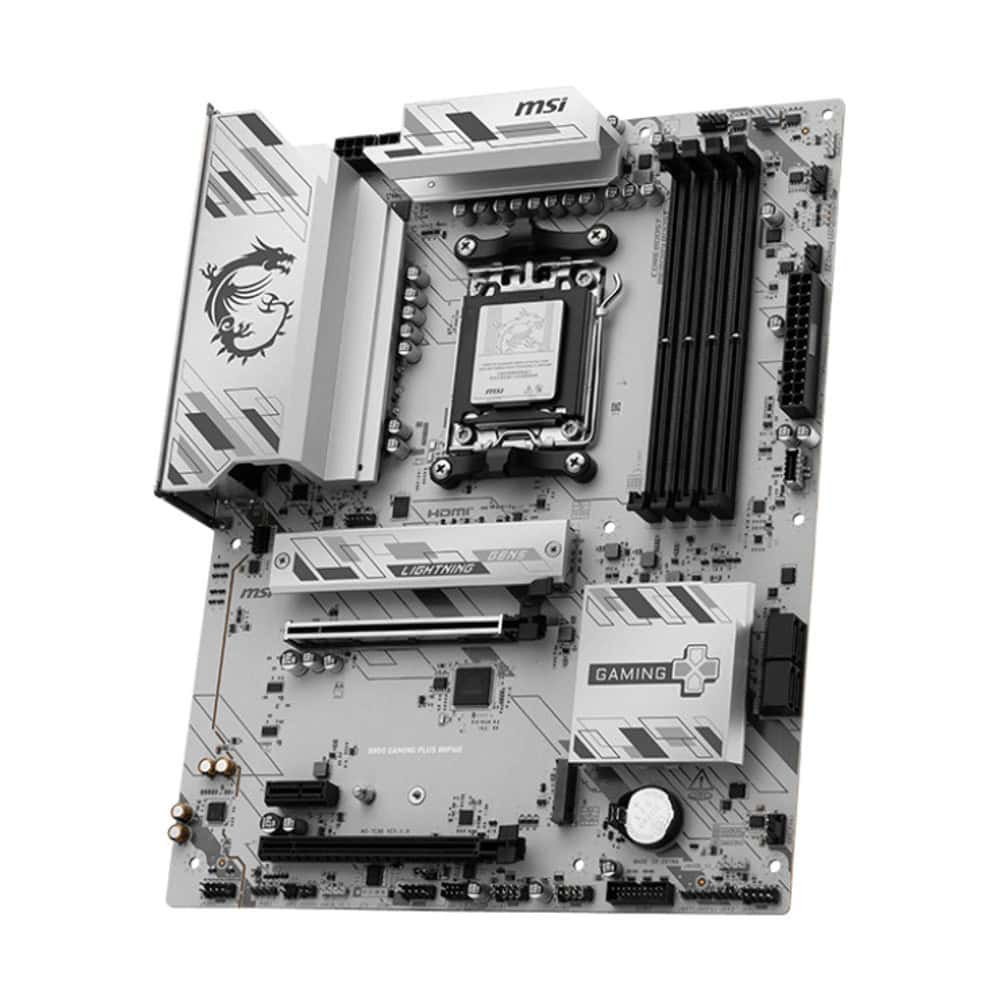

Дънна платка MSI B850 Gaming Plus WIFI6E, B850, AM5, DDR5, PCI-E 4.0 (DP&HDMI), 4x SATA 6Gb/s, 2x M.2, 2x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 2 Type-A, 2.5GbE LAN, Bluetooth 5.3, ATX

Specifications

CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

CPU Socket
AMD Socket AM5

Chipset
AMD B850 Chipset

Expansion slots
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot

Display Interface
Support 4K@60Hz as specified in HDMI 2.1
DisplayPort 1.4 – Requires Processor Graphics

Memory
Support 4 DIMMs, Dual Channel DDR5 - 8200+ MT/s (OC)
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
* Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

Storage
1 x M.2 Gen5 x4 128Gbps slot
1 x M.2 Gen4 x4 64Gbps slot
4 x SATA 6Gbps ports

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

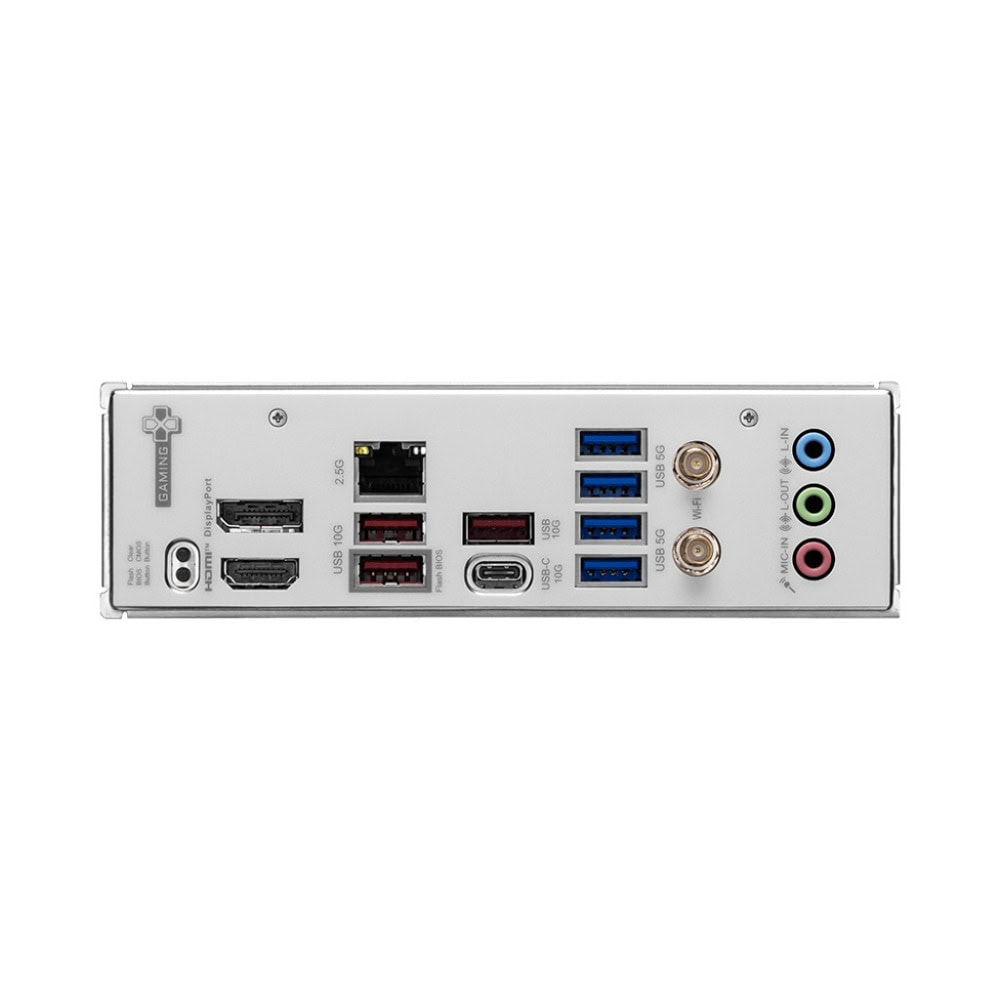

USB ports
5 x USB 10Gbps (3 Type-A + 2 Type-C)
6 x USB 5Gbps (6 Type-A)
4 x USB 2.0

LAN
Realtek 2.5Gbps (Realtek 8125D)

WIFI / BT
Wi-Fi 6E Solution, Bluetooth 5.3

Audio
Realtek ALC897
8-Channel (7.1) HD Audio with Audio Boost

OPERATING SYSTEM
Support for Windows 11 64-bit

PCB Info
ATX
243.84 x 304.8 mm
