Дънна платка Gigabyte B650M D3HP AX (rev 1.0), B650M, AM5, DDR5, PCI-E 4.0 (DP&HDMI), 2x M2, 4x SATA 6Gb/s, 1x USB 3.2 Gen 1 Type-C, 3x USB 3.2 Gen 1 Type-A, 2.5GbE LAN, Wi-Fi 6E, Bluetooth, Micro ATX

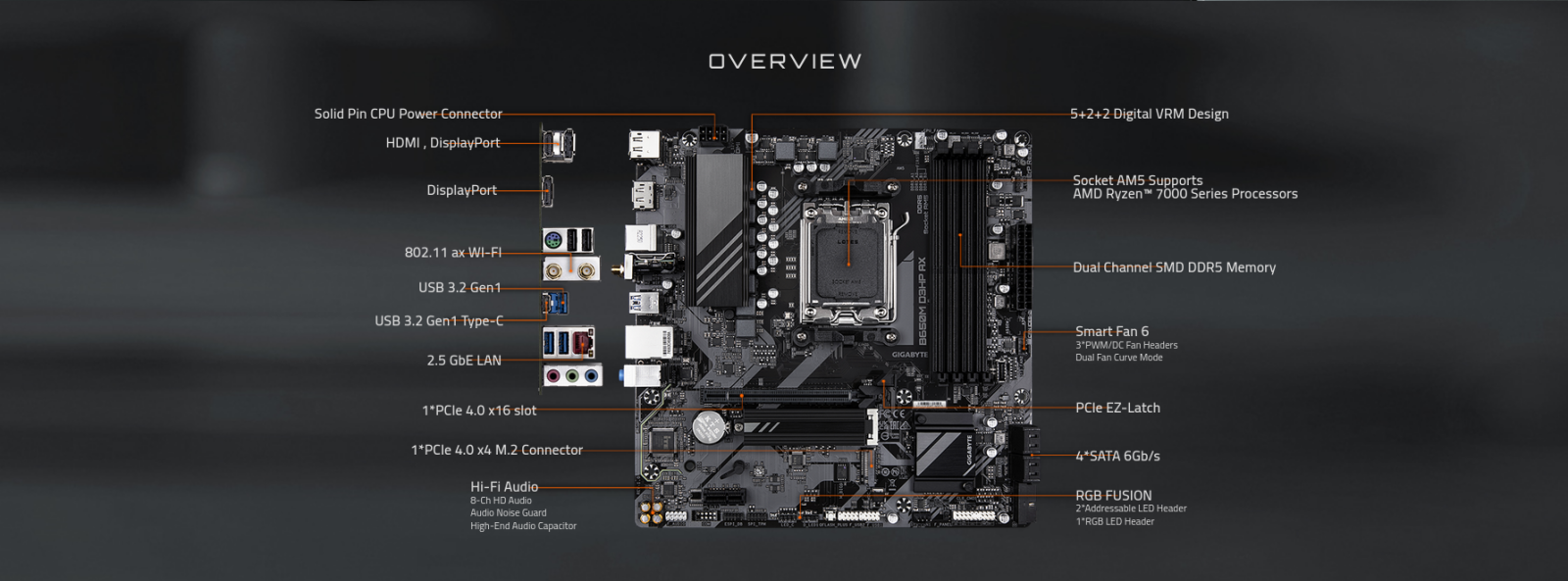

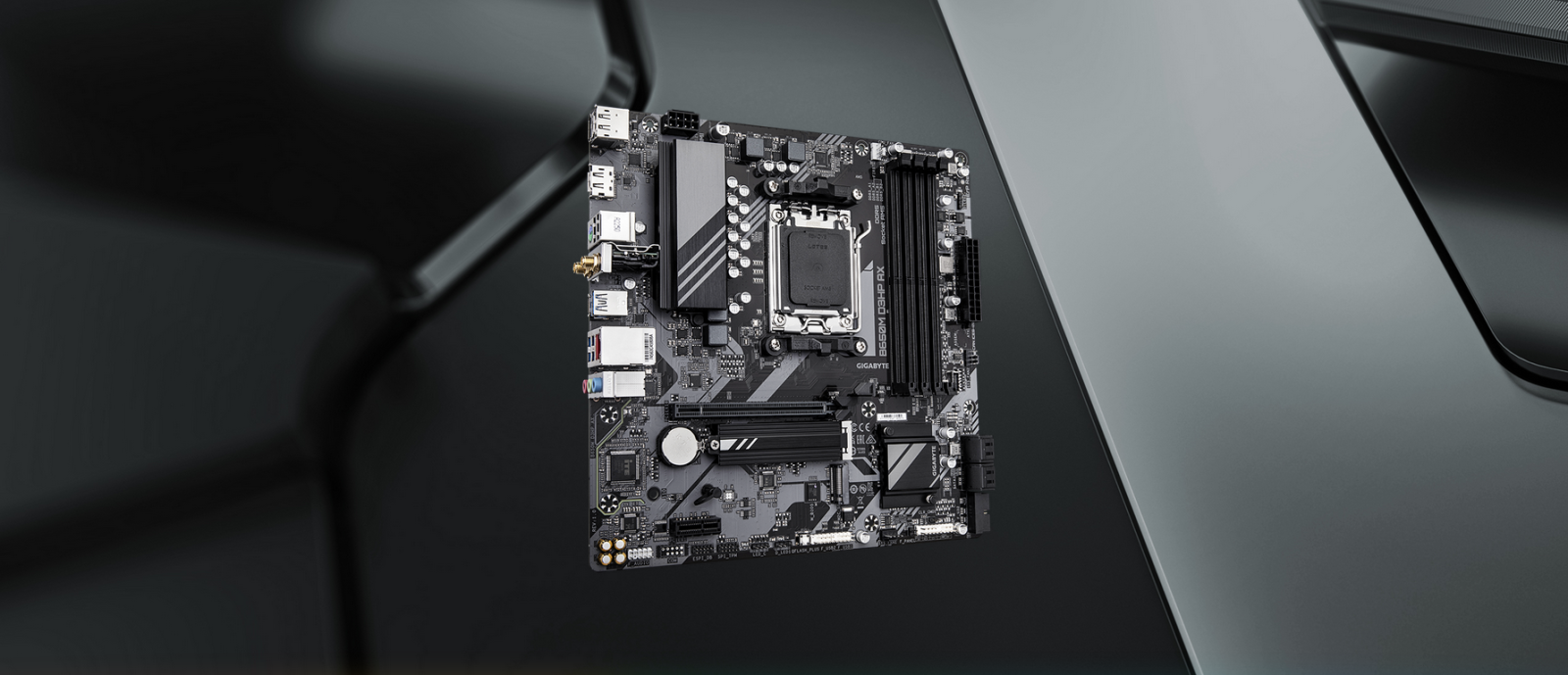

Gigabyte B650M D3HP AX (rev. 1.0)





• AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors
• Unparalleled Performance：5+2+2 Phases Digital VRM Solution
• Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
• SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
• EZ-Latch：PCIe x16 Slot with Quick Release Design
• Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN
• Extended Connectivity：2*DP, HDMI
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card













Tech specs:

• CPU

  AMD Socket AM5, support for:
  AMD Ryzen 7000 / Ryzen 8000 Series Processors


• Chipset

  AMD B650



• Memory

  Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules


• Onboard Graphics

  Integrated Graphics Processor with AMD Radeon Graphics support
  - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

  * Support for DisplayPort 1.4 version.


  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.
  Support for up to triple-display at the same time



• Audio

  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


• LAN

  Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



• Wireless Communication module

  Realtek Wi-Fi 6E RTL8852CE
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless
  (Actual data rate may vary depending on environment and equipment.)



• Expansion Slots

  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)



• Storage Interface

  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
  - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices



• USB

  CPU:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  - 1 x USB 3.2 Gen 1 port on the back panel
  - 1 x USB 2.0/1.1 port on the back panel


  Chipset:
  - 2 x USB 3.2 Gen 1 ports on the back panel
  - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)



• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x addressable LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x Q-Flash Plus button
  1 x reset jumper
  1 x Clear CMOS jumper



• Back Panel Connectors

  1 x PS/2 keyboard/mouse port
  1 x USB Type-C port, with USB 3.2 Gen 1 support
  3 x USB 3.2 Gen 1 ports
  2 x USB 2.0/1.1 ports
  1 x HDMI port
  2 x DisplayPorts
  1 x RJ-45 port
  3 x audio jacks



• I/O Controller

  iTE I/O Controller Chip



• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



• Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit



• Form Factor

  Micro ATX Form Factor; 24.4cm x 24.4cm
