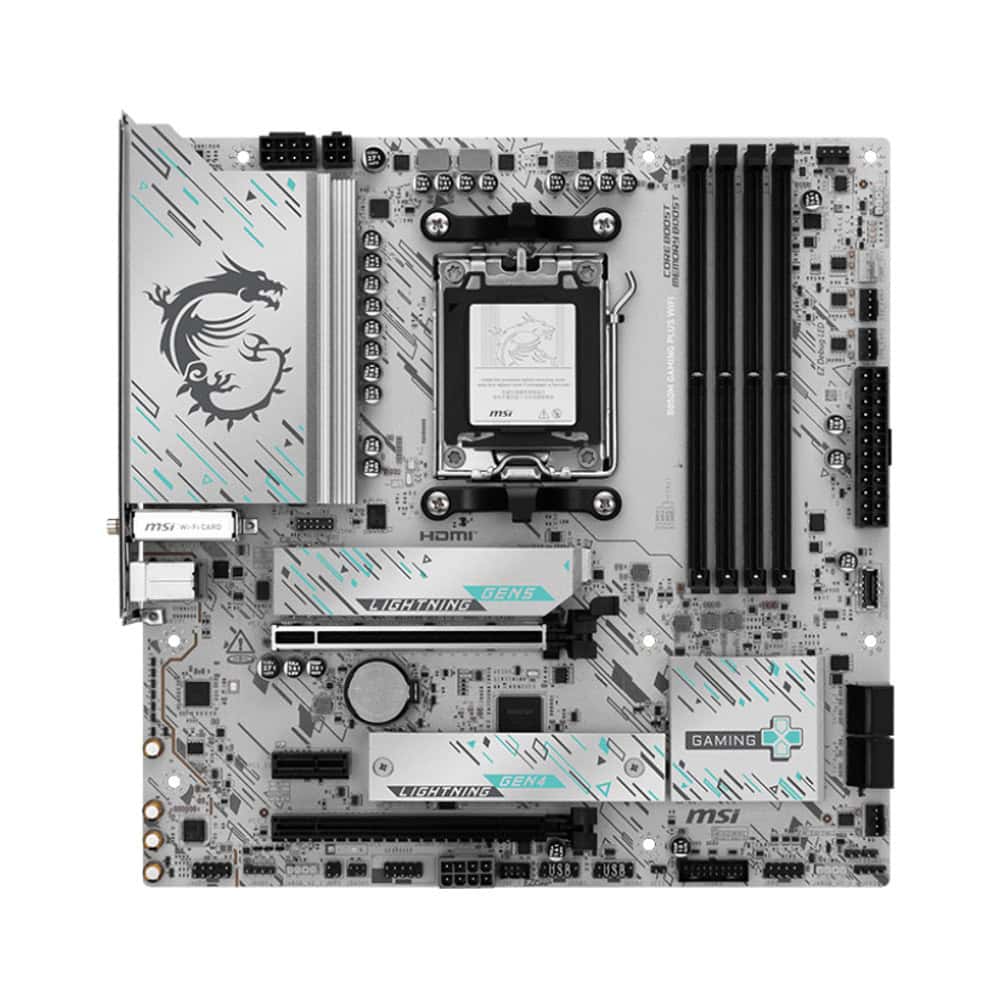

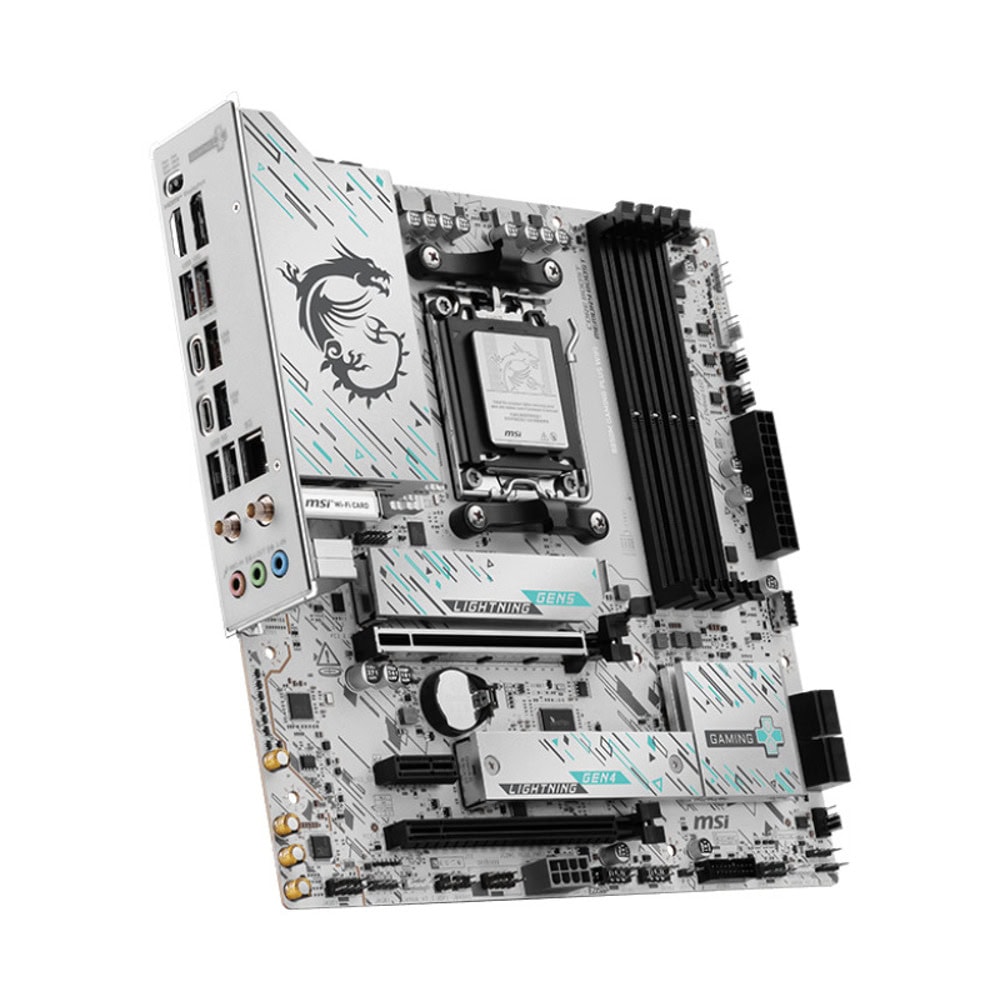

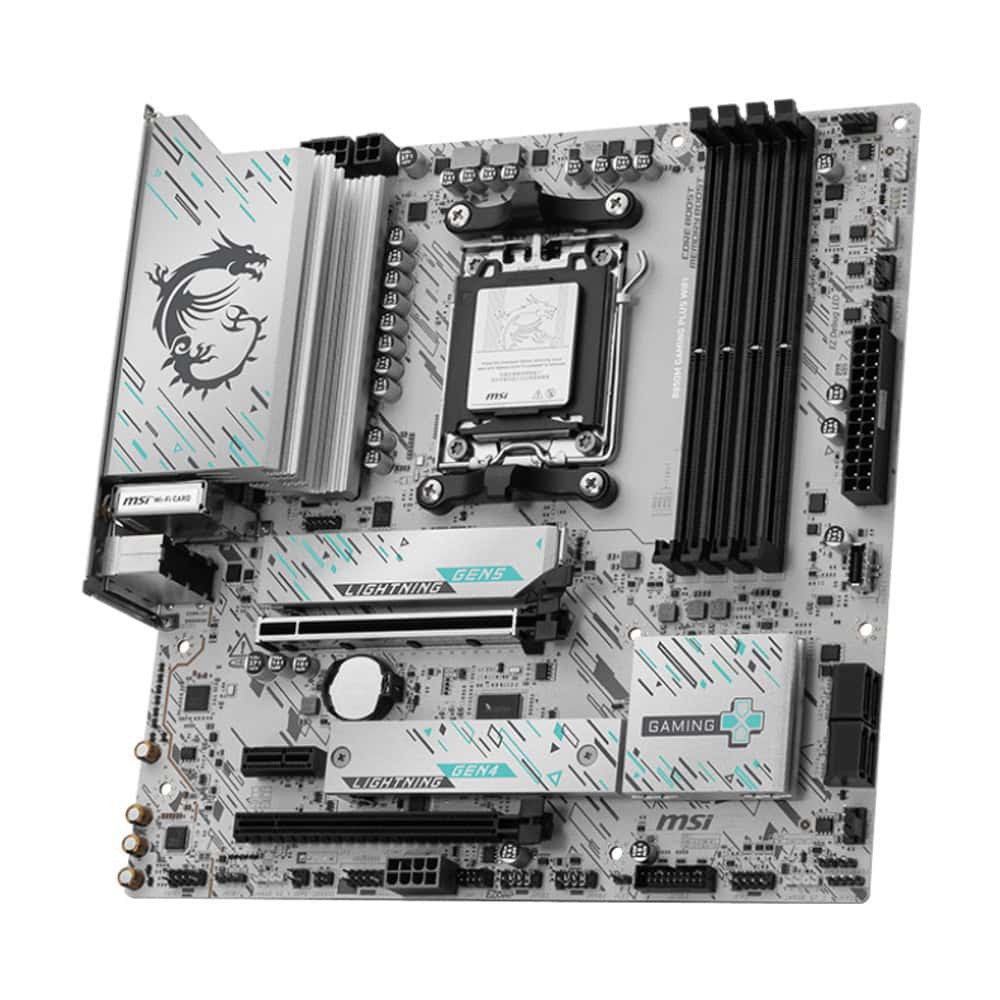

Дънна платка MSI B850M Gaming Plus WiFi, AM5, DDR5, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 2x M.2 slots, 3x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 2 Type-A, 5GbE LAN, Wi-Fi 7, Bluetooth 5.4, Micro ATX

EZ M.2 Shield Frozr II:
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier

EZ PCIe Clip II:
Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

Lightning Gen 5:
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.


Specifications:

CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

CPU Socket
AMD Socket AM5

Chipset
AMD B850 Chipset

Expansion slots
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot

Display Interface
Support 4K@60Hz as specified in HDMI 2.1
DisplayPort 1.4 – Requires Processor Graphics

Memory
Support 4 DIMMs, Dual Channel DDR5 8200+ MT/s (OC)

Storage
1 x M.2 Gen5 x4 128Gbps slot
1 x M.2 Gen4 x4 64Gbps slot
4 x SATA 6Gbps ports

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

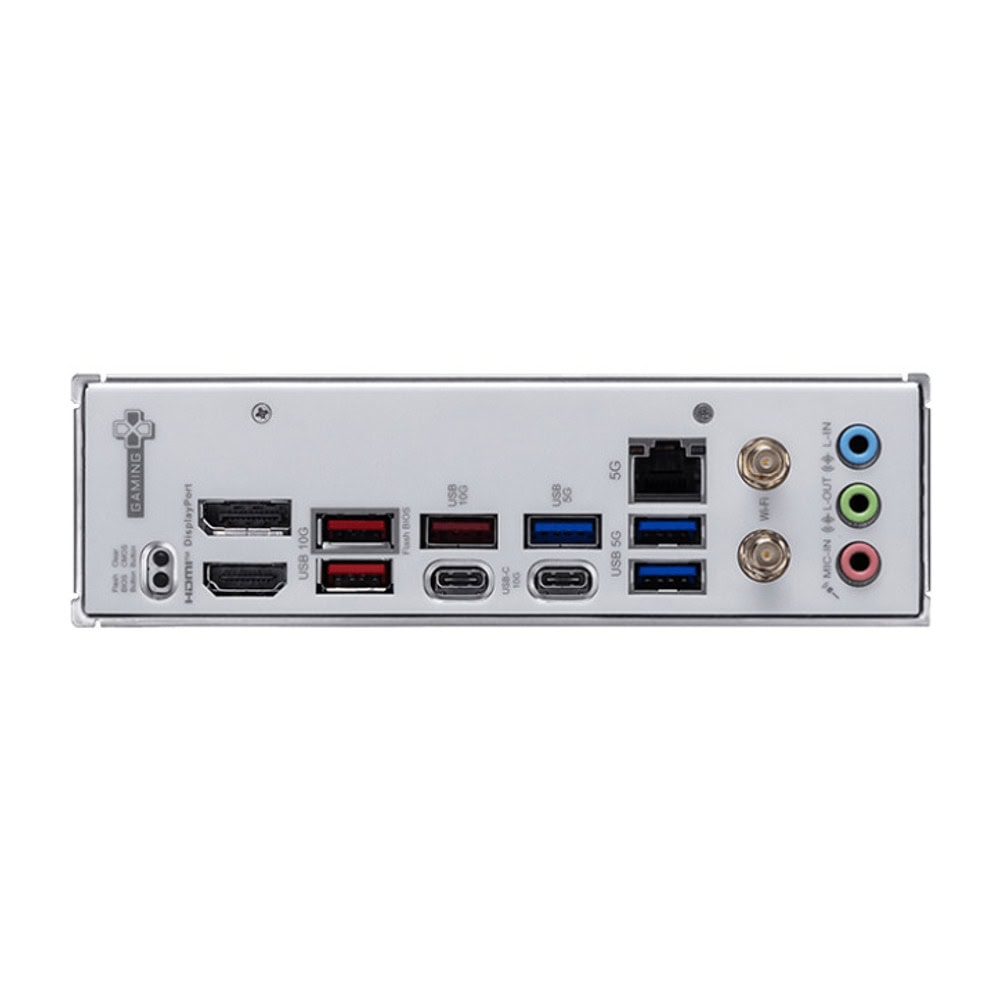

USB ports
6 x USB 10Gbps (3 Type-A + 3 Type-C)
5 x USB 5Gbps (5 Type-A)
4 x USB 2.0

LAN
Realtek 8126 5Gbps LAN

WIFI / BT
Wi-Fi 7 Solution, Bluetooth 5.4

Audio
8-Channel (7.1) HD Audio with Audio Boost

PCB Info
mATX
243.84mmx243.84mm
