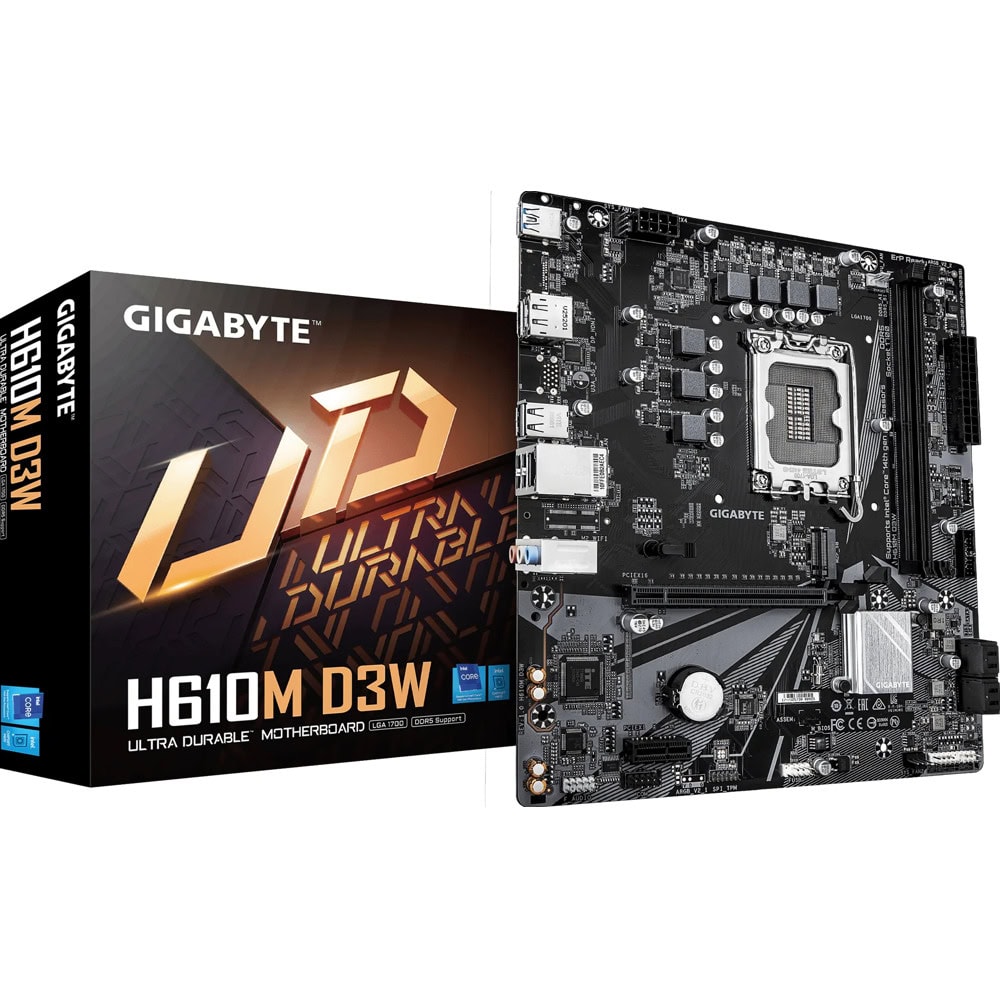

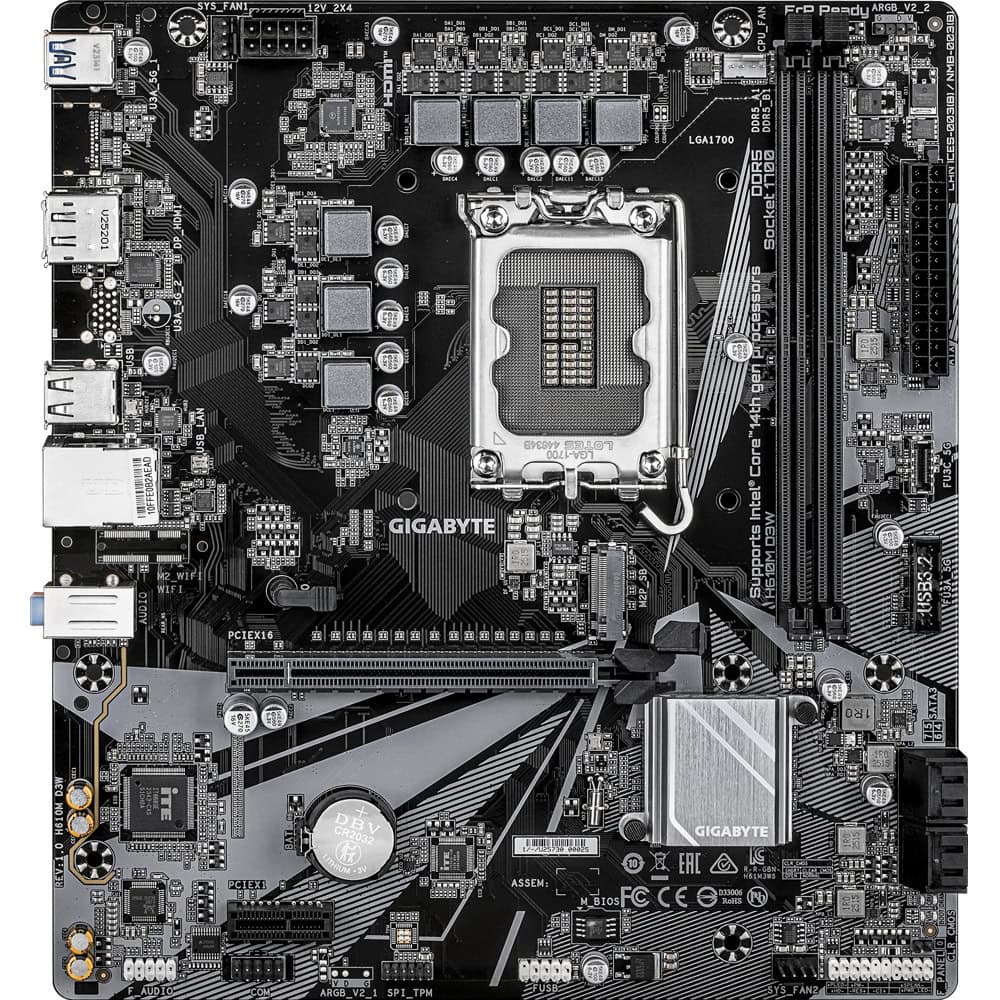

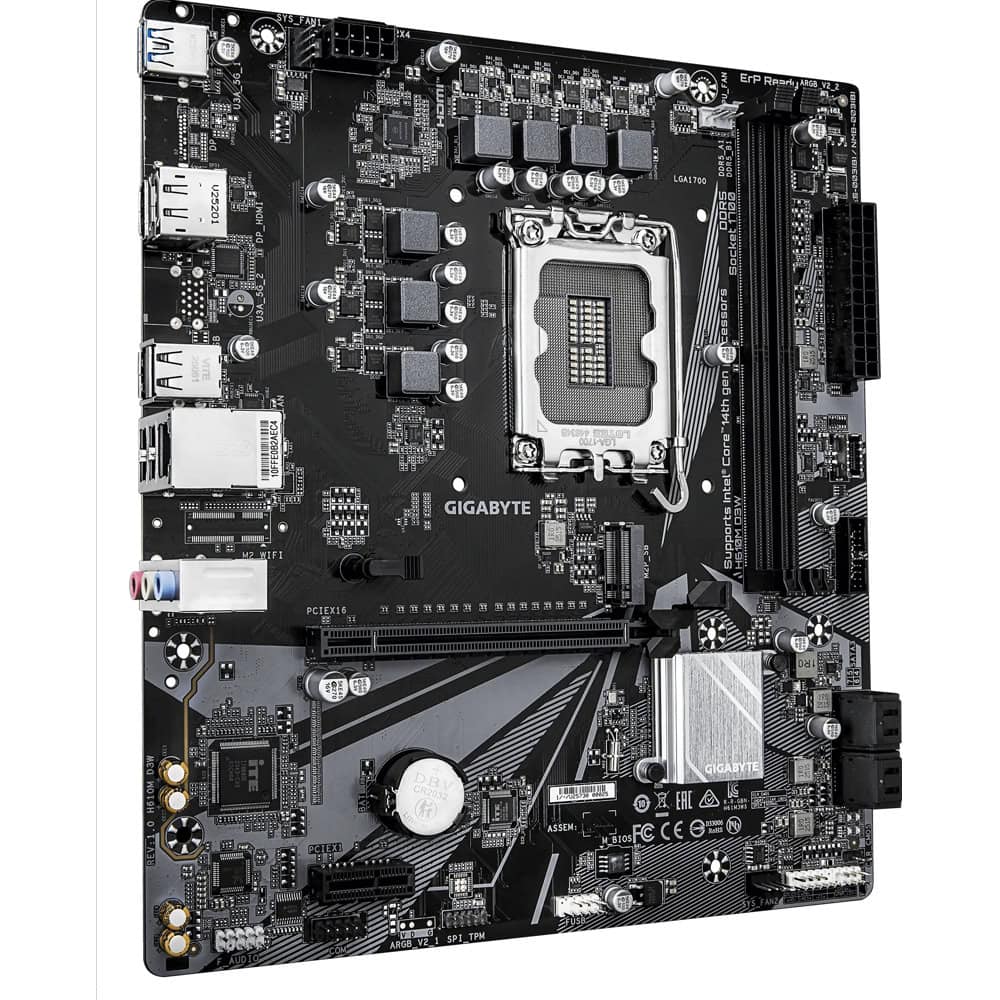

Name: Дънна платка Gigabyte H610M D3W, H610, LGA1700, DDR5, PCI-E 5.0, (DP&HDMI), 1x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen 1, Micro ATX
Brand: Gigabyte
SKU: MBIGIGABYTEH610MD3W
Price: 85.16 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Intel® H610 Motherboard with 5+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

Supports Intel® Core™ 14th/ 13th/ 12th processors
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
5+1+1 Hybrid Digital VRM Design
Fast Network: GbE LAN
NVMe PCIe 3.0 x4 M.2
DisplayPort / HDMI for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
Anti-Sulfur Resistors Design

Component	Specification
Product Type	Motherboard
CPU Socket	LGA1700
Supported Processors	14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
CPU Cache	L3 cache varies with CPU
Chipset	Intel® H610 Express Chipset
Memory Type	DDR5
Memory Speed	14th & 13th Gen Intel® Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s; 13th Gen Intel® Core™ i5/i3 & 12th Gen Intel® Core™, Pentium® Gold, Celeron®: DDR5 4800/4400 MT/s
Memory Slots	2 × DDR5 DIMM
Maximum Memory Capacity	Up to 128 GB (2 × 64 GB)
Memory Architecture	Dual Channel
ECC Support	ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
Non-ECC Support	Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
XMP Support	Yes (Extreme Memory Profile)
Integrated Graphics	Intel® HD Graphics (CPU dependent)
Video Outputs	1 × DisplayPort 1.2 (4096 × 2304 @ 60 Hz, HDCP 2.3); 1 × HDMI 2.1 (4096 × 2160 @ 60 Hz, HDCP 2.3, native HDMI 2.1 TMDS compatible)
Audio Codec	Realtek® Audio CODEC
Audio Support	High Definition Audio, 2/4/5.1/7.1-channel
LAN	Realtek® GbE LAN chip (10 Mbps / 100 Mbps / 1 Gbps)
Expansion Slots	1 × PCIe 4.0 x16 (CPU); 1 × PCIe 3.0 x1 (Chipset)
M.2 Slots	1 × M.2 Socket 3 (M Key, 2280, PCIe 3.0 x4/x2 SSD)
SATA Ports	4 × SATA 6 Gb/s
USB Type-C	1 × USB Type-C® (USB 3.2 Gen 1, internal header)
USB 3.2 Gen 1	3 × USB 3.2 Gen 1 (1 rear, 2 via internal header)
USB 2.0/1.1	6 × USB 2.0/1.1 (4 rear, 2 via internal header)
Internal Power Connectors	1 × 24-pin ATX, 1 × 8-pin ATX 12V
Fan Headers	1 × CPU Fan, 2 × System Fan
Internal Storage Connectors	1 × M.2 Socket 3, 4 × SATA 6 Gb/s
Internal Headers	Front Panel, Front Audio, USB Type-C (USB 3.2 Gen 1), USB 3.2 Gen 1, USB 2.0/1.1, TPM (GC-TPM2.0 SPI V2), Serial Port, Clear CMOS Jumper

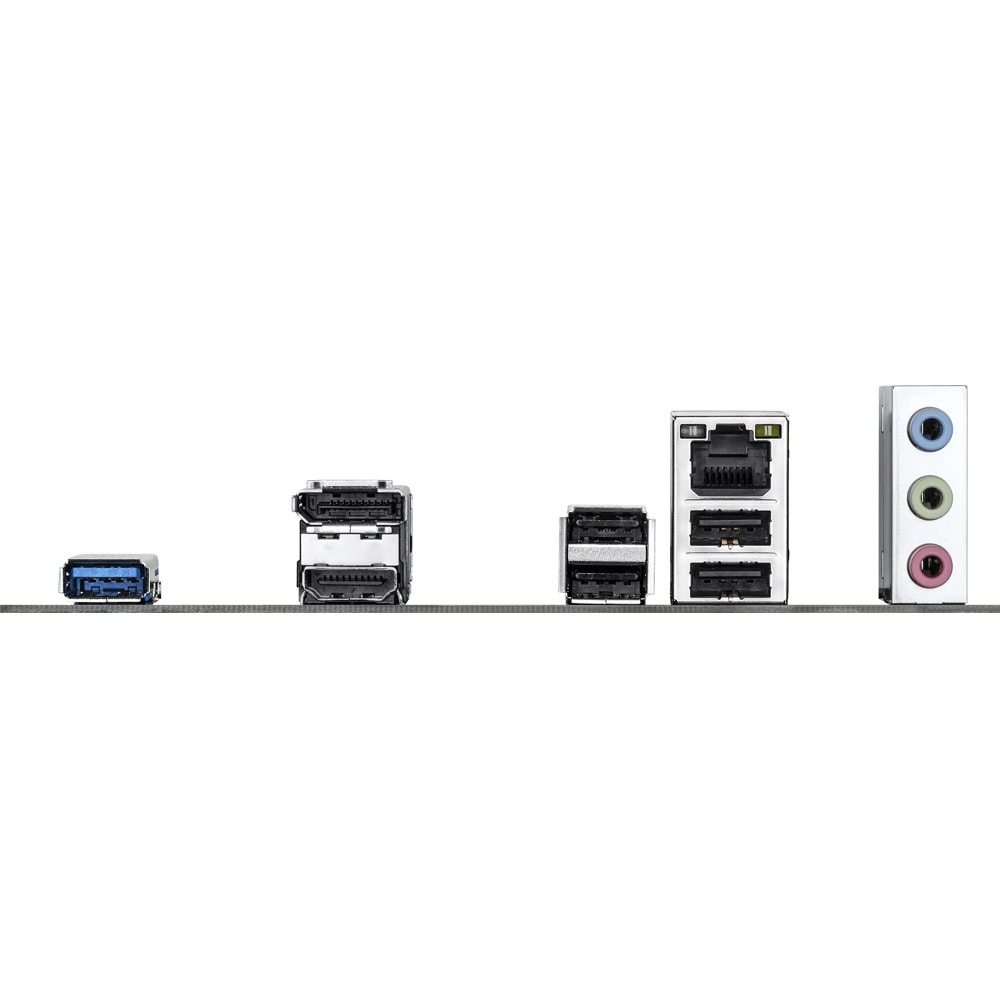

Rear I/O Ports	1 × DisplayPort, 1 × HDMI, 1 × USB 3.2 Gen 1, 4 × USB 2.0/1.1, 1 × RJ-45, 3 × Audio Jacks
I/O Controller	iTE® I/O Controller Chip
Hardware Monitoring	Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control
BIOS	1 × 128 Mbit Flash, Licensed AMI UEFI BIOS
BIOS Standards	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features	GIGABYTE Control Center (GCC), Q-Flash, Smart Backup
Bundled Software	Norton® Internet Security (OEM Version)
Supported Operating Systems	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX
Dimensions	24.4 × 22.0 cm
Notes	CPU support affects graphics capabilities, supported memory speed, memory type, and DRAM configuration. Refer to GIGABYTE Memory Support List and CPU Support List for compatibility. Fan speed control depends on installed fan. Actual display output support varies by CPU.

Виж още Дънни платки за Intel процесори Gigabyte
Виж всички Дънни платки за Intel процесори в категорията

Технически характеристики

Процесор сокет:	LGA 1700
Чипсет:	H610
Поддържана памет:	DDR5
Брой слотове за RAM памет:	2
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Не
Безжични мрежи:	Не
Bluetooth:	Не
Видео слот:	PCI-E
Multi-Graphics технология:	Няма
Видео изход:	DP HDMI
Форм фактор:	Micro ATX
