Дънна платка Asus Prime H610M-K-D4 ARGB, H610, LGA1700, DDR4, PCIe 4.0 (HDMI), 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen 1 Type-A, Micro ATX

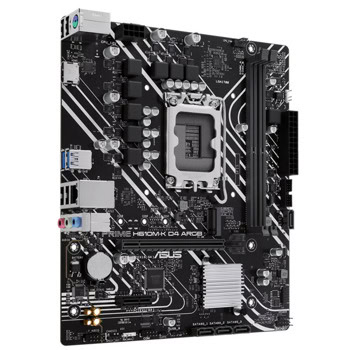

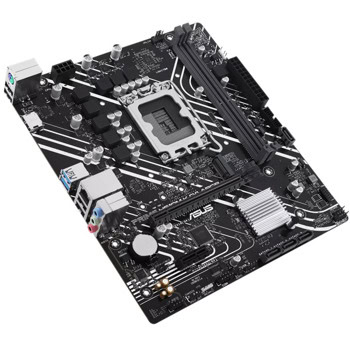

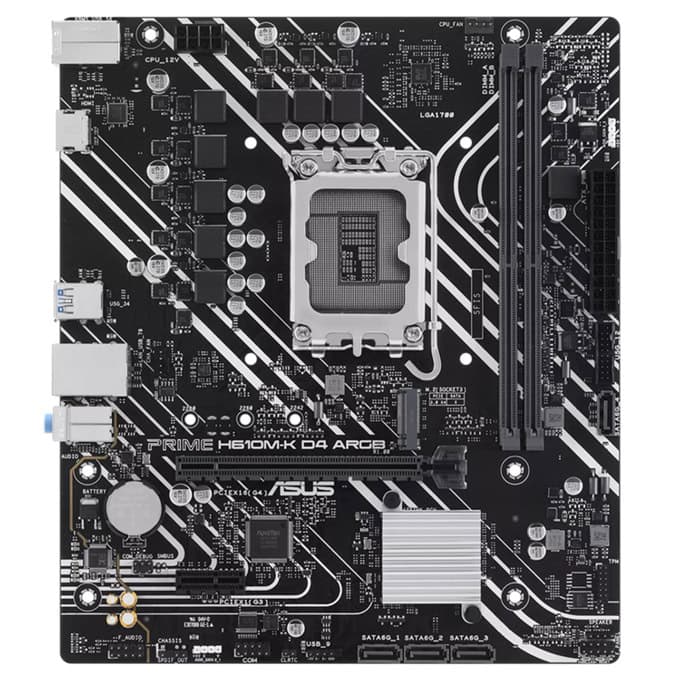

PRIME H610M-K D4 ARGB

Intel® H610 (LGA 1700) micro-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, USB 5Gbps, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

• Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 5Gbps support
• Comprehensive Cooling: PCH heatsink and Fan Xpert
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module


Graphics

1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot (supports x16 mode)
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 3 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

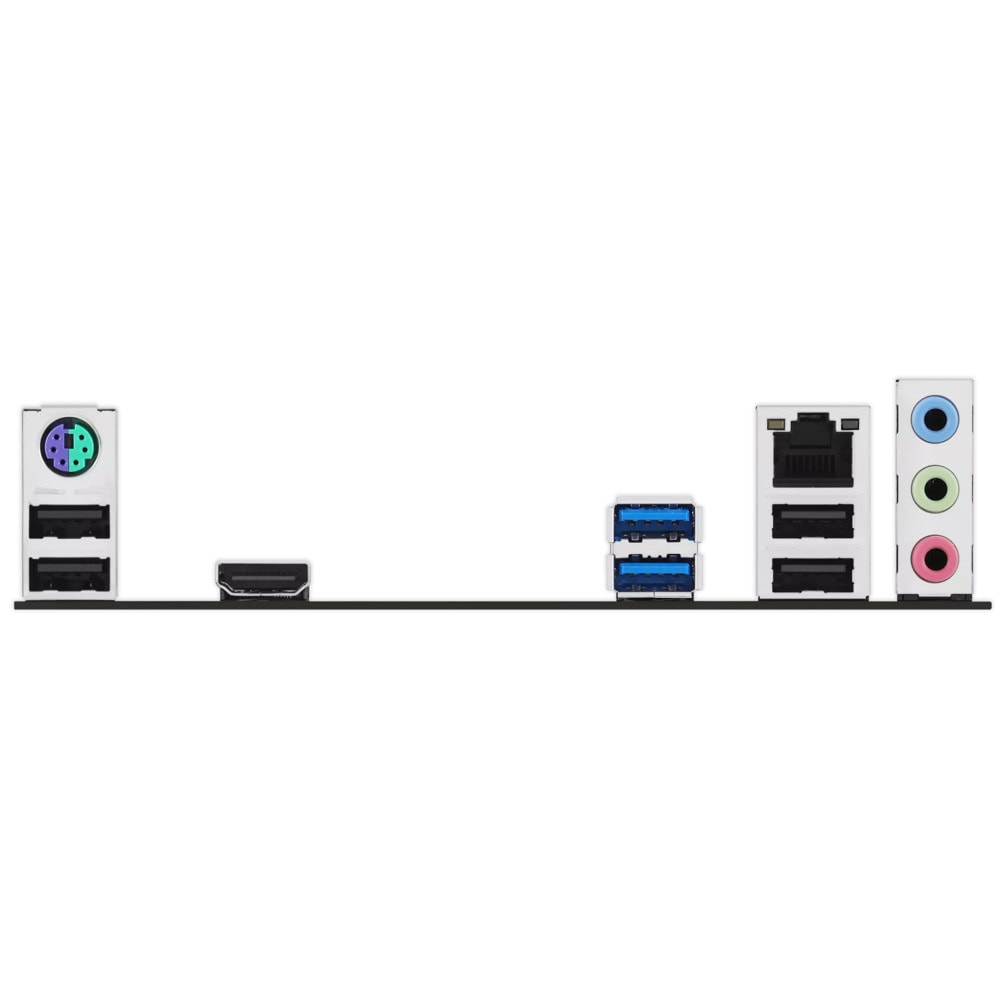

Back Panel I/O Ports

2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert
- Two-Way AI Noise Cancelation
AI Suite 3
- EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous

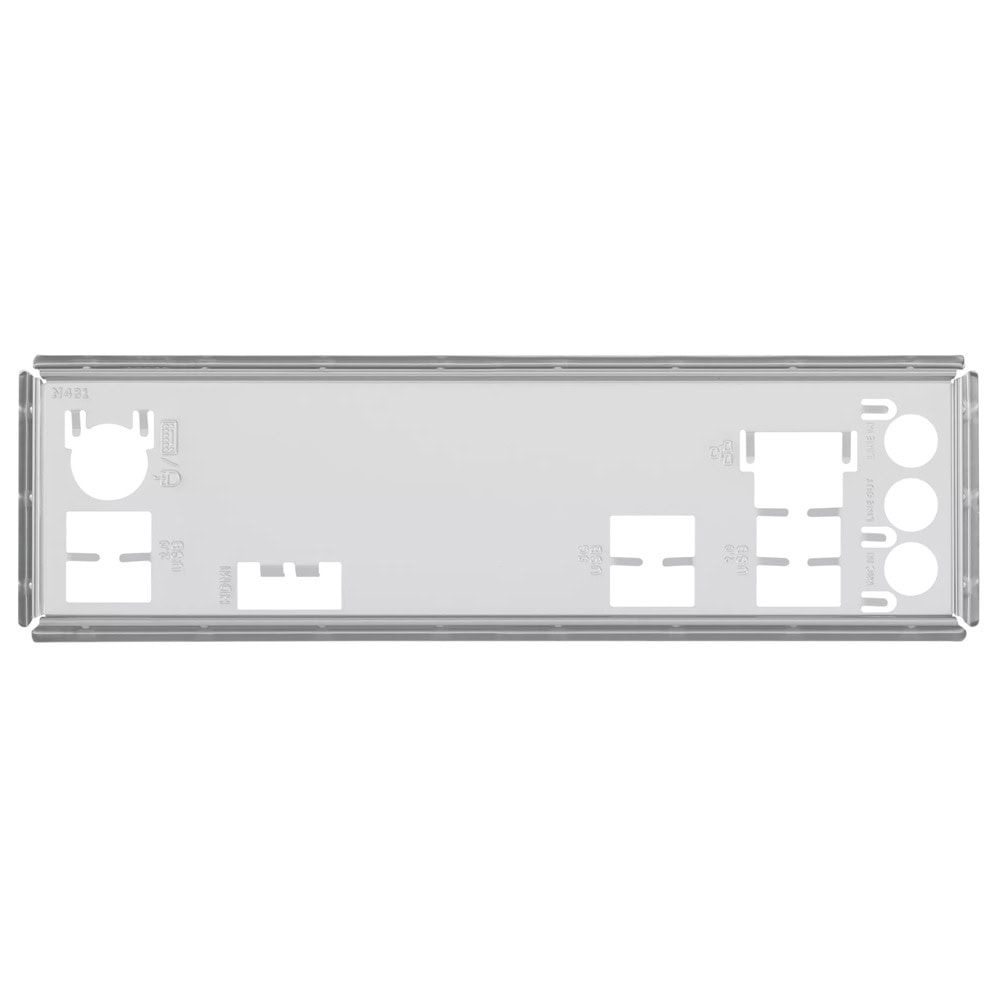

1 x I/O shield
1 x M.2 anchor

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

micro-ATX Form Factor
9.2 inch x 8.0 inch (23.4 cm x 20.3 cm)
