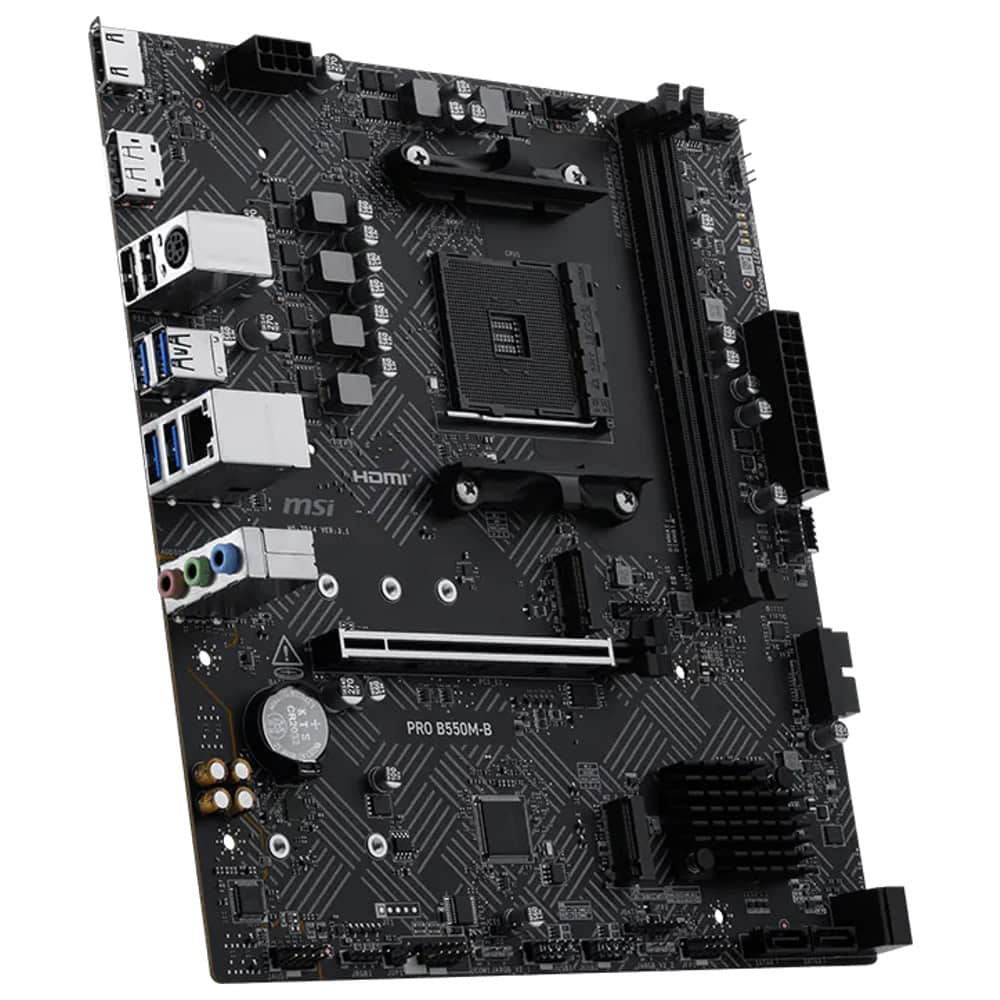

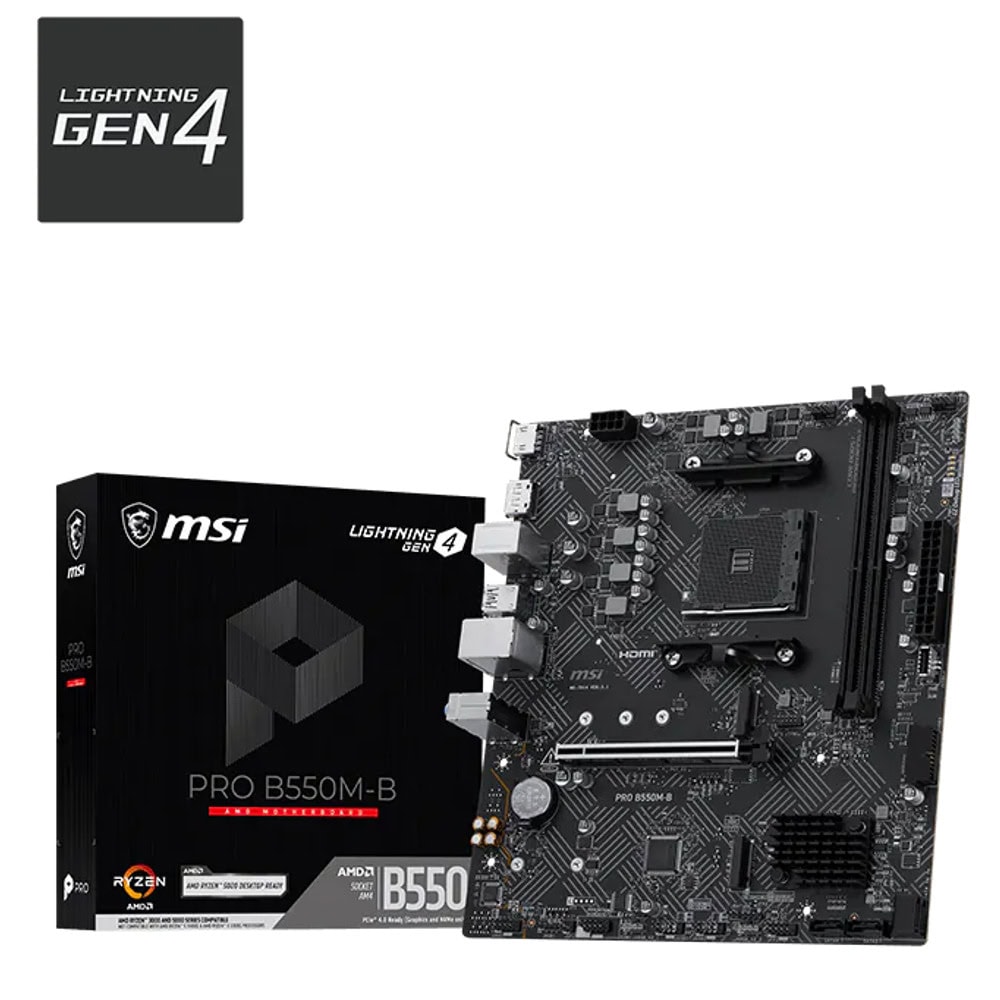

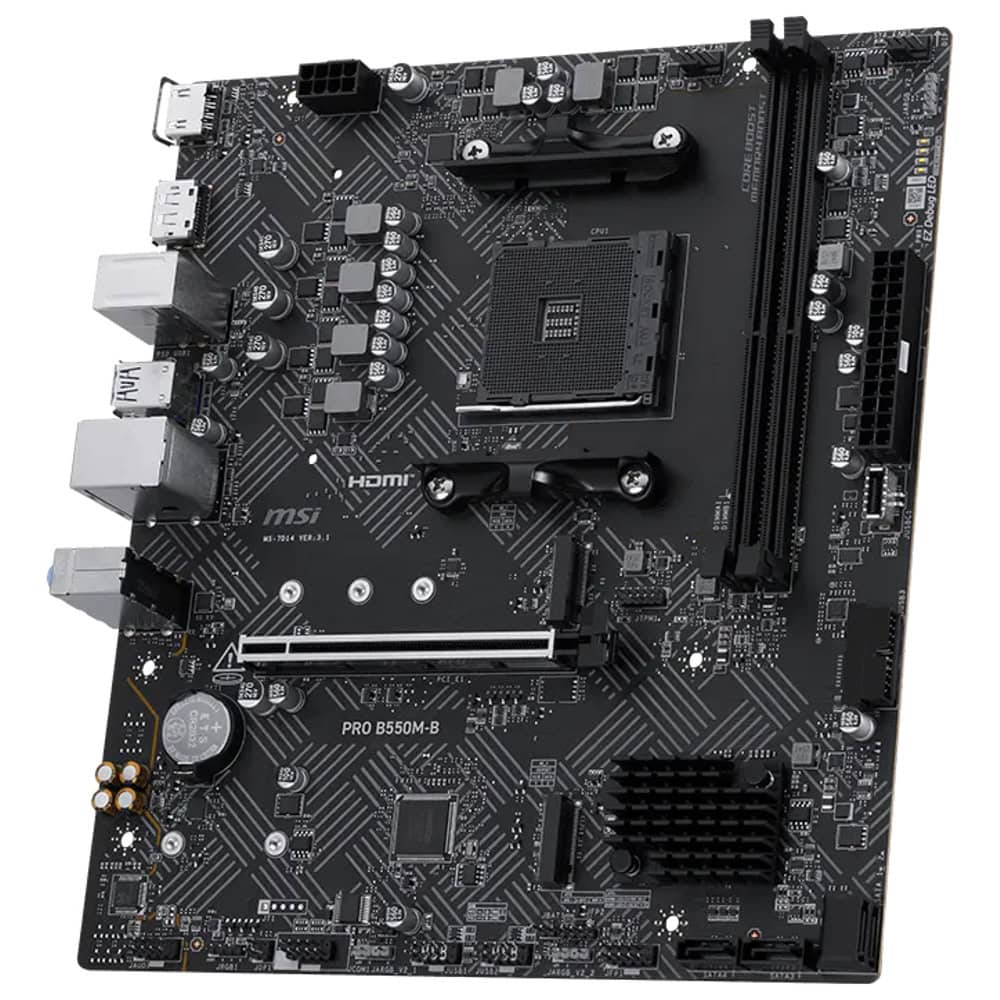

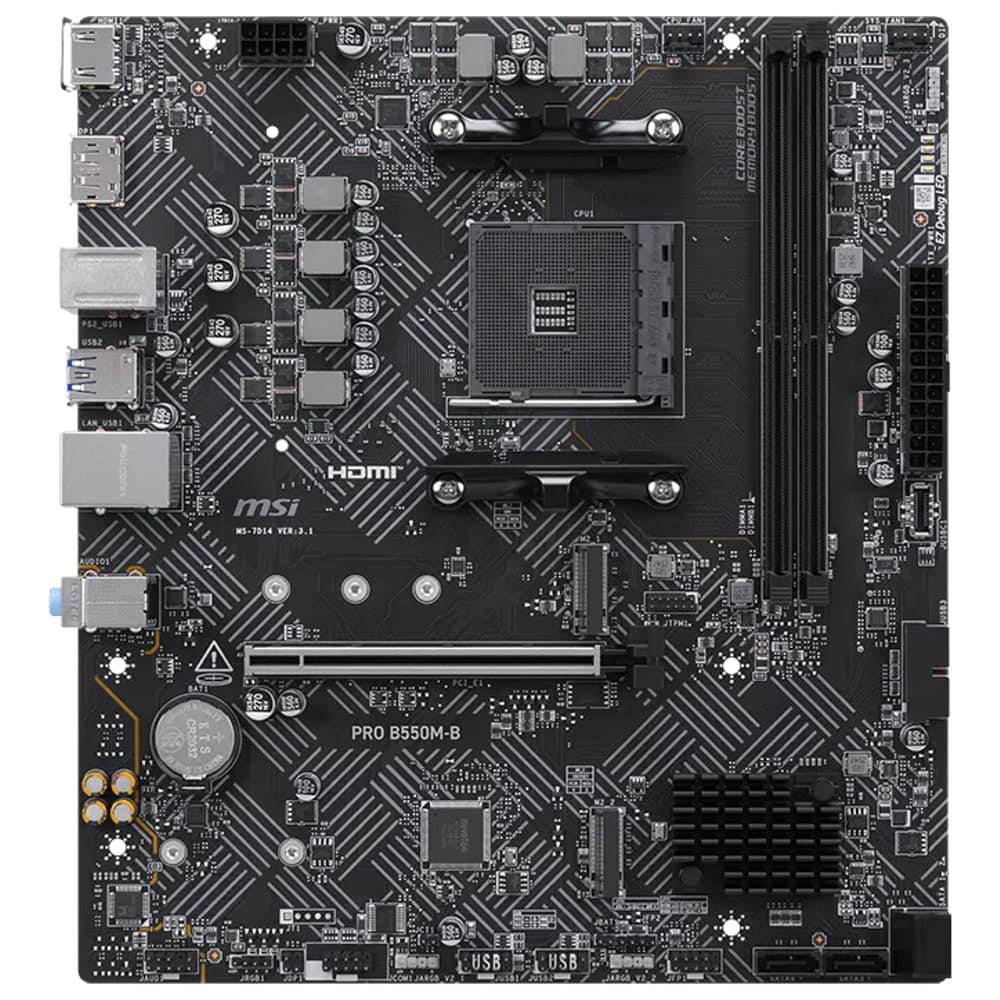

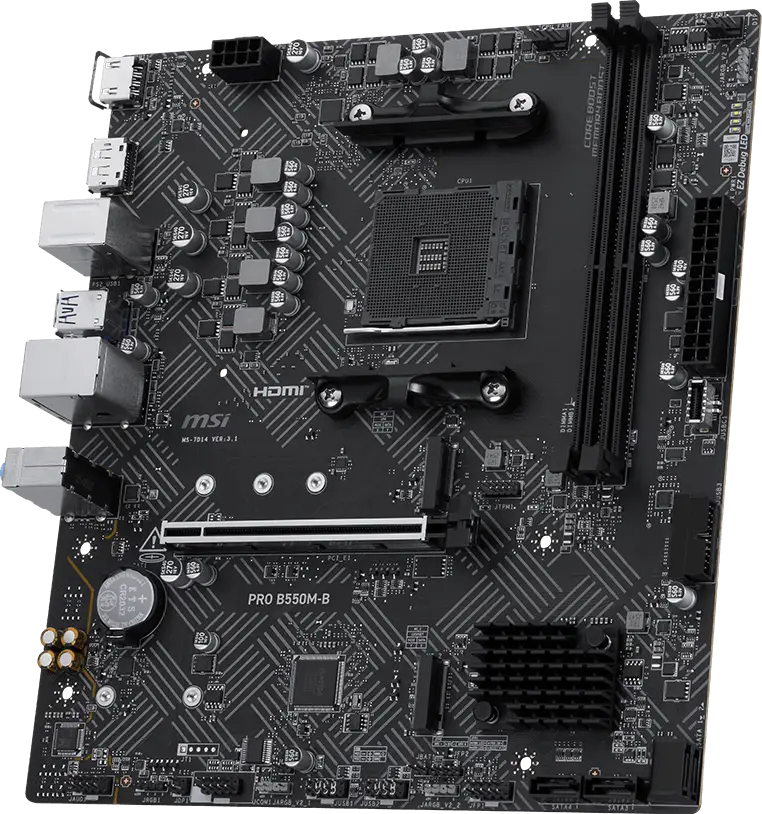

MSI PRO B550M-B

PRO B550M-B is engineered with PCIe 4.0 M.2, Frozr AI Cooling, and Front Type-C, ready for the AMD Ryzen™ 5000 series processors.

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors
Supports DDR4 Memory, up to 4600+ MT/s (OC)
Lightning Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M.2
EZ DIY: EZ Debug LED, EZ Mounting
Audio Boost: Reward your ears with studio-grade sound quality
MSI Center: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

Chipset	AMD B550
CPU	Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors; Socket AM4
Memory	2× DDR4 DIMM; Maximum Memory Capacity: 64GB; Memory Support: DDR4 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4266 / 4400 / 4600+ MHz (A-XMP OC Mode); Max. overclocking frequency: 1DPC 1R up to 4600+ MHz, 1DPC 2R up to 3866+ MHz; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode; DIMM slots feature double-sided latches; Memory compatibility and supported speeds depend on CPU and memory configuration
Onboard Graphics	1× HDMI™ (HDMI™ 2.1, up to 4K 60Hz); 1× DisplayPort (DP 1.2, up to 4K 60Hz); Available only with processors featuring integrated graphics; Graphics specifications depend on installed CPU
Expansion Slots	1× PCI-E x16 slot (PCI_E1); PCIe 4.0 x16 (from CPU); Supported specification depends on installed processor
Audio	Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
Storage	2× M.2: M.2_1 (from CPU) supports PCIe 4.0 x4 / SATA mode, 2280/2260/2242 devices; M.2_2 (from Chipset) supports PCIe 3.0 x4, 22110/2280 devices; 4× SATA 6Gb/s; Supported specification depends on installed processor
RAID	Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB	Rear: 2× USB 2.0, 4× USB 5Gbps Type-A; Front: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 5Gbps Type-C
LAN	Realtek® RTL8111H 1Gbps LAN
Internal IO	1× ATX_PWR; 1× CPU_PWR; 1× CPU Fan; 1× System Fan; 2× Front Panel (JFP); 1× Chassis Intrusion (JCI); 1× Front Audio (JAUD); 1× COM Port (JCOM); 3× Addressable V2 RGB LED (JARGB_V2); 1× RGB LED (JRGB); 1× TPM pin header (TPM 2.0); 4× USB 2.0 ports; 2× USB 5Gbps Type-A ports; 1× USB 5Gbps Type-C port
LED Feature	4× EZ Debug LED

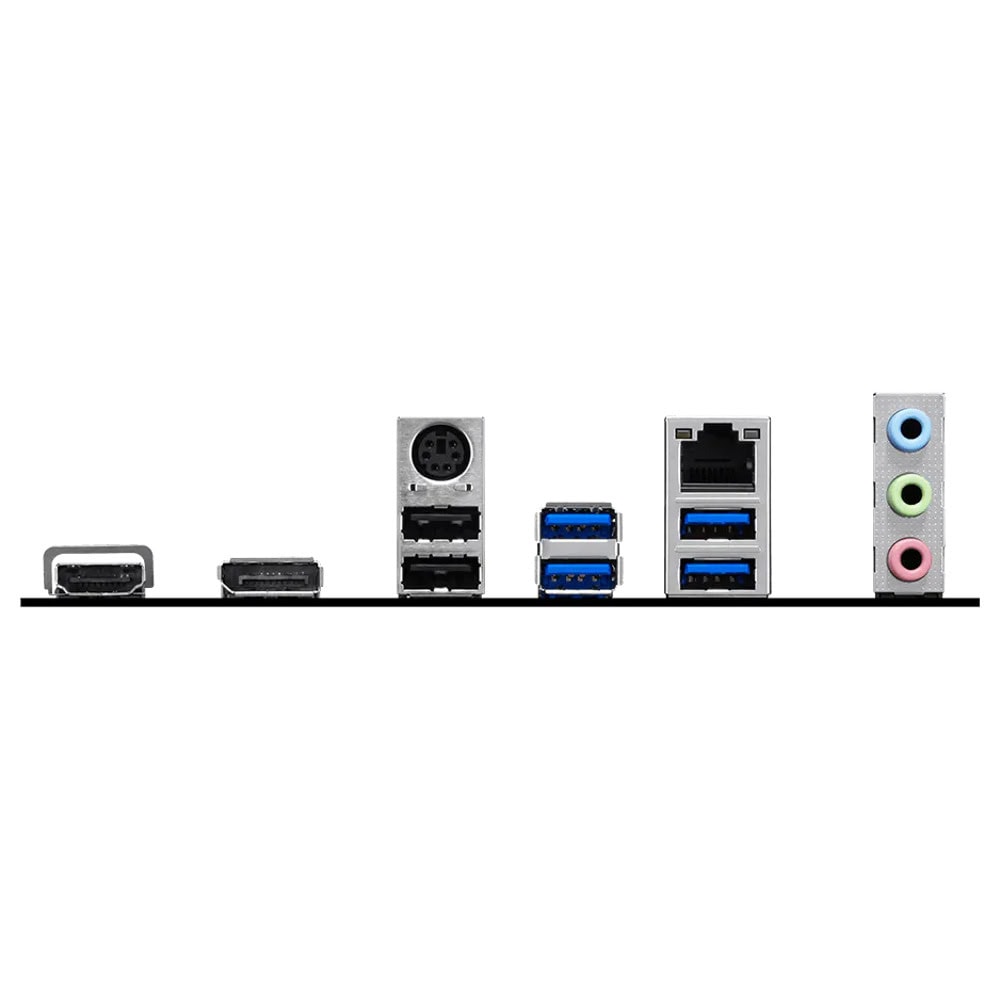

Back Panel Ports	1× HDMI™; 1× DisplayPort; 2× USB 2.0; 4× USB 5Gbps Type-A; 1× LAN (RJ-45); Keyboard / Mouse port; Audio connectors
Operating System	Supports Windows® 11 64-bit; Windows® 10 64-bit
Box Content	Not specified
PCB Info	mATX; 220 × 243.84 mm

Виж още Дънни платки за AMD процесори MSI
Виж всички Дънни платки за AMD процесори в категорията

Технически характеристики

Процесор сокет:	AM4
Чипсет:	B550
Поддържана памет:	DDR4
Брой слотове за RAM памет:	2
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Да
Безжични мрежи:	Не
Bluetooth:	Не
Видео слот:	PCI-E
Multi-Graphics технология:	Няма
Видео изход:	DP HDMI
Форм фактор:	Micro ATX
Видеокарта:	Вградена
