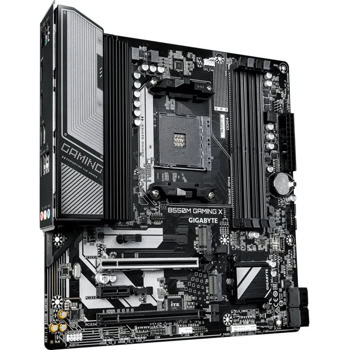

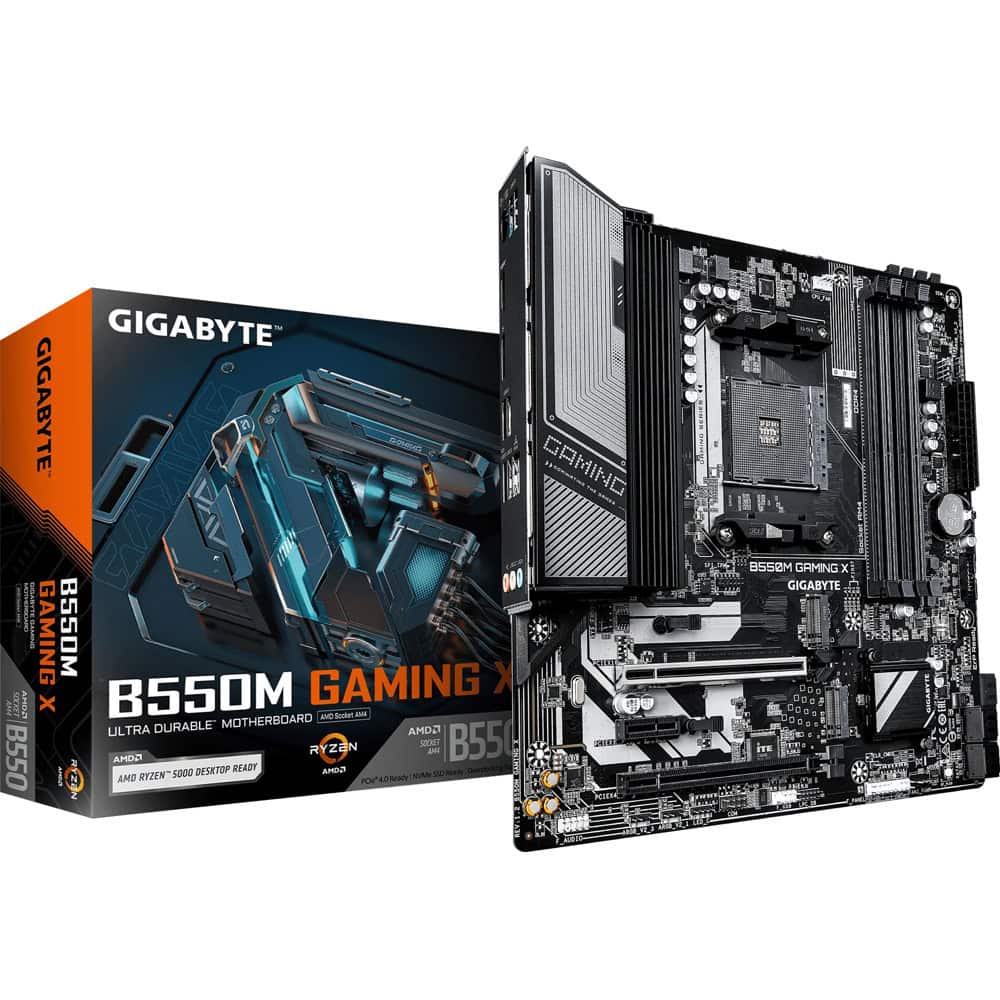

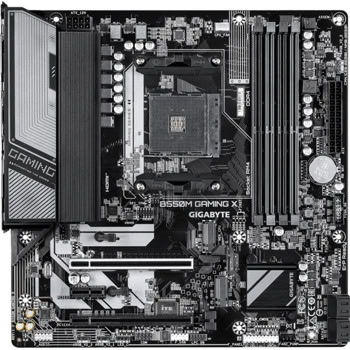

Дънна платка Gigabyte B550M GAMING X, AM4, B550, DDR4, PCI-E 4.0(DP&HDMI), 4x SATA 6Gb/s, 2x M.2, 4x USB 3.2 Gen 1 Type-A, 1GbE LAN, Micro ATX

FEATURES

• AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
• Digital twin 6+2 phases VRM solution
• Dual Channel DDR : 4*DIMMs
• EZ-Latch : PCIe slots with Quick Release Design
• Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1
• Efficient Thermal : VRM Thermal Armor Advanced
• Fast Networking : GbE LAN
• Extended Connectivity : HDMI, Displayport
• PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Infinite Memory Performance

GIGABYTE Gaming motherboards boost DDR4 memory performance and offer top-notch compatibility using various advanced methods.

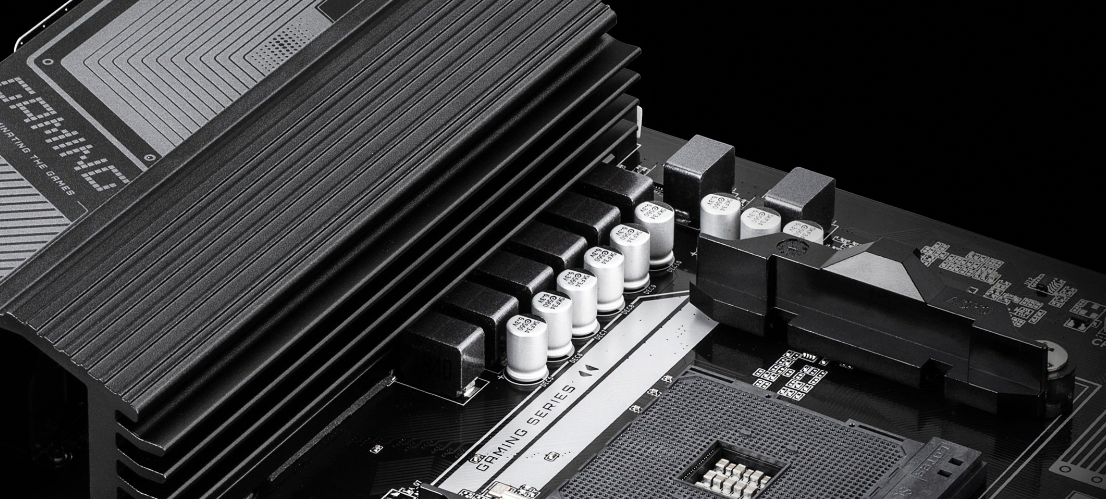

Steady Power

Better Play GAMING Series, steady power keeps your gaming smooth.

• CPU
• AMD Socket AM4, support for:
  AMD Ryzen™ 5000 G-Series Processors/
  AMD Ryzen™ 5000 Series Processors/
  AMD Ryzen™ 4000 G-Series Processors/
  AMD Ryzen™ 3000 G-Series Processors/
  AMD Ryzen™ 3000 Series Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
• Chipset
• AMD B550
• Memory
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
  Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
• Onboard Graphics

• Integrated Graphics Processor with AMD Radeon™ Graphics support:
  - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz


  * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.


  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.


  (Graphics specifications may vary depending on CPU support.)
  Maximum shared memory of 16 GB

• Audio

• Realtek® ALC1220 CODEC


  * The back panel line out jack supports DSD audio.


  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN
• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
  - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
  - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1

• Storage Interface
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
  - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
  - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
  1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB
• CPU:
  - 4 x USB 3.2 Gen 1 ports on the back panel
  Chipset:
  - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  1 x system fan header
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Clear CMOS jumper
  1 x Q-Flash Plus button

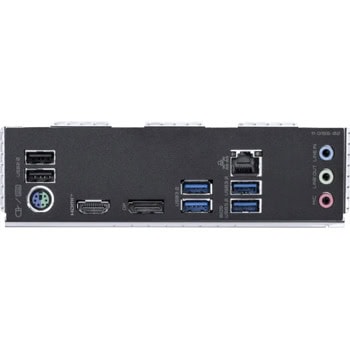

• Back Panel Connectors

• 2 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  1 x HDMI port (Note)
  1 x DisplayPort (Note)
  4 x USB 3.2 Gen 1 ports
  1 x RJ-45 port
  2 x antenna connectors
  3 x audio jacks



  * Actual support may vary by CPU.

• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring

• Voltage detection
  Temperature detection
  Fan speed detection
  Overheating warning
  Fan fail warning
  Fan speed control


  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS
• 1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features

• Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software
• Norton® Internet Security (OEM version)
• Operating System
• Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor
• Micro ATX Form Factor; 24.4cm x 24.4cm
