EZ M.2 Shield Frozr II:
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Audio Boost:
Reward your ears with studio grade sound quality for the most
immersive audio experience.
Extended Heatsink:
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM Heatsink:
The VRM heatsink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr:
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad:
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink:
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
Specifications
CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket
AMD Socket AM5
Chipset
AMD X870E Chipset
Graphics Interface
1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots
Display Interface
1 x USB4 port supports USB Type-C display output, Support 4K@60Hz as specified in HDMI 2.1 – Requires Processor Graphics
Memory
Support 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)
Storage
1 x M.2 Gen5 x4 128Gbps slot,
2 x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports
RAID
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen 9000 series processors.

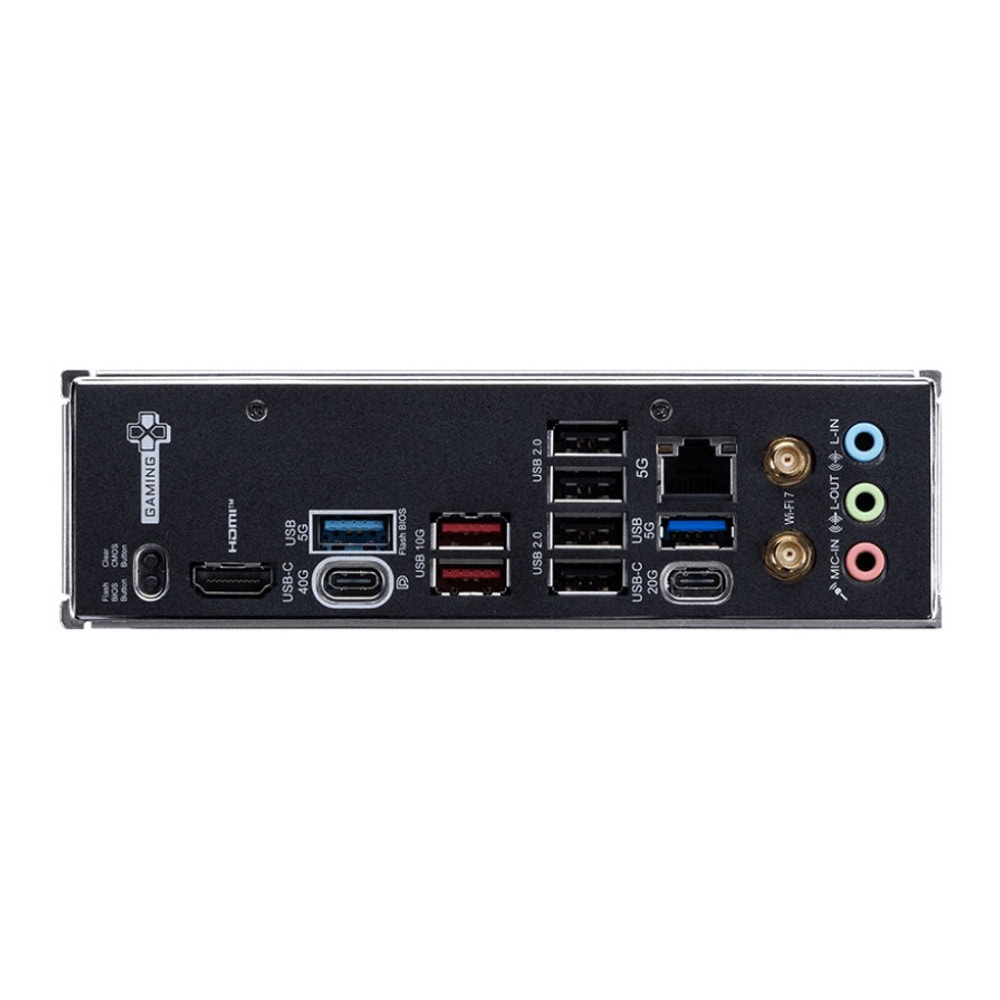

USB ports
1 x USB 40Gbps (1 Type-C)
1 x USB 20Gbps (1 Type-C)
3 x USB 10Gbps (2 Type-A + 1 Type-C)
6 x USB 5Gbps (6 Type-A)
10 x USB 2.0
LAN
Realtek 5G LAN
Wireless / Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4
Audio
8-Channel (7.1) HD Audio with Audio Boost
PCB Info
ATX
243.84mmx304.8mm
Виж още Дънни платки за AMD процесори MSI
Виж всички Дънни платки за AMD процесори в категорията
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Audio Boost:
Reward your ears with studio grade sound quality for the most
immersive audio experience.
Extended Heatsink:
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM Heatsink:
The VRM heatsink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr:
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad:
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink:
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
Specifications
CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket
AMD Socket AM5
Chipset
AMD X870E Chipset
Graphics Interface
1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots
Display Interface
1 x USB4 port supports USB Type-C display output, Support 4K@60Hz as specified in HDMI 2.1 – Requires Processor Graphics
Memory
Support 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)
Storage
1 x M.2 Gen5 x4 128Gbps slot,
2 x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports
RAID
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen 9000 series processors.
USB ports
1 x USB 40Gbps (1 Type-C)
1 x USB 20Gbps (1 Type-C)
3 x USB 10Gbps (2 Type-A + 1 Type-C)
6 x USB 5Gbps (6 Type-A)
10 x USB 2.0
LAN
Realtek 5G LAN
Wireless / Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4
Audio
8-Channel (7.1) HD Audio with Audio Boost
PCB Info
ATX
243.84mmx304.8mm
Виж още Дънни платки за AMD процесори MSI
Виж всички Дънни платки за AMD процесори в категорията
Технически характеристики
Процесор сокет: | AM5 |
---|---|
Чипсет: | X870E |
Поддържана памет: | DDR5 |
Брой слотове за RAM памет: | 4 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Да |
Безжични мрежи: | Wi-Fi 7 (802.11be) |
Bluetooth: | Да |
Видео слот: | PCI-E |
Multi-Graphics технология: | Няма |
Видео изход: | HDMI |
Форм фактор: | ATX |
Видеокарта: | Вградена |
