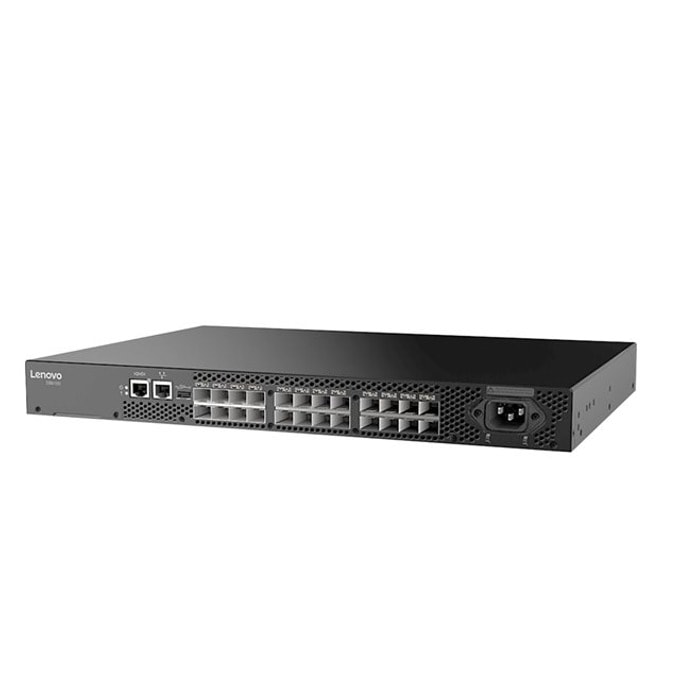

Суич Lenovo ThinkSystem DB610S, 32Gb, 24 порта, 24x 32Gb Fibre Channel SFP+

LENOVO ThinkSystem DB610S 24 ports with 16Gb SWL SFP 1x PSU Enterprise SW Bundle 1yr

General
Device Type: Switch - 24 ports - Managed - with Enterprise Software
Enclosure Type: Desktop, rack-mountable 1U
Subtype: Fibre Channel
Ports: 24 x 32Gb Fibre Channel SFP+
Performance: Aggregate throughput: 768 Gbps
Switching latency: 0.9 µs
Capacity: Maximum frame size: 2112 byte
Frame buffers: 2000
Fibre Channel: FC-DA, FC-FS, FC-GS-4, FC-SB, FC-SB-2, FC-SB-3, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-BB-6, FC-SB-5, FC-FS-4, FC-SW-6, FC-GS-7, FC-PI-6, FC-GS-8, FC-LS-3, FC-SB-6, FC-SW-7, MIB-FA
Remote Management Protocol: SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SCP, SFTP
Authentication Method RADIUS, TACACS+, LDAP, FCAP

Features
Syslog support, IPv6 support, IP address filtering, firmware upgradable, Full Fabric, event log, Access Control List (ACL) support, Quality of Service (QoS), enviromental monitoring, Forward Error Correction (FEC), Registered State Change Notification (RSCN) support, Extended Fabric, ISL Trunking, Fabric Shortest Path First (FSPF), Fabric-Device Management Interface (FDMI), Role-Based Access Control (RBAC), Dynamic path selection (DPS), Dynamic load sharing (DLS), Reliable Commit Service (RCS), Simple Name Server (SNS), Fibre Channel Authentication Protocol (FCAP), Power-on self-test (POST), Network Timing Protocol (NTP), flow mirroring, Dynamic Fabric Provisioning (DFP), 3+1 redundant fans, traffic isolation zoning (TIZ), Rolling Reboot Detection (RRD)

Expansion / Connectivity
Interfaces
24 x 4/8/16/32Gb Fibre Channel SFP+
1 x management (Gigabit LAN) RJ-45
1 x serial RJ-45
1 x USB

Power
Power Device: Internal power supply
Power Provided: 150 Watt
Voltage Required: AC 120/230 V (50/60 Hz)

Miscellaneous
Included Accessories: 24 x 16Gb Fibre Channel SFP+ Short Wave Transceiver
Cables Included: 1 x DB-9 to RJ-45 adapter
Rack Mounting Kit: Included
Compliant Standards: VCCI, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC Part 15 B, UL 60950-1, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438, KN32, KN35, CNS 14336-1, EN 55032

Software / System Requirements
Software Included: ISL Trunking, Extended Fabric

Dimensions & Weight
Width: 42.9 cm
Depth: 30.7 cm
Height: 4.3 cm
Weight: 4.2 kg
