Name: Суич Lanberg DSM1-1008, 1000Mbps, 8 порта, 8x 10/100/1000Mbps RJ45
Brand: Lanberg
SKU: NTLHLANBERGDSM11008
Price: 25.86 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

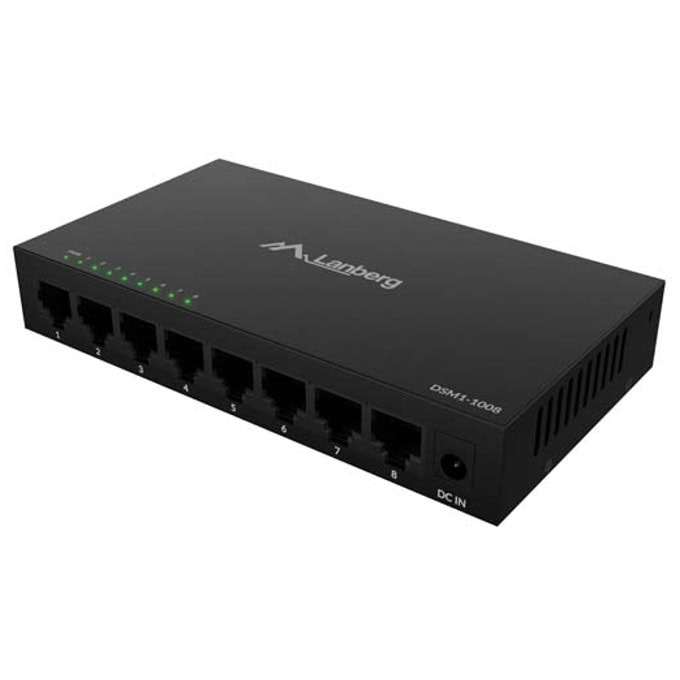

Lanberg DSM1-1008

An unmanaged simple switch that gets the job done

The DSM1-1008 is a small-sized unmanagable desktop switch, prepared for home and SOHO and SMB environments. As an unmanagable model, it doesn't require logging into a panel, setting up VLANs or rules - you get maximum usability "out of the box." This is a great approach when you just want to add more ports and have peace of mind.

In practice, this means that the device is ideal for home applications and small offices: to extend the network for a computer, printer, TV, NAS, access point or monitoring equipment. Silence also counts in this class: passive cooling and no fan are a comfort, especially when the switch is standing on a desk.

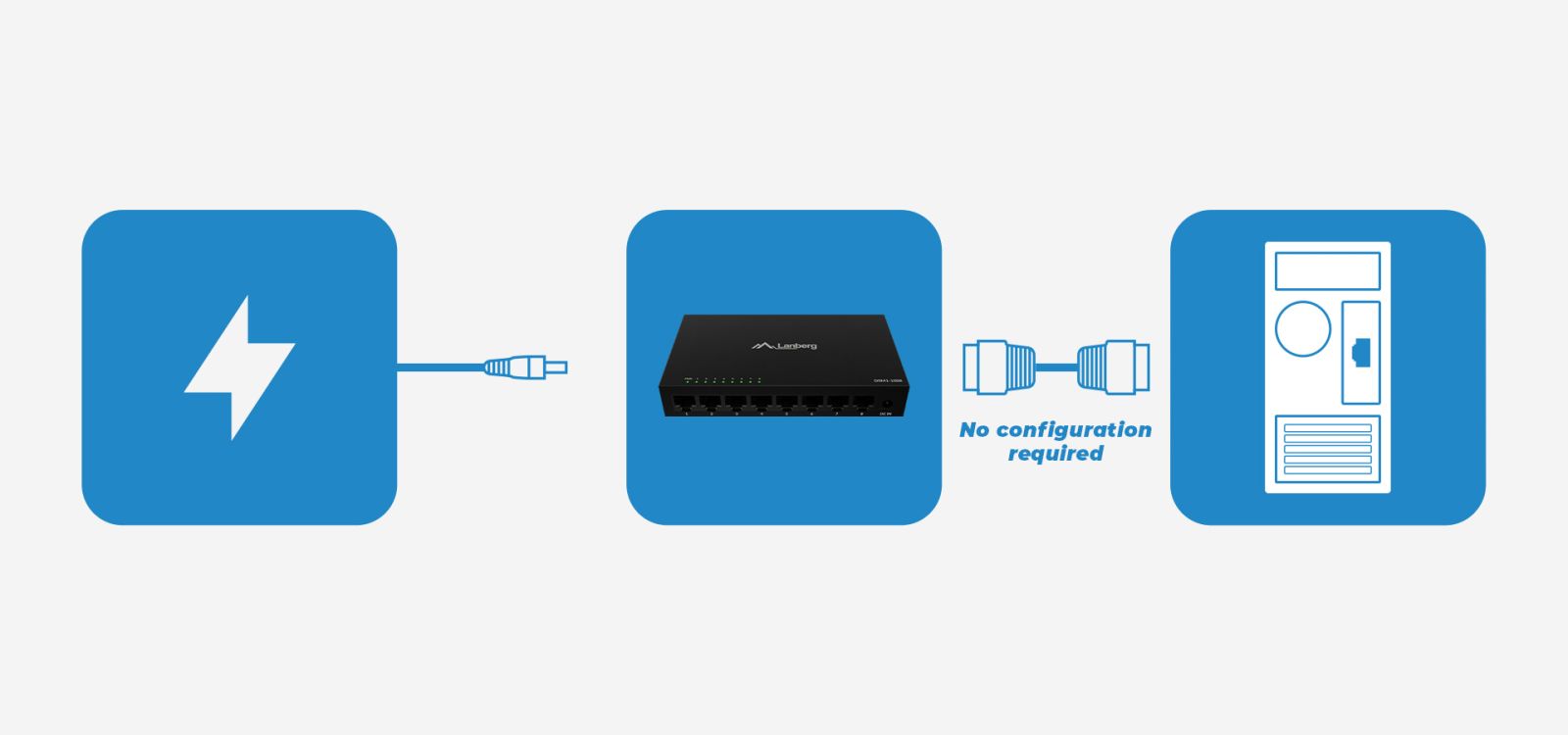

Plug & Play and automation on the switch side

The DSM1-1008 operates on a Plug & Play basis, and the switch provides switching function support for 8 RJ-45 ports: fast connection setup and stable operation without redundant user intervention. It's this automation that makes installation a breeze: you plug in the wires, and the device takes care of the basics on its own.

Desktop 8x port - fast and simple network expansion

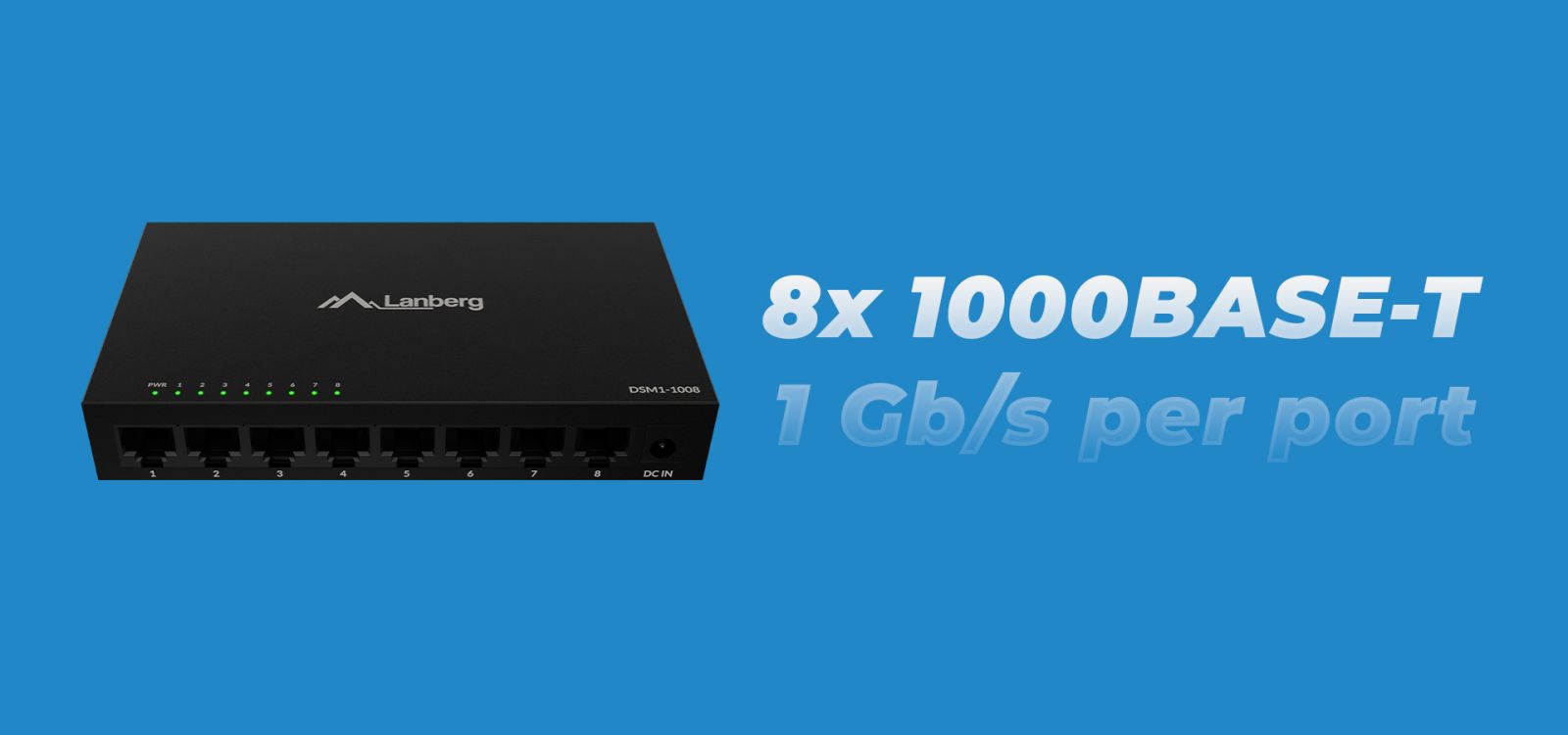

At the heart of the DSM1-1008 are 8x Gigabit RJ-45 connectors - that's 8 ports for your desk, shelf or back office. That's exactly what you most often need to "unplug" your router and conveniently connect several wired devices in one place, with no splitters and no compromises.

If you want a simple scenario: router → switch → 8 ports at your disposal - this type of switch is the most versatile. You get 8 gigabit transmission paths in a small desktop chassis, without redundant features that drive up the price.

8 Gigabit Ethernet ports in practice

The 8 ports allow you to connect a set of key wired devices at a single point.
8x Gigabit helps maintain a highly responsive local network with simultaneous traffic of several devices (NAS file copies, 4K streaming, upgrades, remote working).

Gigabit and bandwidth - when LAN fluidity matters

On the DSM1-1008, the maximum link speed is 1 Gbps per port (1000 Mbps), and the entire device offers 10 Gbps switching capacity and a 7 Mbit buffer. In practice: the LAN is ready for typical home and office loads, and the switch does not become a bottleneck with several active devices and many simultaneous transmissions.

It is also worth appreciating the 2K MAC address table - the switch "learns" devices (MAC auto-learning), which improves the forwarding of frames and stabilizes the operation of the network in everyday scenarios. These are solutions you will appreciate especially when you connect equipment with different traffic characteristics (NAS, TV, PC, DVR) to the ports.

MDI/MDI-X and connection negotiation

The DSM1-1008 automatically matches the link to the cabling (MDI/MDI-X), so it works for both straight or crossed cable - no separate uplink ports and no guesswork. In addition, the link establishes itself quickly thanks to auto-negotiation and support for network functions on the switch side: in practice, you get 8x 1 gbps along with auto-negotiation of the connection, and configuration remains "zero-one" on your side: you plug into the right port and it works.

Flow control, which means fewer problems with congestion

Built-in Flow Control allows you to manage traffic so as to reduce the risk of link congestion - controlling the flow of data thus avoiding port congestion when one of the receiving devices temporarily fails to keep up. This is a practical function of data flow control, especially for larger transfers or in networks where several ports are sometimes loaded simultaneously.

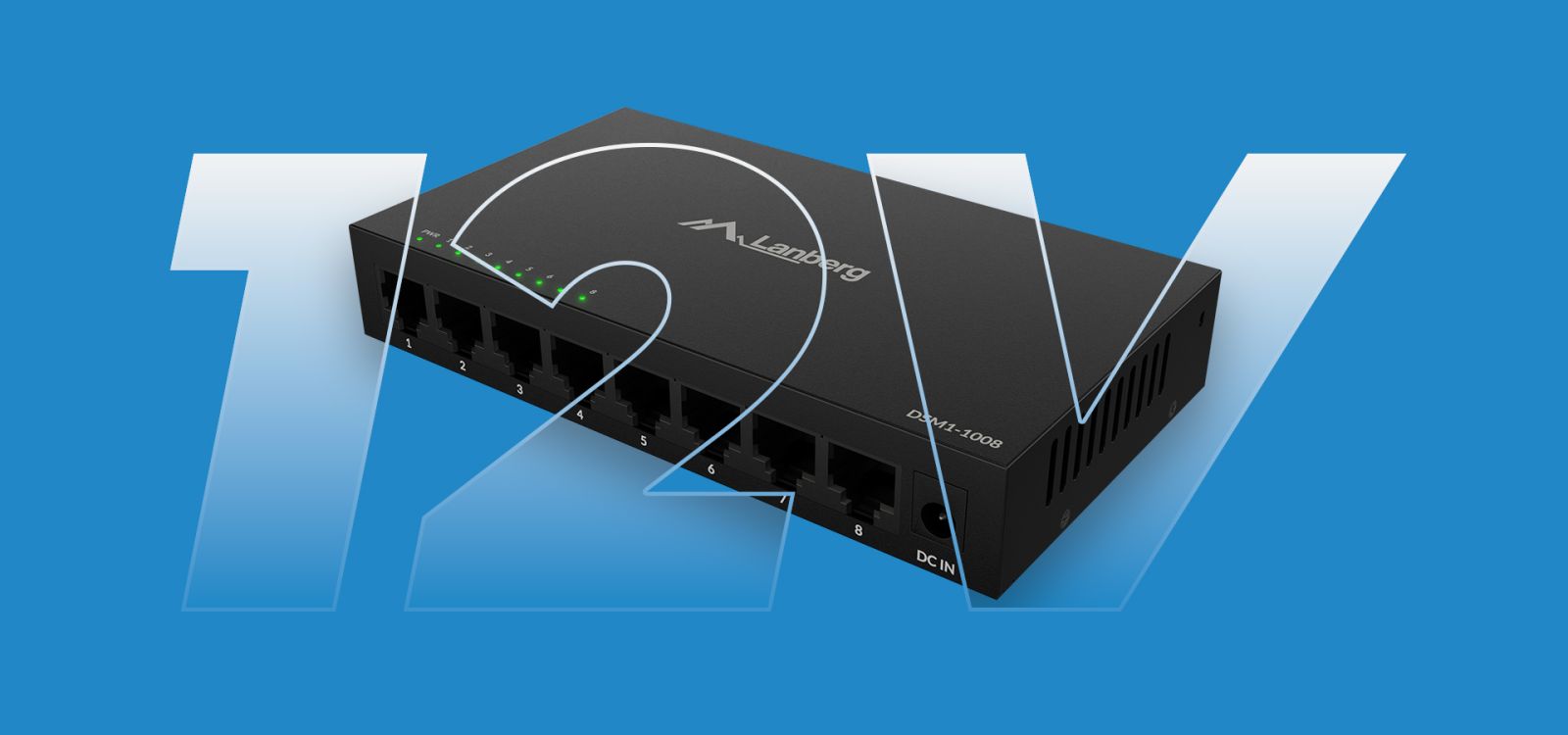

What does a 12V power supply change
from the gigabit ethernet desktop 5V models?

It's common to see queries like 5V desktop ethernet or 5V gigabit desktop ethernet - because many earlier models were powered by 5V current. The DSM1-1008 enters the segment as a 12v unmanagable gigabit ethernet desktop switch, and there is a practical reason for this: 12V is a popular standard in many installations and technical environments.

In practice, 12v standard is present in many places, like security and alarm installations and in legacy CCTV solutions. This makes it easier to maintain a "single standard" power supply around several devices. Arguments such as increased stability of operation and better current efficiency of the device by using a higher voltage are also often cited - especially in environments where power is shared by several system components.

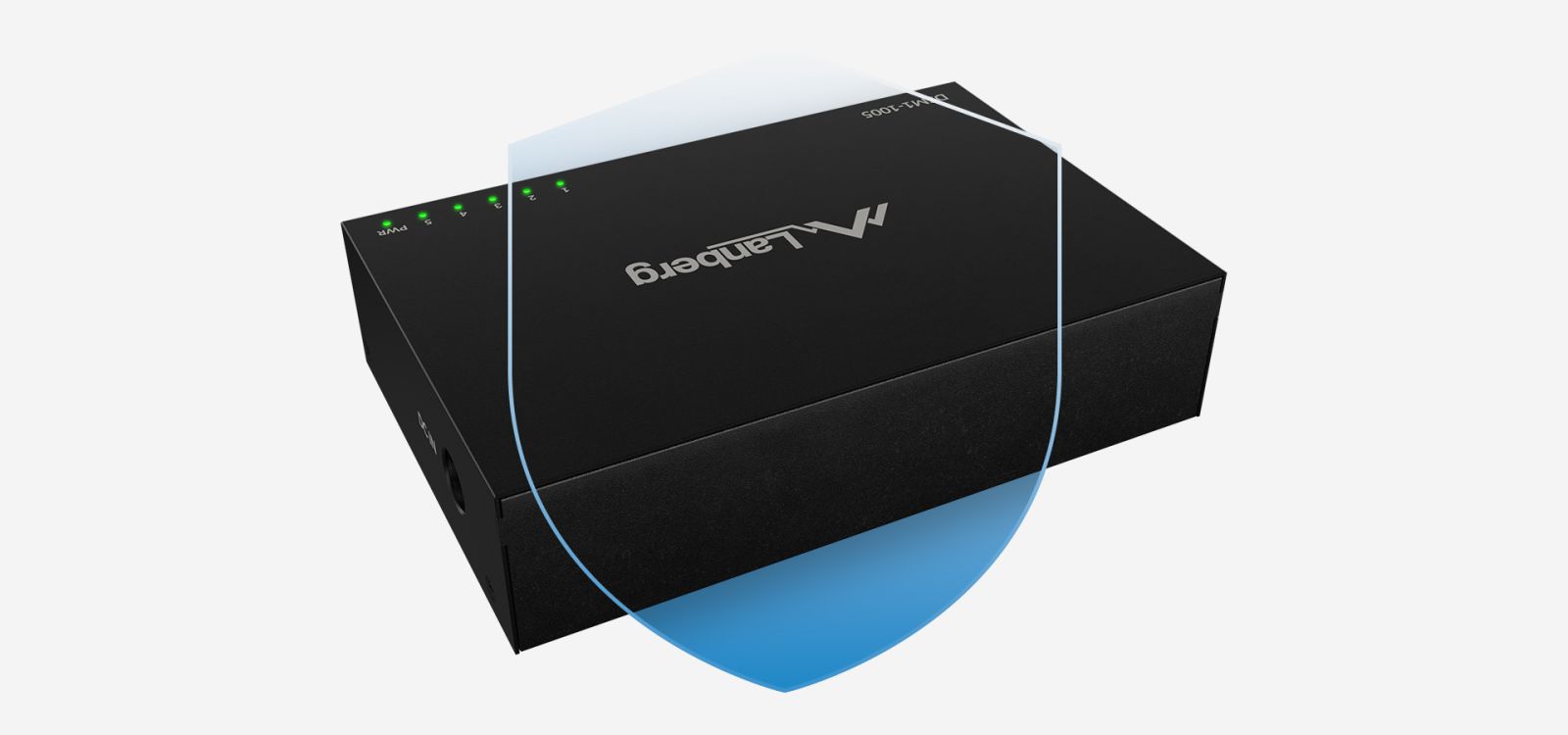

Metal housing - stability, durability and better cooling

What immediately sets the DSM1-1008 apart is its housing made of steel - a real plus in everyday use. A metal switch is more resistant to accidental knocks, "wandering" on the desk or working in more technical environments (back office, teletechnical cabinet, service office). In practice, the steel housing also means more pleasant stability of the setting - nothing bends and the whole thing gives the impression of "equipment for years".

In addition, steel helps dissipate heat, and the passive cooling solution means that the device can cool itself silently - no fan, no buzzing, and no sucking up of dust. In practice, this means: quieter, cleaner and more stable. This is important when the desktop switch is running 24/7 and has constantly active ports.

Mounting and setup

As a desktop model, the DSM1-1008 naturally lands on a desk, shelf or in a cabinet. If you're organizing your cabling "the technical way," you can also arrange for it to be mounted under a countertop or in a recessed area (e.g., next to a cable bundle) - the metal chassis stands up well to such settings, and access to ports remains convenient.
