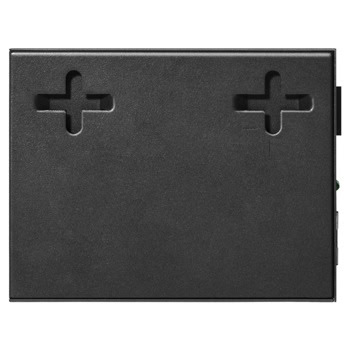

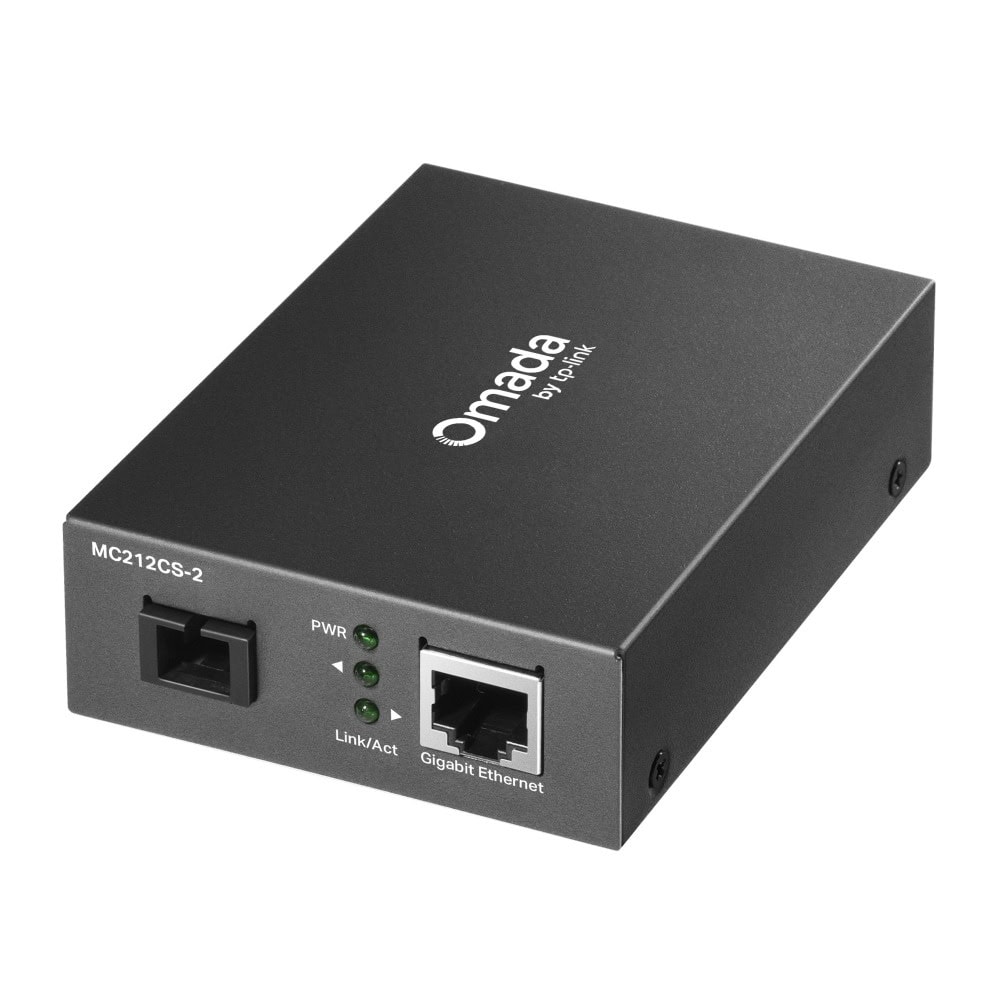

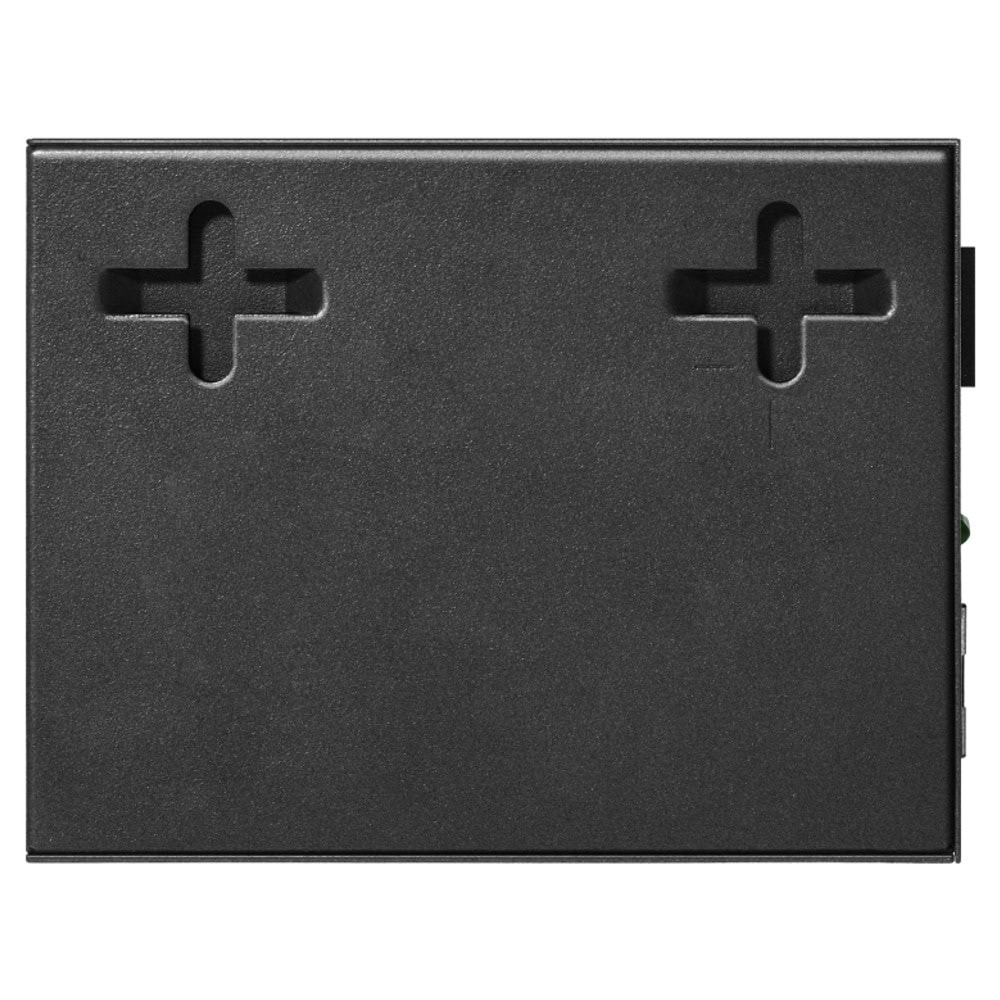

TP-Link MC212CS-2
Omada Gigabit WDM Media Converter
• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 2 km
MC212CS-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| HARDWARE FEATURES | |
|---|---|
| Interface | • 1× Gigabit SC/UPC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Power Supply | External Power Adapter: 9 V/0.6 A |
| LED | PWR, Link/Act |
| Wave Length | 1310 nm TX, 1550 nm RX |
| Dimensions ( W x D x H ) | 94.5x73x27 mm (37.2x28.7x10.6 in) |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | -5˚C to 50˚C (23˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
