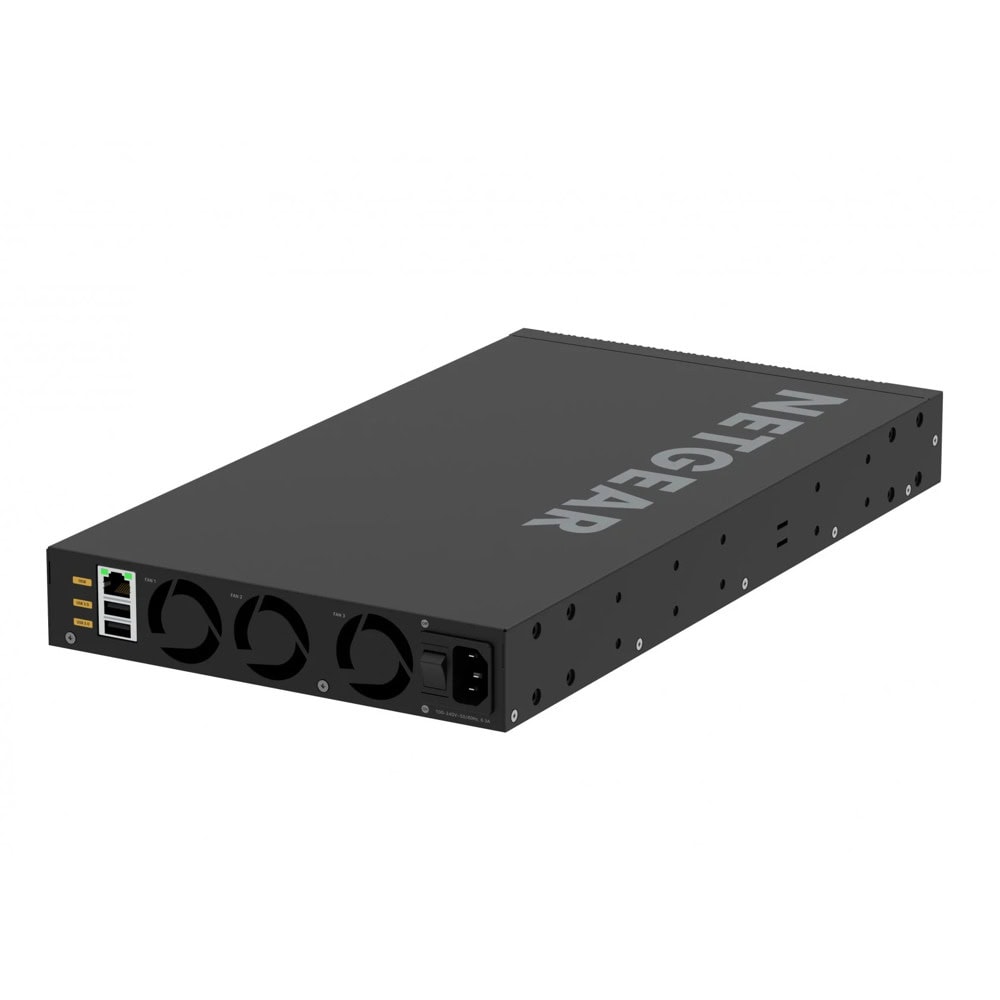

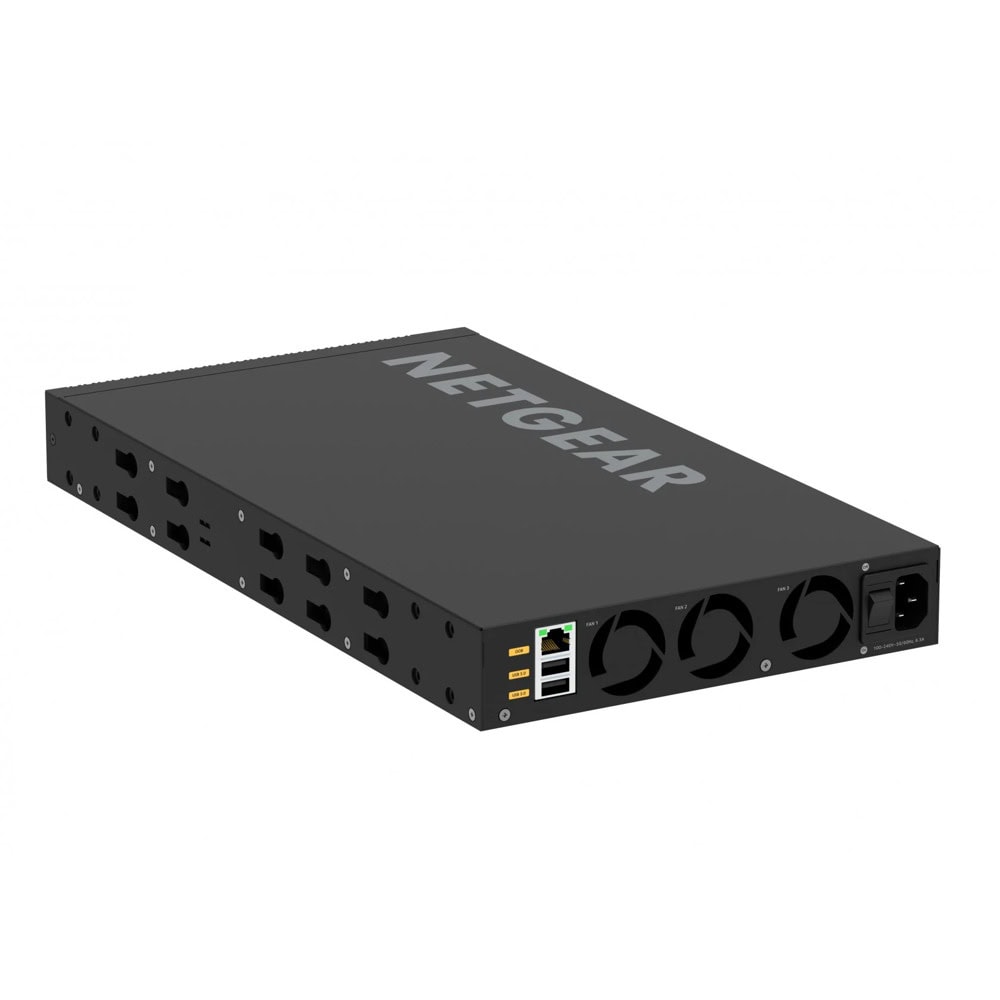

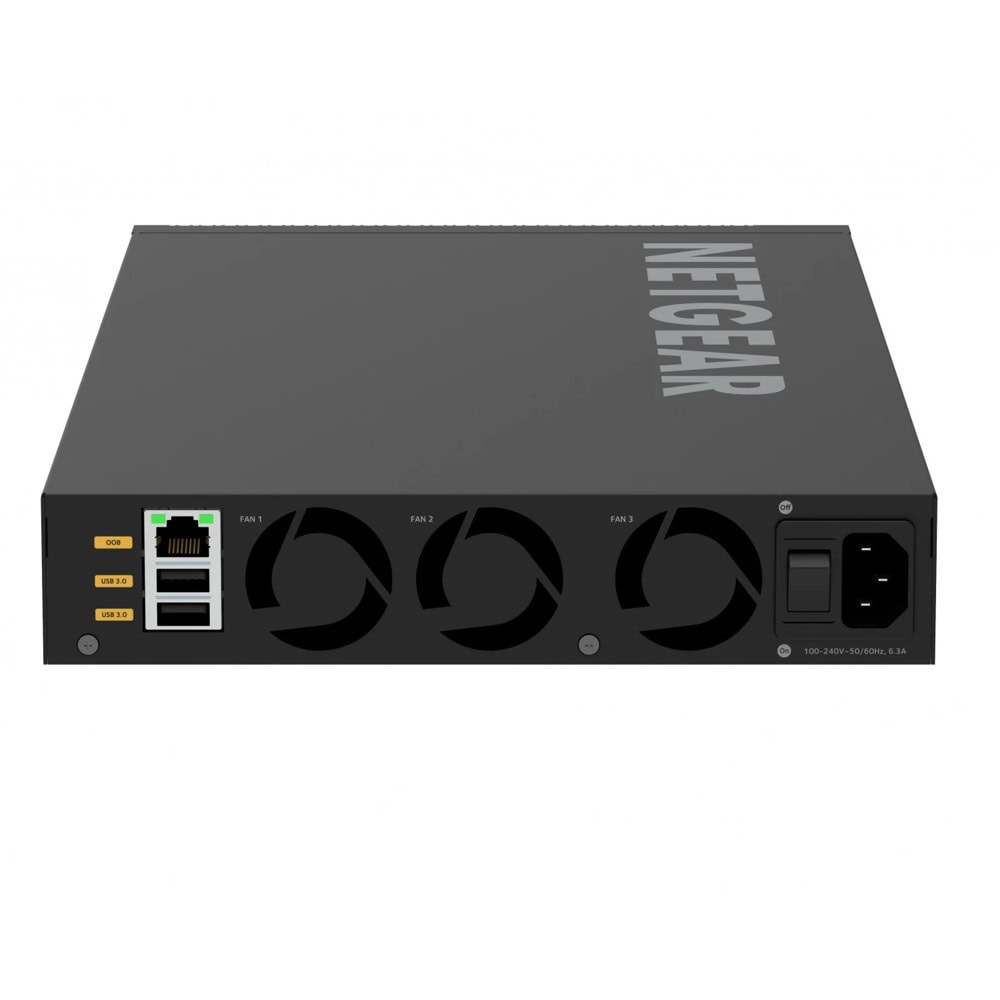

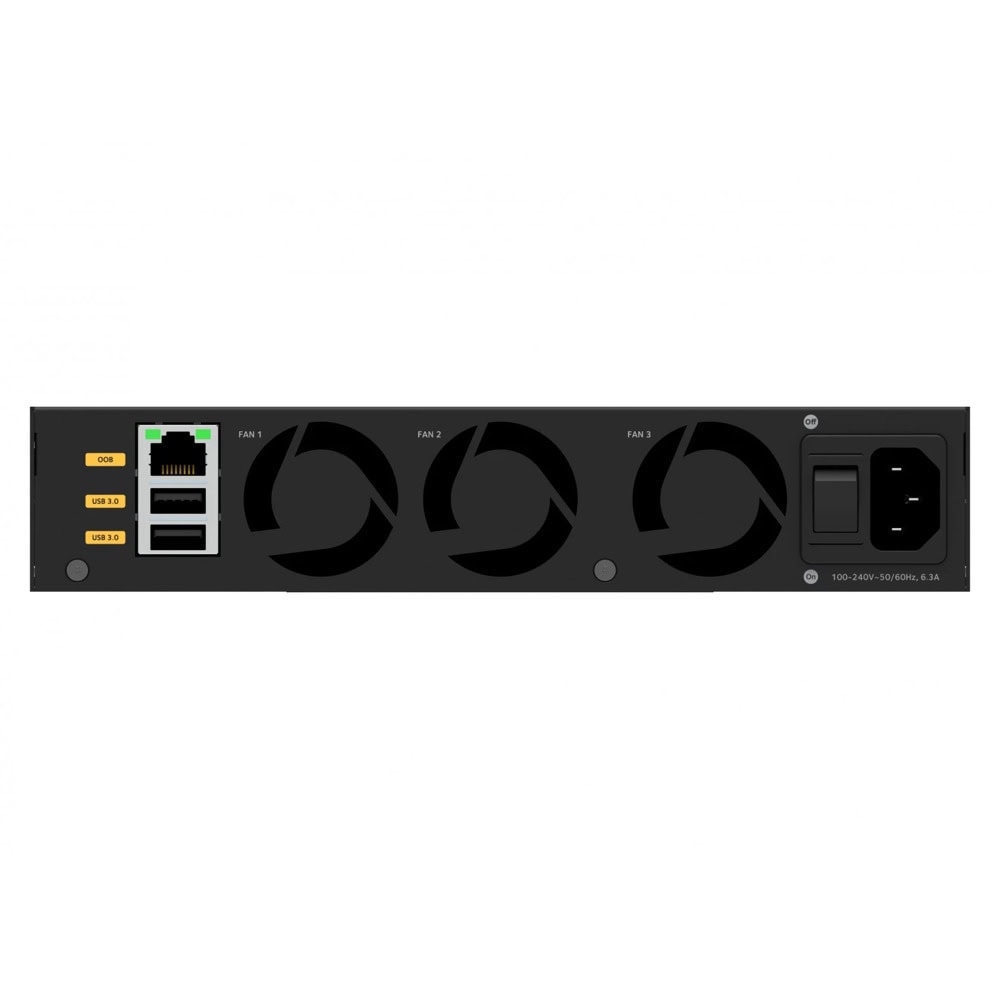

12x10G/Multi-Gig and 12xSFP+ (XSM4324) Managed Switch
- 12 10G/Multi-Gig ports, and 12 10GBASE-X SFP+ ports
- 240W internal power supply
- Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations


FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
.png)
Category | Feature | Specification |
---|---|---|
Management Features | Switch type | Managed |
Switch layer | L3 | |
QoS support | Yes | |
Web-based management | Yes | |
ARP inspection | Yes | |
Ports & Interfaces | RJ-45 ports quantity | 12 |
RJ-45 port type | 10G Ethernet (100/1000/10000) | |
10G Ethernet (copper) ports | 12 | |
SFP+ module slots | 12 | |
Power connector | AC-in jack | |
Network | Networking standards | IEEE 802.1D/Q/Qav/s/w/x, 802.3/ab/ad/ak/bz/u |
10G support | Yes | |
Policy-based routing | Yes | |
Full duplex | Yes | |
6to4 tunnel | Yes | |
IPv4 routes | 512 | |
IPv6 routes | 256 | |
Spanning tree protocol | Yes | |
Rate limiting | Yes | |
Broadcast storm control | Yes | |
Flow control support | Yes | |
Link aggregation | Yes | |
VLAN support | Yes | |
Virtual LAN features | MAC-based, Private VLAN, Voice VLAN | |
Number of VLANs | 4093 | |
Data Transmission | Switching capacity | 480 Gbit/s |
Throughput | 357.12 Mpps | |
MAC address table | 16000 entries | |
Store-and-forward | Yes | |
Latency (1 Gbps) | 2.14 µs | |
Latency (10 Gbps) | 2.29 µs | |
Jumbo frames support | Yes | |
Jumbo frames size | 12000 | |
Packet buffer memory | 32 MB | |
Security | DHCP features | Option 150/66/67, relay, server, snooping |
Access Control List (ACL) | Yes | |
ACL egress | 1023 | |
ACL ingress | 511 | |
IGMP proxy | Yes | |
IGMP snooping | Yes | |
Password protection | Yes | |
DoS attack prevention | Yes | |
Authentication type | RADIUS, TACACS+ | |
Root protection | Yes | |
Queue scheduling algorithms | SPQ, WRED | |
Static port security | Yes | |
MAC address filtering | Yes | |
Loop protection | Yes | |
BPDU filtering/protection | Yes | |
Authentication | Guest VLAN, MAC-based authentication | |
Multicast Features | Multicast support | Yes |
MLD snooping | Yes | |
Protocols | Management protocols | SNMP v1/v2/v3 |
Routing protocols | OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2 | |
GVRP | Yes | |
Design | Rack mounting | Yes |
Stackable | Yes | |
Form factor | 1U | |
Product colour | Black | |
LED indicators | Yes | |
Airflow direction | Front-to-back | |
Performance | Built-in processor | Yes |
Processor model | ARM Cortex-A57 | |
Processor frequency | 1800 MHz | |
Memory type | DDR4-SDRAM | |
Internal memory | 2048 MB | |
Flash memory | 512 MB | |
sFlow | Yes | |
Power | Power source | AC |
Power supply included | Yes | |
Power consumption (typical) | 95.8 W | |
PoE | Power over Ethernet (PoE) | No |
Other Features | Power supply | 240 W |
Operational Conditions | Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -20 - 70 °C | |
Operating relative humidity (H-H) | 0 - 90% | |
Storage relative humidity (H-H) | 0 - 95% | |
Operating altitude | 0 - 3000 m | |
Non-operating altitude | 0 - 3000 m | |
Dimensions | Width | 220 mm |
Depth | 400 mm | |
Height | 43.2 mm | |
Weight | 4.3 kg |
Виж още Суич Netgear
Виж всички продукти Суич в категорията
Документация
Технически характеристики
Брой портове: | 24 |
---|---|
Максимална скорост: | 10 Gbit/s |
Стандарт: | IEEE 802.3u |
Управляем: | Да |
