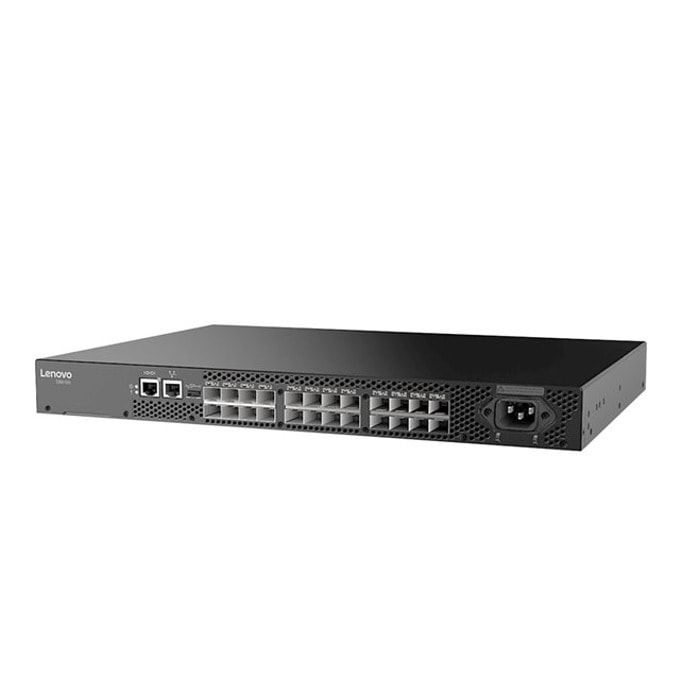

Суич Lenovo ThinkSystem DB610S Gen6, 8 порта, 8x 4/8/16/32Gb Fibre Channel SFP+

LENOVO ThinkSystem DB610S Gen6 FC Switch 8x32Gb SWL SFP 1xPSU rail kit 1Y

General
Device Type: Switch - 8 ports - Managed
Enclosure Type Desktop, rack-mountable 1U
Subtype: Fibre Channel
Ports: 8 x 32Gb Fibre Channel SFP+
Performance: Aggregate throughput: 768 Gbps
Switching latency: 0.9 µs
Capacity: Maximum frame size: 2112 byte
Frame buffers: 2000
Fibre Channel: FC-DA, FC-FS, FC-GS-4, FC-SB, FC-SB-2, FC-SB-3, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-BB-6, FC-SB-5, FC-FS-4, FC-SW-6, FC-GS-7, FC-PI-6, FC-GS-8, FC-LS-3, FC-SB-6, FC-SW-7, MIB-FA
Remote Management Protocol: SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SCP, SFTP
Encryption Algorithm: SSL
Authentication Method RADIUS, TACACS+, LDAP, FCAP

Features: Syslog support, IPv6 support, IP address filtering, firmware upgradable, Full Fabric, event log, Access Control List (ACL) support, Quality of Service (QoS), enviromental monitoring, Forward Error Correction (FEC), Registered State Change Notification (RSCN) support, Fabric Shortest Path First (FSPF), Fabric-Device Management Interface (FDMI), Role-Based Access Control (RBAC), Dynamic path selection (DPS), Dynamic load sharing (DLS), Reliable Commit Service (RCS), Simple Name Server (SNS), Fibre Channel Authentication Protocol (FCAP), Power-on self-test (POST), Network Timing Protocol (NTP), flow mirroring, Dynamic Fabric Provisioning (DFP), 3+1 redundant fans, traffic isolation zoning (TIZ), Rolling Reboot Detection (RRD)

Expansion / Connectivity
Interfaces
8 x 4/8/16/32Gb Fibre Channel SFP+
1 x management (Gigabit LAN) RJ-45
1 x serial RJ-45
1 x USB
16 x 4/8/16/32Gb Fibre Channel SFP+ Ports on Demand

Power
Power Device: Internal power supply
Power Provided 150 Watt
Voltage Required: AC 120/230 V (50/60 Hz)

Miscellaneous
Included Accessories: 8 x 32 Gbps SW SFP+ transceivers
Cables Included: 1 x DB-9 to RJ-45 adapter
Rack Mounting Kit; Included
Compliant Standards: VCCI, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC Part 15 B, UL 60950-1, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438, KN32, KN35, CNS 14336-1, EN 55032

Dimensions & Weight
Width: 42.9 cm
Depth: 30.7 cm
Height: 4.3 cm
Weight: 4.2 kg
