Name: Монитор IIYAMA TF1734MC-B7X, 17 (43.18 cm) TN панел, SXGA, 75Hz, 5ms, 350cd/m2, DP/HDMI/VGA
Brand: Iiyama
SKU: MNLCIIYAMATF1734MCB7X
Price: 682.77 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

Design	Open Frame
Diagonal	17", 43cm
Panel	TN LED
Native resolution	1280 x 1024 (1.3 megapixel)
Aspect ratio	5:4
Brightness	350 cd/m² typical
Brightness	315 cd/m² with touch
Static contrast	1000:1 with touch
Light transmittance	90%
Response time (BTB)	5ms
Viewing zone	horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support	16.7mln 8bit
Horizontal Sync	31.4 - 80kHz
Viewable area W x H	338 x 270.5mm, 13.3 x 10.6"
Pixel pitch	0.264mm
Bezel colour and finish	black, matte

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	stylus, finger, glove
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass	6mm
Palm rejection	yes

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
HDCP	yes

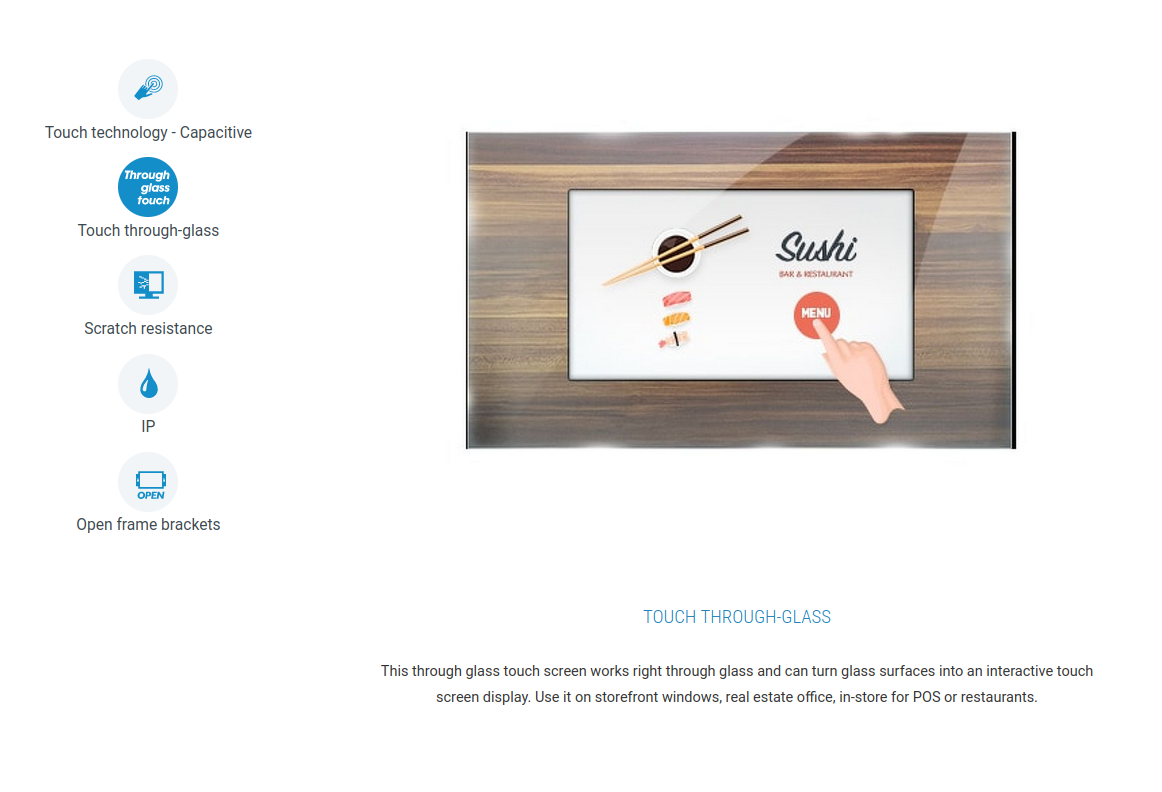

Extra	anti-fingerprint coating, touch through-glass
Glass thickness	7mm
Water and dust protection	IP65 (front)
OSD key lock	yes

OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls	picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

Виж още Монитори Iiyama
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
HDMI:	Да
DisplayPort:	Да
VGA (D-Sub):	Да

Гама:	Home & Office
Екран размер:	17" (43.18 cm)
Разделителна способност (max):	1280 x 1024
Тип матрица:	TN
Аспект изображение:	5:4
Честота на опресняване:	75 Hz
Време за реакция:	5 ms
Яркост:	350 cd/m²
TV Тунер:	Не
Тъчскрийн:	Да
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	Classic
Извит:	Не
Преносим:	Не
