TF1934MC-B7X
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
Design | Open Frame |
Diagonal | 19", 48cm |
Panel | IPS LED |
Native resolution | 1280 x 1024 (1.3 megapixel) |
Aspect ratio | 5:4 |
Brightness | 350 cd/m² typical |
Brightness | 315 cd/m² with touch |
Static contrast | 1000:1 with touch |
Light transmittance | 90% |
Response time (GTG) | 14ms |

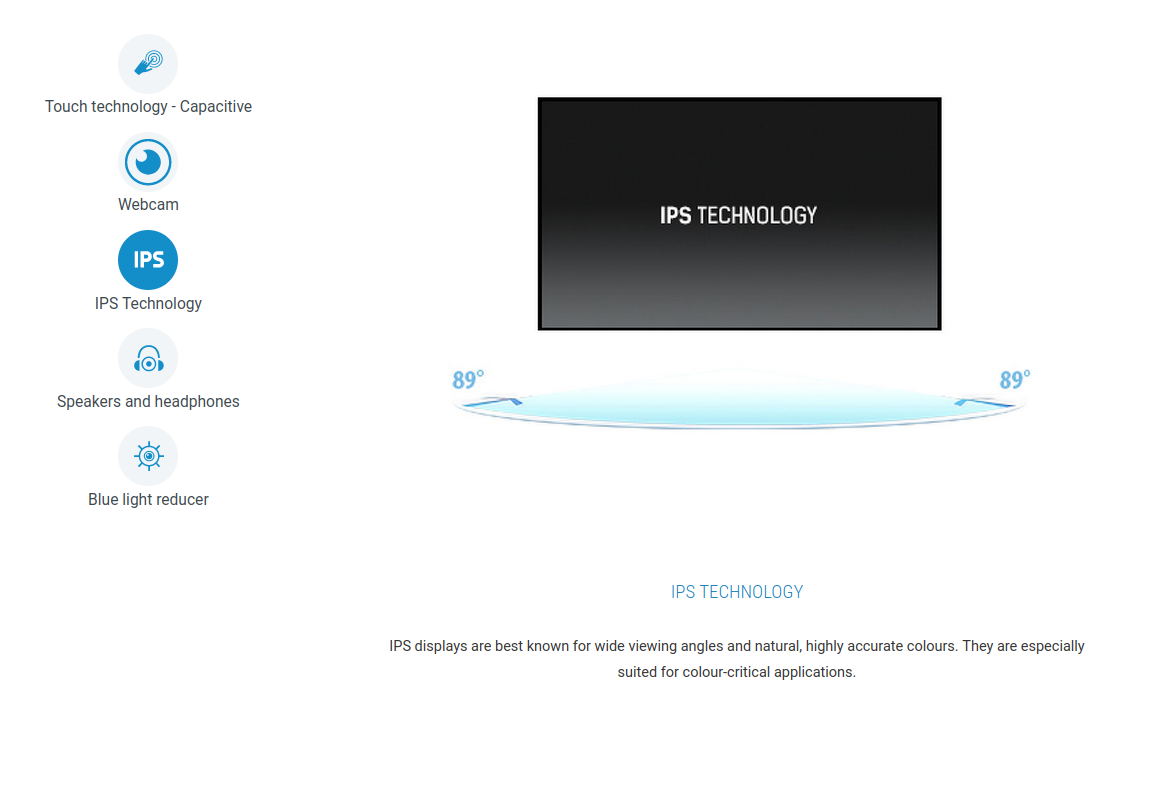

Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Colour support | 16.7mln |
Horizontal Sync | 31.4 - 80kHz |
Viewable area W x H | 376.5 x 301.1mm, 14.8 x 11.9" |
Pixel pitch | 0.294mm |
Bezel colour and finish | black, matte |
Touch technology | projective capacitive |
Touch points | 10 (HID, only with supported OS) |
Touch method | stylus, finger, glove (latex) |
Touch interface | USB |
Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
Through-Glass | 6mm |
Palm rejection | yes |
Analog signal input | VGA x1 |
Digital signal input | HDMI x1 DisplayPort x1 |
HDCP | yes |
Extra | anti-fingerprint coating, touch through-glass |
Glass hardness | 7H |
Water and dust protection | IP65 (front) |
OSD key lock | yes |
OSD languages | EN, DE, FR, ES, IT, CN, JP |
Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
Plug&Play | DDC2B |
Виж още Монитори Iiyama
Виж всички Монитори в категорията
Документация
iiyama ProLite TF1934MC-B7X - LED monitor - 19" Brochure
iiyama ProLite TF1934MC-B7X - LED monitor - 19" User manual
iiyama Touch-Display ProLite TF1934MC-B7X - 48 cm (19") - 1280 x 1024 SXGA User manual
Продуктов информационен лист
Енергиен етикет на ЕС
Продуктов фиш на ЕС
Енергиен етикет на ЕС
Продуктов фиш на ЕС
Технически характеристики
DisplayPort: | Да |
---|---|
HDMI: | Да |
VGA (D-Sub): | Да |
Гама: | Home & Office |
---|---|
Екран размер: | 19" (48.26 cm) |
Разделителна способност (max): | 1280 x 1024 |
Аспект изображение: | 5:4 |
Тип матрица: | IPS |
Честота на опресняване: | 75 Hz |
Време за реакция: | 14 ms |
Яркост: | 350 cd/m² |
TV Тунер: | Не |
Тъчскрийн: | Да |
Вградени колони: | Не |
3D: | Не |
Цвят: | Черен |
Формат екран: | Classic |
Извит: | Не |
Преносим: | Не |
