Name: Суич HikVision DS-3T1512HP-SI-8P4F, 1000Mbps, 12 порта, 8x 10/100/1000Mbps RJ-45 PoE, 4x SFP
Brand: Hikvision
SKU: NTLHHIKVISIONDS3T1512HPSI8P4F
Price: 213.49 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

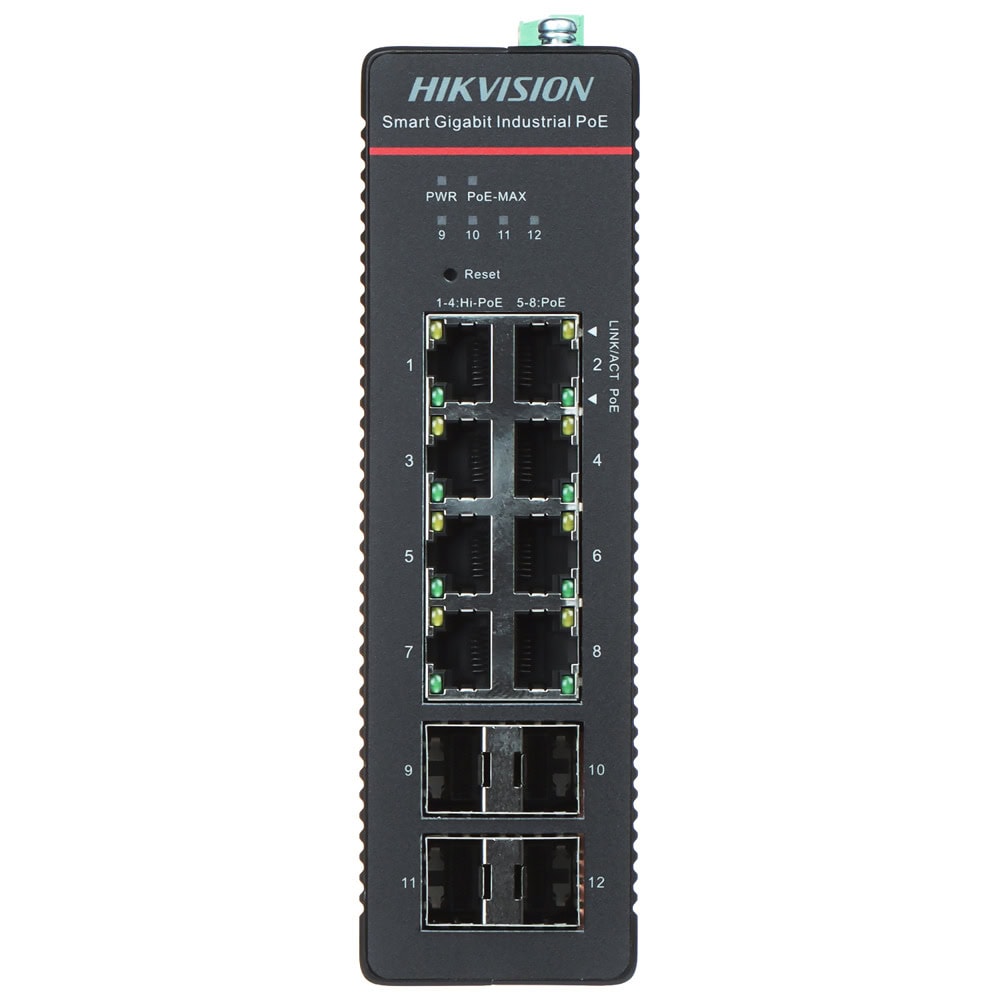

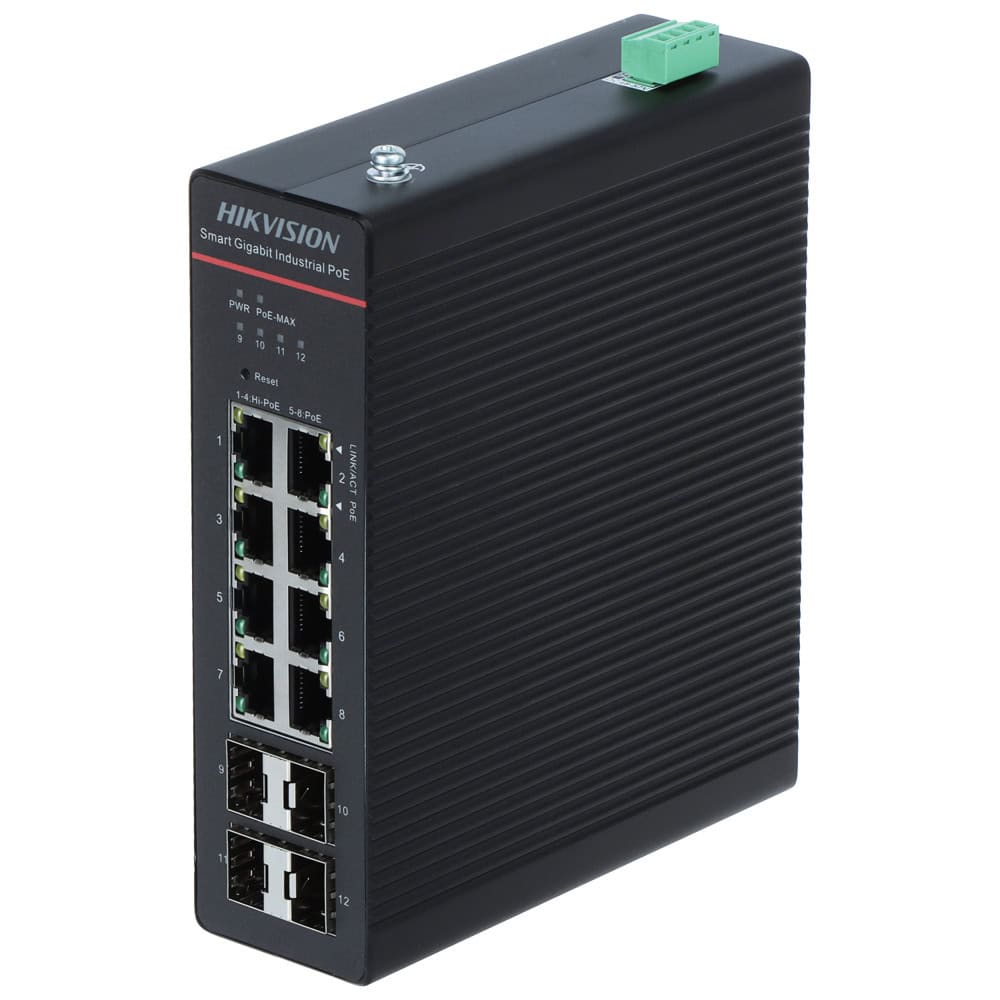

HikVision DS-3T1512HP-SI-8P4F

8 Port Gigabit Smart Managed Industrial POE Switch

8 x Gigabit PoE RJ45 ports,4 x Gigabit SFP fiber optical ports
Support 802.1Q VLAN
Support 802.3bt Hi-PoE, Max. 90W for one port
Support STP/RSTP/ERPS Loop prevention, storm control
Support cable detection to locate failure
Support SNMP, QoS, DHCP snooping
6 kV Surge Protection
Wider Temperature (-40 °C to 75 °C) Design
Up to 300 m Long-range Transmission

Parameter	Specification
Shell Material	Metal, IP40
Net Weight	0.84 kg (1.85 lb)
Gross Weight	1.16 kg (2.56 lb)
Dimensions (W × H × D)	155.00 mm × 46.00 mm × 130.00 mm (6.10" × 1.81" × 5.12")
Operating Temperature	-40 °C to 75 °C (-40 °F to 167 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	48–57 V DC, 7.5 A; 52–57 V recommended; dual power input with hot backup
Installation Mode	Desk-mounted, Rail
Max. Power Consumption	307 W
Power Consumption (Idle)	7 W
Surge Protection	6 KV
Ports	8 × Gigabit PoE ports, 4 × Gigabit fiber optical ports
MAC Address Table	8 K
Switching Capacity	Whole-device: 56 Gbps; Per-port: 24 Gbps
Packet Forwarding Rate	Whole-device: 41.66 Mpps; Per-port: 17.86 Mpps
Internal Cache	4.1 Mbits
PoE Standard	Ports 1–4: IEEE 802.3af/at/bt; Ports 5–8: IEEE 802.3af/at
PoE Power Pin	Ports 1–4: 1/2(-), 3/6(+), 4/5(+), 7/8(-); Ports 5–8: 1/2(-), 3/6(+)
Max. Port Power	Ports 1–4: 90 W; Ports 5–8: 30 W
PoE Port Type	Hi-PoE: Ports 1–4; PoE: Ports 5–8
PoE Power Budget	300 W
Long Range	Ports 1–8 up to 300 m (depends on camera/cable)
Port Isolation	Ports 1–8 isolation mode; isolated ports cannot communicate with each other
PoE Watchdog	Auto detect & restart unresponsive cameras (Ports 1–8)
Link Aggregation	Static link aggregation; up to 8 aggregation groups
Loop Prevention	802.1D STP, 802.1w RSTP, G.8032 ERPS (disabled by default)
QoS	Port-based priority; SP and WRR scheduling
VLAN	802.1Q; VLAN ID 1–4094; Trunk/Access modes; Max 4094 VLANs
HPP (Hik-Partner Pro)	Port rate, bandwidth usage, PoE usage, topology, alarms, remote restart, long-range mode, remote upgrade
System Maintenance	Web management, DHCP client, Super IP (10.180.190.200), Hik-Central Pro, Hik-Partner Pro, cable detection, LLDP, SNMP v1/v2c, port mirroring
Port Rate-Limiting	Adjustable port bandwidth
Storm Control	Broadcast, multicast, unknown unicast rate limiting
DHCP Snooping	Prevent unauthorized DHCP servers (disabled by default)
ACL	Up to 64 ACL entries, 128 rules total
IPSG	Port/MAC/IP binding; up to 256 security entries
