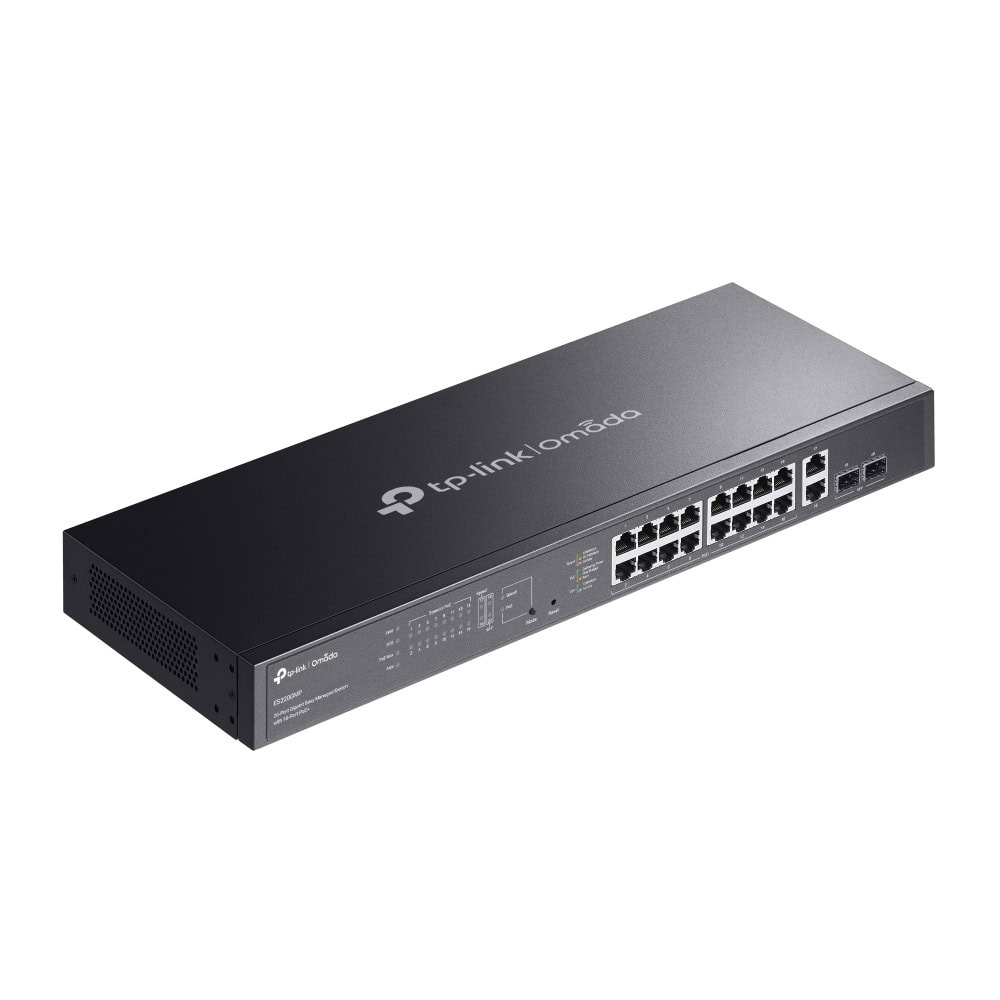

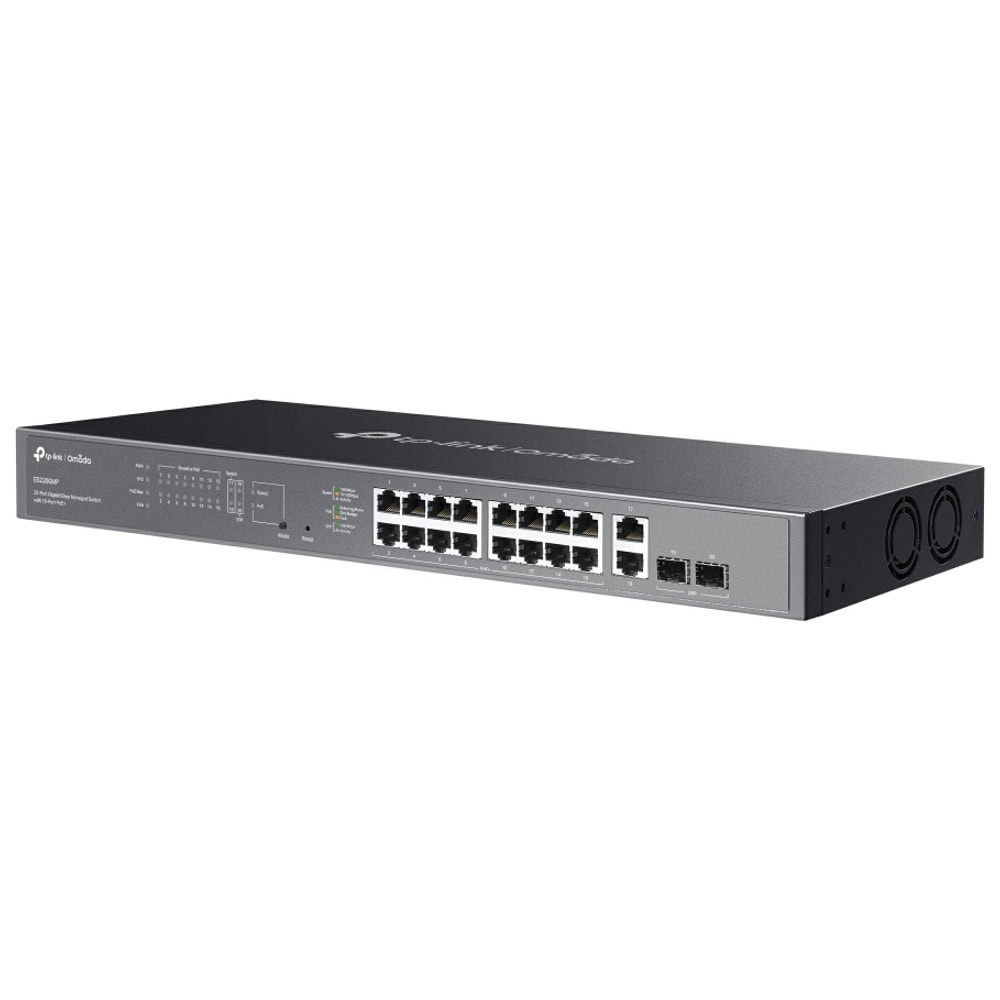

Name: Суич TP-Link Omada ES220GMP, 1000 Mbps, 20 порта, 16x 10/100/1000Mbps RJ45 (PoE+), 2x 10/100/1000 RJ45, 2x SFP
Brand: TP-Link
SKU: NTLHTPLINKES220GMP
Price: 393.53 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси

ES220GMP

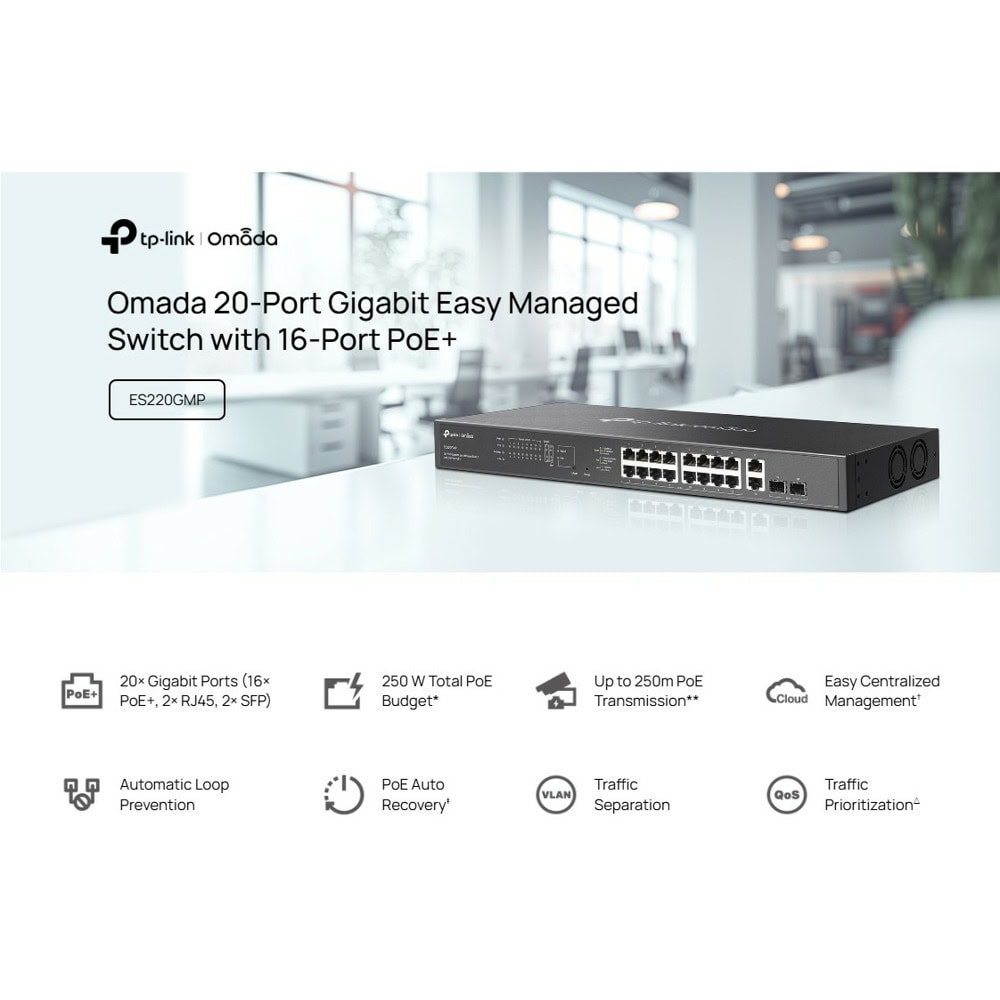

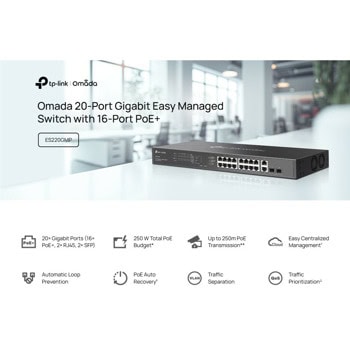

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
2× Gigabit RJ45 port, 2× Gigabit SFP port
250W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†

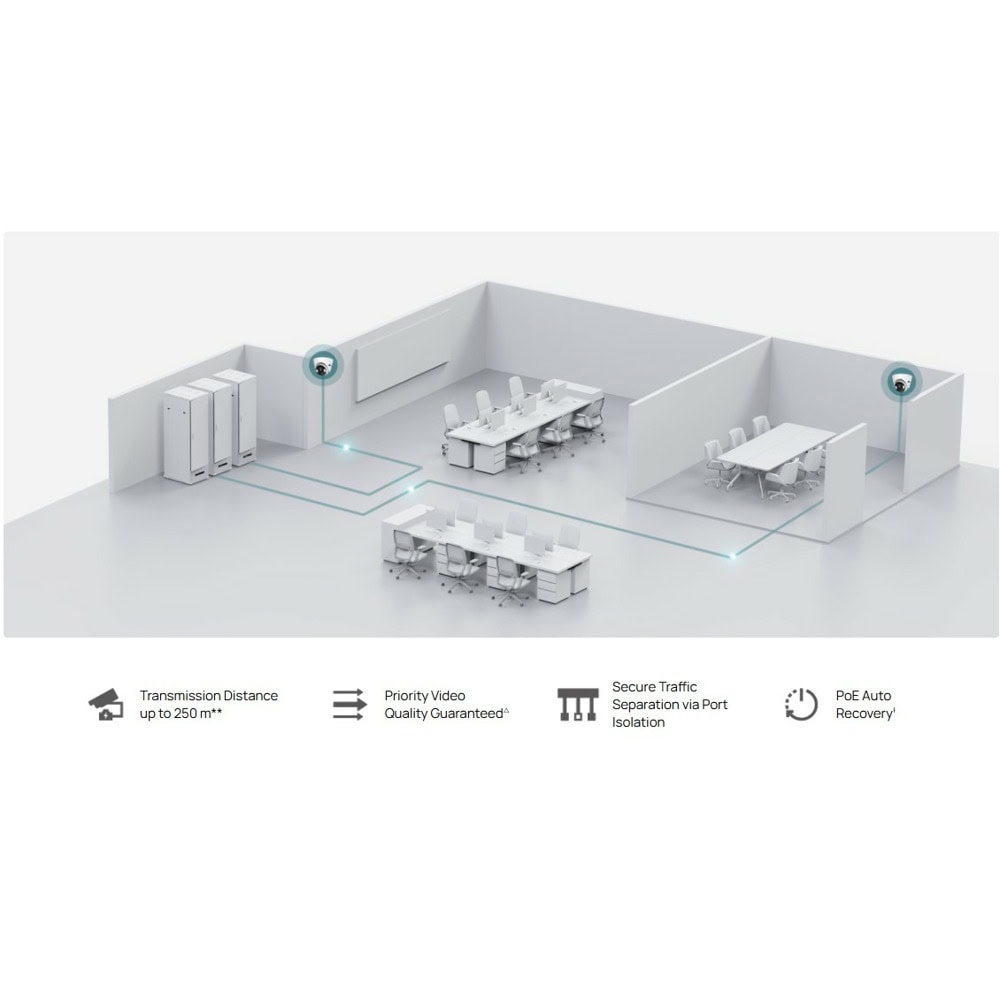

Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

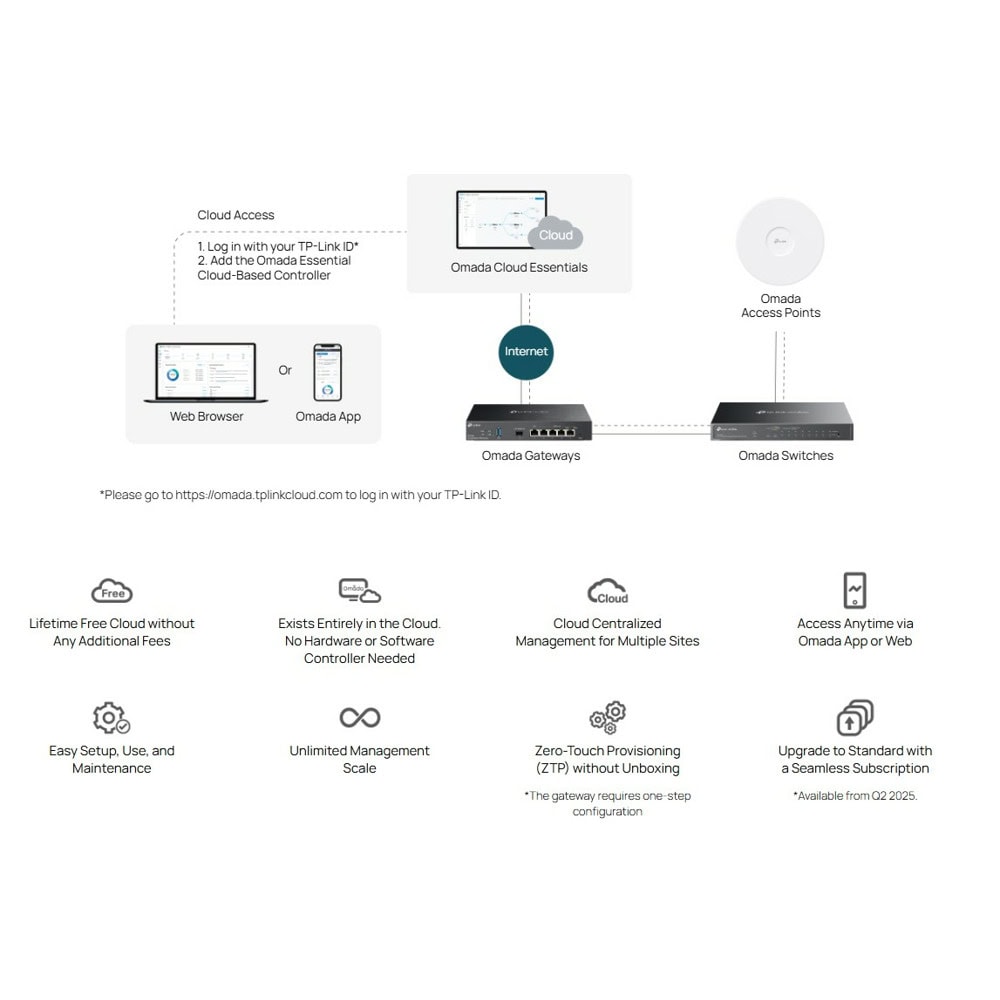

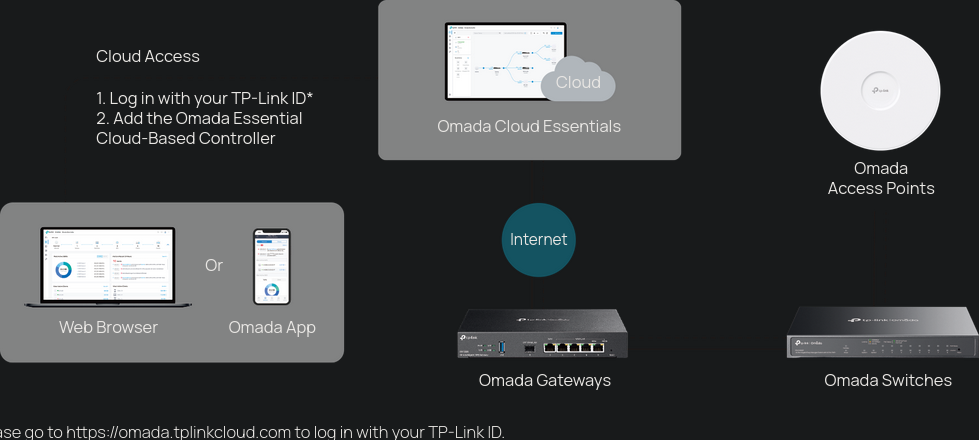

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

Category	Feature	Specification
Hardware Features	Interface	• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3at/af) • 2× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP Slots
	Fan Quantity	2
	Installation	Rackmountable
	Physical Security Lock	Yes
	Power Supply	100–240 VAC, 50/60 Hz
	PoE Ports (RJ45)	• Standard: 802.3af/at • 16 ports • 250W total, 30W max/port • Fast & Perpetual PoE • Auto Recovery‡ • 250m Transmission**
	Dimensions (W × D × H)	17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
	Surge Protection	±6kV
Performance	Switching Capacity	40 Gbps
	Packet Forwarding Rate	29.76 Mpps
	MAC Address Table	8K
	Packet Buffer Memory	4 Mbit
	Jumbo Frame	15 KB
Software Features	Quality of Service (QoS)	• Port-based/802.1p/DSCP • 8 Priority Queues • WRR Scheduling • Queue Weight Config • Bandwidth Control • Storm Control
	L2 Features	• Static Link Aggregation • Loop Prevention • 802.3x Flow Control • Port Mirroring • Port Statistics • LLDP
	L2 Multicast	• IGMP Snooping (v1/v2/v3) • Fast Leave
	VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q VLAN (32 Groups, 4K VID)
	Transmission Method	Store-and-Forward
Management Features	Omada App	Yes, requires Omada Controller (Hardware/Cloud/Software)
	Centralized Management	• Omada Cloud-Based • Omada Hardware • Omada Software Controllers
	Cloud Access	Yes, requires Omada Controller
	Zero-Touch Provisioning	Yes, requires Omada Cloud-Based Controller
	Management Functions	• Web GUI • DHCP Client • Cable Diagnostics • Auto Device Discovery† • Batch Config/FW Upgrade† • Unified Config†
