Name: Суич HikVision DS-3E1326P-EI/M, 1000Mbps, 26 порта, 24x 10/100Mbps RJ-45 PoE, 1x 10/100/1000Mbps RJ-45, 1x 10/100/1000Mbps combo
Brand: Hikvision
SKU: NTLHHIKVISIONDS3E1326PEIM
Price: 326.52 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

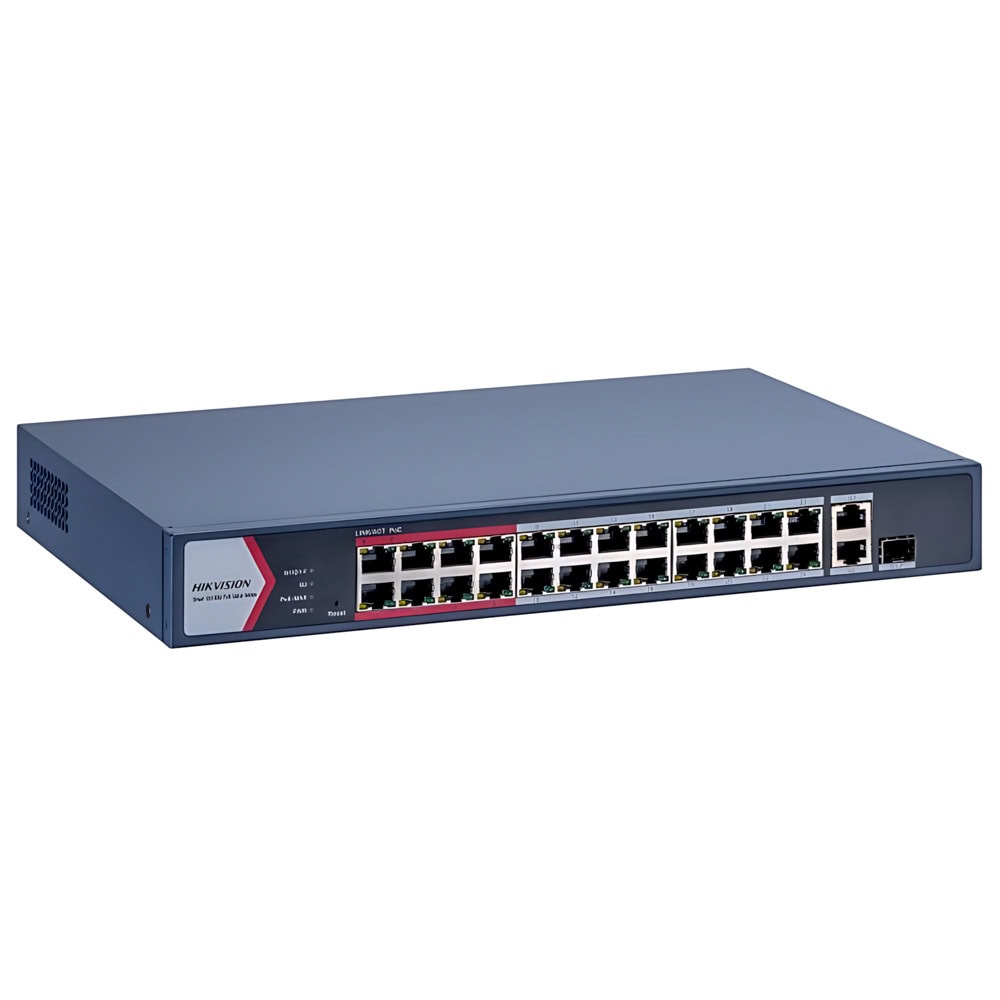

HikVision DS-3E1326P-EI/M

24 Port Fast Ethernet Smart POE Switch

24 × 10/100M PoE ports, 1 × Gigabit combo,1 × Gigabit RJ45 port
Total PoE Power Budget 230 W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission
6 kV Surge Protection

Category	Specification
General
Material	ShellMetal
Net Weight	2.13 kg (4.7 lb)
Gross Weight	3.1 kg (6.8 lb)
Dimensions (W × H × D)	440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100-240 VAC, 50/60 Hz, Max. 4 A
Installation Mode	Rack (equipped with mounting ears)
Max. Power Consumption	250 W
Power Consumption in Idle	20 W
Surge Protection	6 kV
Network Parameters
Ports	24 × 10/100 Mbps PoE port, 1 × Gigabit combo, 1 × Gigabit RJ45 port
MAC Address Table	16 K
Switching Capacity	Whole-Device Performance: 14.8 GbpsPort Performance: 8.8 Gbps
Packet Forwarding Rate	Whole-Device Performance: 11.01 MppsPort Performance: 6.55 Mpps
Internal Cache	4 Mbits
PoE Power Supply
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Ports	Ports 1 to 24
Max. Port Power	30 W
PoE Power Budget	230 W
Software Function
Long Range	Ports 1 to 24: up to 300 m. Long range performance may vary depending on camera model or cable condition
VIP Port	Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient
Port Isolation	Ports 1 to 24: isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but can communicate with ports outside the isolation group
PoE Watchdog	Ports 1 to 24: auto-detect and restart cameras that do not respond
Link Aggregation	Aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Supports static link aggregation. 1 aggregation group supported
Loop Prevention	Prevents network loops. Disabled by default. Supports 802.1D STP and 802.1w RSTP
VLAN	Supports 802.1Q. VLAN ID configurable from 1-4094. Supports Trunk and Access port mode. Max. 4094 VLANs
HPP	One-click activation and remote management via Hik-Partner Pro. Functions: display port rate, bandwidth utilization, PoE usage, topology info, alarm status, restart ports/devices, enable port long-range mode, remote upgrade
System Maintenance	Device management via web. DHCP Client enabled for dynamic IP assignment. Supports Super IP (fixed IP 10.180.190.200). Management via Hik-Central Pro and Hik-Partner Pro. Cable detection, open/short circuits, cable length detection. Supports 802.1ab LLDP. Port mirroring for fault locating
