Gigabyte Gigabyte UD1000GM, 1000W GP-UD1000GM
Икона в кампания
НазадGigabyte Gigabyte UD1000GM, 1000W GP-UD1000GMGigabyte Gigabyte UD1000GM, 1000W GP-UD1000GMGigabyte Gigabyte UD1000GM, 1000W GP-UD1000GMGigabyte Gigabyte UD1000GM, 1000W GP-UD1000GMНапред

Захранване Gigabyte UD1000GM, 1000W, Active PFC, 80+ Gold, 120mm вентилатор

id 249128 Код: PWRPCGIGABYTEGPUD1000GM
  • Модел: Gigabyte UD1000GM, 1000W
  • Марка: Gigabyte
  • Код на продукта: GP-UD1000GM
  • Изходна мощност: 1000 W
  • Модулен блок: Да
  • Форм фактор: ATX
  • Гаранция: 60 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / ВъпросиДокументация

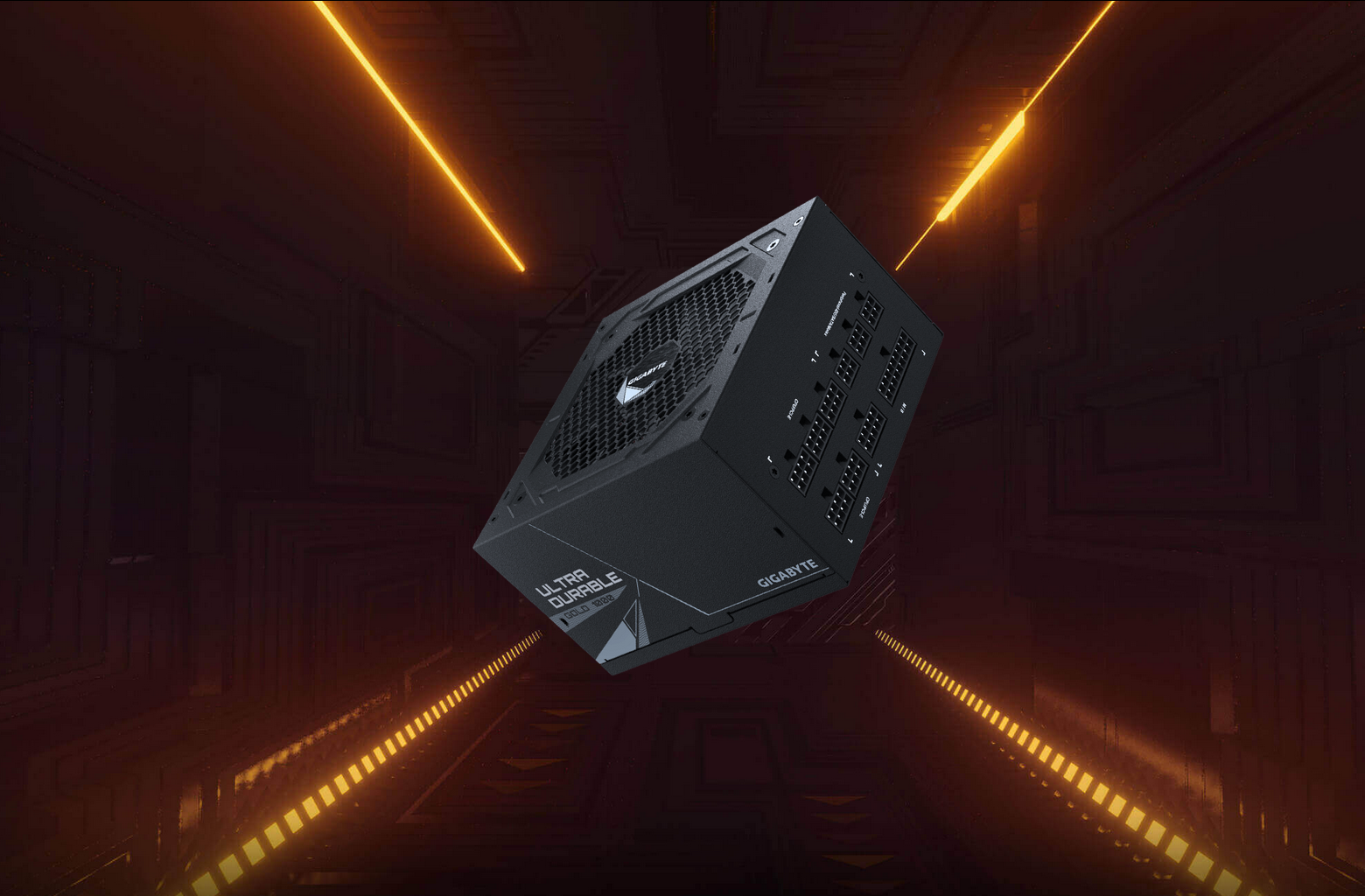

    Gigabyte UD1000GM





    ULTRA DURABLE



    Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

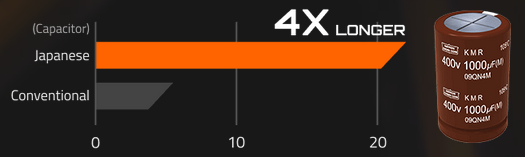

    HIGH QUALITY JAPANESE CAPACITORS



    The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.

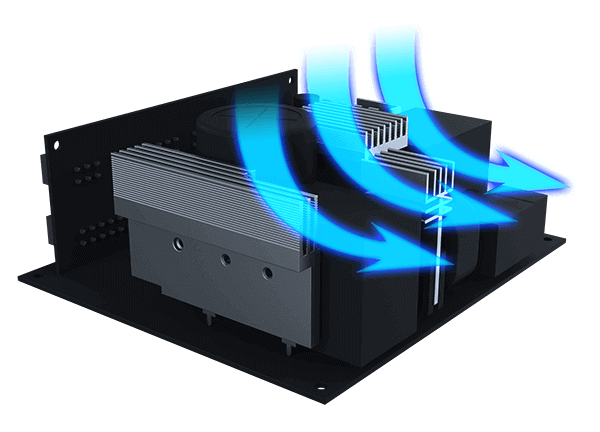

    ENHANCED THERMAL SOLUTION



    Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

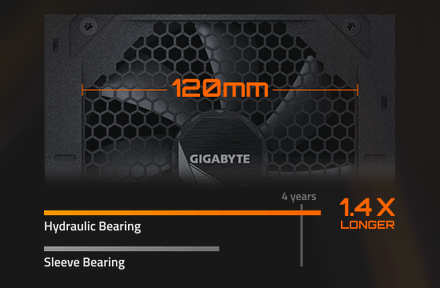

    120MM SMART HYDRAULIC BEARING (HYB) FAN



    The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

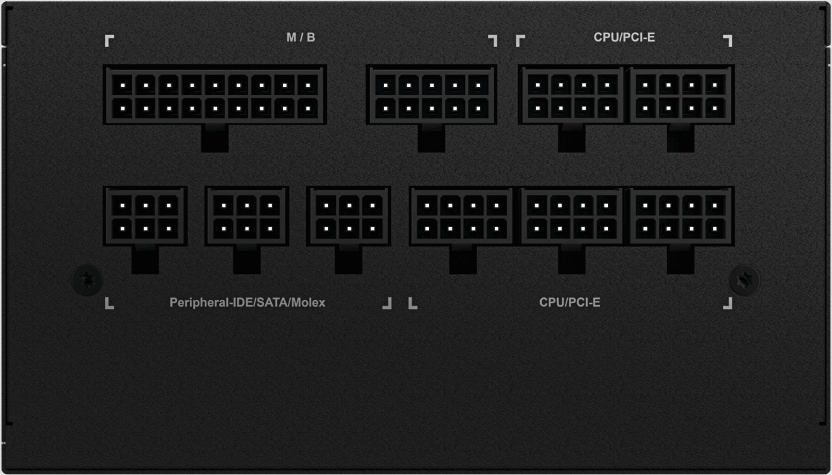

    FULLY MODULAR DESIGN



    All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.



    Спецификации:

    ModelGP-UD1000GM
    TypeIntel Form Factor ATX 12V v2.31
    PFCActive PFC (>0.9 typical)
    Input Voltage100-240 Vac (full range)
    Input Current15-6.5A
    Input Frequency60-50 Hz
    Output Capacity1000W
    Dimension150 x 140 x 86 mm
    Fan Type120mm Hydraulic Bearing(HYB)fan
    80 PLUSGold
    Efficiency90% at typical load
    MTBF>100,000 hours
    ProtectionOVP/OPP/SCP/UVP/OCP/OTP
    Power Good Signal100-150ms
    Hold Up Time>16ms
    Cable TypeFlat, All black
    ConnectorsATX/MB 20+4 Pin x 1 : 610mm* 1
    CPU/EPS 4+4 Pin x 2 : 600mm* 2
    PCI-e 6+2 Pin x 6 : 600mm+150mm* 3
    SATA x 8 :
    600mm+150mm+150mm+150mm* 2
    4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm* 1


    JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри Gigabyte
    Виж всички Захранвания Настолни компютри в категорията
    Документация
    Технически характеристики
    Изходна мощност:  1000 W
    Модулен блок:  Да
    Форм фактор:  ATX
