Захранване A-Data XPG Pylon 550B, 550W, Active PFC, 80 Plus Bronze, 120mm вентилатор

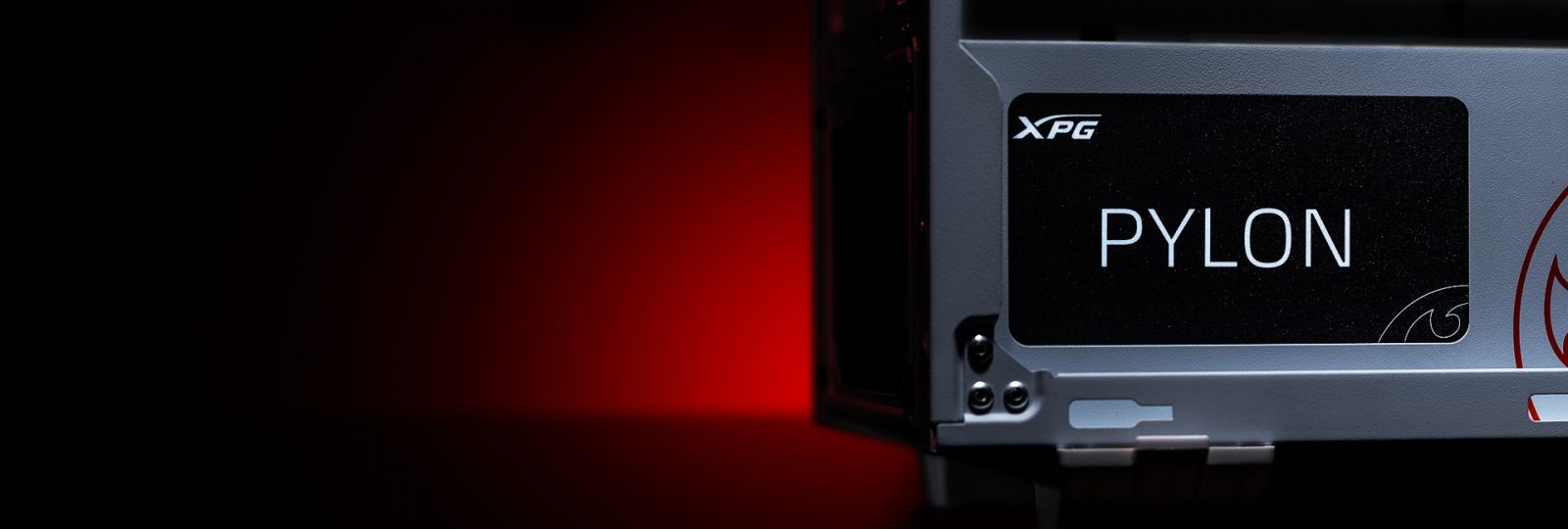

A-Data Pylon 550B

XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.

DC-to-DC Circuit in BRONZE Grade
XPG PYLON complies with Intel ATX Power Supply Design Guide‘s sleep mode function, featuring DC-to-DC 100% +12V Full Power(*) in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.

Specifications:

Dimensions (L x W x H)

150 x 140 x 86mm

80 PLUS RATING

BRONZE

ATX Version

Intel ATX 12V V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52)

Protections

OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP

Certification

CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC

PFC

0.99

Input Voltage

100-240V

Input Current

8A/4A

Input Frequency

50Hz - 60Hz

Operating Temperature

50℃

Fan Size

120mm

Fan Bearing

FDB (Fluid Dynamic Bearing)

Fan Speed

2,000 RPM

MTBF

100K Hours at 25℃

ATX 24 Pin Connector

1

EPS 8 (4+4) Pin Connector

1

PCI-E 6+2 Pin Connector

2

SATA Connector

5

Peripheral 4 Pin Connector

1
