Fractal Design Ion+ 2 Platinum 560W FD-P-IA2P-560
НазадFractal Design Ion+ 2 Platinum 560W FD-P-IA2P-560Fractal Design Ion+ 2 Platinum 560W FD-P-IA2P-560Fractal Design Ion+ 2 Platinum 560W FD-P-IA2P-560Fractal Design Ion+ 2 Platinum 560W FD-P-IA2P-560Напред

Захранване Fractal Design Ion+ 2 Platinum, 560W, Active PFC, 80 Plus Platinum, 140mm вентилатор

id 221523 Код: PWRPCFRACTALDESIGNFDPIA2P560
  • Безплатна доставка
221.00 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / Въпроси

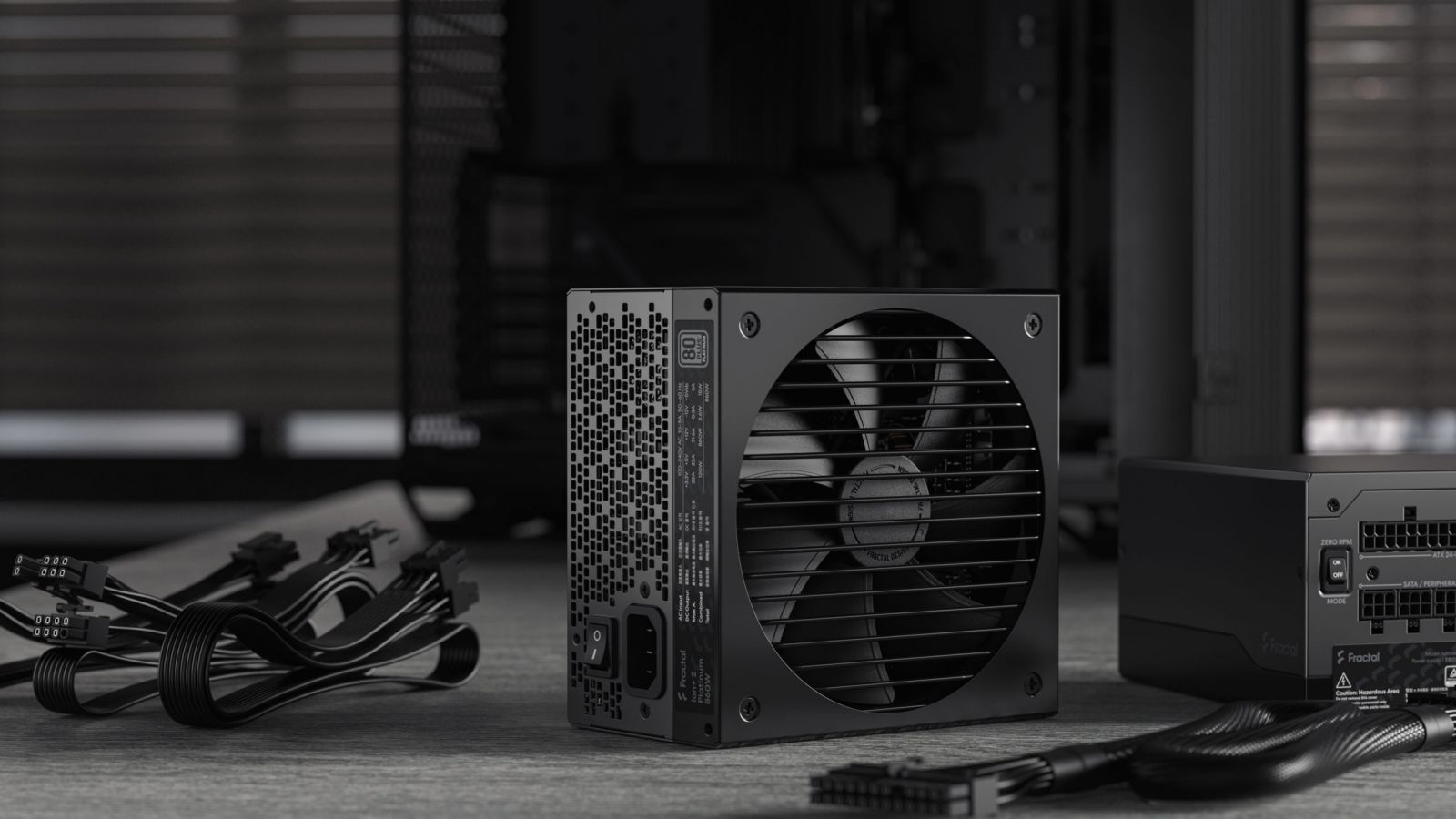

Fractal Design Ion+ 2 Platinum



The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.

    • 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation

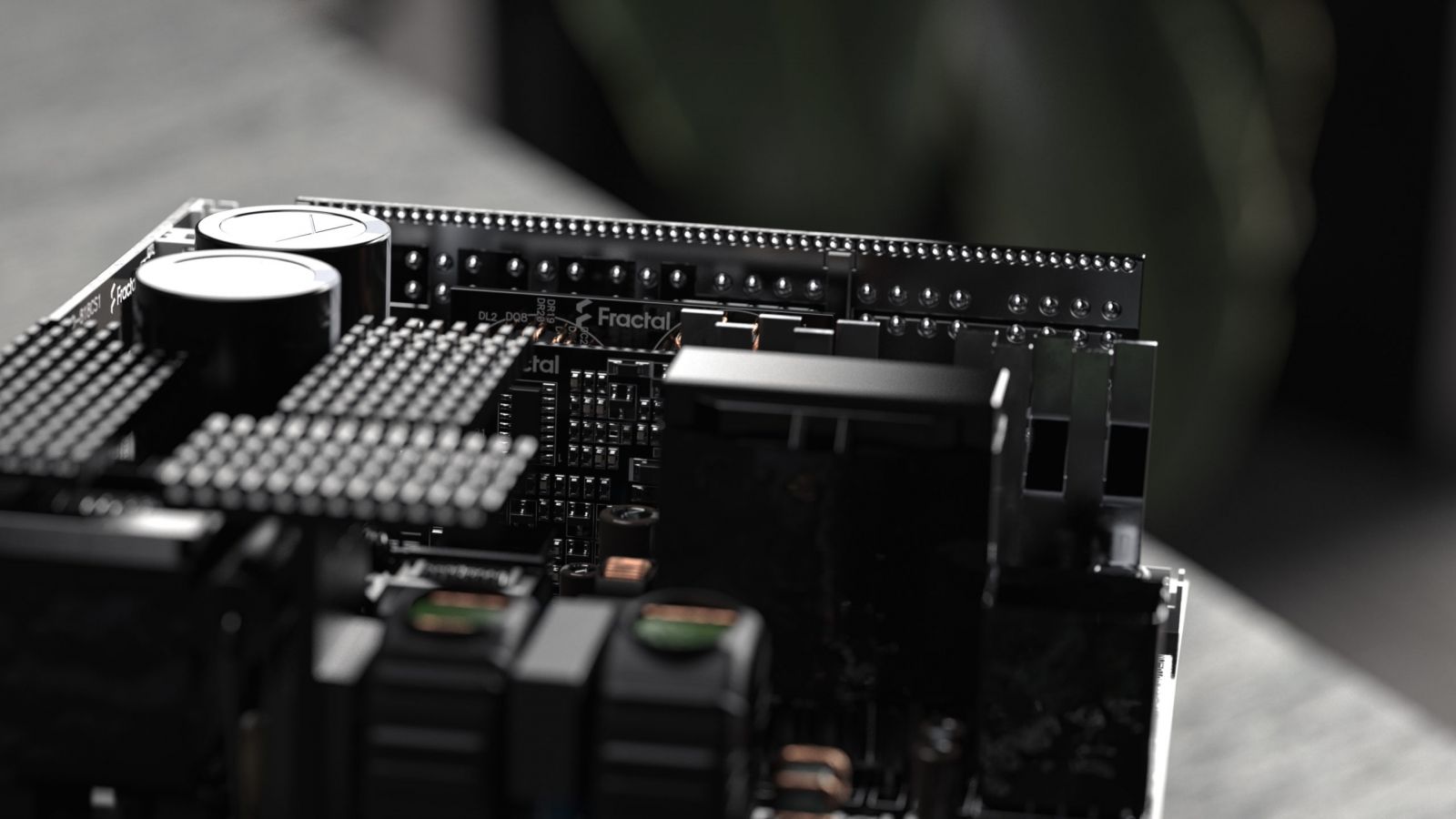

    • Great electrical output quality with tight voltage regulation and low ripple and noise
    • Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management


Fully modular design

    Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management

    All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards

    Premium storage bags for cables and PSU

Semi-passive mode

User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress



Specifications:

Specifications

  • 80PLUS® certification
    Platinum
  • Modular cables
    Fully modular
  • Fan type
    140 mm FDB bearing Fractal Design Dynamic series fan
  • Maximum operating temperature (full load)
    50°C
  • Semi-passive operation
    Yes, user selectable (Zero RPM)

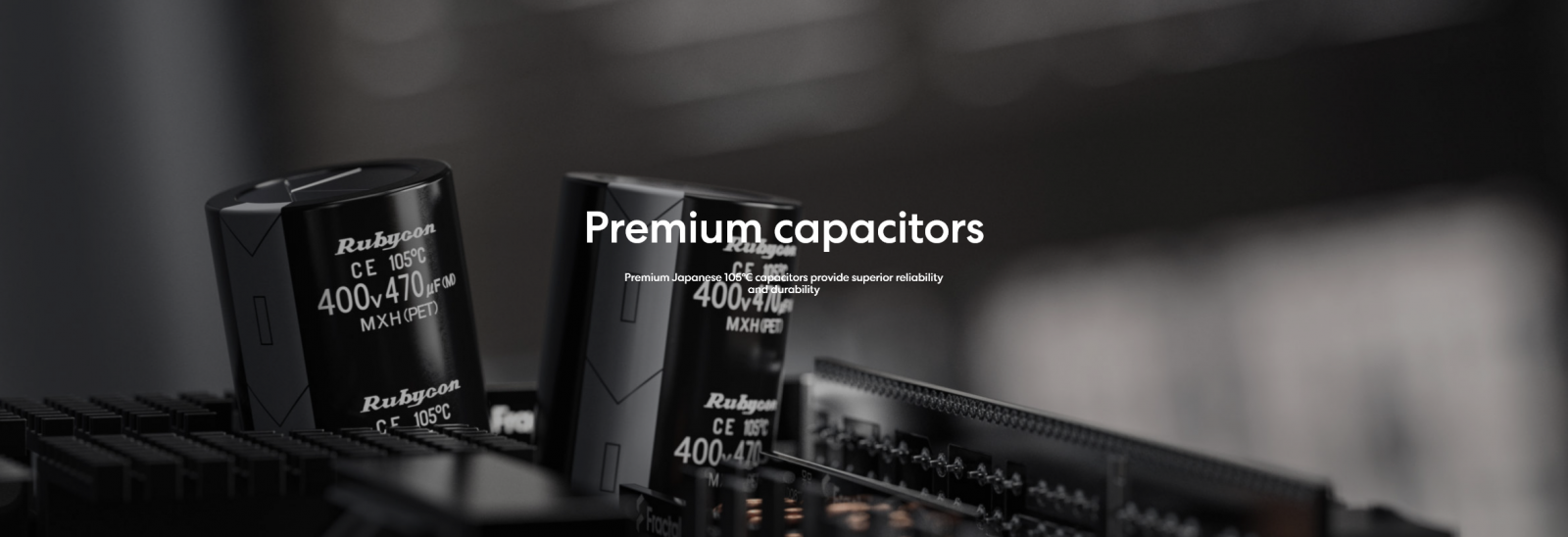

  • Capacitors
    Japanese
  • Life expectancy
    100,000 hours
  • PSU specification compliance
    ATX12V 2.52; EPS12V 2.92
  • Cable type
    Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires
  • Input voltage
    100-240V C
  • Input frequency
    50-60 Hz
  • Input current
    10A/5A
  • Protection features
    Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
  • Standby efficiency
    ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)
  • Sleep state compliance
    C6/C7
  • Approvals & certifications
    CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC

Connectors

  • ATX 24-pin
    1
  • ATX12V 4+4 pin / EPS12V 8-pin
    2
  • PCIe 6+2 pin
    4
  • SATA
    6
  • Peripheral
    4

Cable Configuration (length in mm between connectors)

  • ATX 20+4 pin
    600 mm
  • ATX 12V 4+4 pin
    700 mm
  • EPS12V 8-pin
    600 mm
  • PCIe 6+2 pin
    550 + 120 mm
  • SATA
    400+150+150+150 mm & 650+150mm
  • Peripheral
    400+150+150+150 mm

DC Output

  • 3.3V
    20A
  • 5V
    20A
  • 3.3V and 5V combined
    110W
  • 12V
    46.6A
  • -12V
    0.3A
  • +5Vsb
    3A







JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



Виж още Захранвания Настолни компютри Fractal Design
Виж всички Захранвания Настолни компютри в категорията

Технически характеристики

Изходна мощност:  560 W
Модулен блок:  Да
Форм фактор:  ATX
