Захранване EVGA SuperNOVA 1300 P+ с подарък термопаста Kingpin Cooling KPX-1G-002_V2, 1300W, Active PFC, 80+ PLATINUM, 135 mm вентилатор







Купи избрани захранвания и охладители EVGA и вземи подарък - термо паста Kingpin Cooling 1г.



Срок на кампанията: 06.01.2022 - 31.03.2022

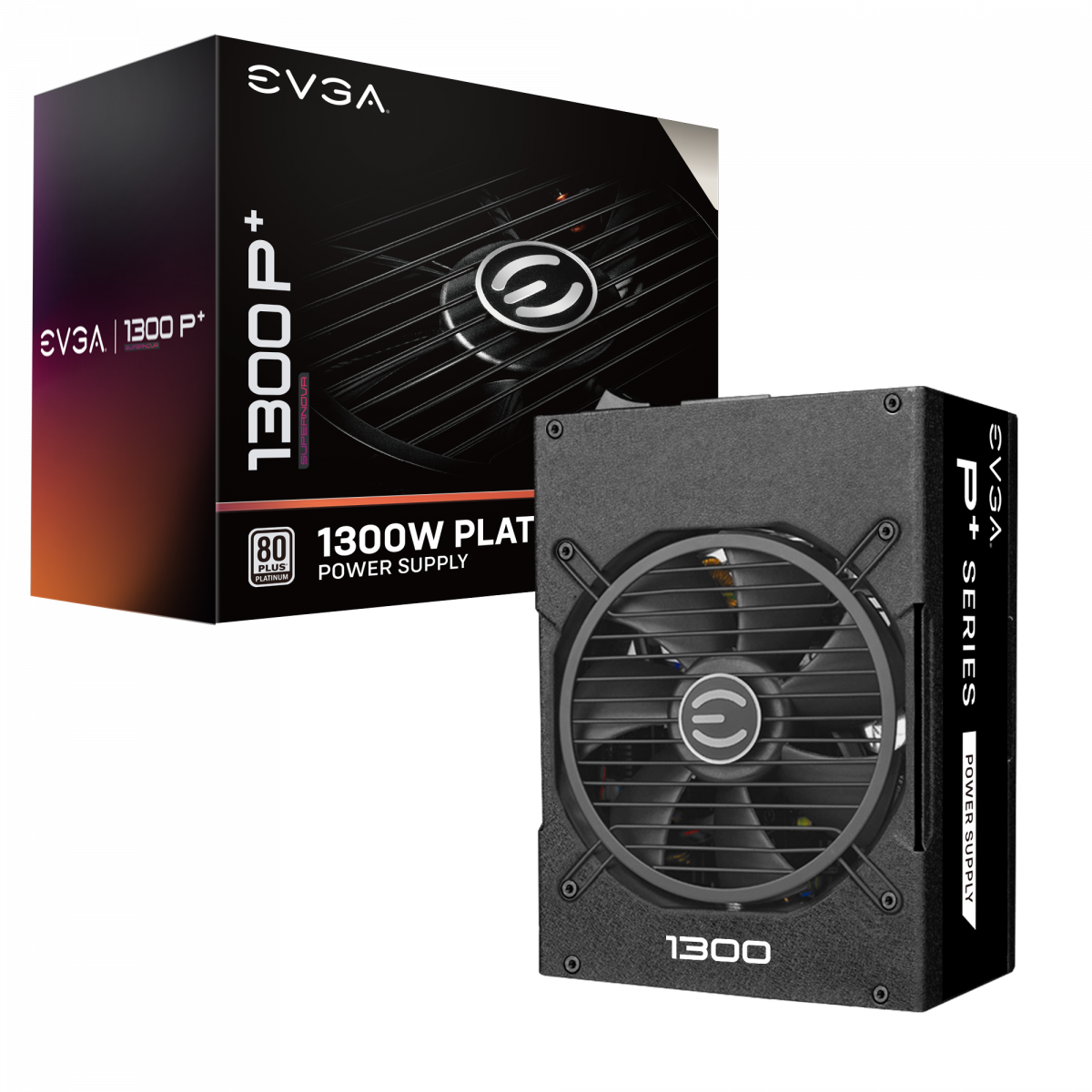

EVGA SuperNOVA 1300 P+

EVGA SuperNOVA 1300 P+, 80+ PLATINUM 1300W, Includes FREE Power On Self Tester, Power Supply 220-PP-1300-X1

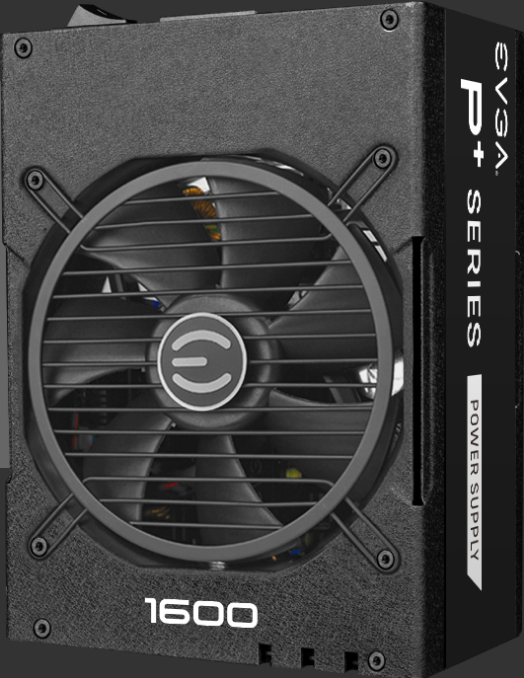

The SuperNOVA P+ PSU

Enter the SuperNOVA P+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Platinum Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 P2 and 1200 P2 power supplies left off and continue the tradition of EVGA quality and performance.

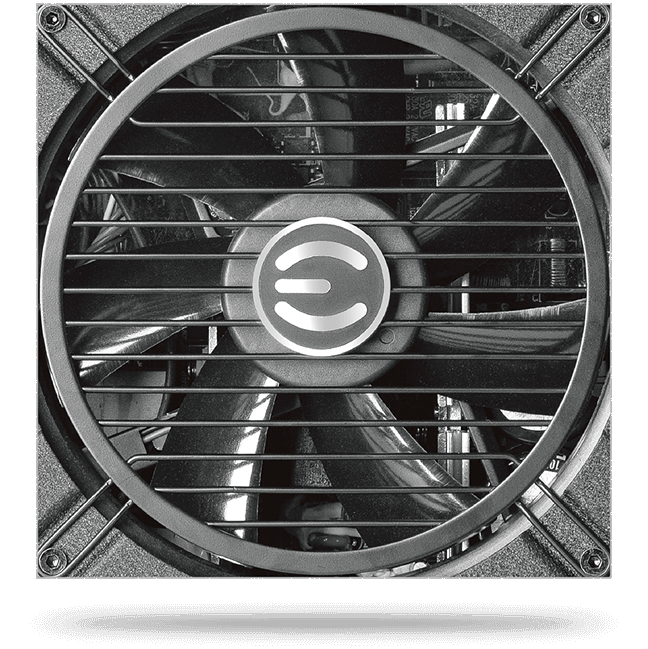

Quiet and Long-Lasting Fans

1600 P+ - 135mm Double
Ball Bearing Fan

1300 P+ - 135mm Fluid
Dynamic Bearing Fan

Double Ball Bearings are the industry standard for any power supply expected to carry heavy loads on a regular basis due to their durability and low noise level. Fluid Dynamic Bearings reduce the wear and tear on a fan’s bearing, which reduces noise and increases its lifespan.

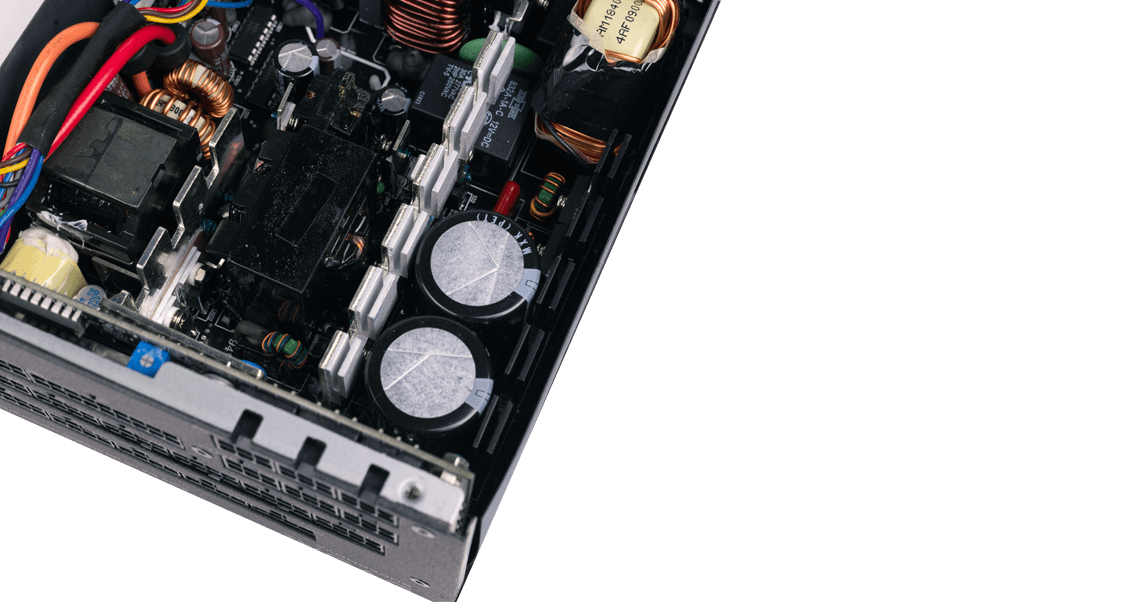

TIGHT 12V LOAD REGULATION

The SuperNOVA P+ is loaded in many areas, including a single 12V. rail, 100% Japanese capacitors, VR module, and DC to DC converter on all SuperNOVA P+ power supplies. Compliant with IEC 62368, this results in over 92% efficiency, tight 12V. load regulation, and stable power to all connected devices.



SPECIFICATION

Cable Length:

ATX Cable     1x 600mm
EPS Cable     2x 750mm
PCIe Cable     4x 750mm, 2x 750mm, 900mm
SATA Cable     4x 550mm, 650mm, 750mm
Four-Pin Peripheral Cable     2x 550mm, 650mm, 750mm
Floppy Adapter     1x 100mm
AC Power     1x 1800mm
Modular Cable Type     Full
Molex to FDD     1x

Connector Quantity:

24 Pin ATX     1x
EPS (CPU)     2x 8pin (4+4)
PCIe     8x 8pin (6+2)
SATA     12x
Four-Pin Peripheral     6x
Floppy     1x

Power Specs:

AC Input            100-240V~, 15-8A, 60/50 Hz

Rail                    +3.3V     +5V     +12V     +5Vsb     -12V


Max Output        24A     24A     108.3A     3.0A     0.5A  120W
                             1299.6W     15W     6W

Total                   1300W



Additional Details

perating Temperature     0° to 50° C

Japanese Capacitors     100%

ECO Mode     Yes

MTBF     100,000 Hours

Net Weight     9 lbs


Size     86mm (H) x 150mm (W) x 200mm (L)


Approvals     TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement


Fan Size / Bearing     135mm Fluid Dynamic Bearing
