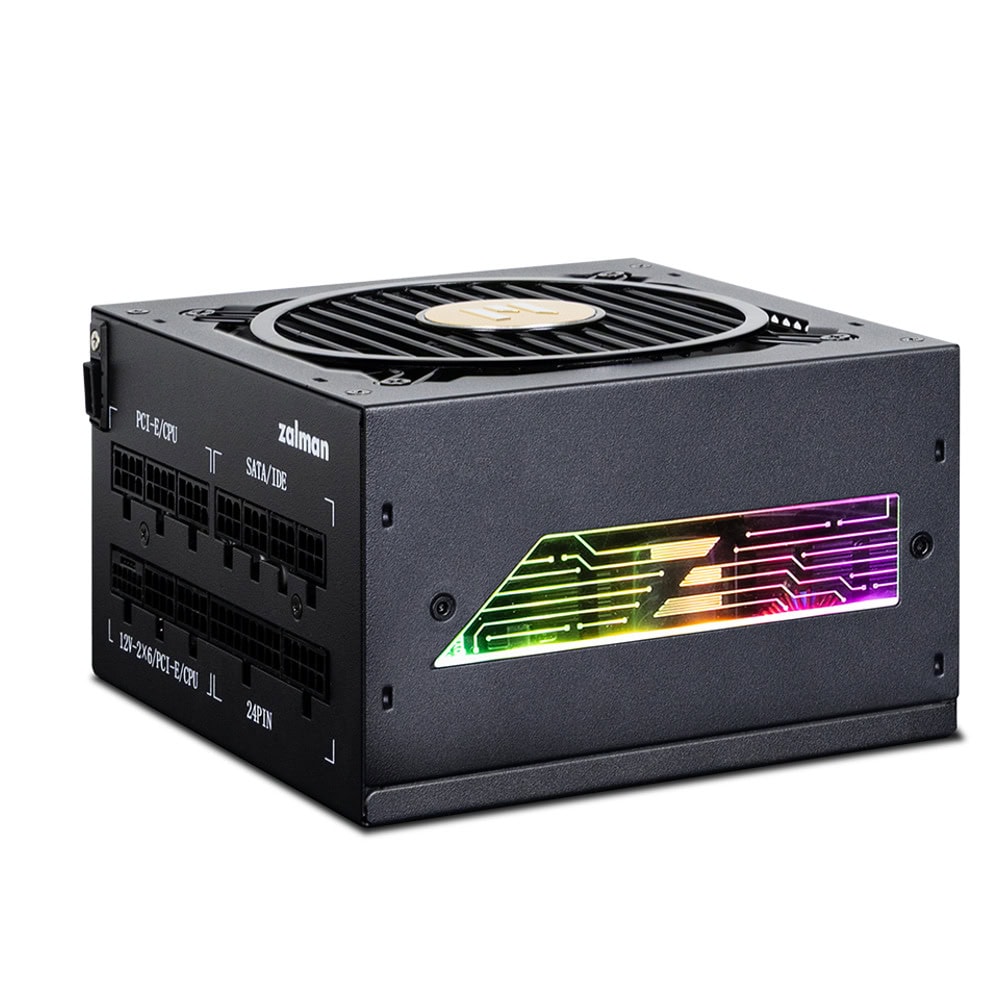

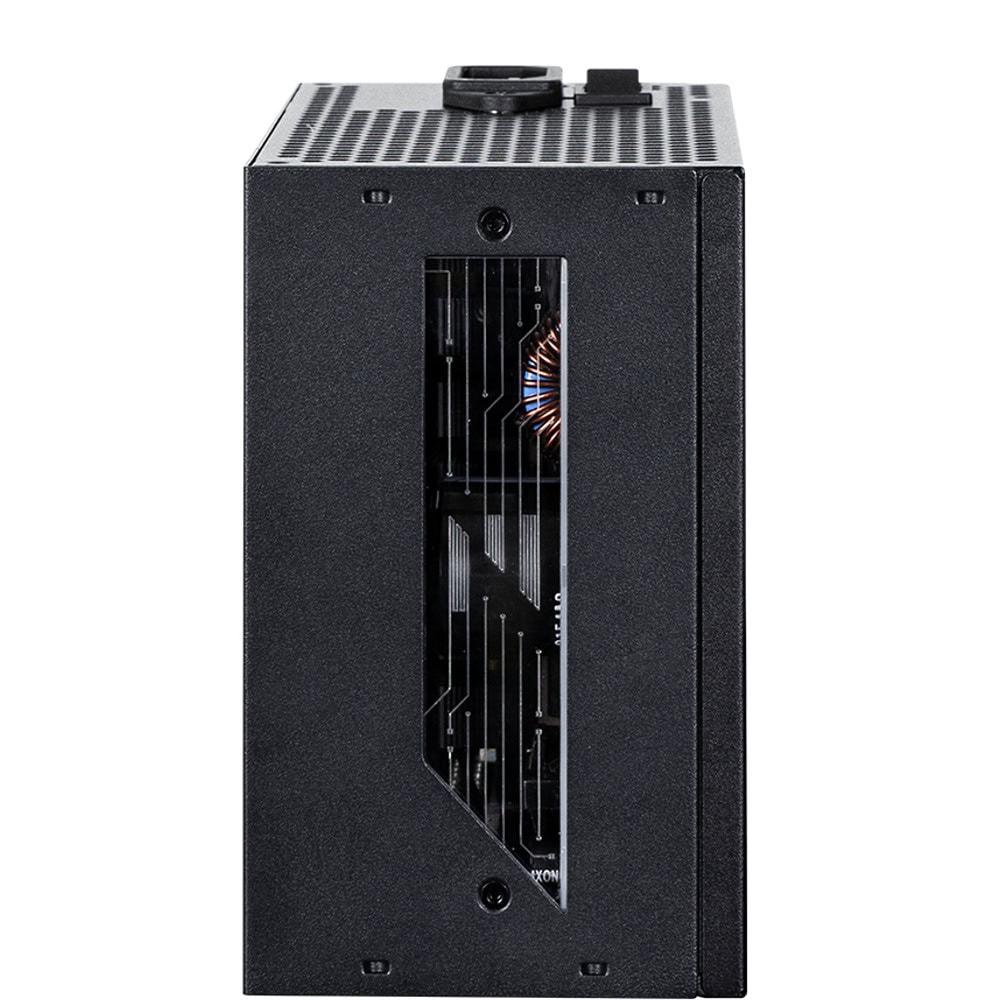

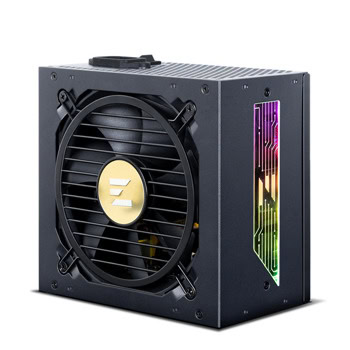

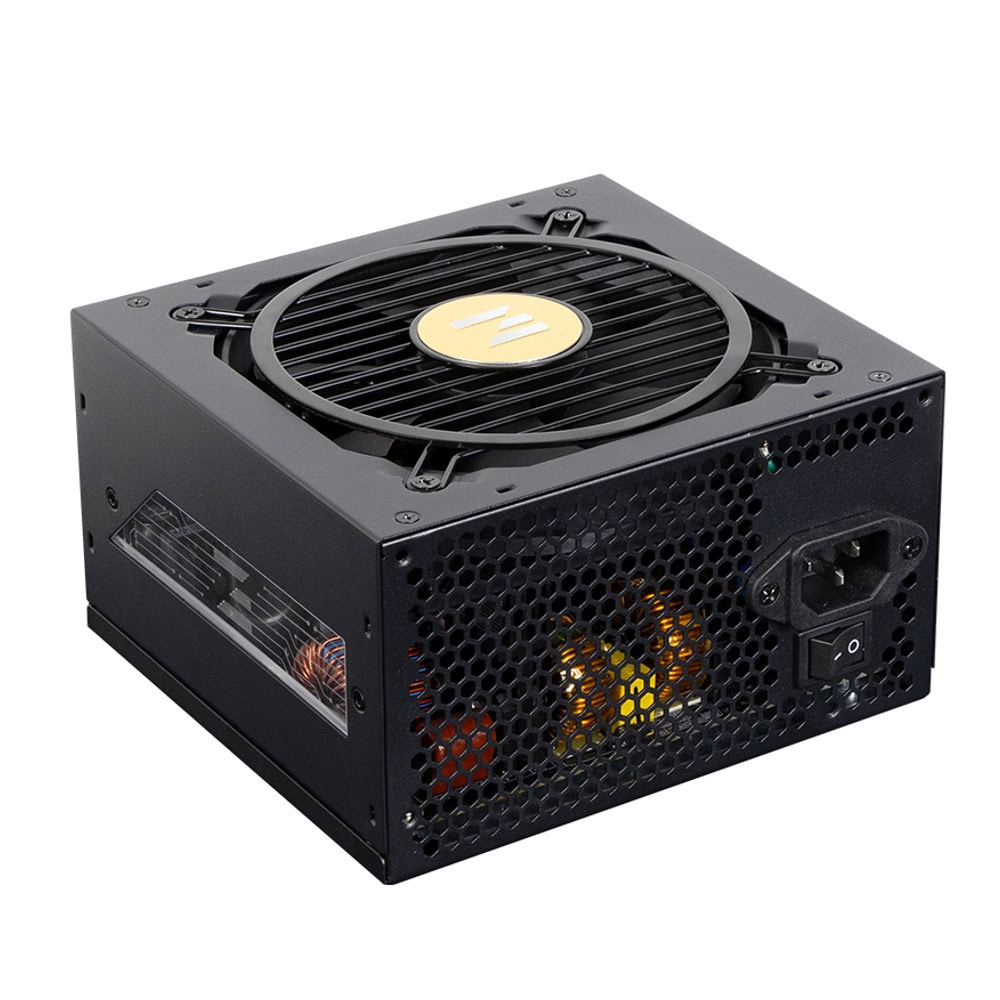

Zalman ZM750-TMX2 VIEW
![]() | Intel ATX 3.1 Guide Compatible

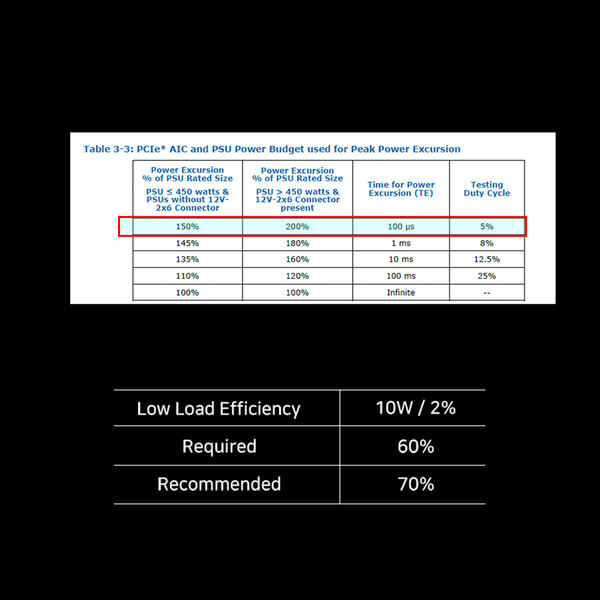

PCIe* AIC and PSU Power Budget used for Peak Power Excursion (Allows up to 200% of maximum rated power)
Low Load Efficiency Requirements (High efficiency at the low load) |
PCIe 5.1 & 12V-2X6 Ready!
ATX 3.1 compatible 100% ready for Intel and AMD

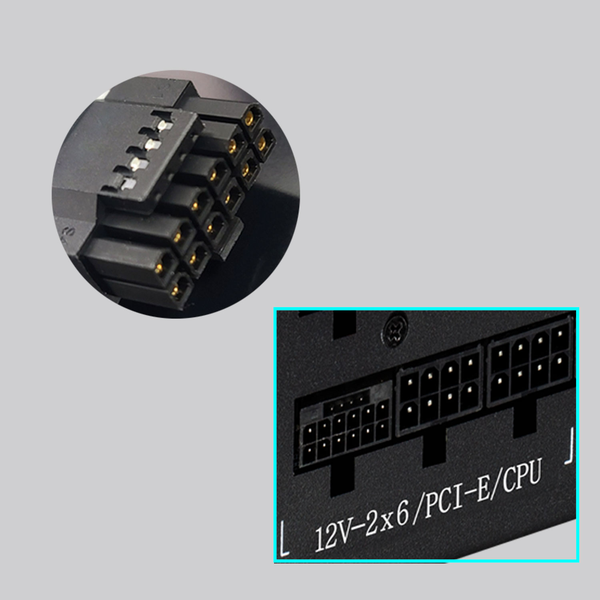

PCIe 5.1 Ready Supports a dedicated 16pin PCIe 5.1 connector for the latest graphics cards
GOLD PLATING CONNECTOR Stable power supply by applying gold-plated connector with low power loss | ![]() |

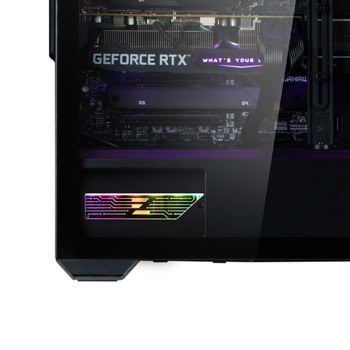

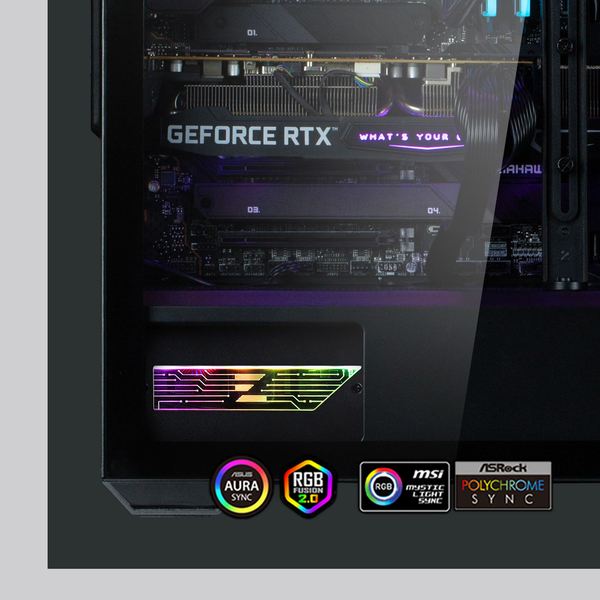

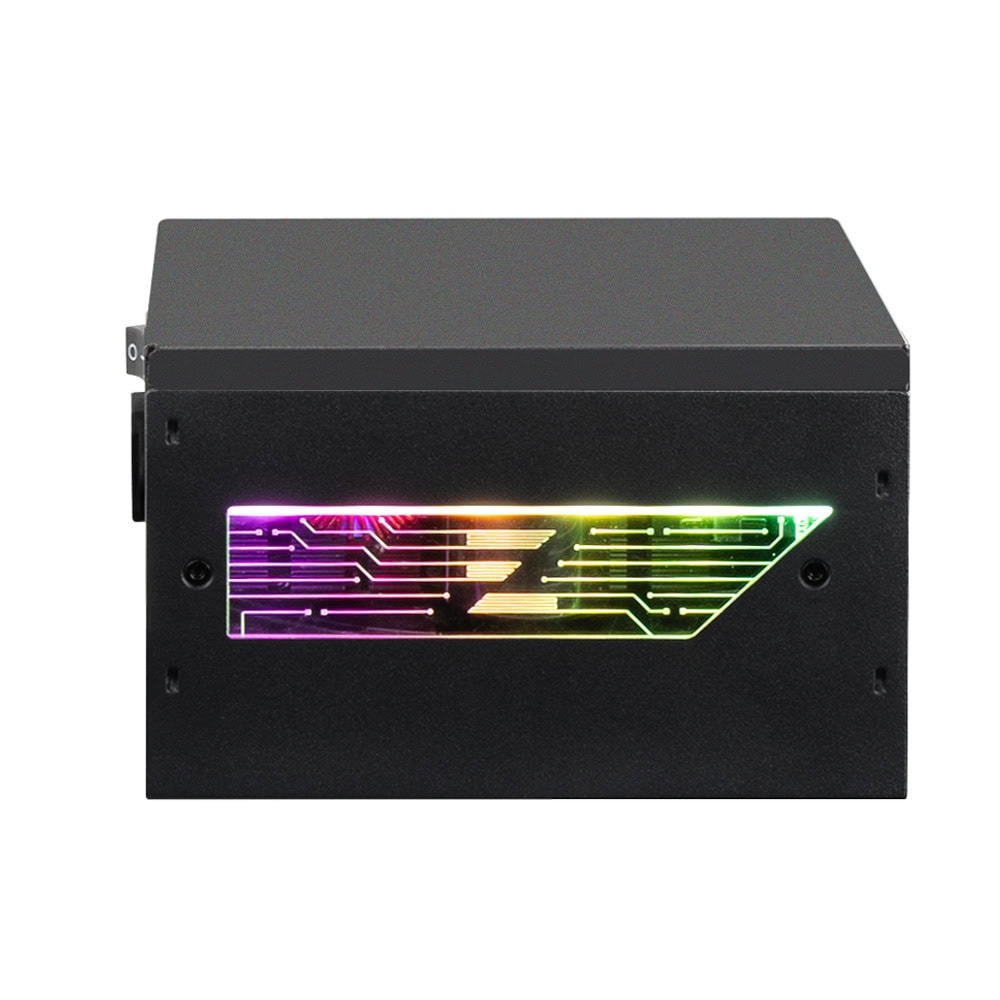

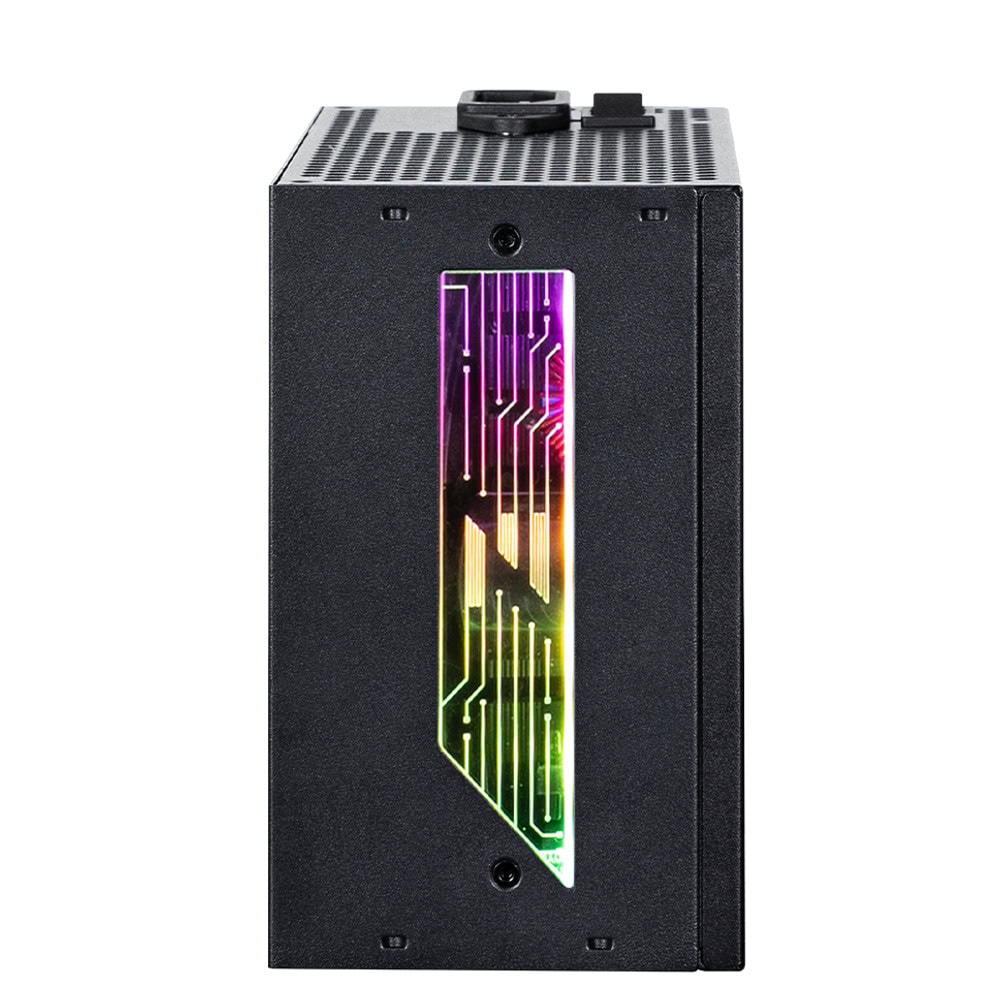

![]() | Perfect Synchronization ARGB
- Exclusive design of ARGB effect. - Control your ARGB with motherboard supports 3-pin 5V RGB SYNC. - The impact of ARGB lighting allows harmonized lighting effects. |

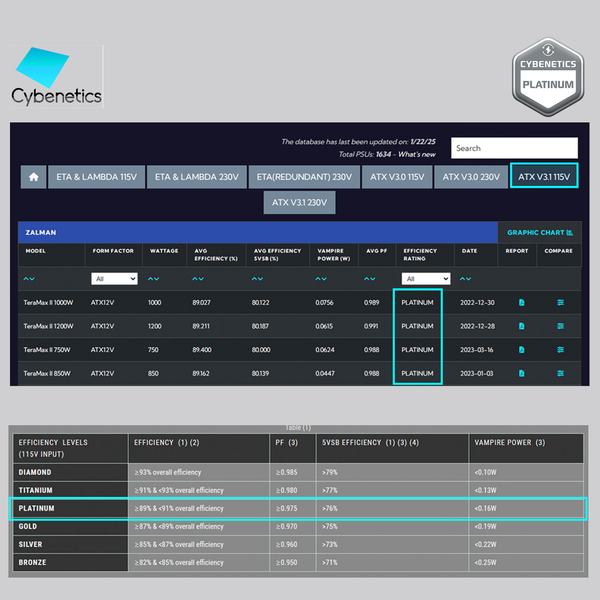

Cybenetics ETA PLATINUM
The TeraMax2 VIEW has an ETA Platinum efficiency rating, meaning it has a guaranteed typical efficiency of 92%. | ![]() |

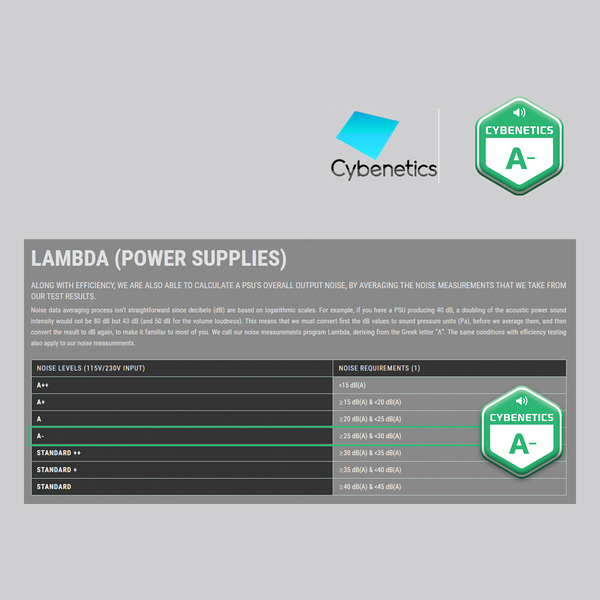

![]() | Cybenetics LAMBDA
Not only the efficiency of the power supplies is evaluated, also the noise generated by it TMX2 II VIEW series has Lambda grade for certificated silent PSU. |
Specifications
- Efficiency: Max. 90% @ 115VAC, Typical Load
- Dimensions: 140(L) × 150(W) × 86(H) mm
- MTBF: 100,000 Hours
- Weight: 2.5 kg
- Operating Temperature: 10–40°C
- PFC: Active PFC
- Regulatory: CE, CB, RoHS, EAC, cTUVus, TUV
- Type: ATX Ver. 3.1
- Protection: OCP / OTP / OPP / OVP / UVP / SCP
- Input Voltage: 100–240VAC
- Input Current: 10–5A
- Input Frequency: 50–60Hz
- Fan Size: 120 mm
- Fan Bearing: FDB

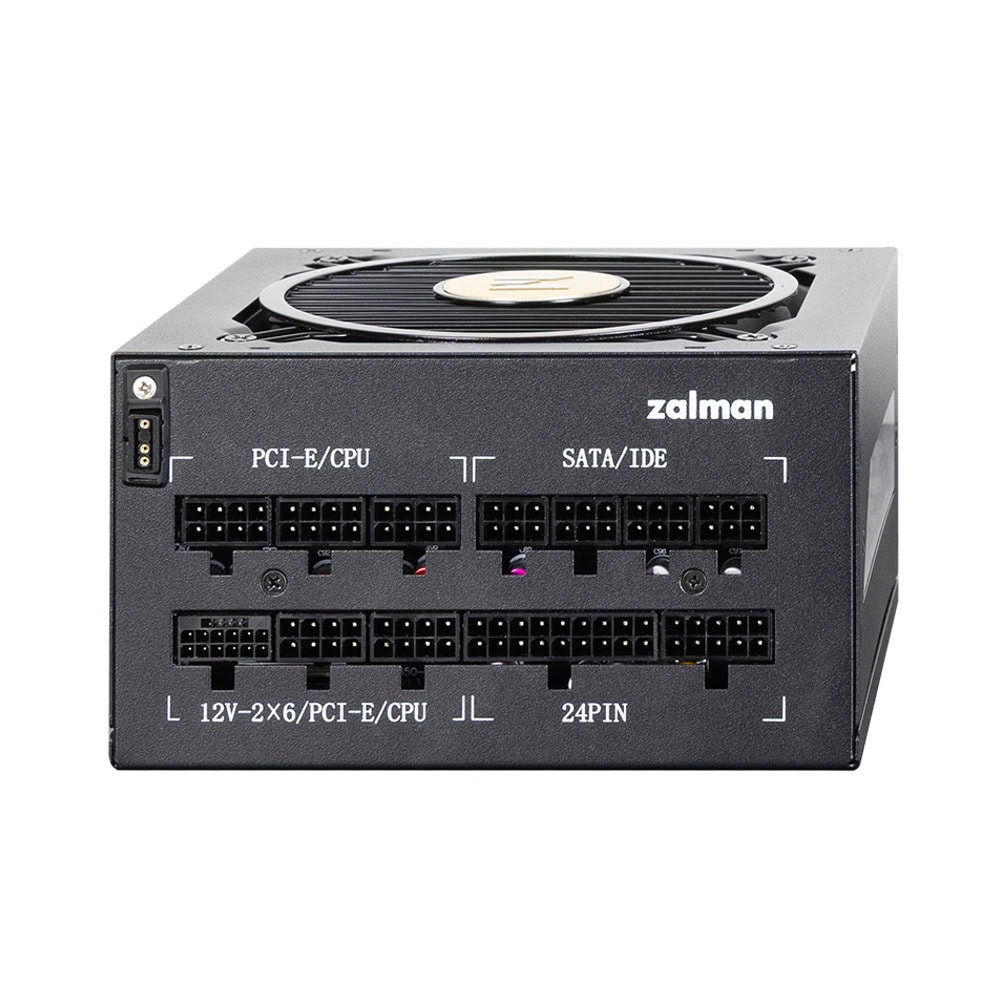

- Cables (Connector):
- Mainboard Cable ×1
- EPS Cable ×2
- PCI Express Cable (Connector 2ea) ×1
- PCI Express Cable ×1
- IDE (Connector 3ea) + FDD (Connector 1ea) ×1
- S-ATA ×3
- 12V-2X6 Cable ×1
- 5V Addressable Extension RGB Cable ×1
- 80 PLUS: Gold
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Zalman
Виж всички Захранвания Настолни компютри в категорията
| Изходна мощност: | 750 W |
|---|---|
| Модулен блок: | Да |
| Форм фактор: | ATX |
