Захранване Asus TUF Gaming White Edition, 1000W, Active PFC, 80 Plus Gold, 135mm вентилатор

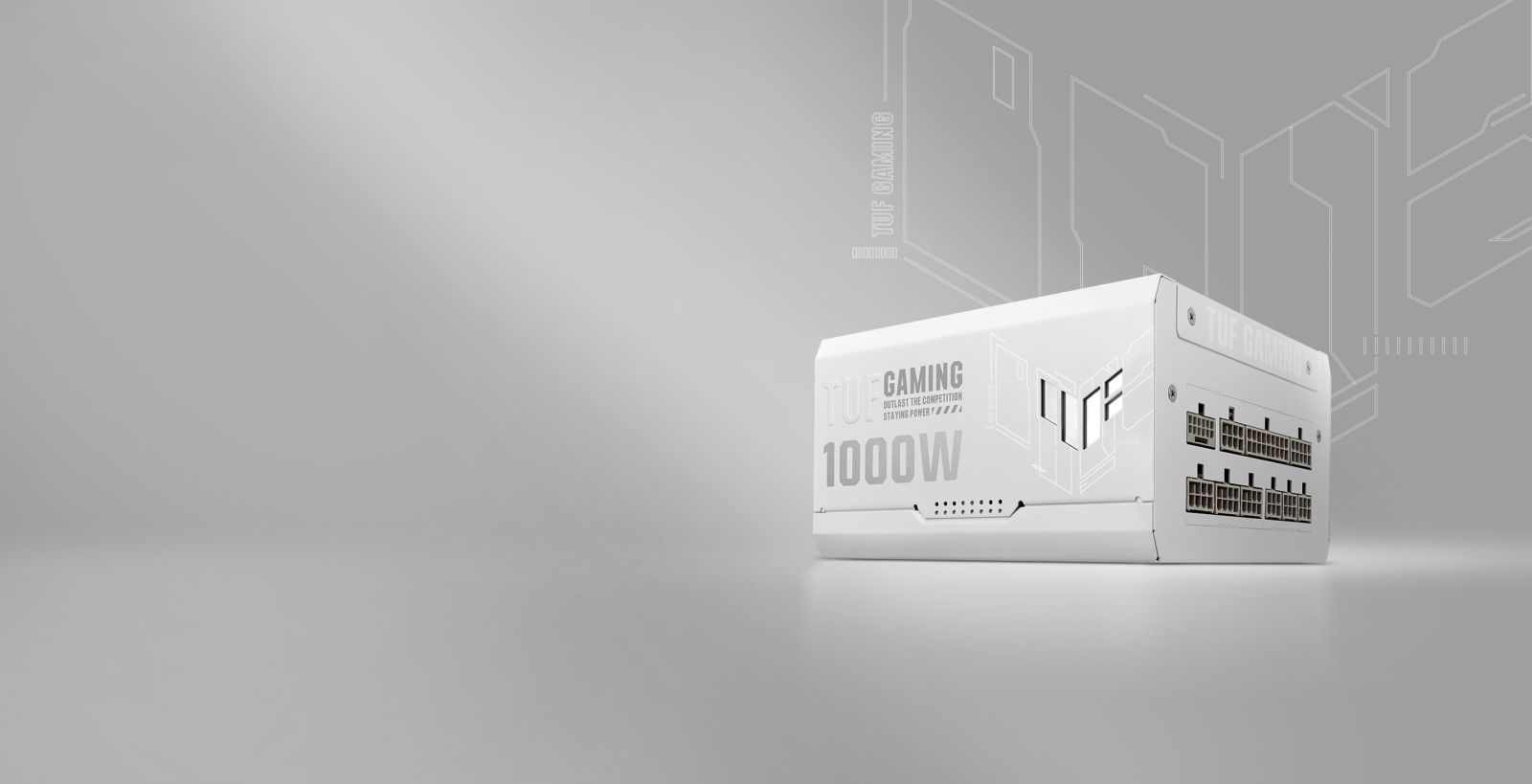

Asus TUF Gaming 1000W White Edition







Built For The Long Haul

The ASUS TUF Gaming 1000W Gold White Edition packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.​

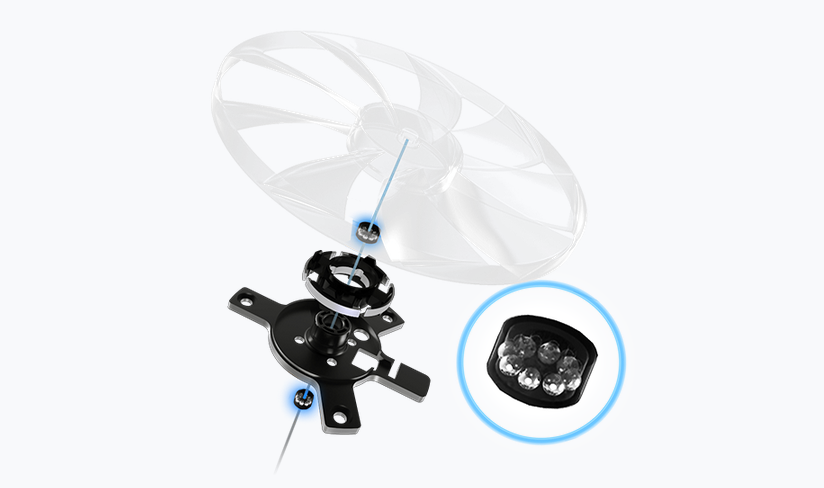

Dual Ball Fan Bearings

2x longer lifespan

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

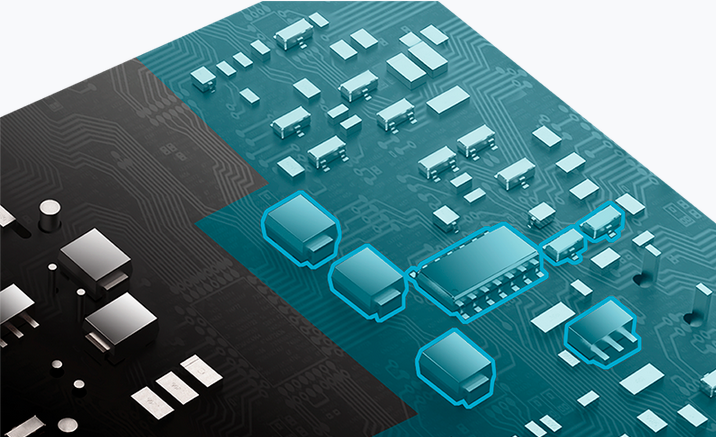

Protective PCB Coating

All wrapped up

A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

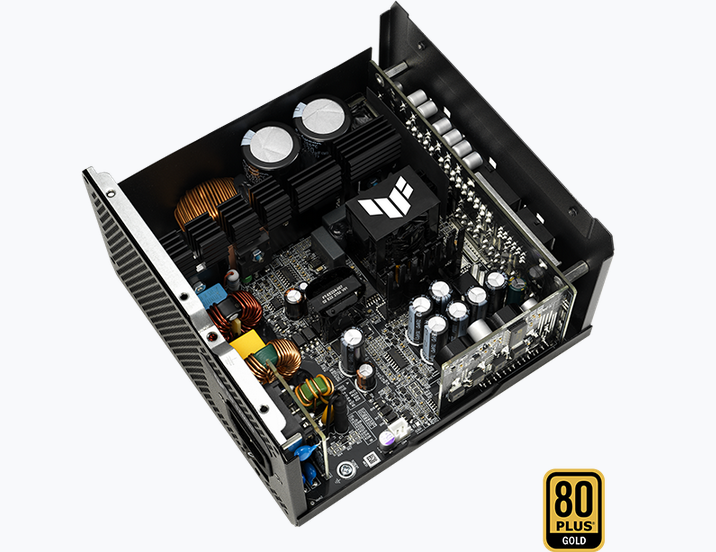

80 Plus Gold Certification

Heart of gold

The TUF Gaming 1000W Gold White Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​

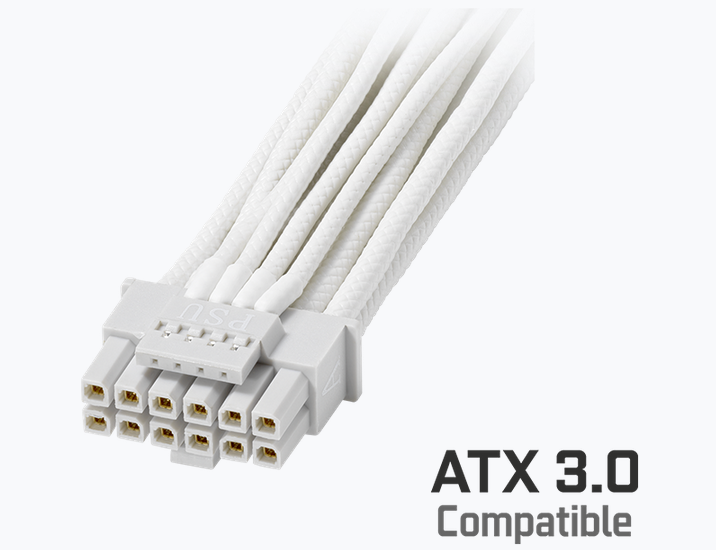

ATX 3.0 Compatible

Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold White Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.​









Specs:

Intel Form Factor ATX12V

PFC Type Active PFC

ATX 3.0 Yes

Dimensions 150 x 150 x 86 mm

Efficiency 80Plus Gold

Protection Features OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials ROHS

AC Input Range 100-240Vac

DC Output Voltage +3.3V +5V +12V -12V +5Vsb

Maximum Load 25A25A83.3A 0.8A 3A

Combined Load 130W 130W 1000W 9.6W 15W

Total Output 1000W



Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (both PSU & component side)

PCI-E 8-pin x 4

SATA x 5

PERIPHERAL x 4



Weight 2.48kg (single PSU)

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
