Corsair TX-M Series™ TX750M
750 Watt 80 PLUS Gold Semi Modular ATX PSU
TUNED FOR LOW-NOISE OPERATION
A 120mm rifle bearing fan creates less noise than traditional ball bearings, letting you focus more on the task at hand, whether it’s gaming or work.
![]() |
TUNED FOR LOW-NOISE OPERATION A 120mm rifle bearing fan creates less noise than traditional ball bearings, letting you focus more on the task at hand, whether it’s gaming or work. |
SEMI-MODULAR CABLING Also compatible with the CORSAIR 12-pin GPU power cable for the hottest new GPUs. |
![]() |
![]() |
HIGH EFFICIENCY With upwards of 90% peak efficiency, TX-M produces less heat and less noise, which means less time worrying and more time gaming. |
TECHNOLOGY AND RELIABILITY For consistent, reliable power and superb electrical performance, each TX-M Series power supply features a robust resonant LLC topology with DC-DC conversion and 105°C rated Japanese capacitors. With precise timings, TX-M supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency. |
![]() |
![]() |

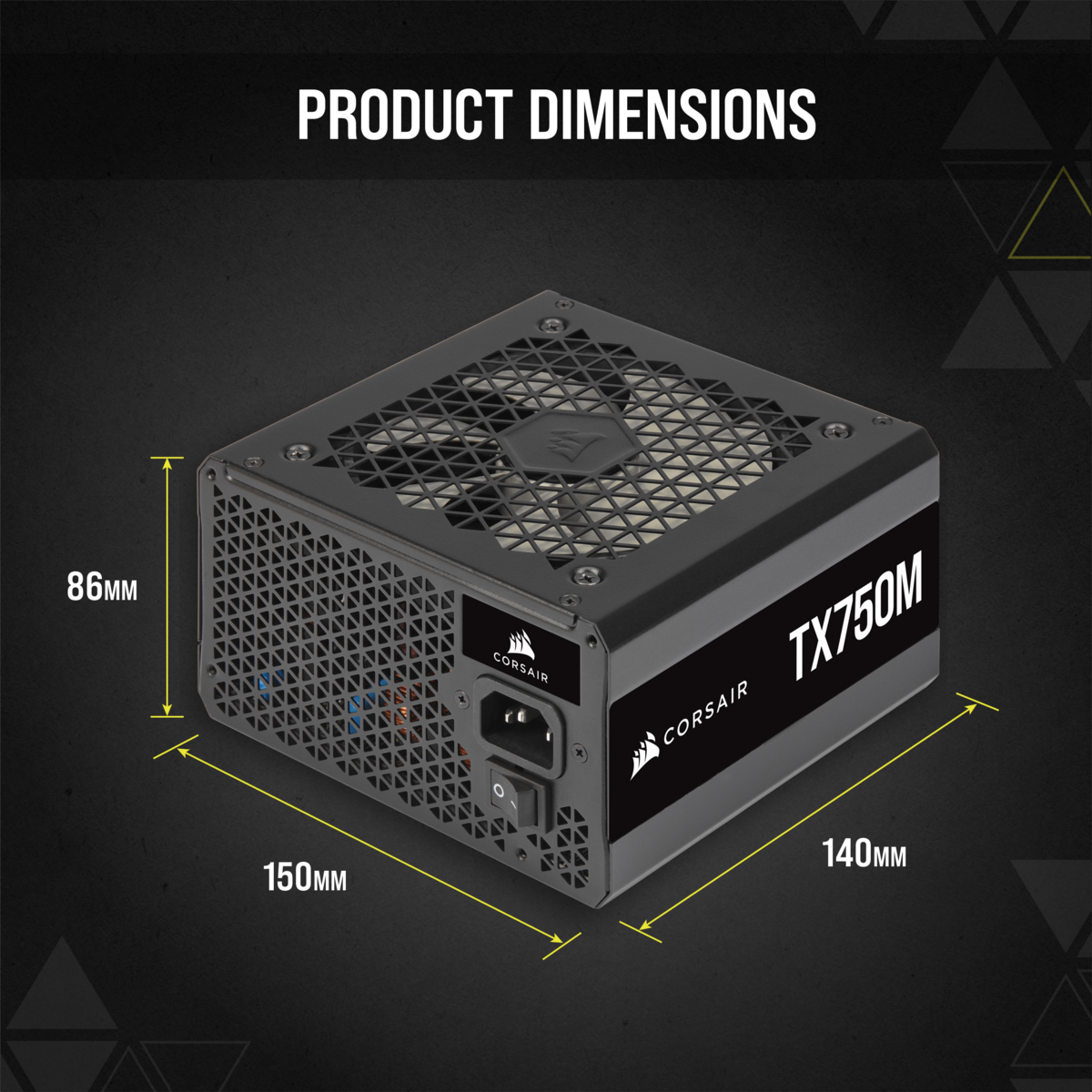

COMPACT SIZE At just 140mm long, the TX-M Series offers great flexibility in build configurations. |
TX750M POWER
Part No. | CP-9020230 | |
---|---|---|
AC Input Rating | ||
AC Input | 100-240V | |
Input Current | 10A-5A | |
Frequency | 47~63Hz | |
Max Load | Max Output | |
+5V | 25A | 130W |
+3.3V | 25A | |
+12V | 62A | 744W |
-12V | 0.8A | 9.6W |
+5Vsb | 3A | 15W |
Total Power | 750W |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Corsair
Виж всички Захранвания Настолни компютри в категорията
Изходна мощност: | 750 W |
---|---|
Модулен блок: | Полу-модулно |
Форм фактор: | ATX |
