Corsair TX-M Series™ TX650M
650 Watt 80 PLUS Gold Semi Modular ATX PSU

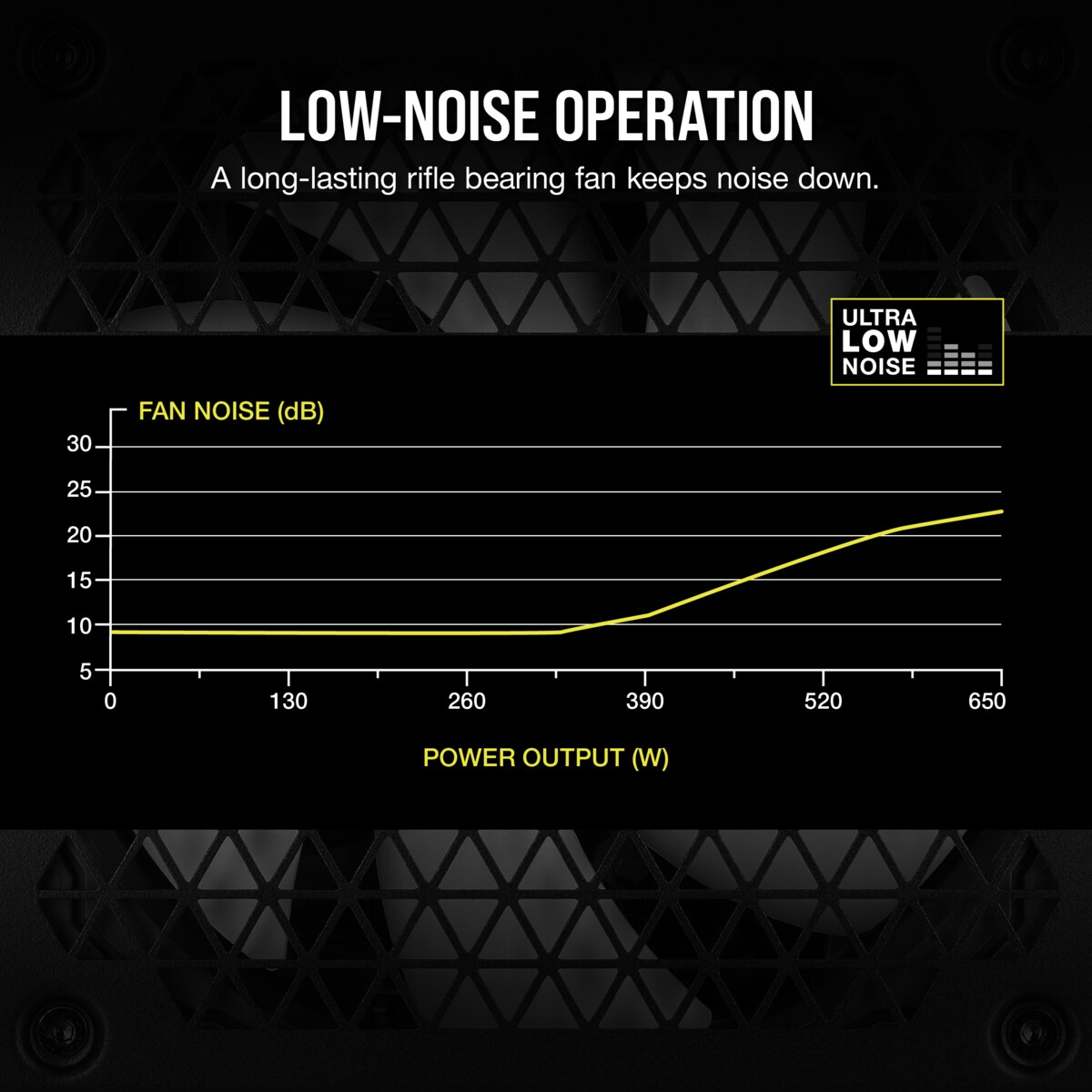

TUNED FOR LOW-NOISE OPERATION
A 120mm rifle bearing fan creates less noise than traditional ball bearings, letting you focus more on the task at hand, whether it’s gaming or work.

	TUNED FOR LOW-NOISE OPERATION A 120mm rifle bearing fan creates less noise than traditional ball bearings, letting you focus more on the task at hand, whether it’s gaming or work.

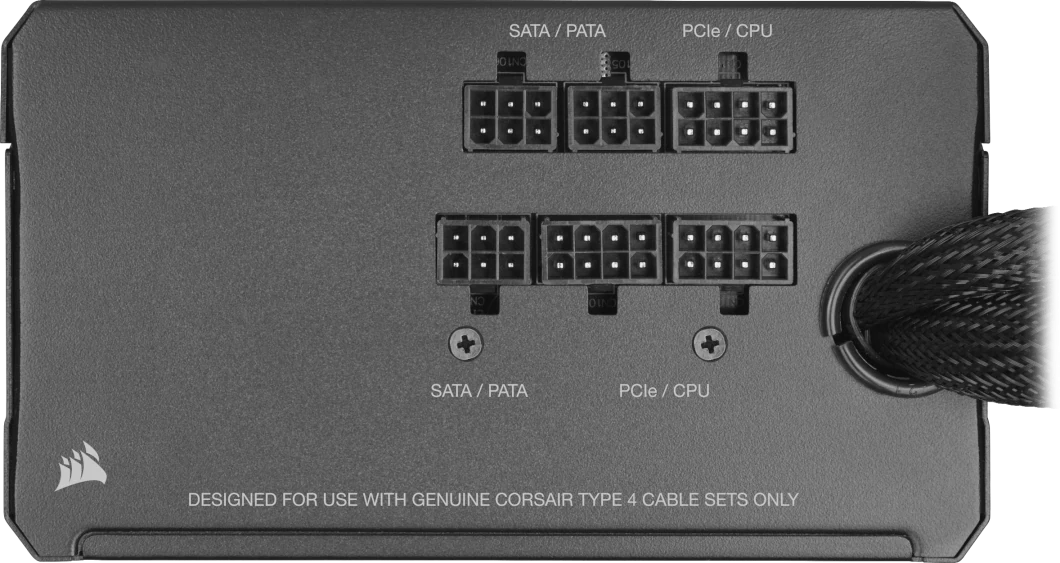

SEMI-MODULAR CABLING Connect only the cables you need for a cleaner build with easy cable management and dual EPS12V connections for wide compatibility with modern graphics cards and motherboards. Also compatible with the CORSAIR 12-pin GPU power cable for the hottest new GPUs.

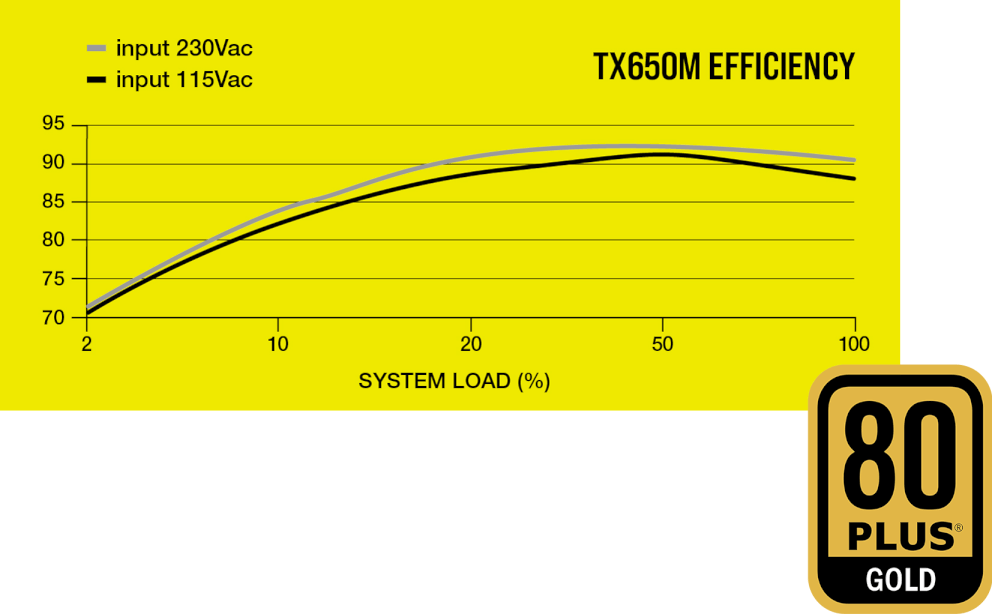

	HIGH EFFICIENCY With upwards of 90% peak efficiency, TX-M produces less heat and less noise, which means less time worrying and more time gaming.

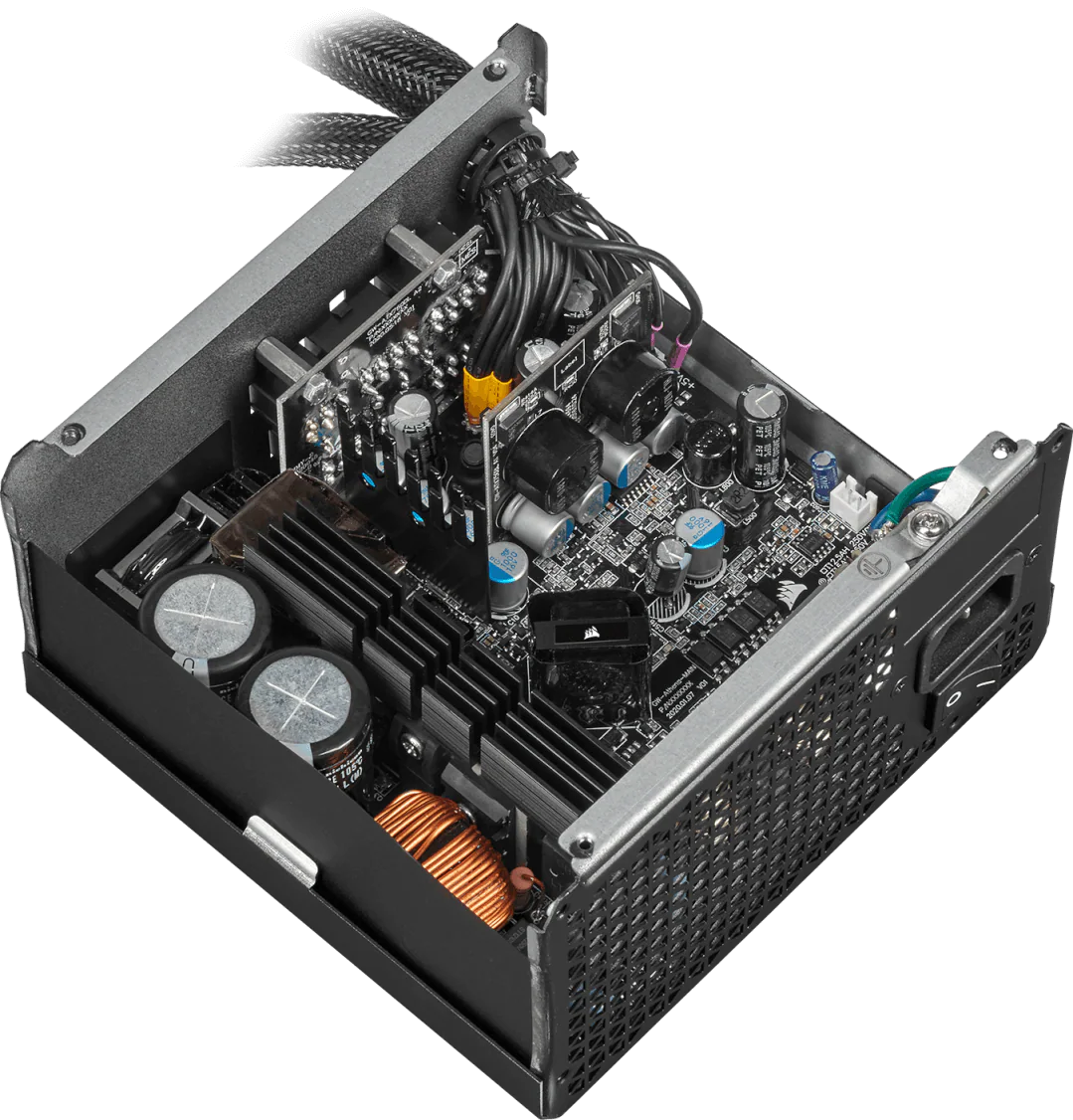

TECHNOLOGY AND RELIABILITY For consistent, reliable power and superb electrical performance, each TX-M Series power supply features a robust resonant LLC topology with DC-DC conversion and 105°C rated Japanese capacitors. With precise timings, TX-M supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

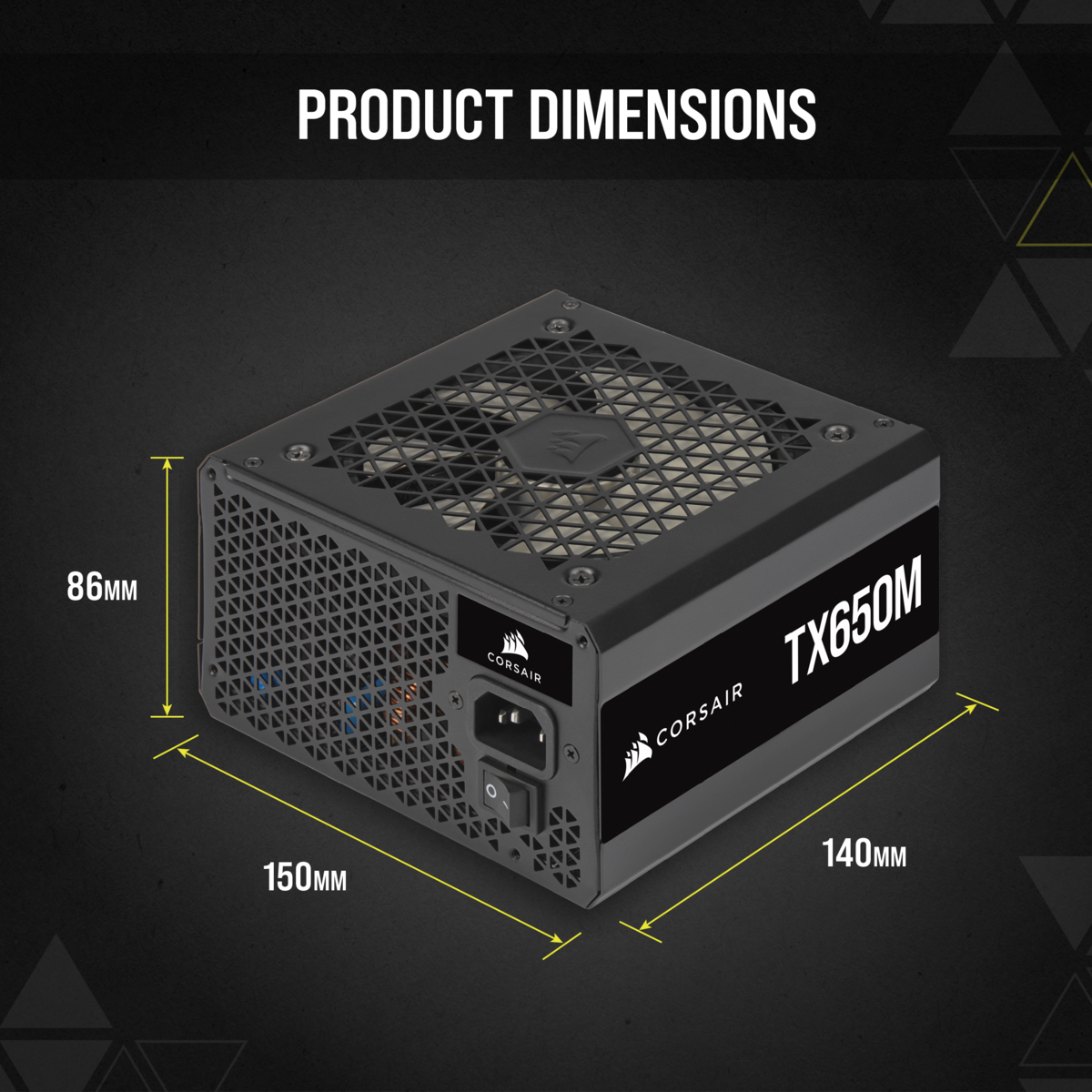

	COMPACT SIZE At just 140mm long, the TX-M Series offers great flexibility in build configurations.

TX650M POWER

Part No.	CP-9020229
AC Input Rating
AC Input	100-240V
Input Current	8A-4A
Frequency	47~63Hz
	Max Load	Max Output
+5V	25A	130W
+3.3V	25A	130W
+12V	51A	612W
-12V	0.8A	9.6W
+5Vsb	3A	15W
Total Power	650W
