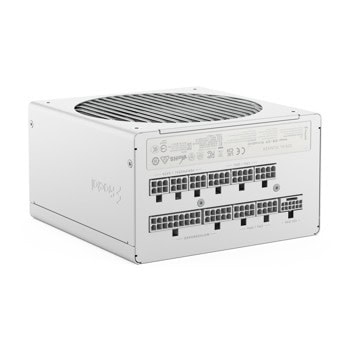

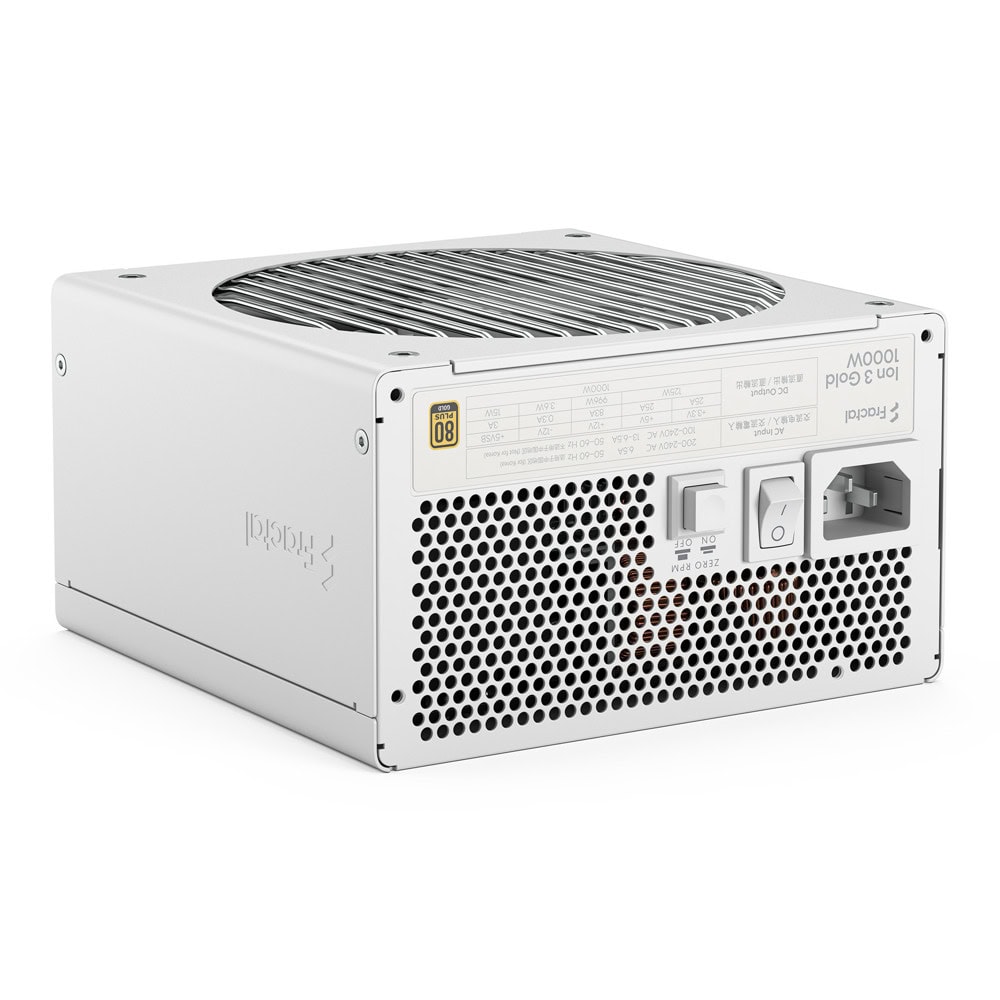

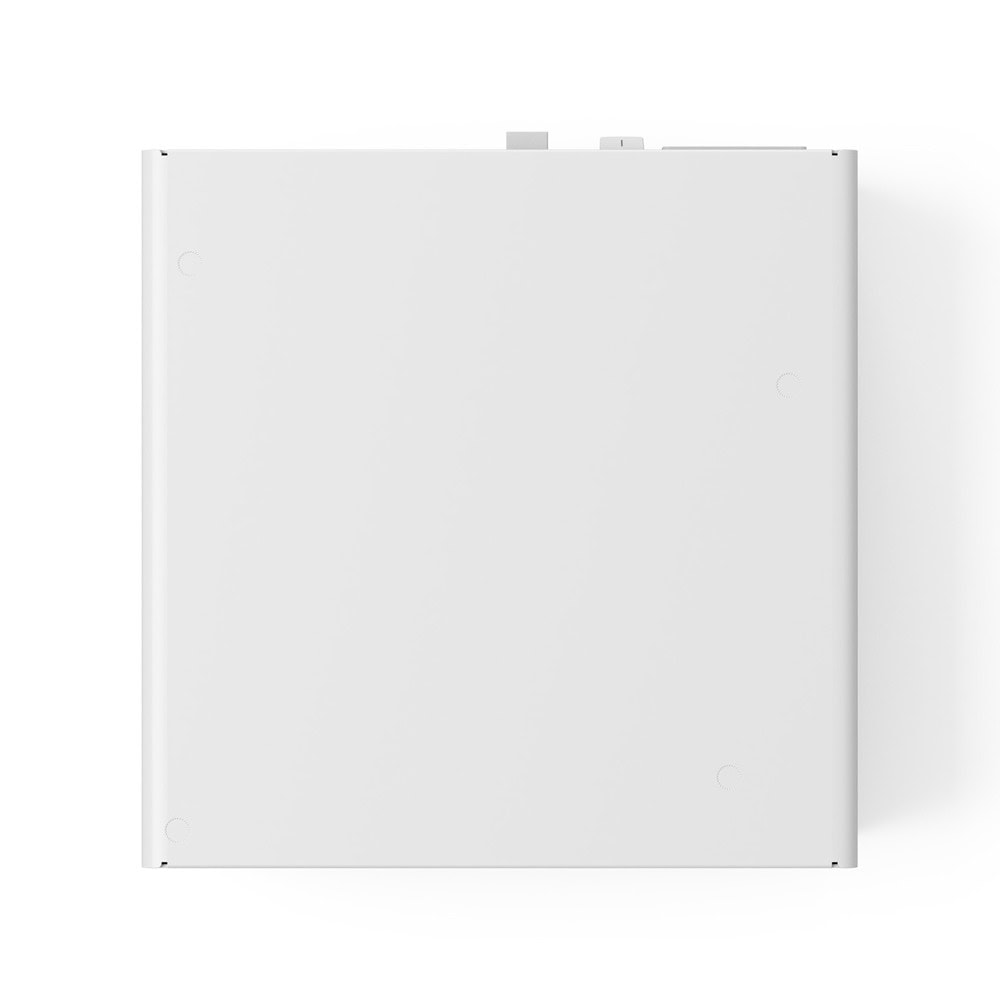

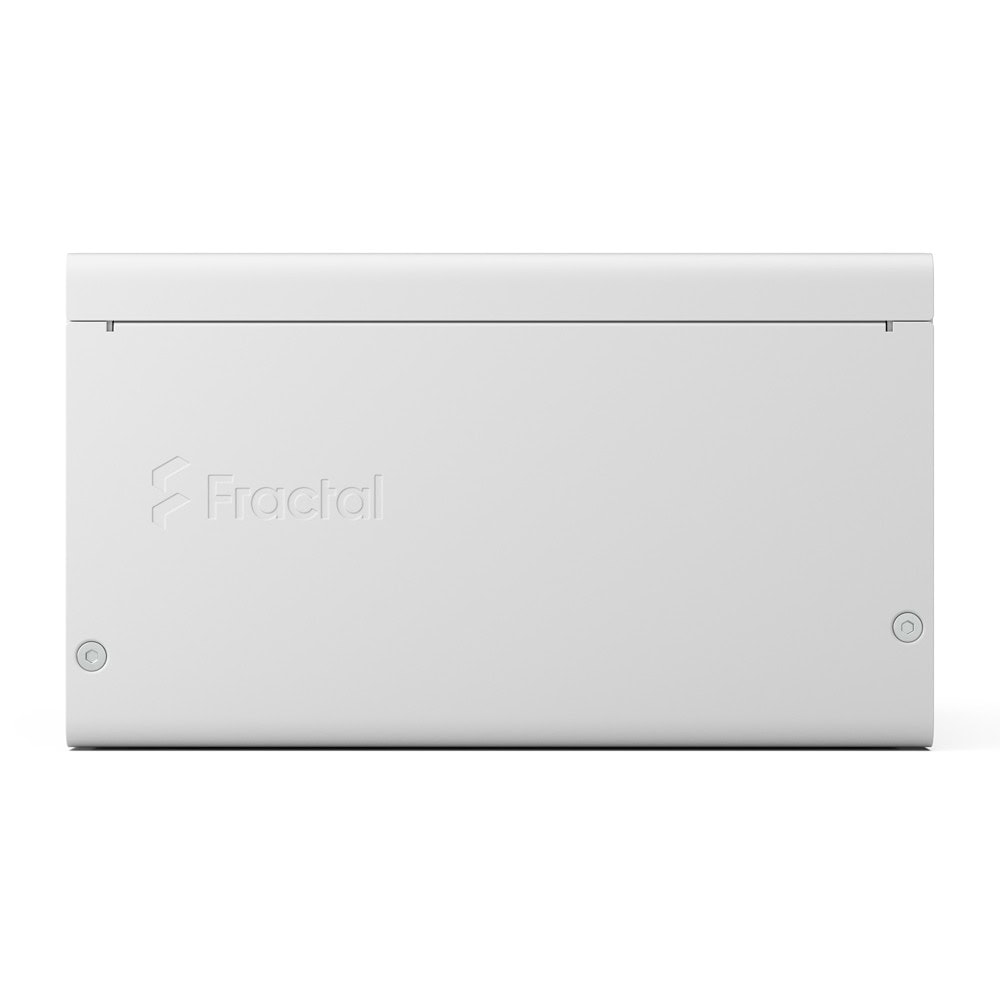

Захранване Fractal Design Ion 3 White, 1000W, Active PFC, 80 Plus Gold, 140mm вентилатор

Fractal Design Ion 3

Future-ready Connect next-generation components with ATX12V 3.1 compatibility and enjoy stable performance with graphics card power excursion support.

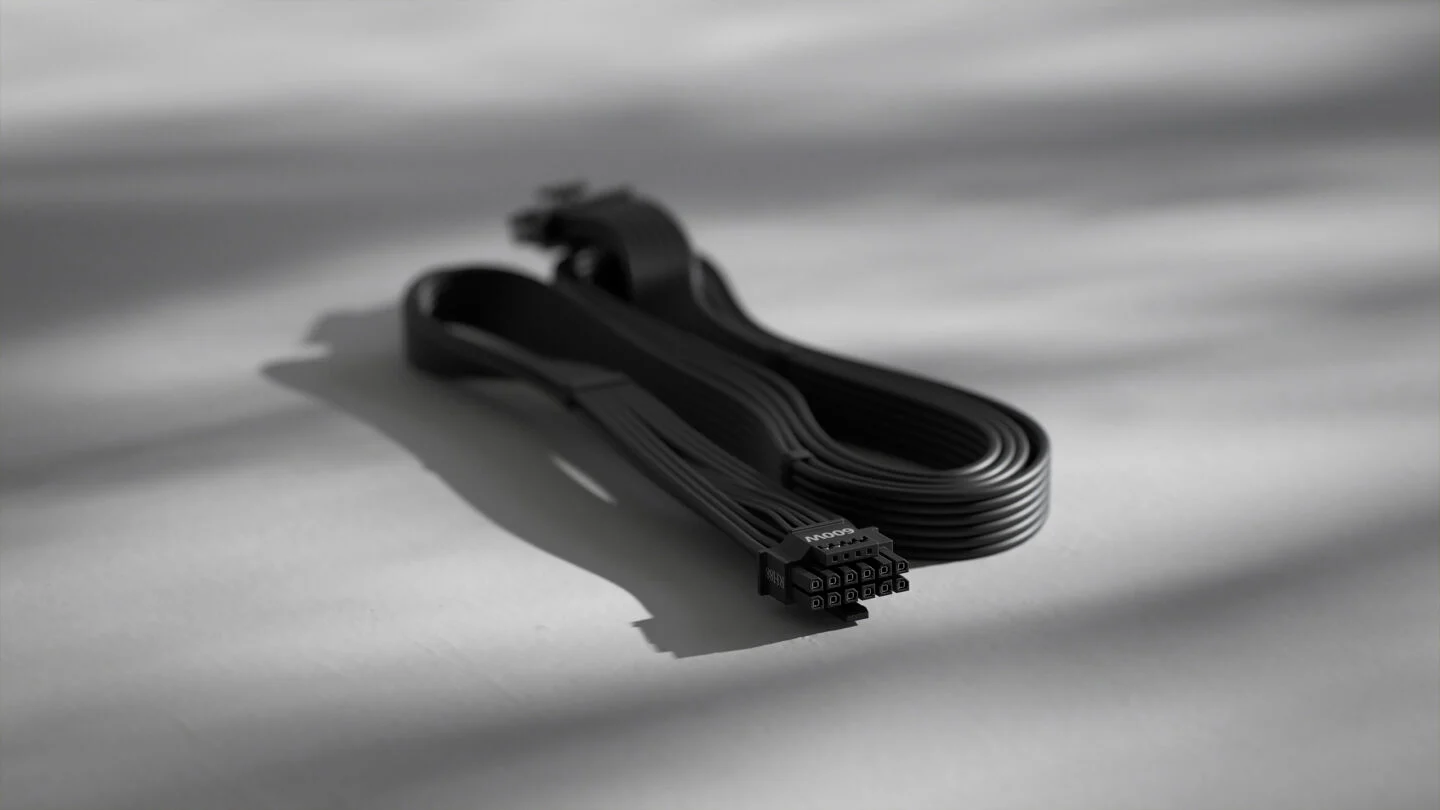

	Native Gen 5 support Power modern graphics cards with 16-pin PCIe Gen 5 12V-2×6 support featuring shortened sense pins for a reliable, secure connection.

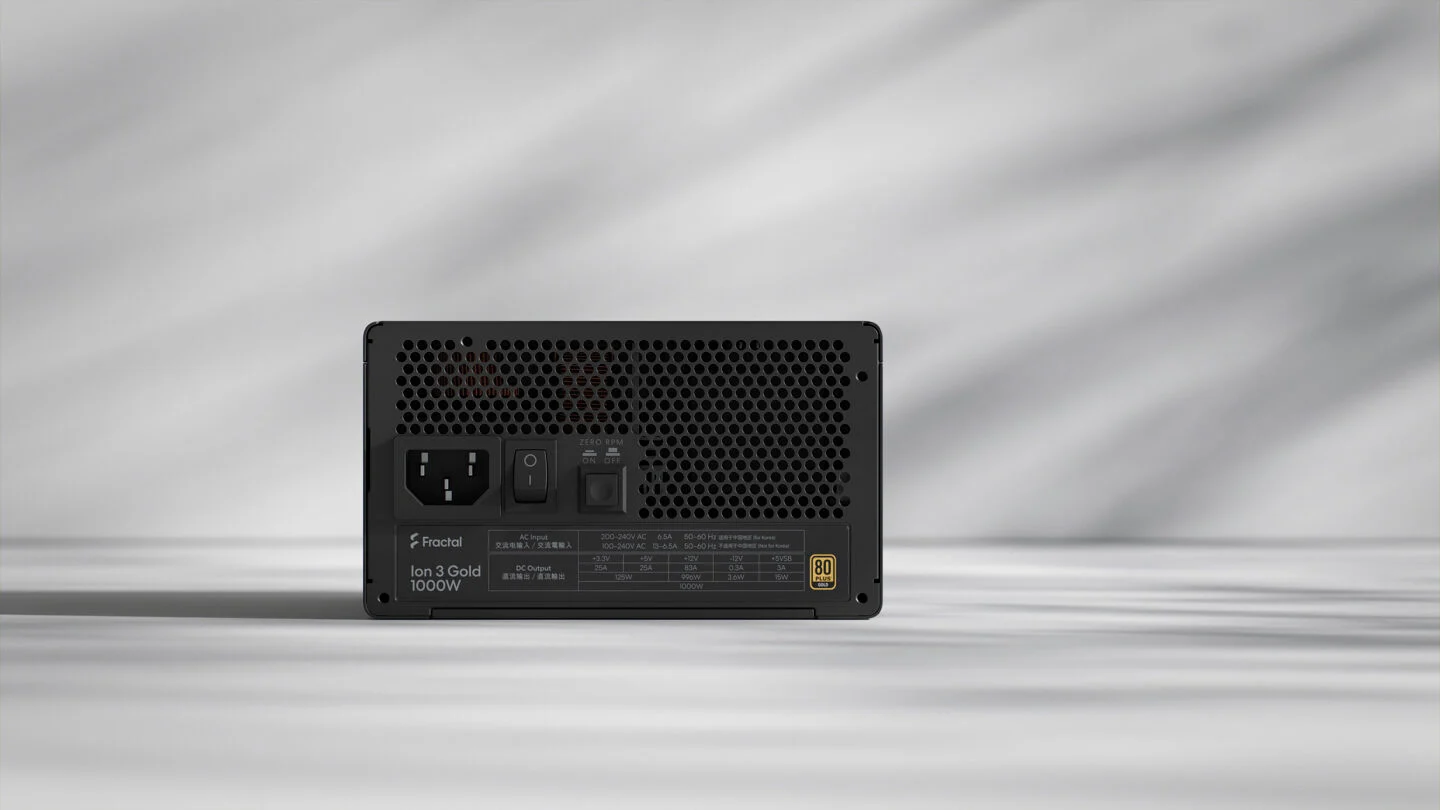

Certified efficiency 80 PLUS Gold–certified for efficient performance with reduced energy use and heat output through optimized power delivery.

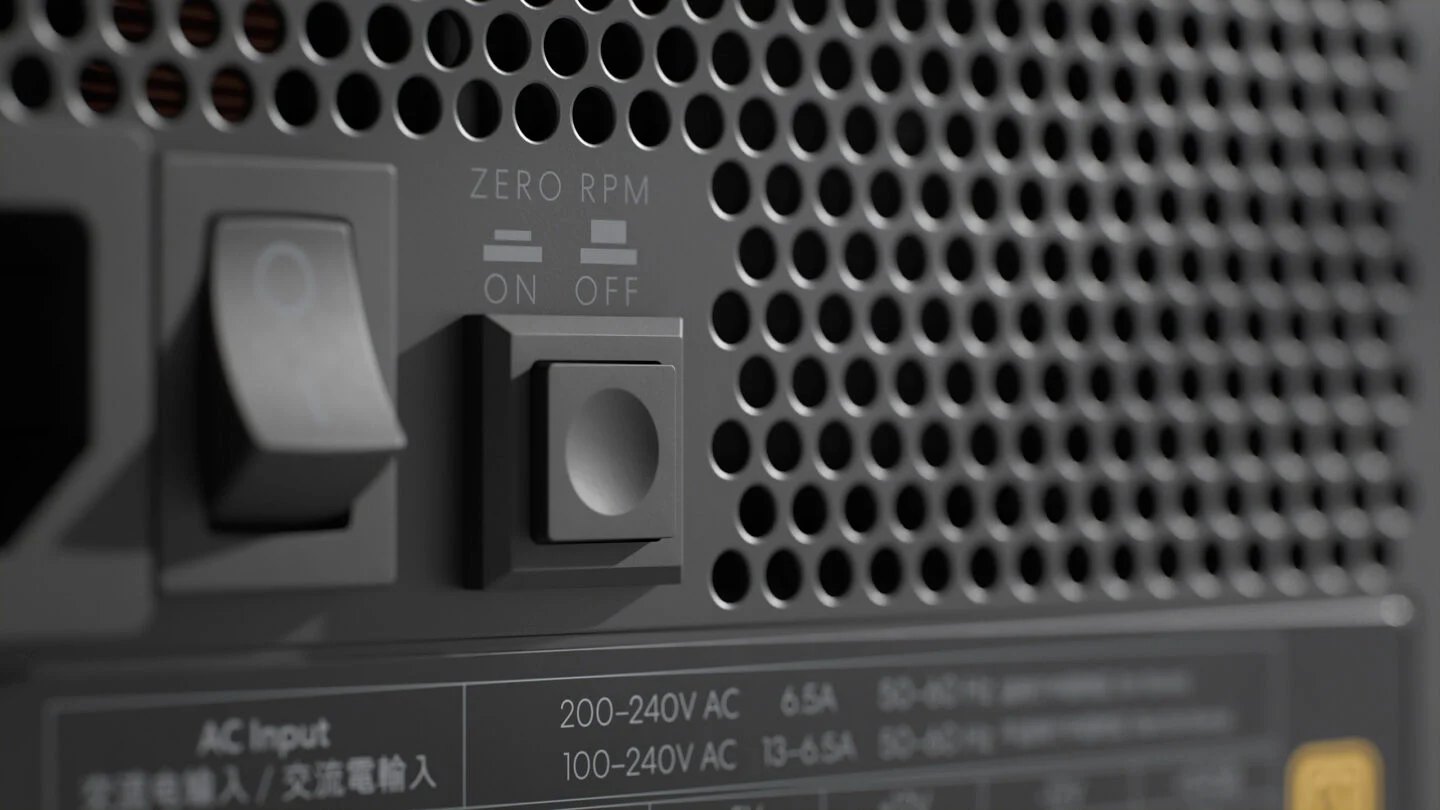

	Quiet operation Featuring variable fan speeds for adaptive cooling and the option to activate Zero RPM Mode for near-silent operation under lighter loads.

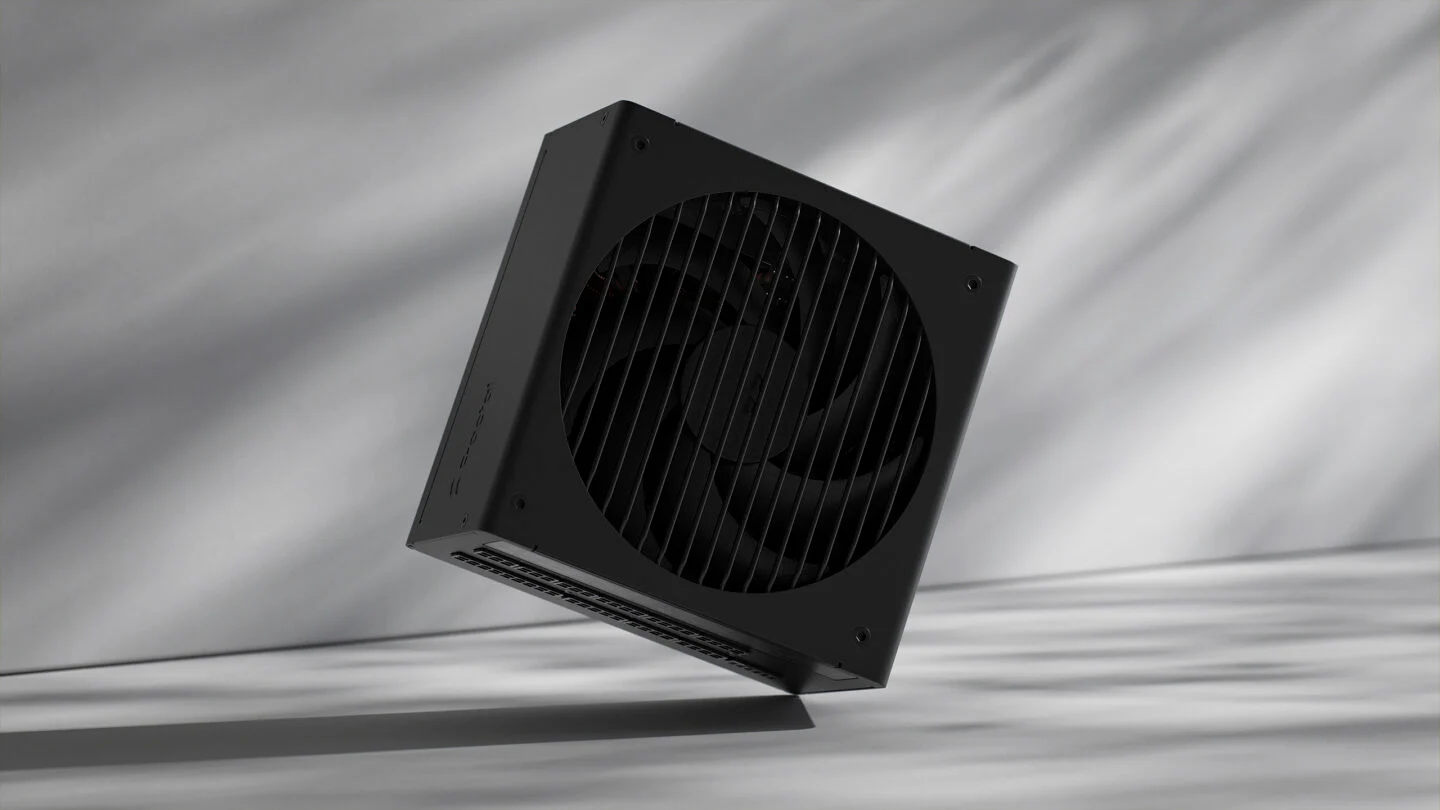

Designed to last Built with high-quality, reliable components including Japanese 105°C capacitors.

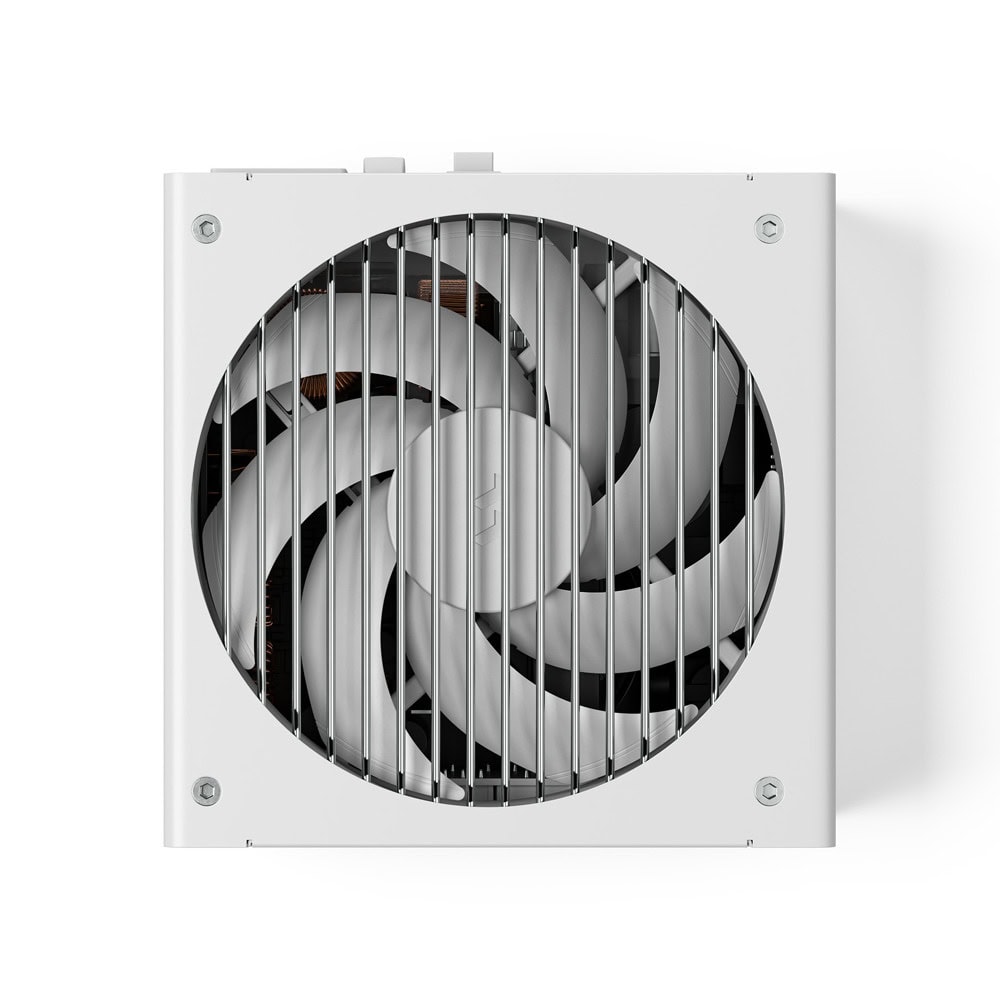

Momentum cooling

Featuring a powerful Momentum 14 fan with a fluid dynamic bearing and LCP blades to ensure lower noise, cooler operation, and a longer lifespan.

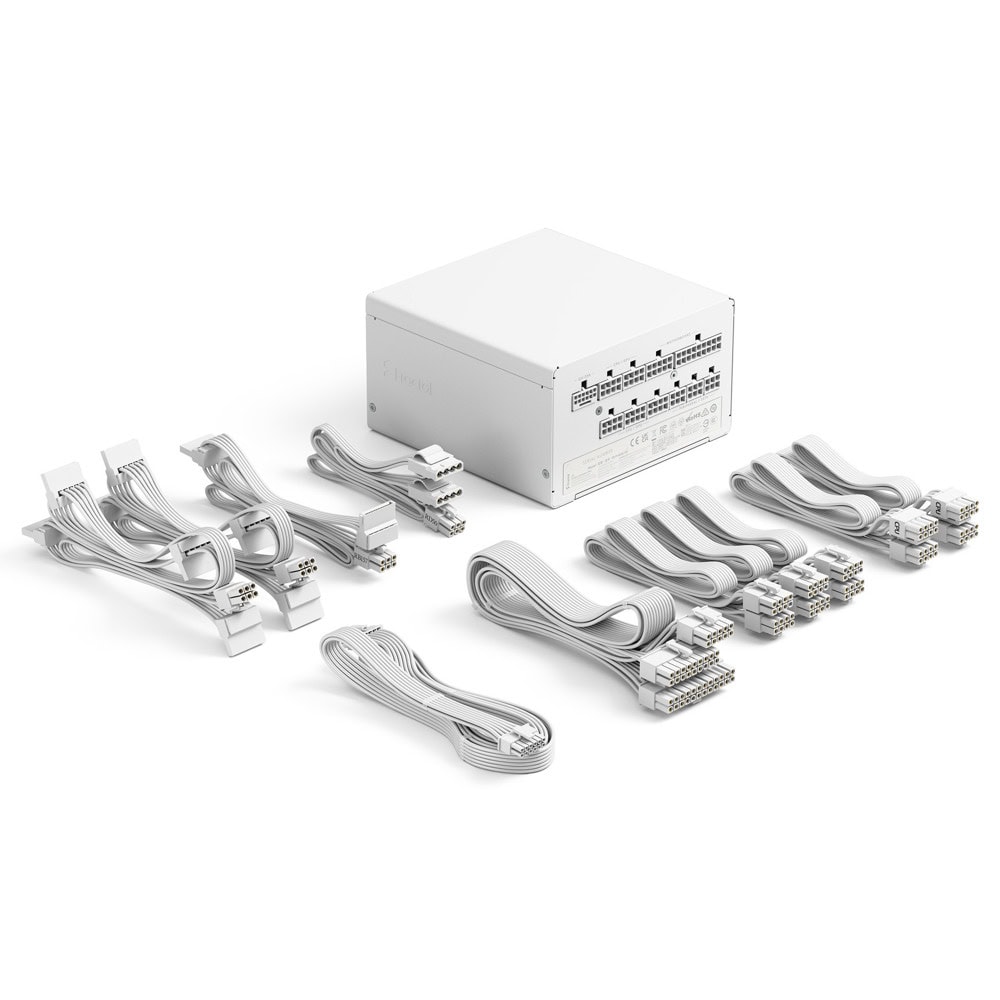

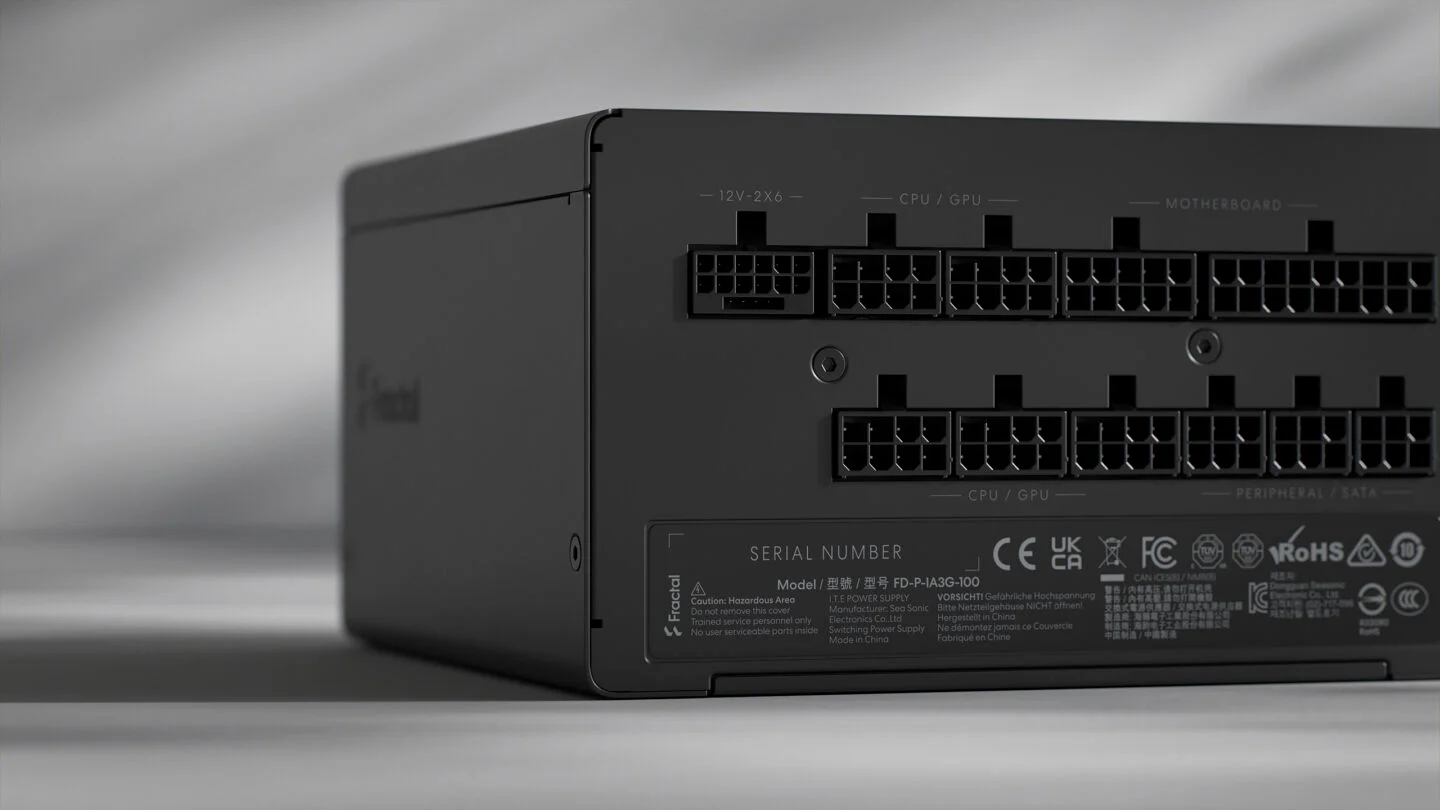

Fully modular

Achieve a clean, uncluttered build with a fully modular design and UltraFlex cables for smoother cable routing.

Specifications

Wattage

1000W

PSU specification compliance

PSU specification compliance ATX12V 3.1

Efficiency Certification

80PLUS® Gold

Modular cables

Fully modular

Fan type

Momentum 14 series fan, with Fluid Dynamic Bearing

Semi-passive operation

Yes, user selectable (Zero RPM mode)

DC cable type

UltraFlex, flat cables

Cable Color

Black PSU: Black, White PSU: White

Electrolytic capacitors

105°C Japanese capacitors

Number of 12V rails

Single 12V rail

Protection features

Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Current Protection (OCP), Over Temperature Protection (OTP)

Life expectancy (MTBF)

100 000 h (25°C ambient temperature)

Modern sleep state compatibility

C6 and C7 compatible

Power factor correction (PFC)

Yes, active

Input voltage

100-240 V

Standby efficiency

≥ 45% ErP Lot 6 compliant

Maximum operating temperature

40°C (full load), 50°C (80% load)

Approvals & certifications

CE, UKCA, BSMI, CCC, FCC, TUV, cULus, RCM, ICES, CB, KC

Included modular cables

ATX 24 pin, 600 mm

1

ATX 12V 4+4P, 700 mm

2

PCI-E 6+2 pin, 650 mm

3

PCI-E Gen5 12V-2x6, 700 mm

1

4x SATA, 400+150+150+150 mm

2

2x SATA 650+150 mm

1

Total number of SATA connectors

10

2x Peripheral (Molex) 650+150 mm

1

Total number of Molex connectors

2
