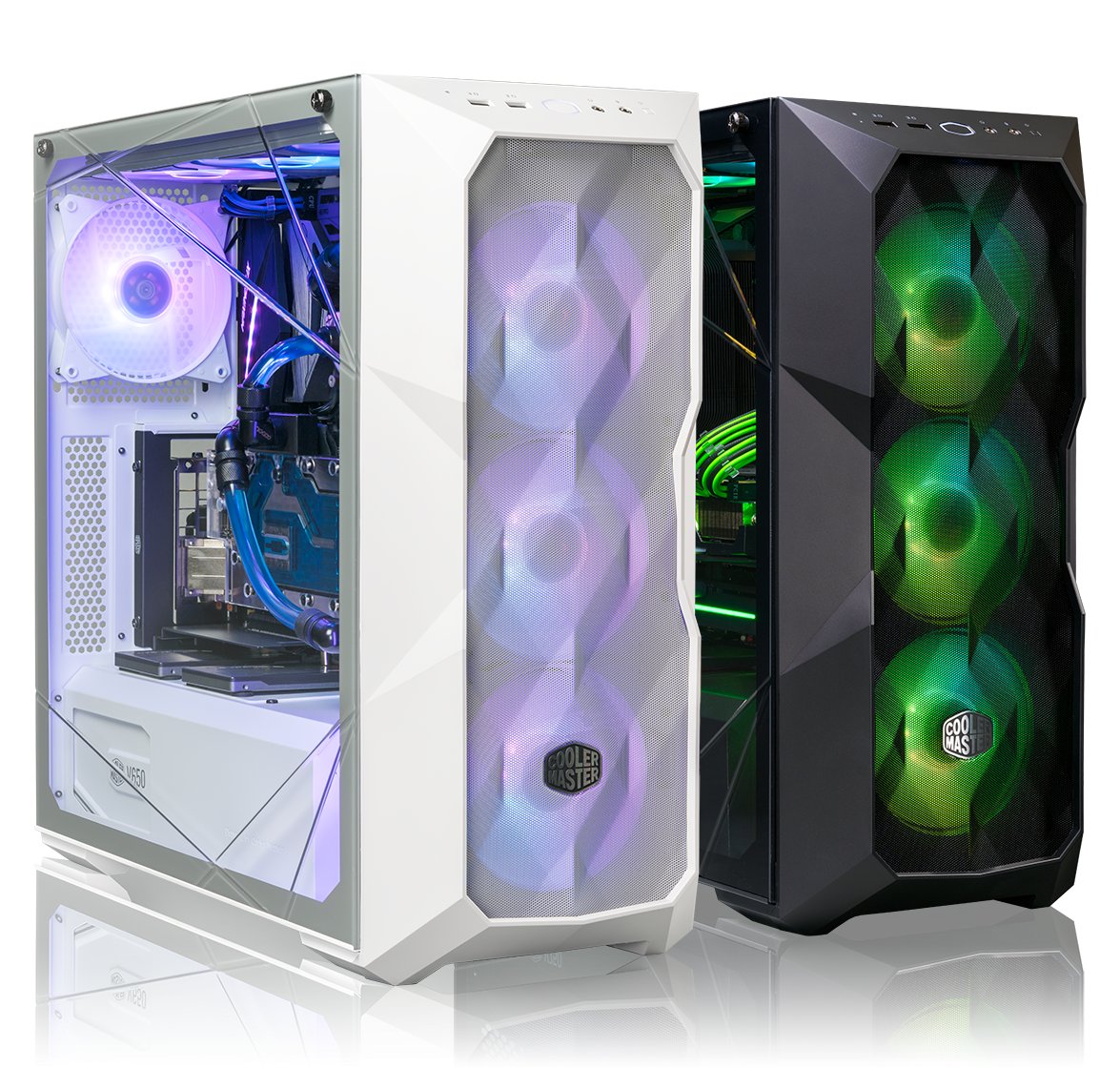

AIRFLOW IN AN ART FORM The MasterBox TD500 Mesh & MasterBox TD500 Mesh White embody “airflow performance” in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the Crystalline Tempered Glass. Each element of design is precision-engineered to maximize performance & quality alongside aesthetics, evolving beyond the current limits of lighting and cooling. With advanced technology sculpted into fine art, the MasterBox TD500 Mesh & Mesh White carve their own path to the bleeding edge. |
![]() |
![]() |

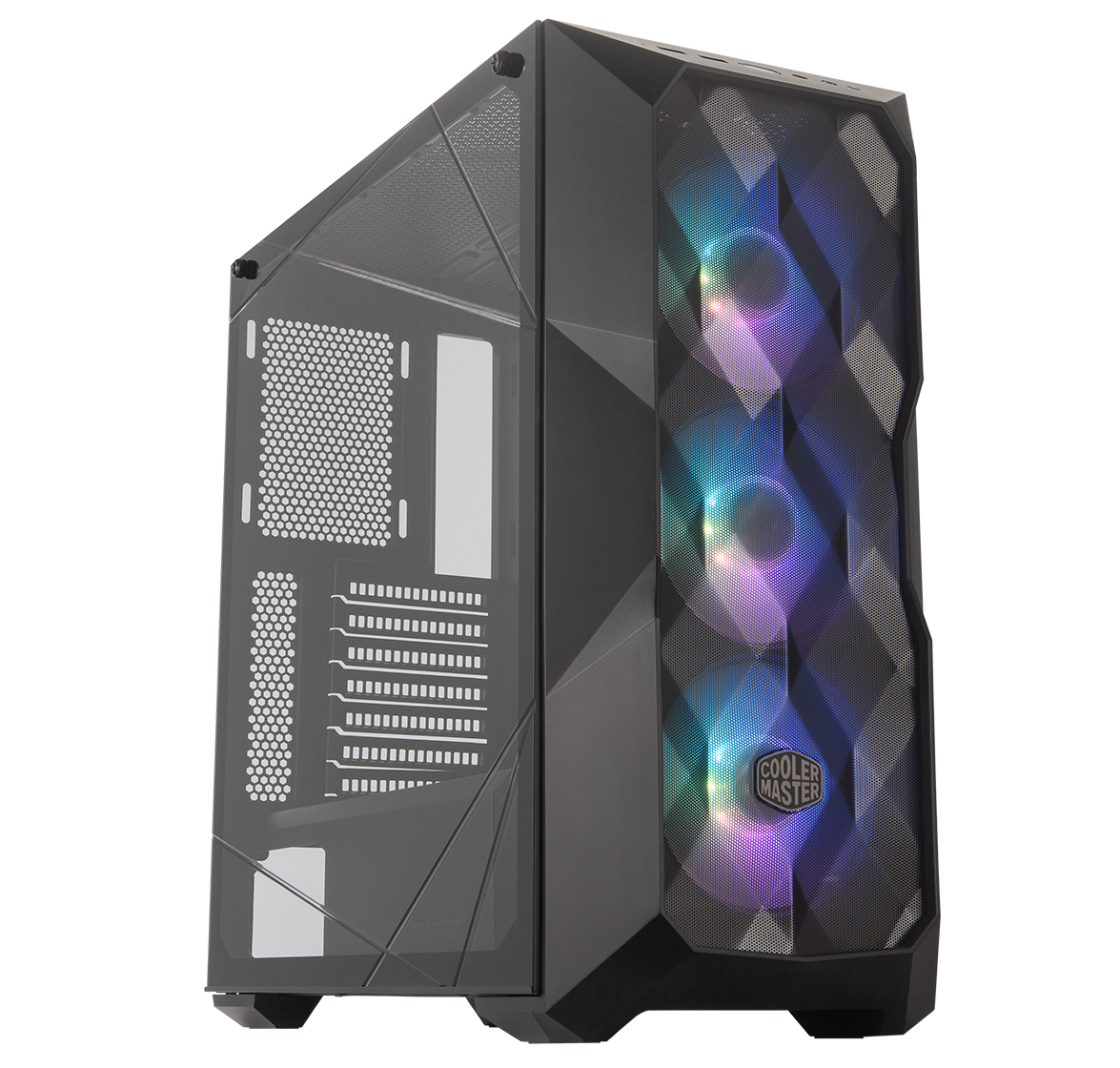

POLYGONAL MESH Crafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration. |
|

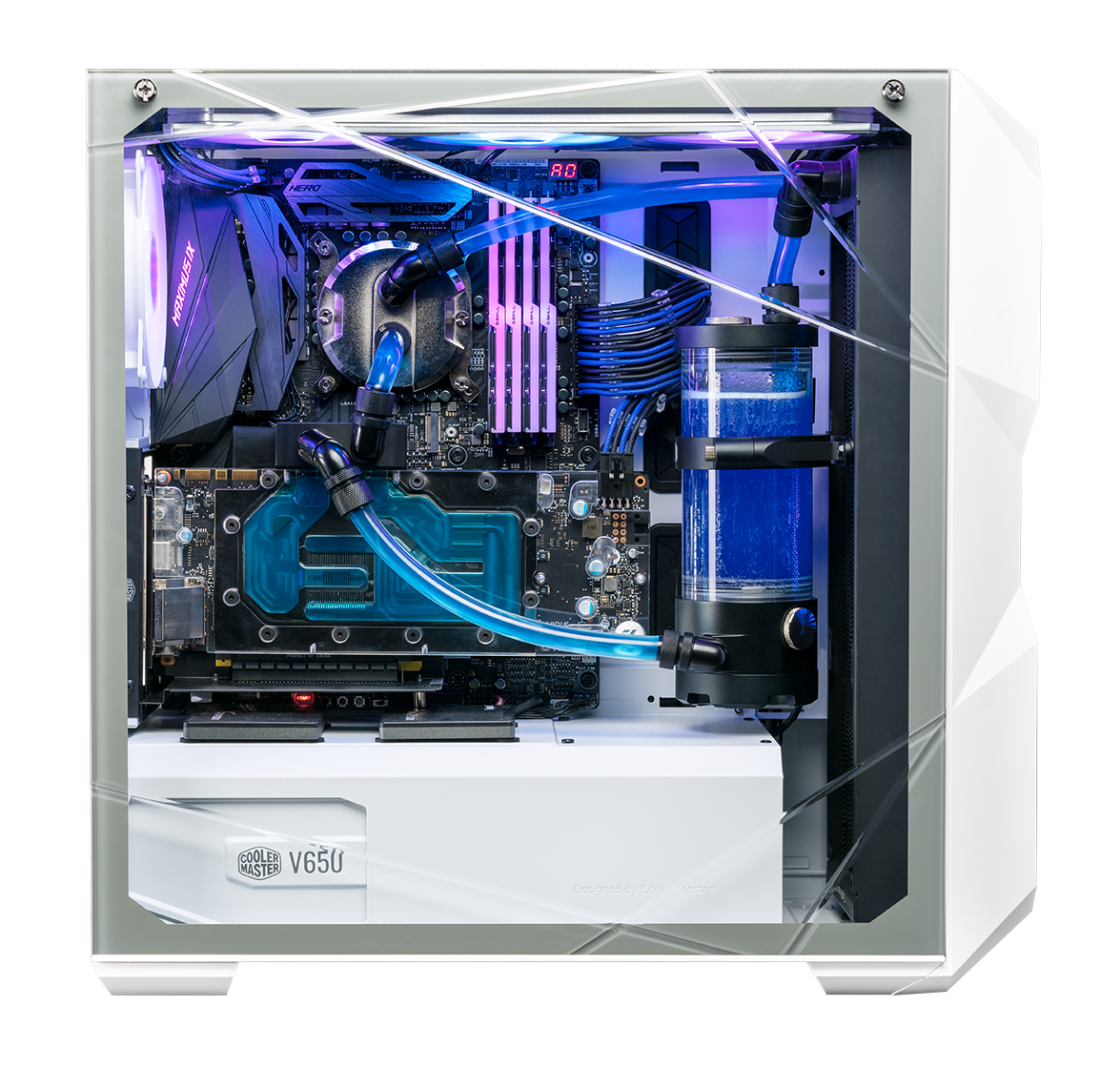

CRYSTALLINE TEMPERED GLASS A crystalline design spans the edges of the tempered glass side panel, precision-engineered for strength as well as aesthetics, elevating how builds and system lighting interact with the design. |
![]() |
![]() |

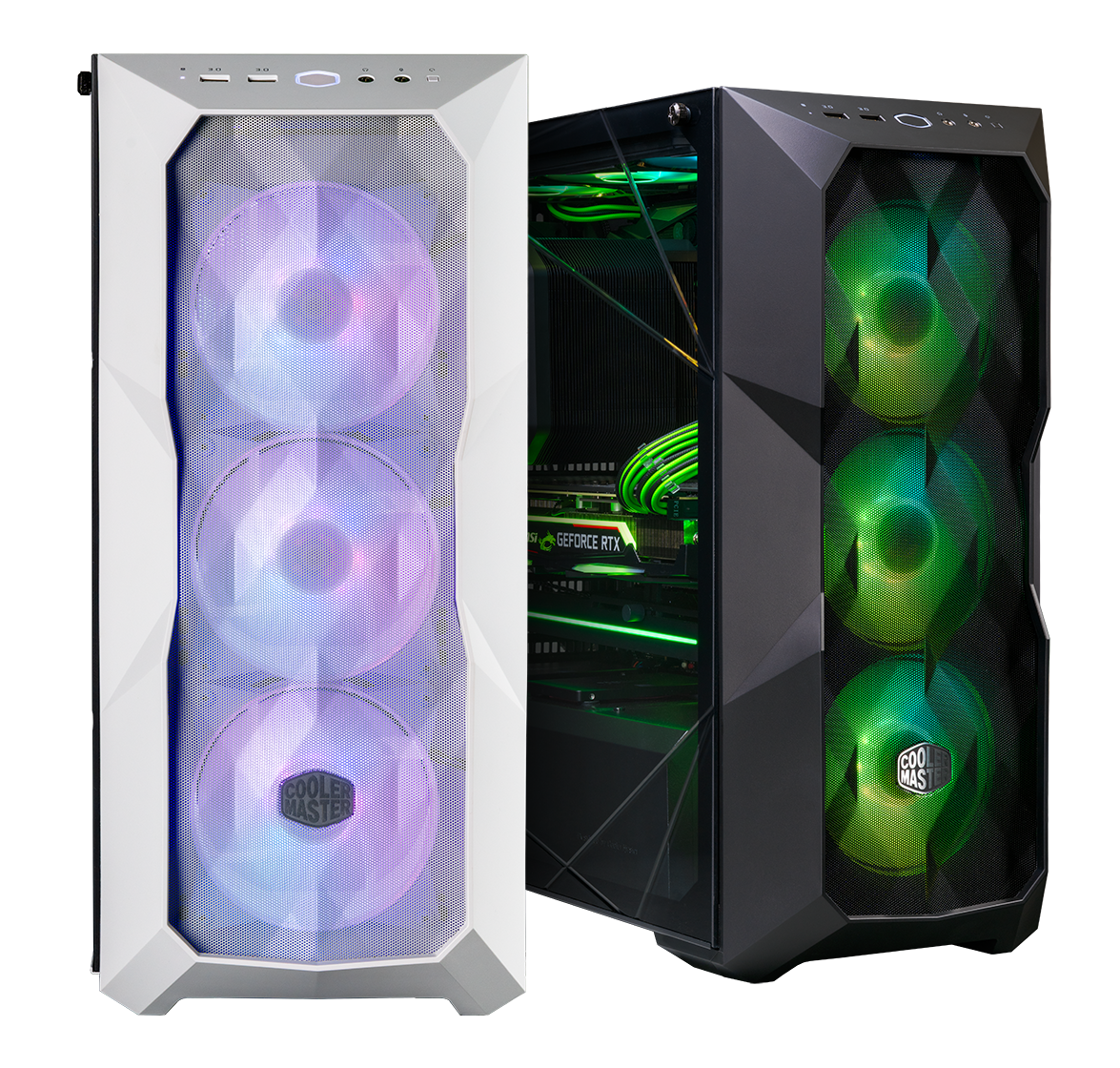

TRIPLE ARGB FANS Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system. Certified compatible with: ASUS, Gigabyte, MSI, and ASRock motherboards. |
|

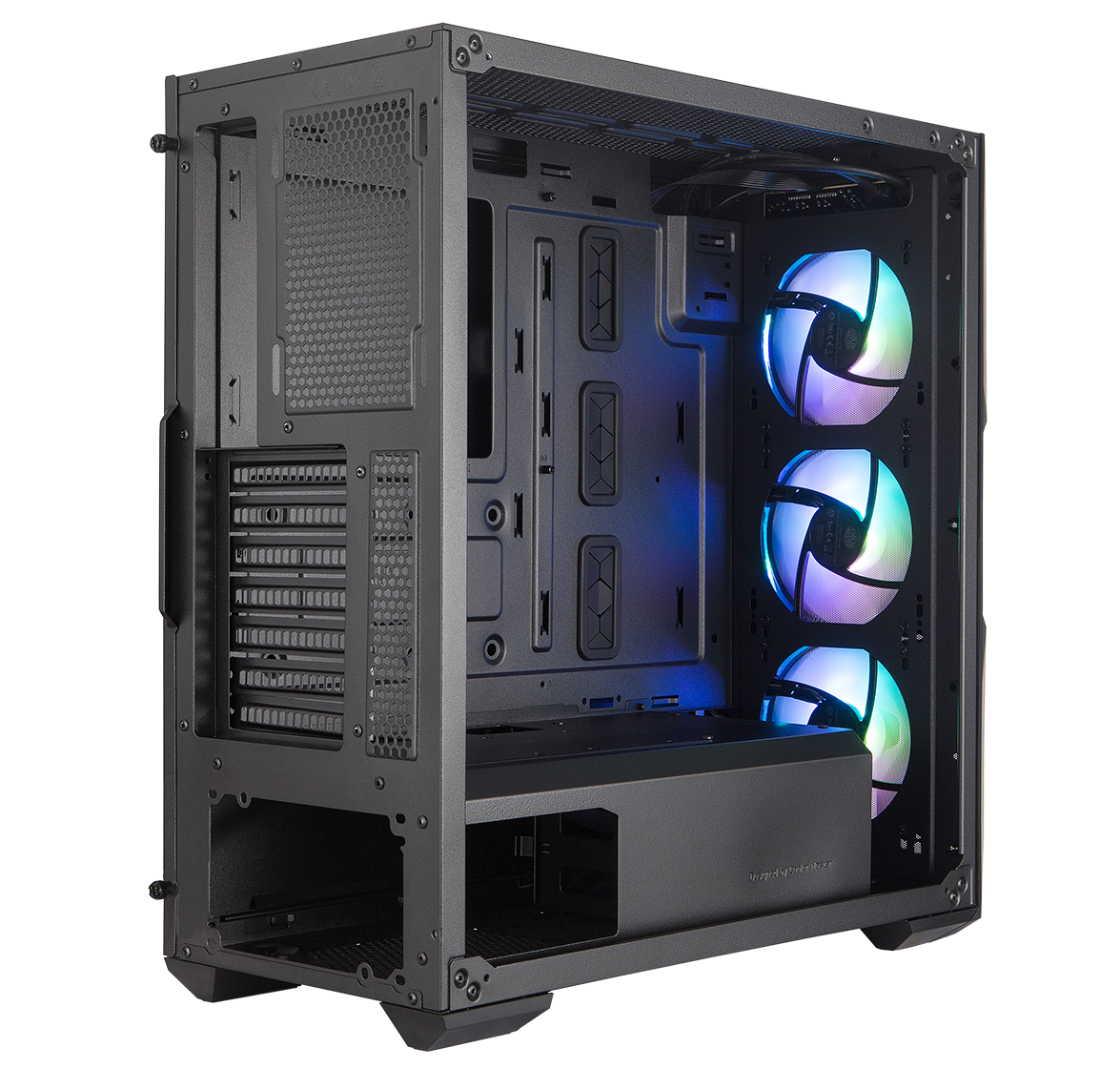

DUAL 360MM RADIATOR SUPPORT For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool. |
![]() |
|

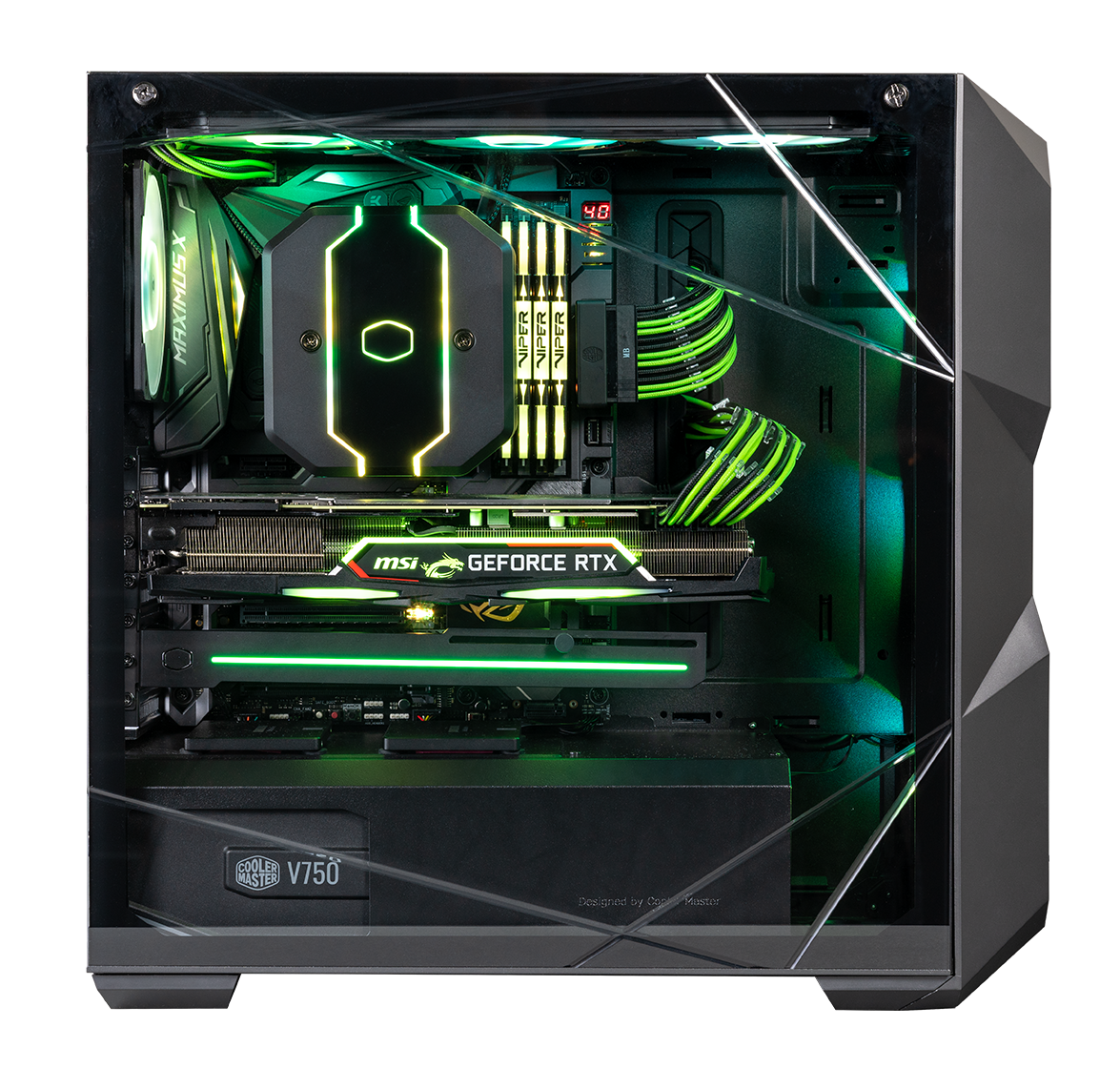

ROOM FOR UPGRADES Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game. |
![]() |
![]() |

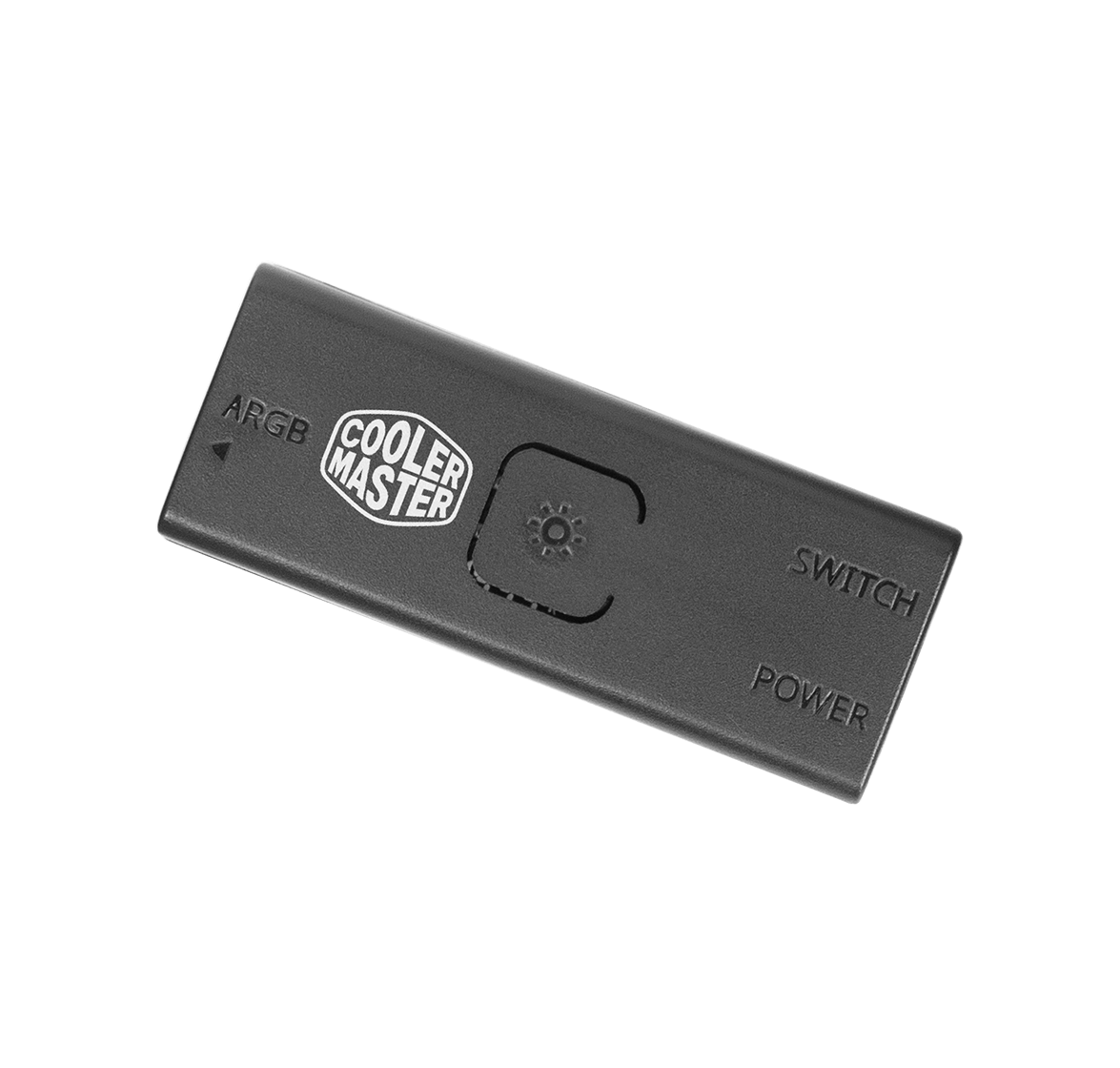

ARGB CONTROLLER The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard. |
SPECIFICATIONS
SPECIFICATIONS DOWNLOADS
SERIES: MasterBox Series
SIZE: Mid Tower
MATERIALS: Steel, Plastic, Tempered Glass, Mesh
DIMENSIONS (L X W X H): 493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions)
WEIGHT: 6.95 kg
MOTHERBOARD SUPPORT: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)
EXPANSION SLOTS: 7
5.25" DRIVE BAYS: N/A
2.5" / 3.5" DRIVE BAYS (COMBO): 2
2.5" DRIVE BAYS
4 (2+2 combo)
I/O PANEL: 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller (only for the S01 versions), 1x ARGB 2-to-3 splitter
PRE-INSTALLED FANS - TOP: N/A
PRE-INSTALLED FANS - FRONT: 3x 120mm ARGB Fans
PRE-INSTALLED FANS - REAR: N/A
FAN SUPPORT - TOP: 3x 120mm, 2x 140mm
FAN SUPPORT - FRONT: 3x 120mm, 2x 140mm
FAN SUPPORT - REAR: 1x 120mm
RADIATOR SUPPORT - TOP: 120mm, 240mm, 360mm, (44mm max motherboard component height)
RADIATOR SUPPORT - FRONT: 120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT - REAR: 120mm
CLEARANCE - CPU COOLER: 165mm/6.49"
CLEARANCE - PSU: 180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
CLEARANCE - GFX: 410mm/16.1"
CABLE ROUTING: 19mm/0.74"
DUST FILTERS: Top, Bottom, Front
POWER SUPPLY SUPPORT: Bottom mount, ATX
