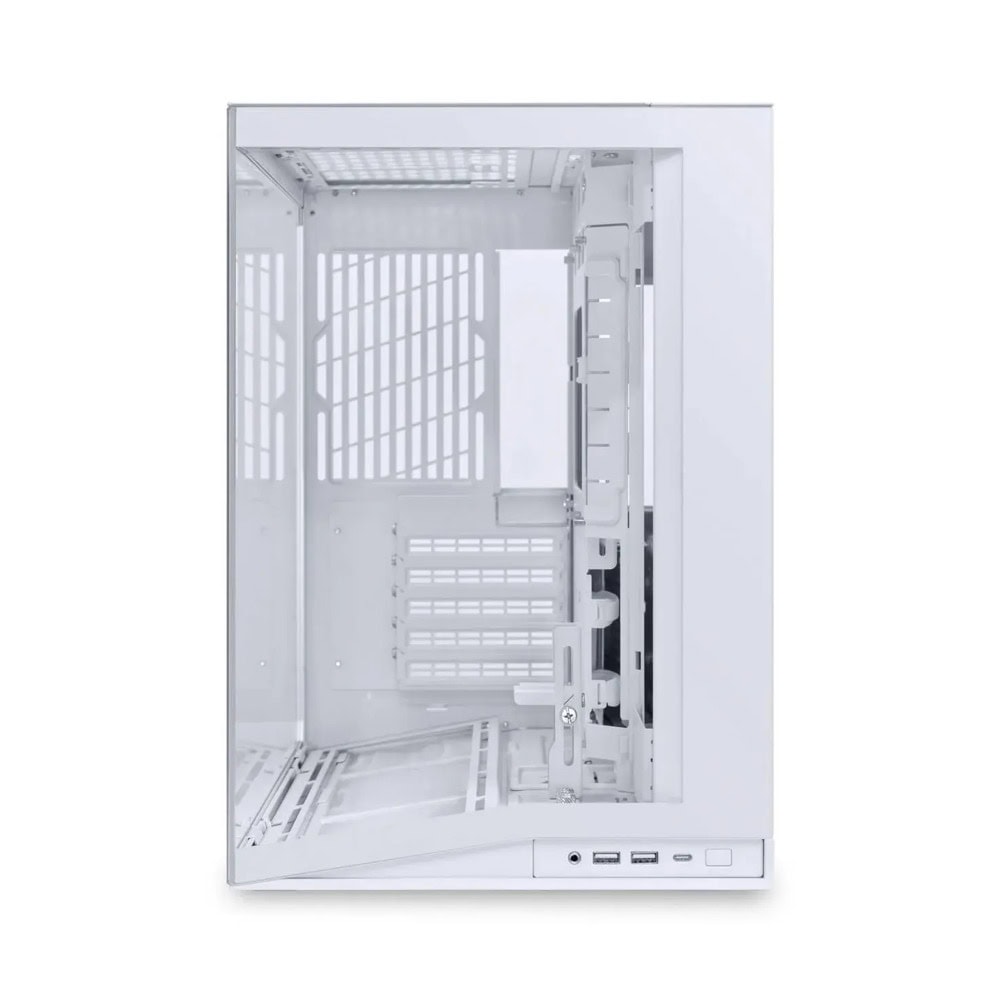

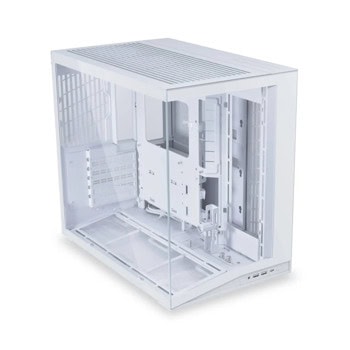

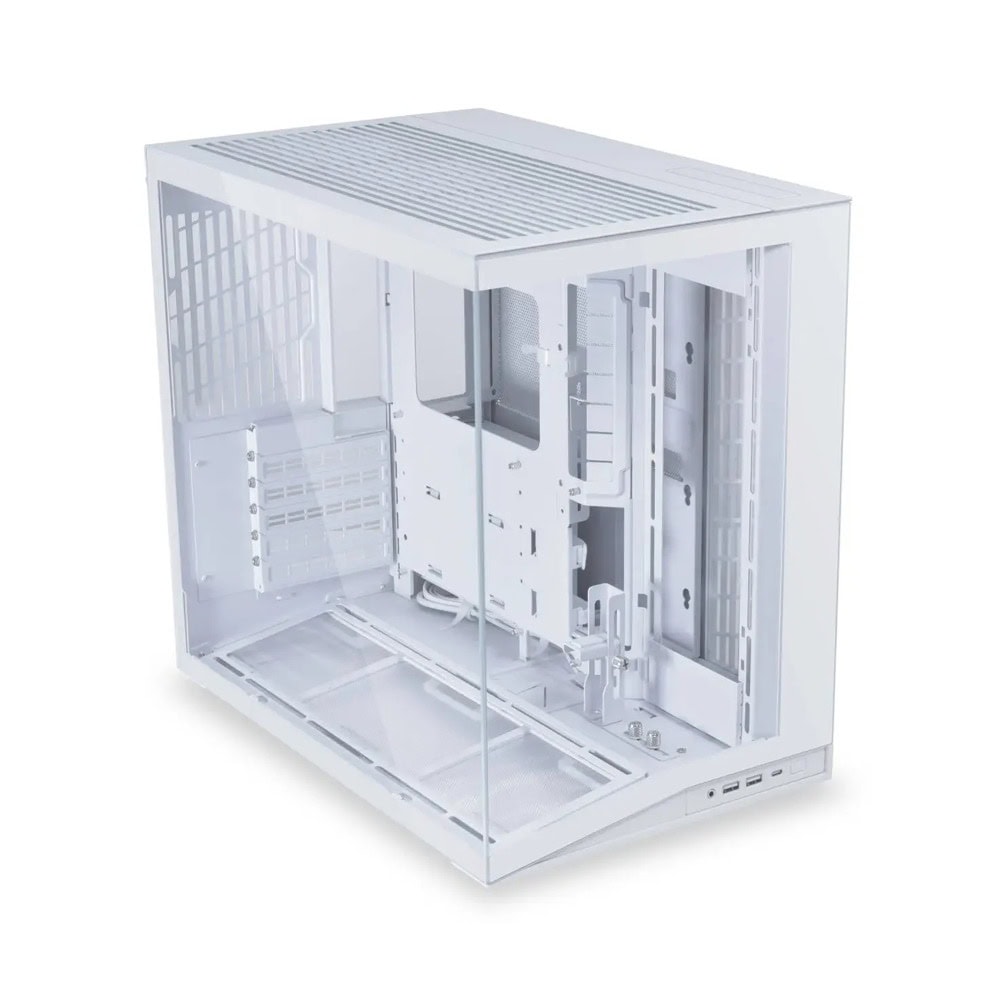

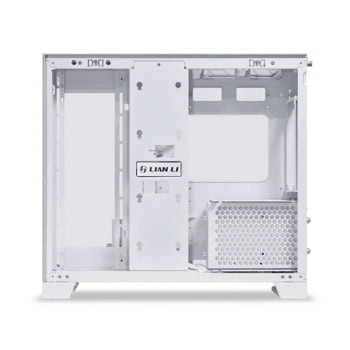

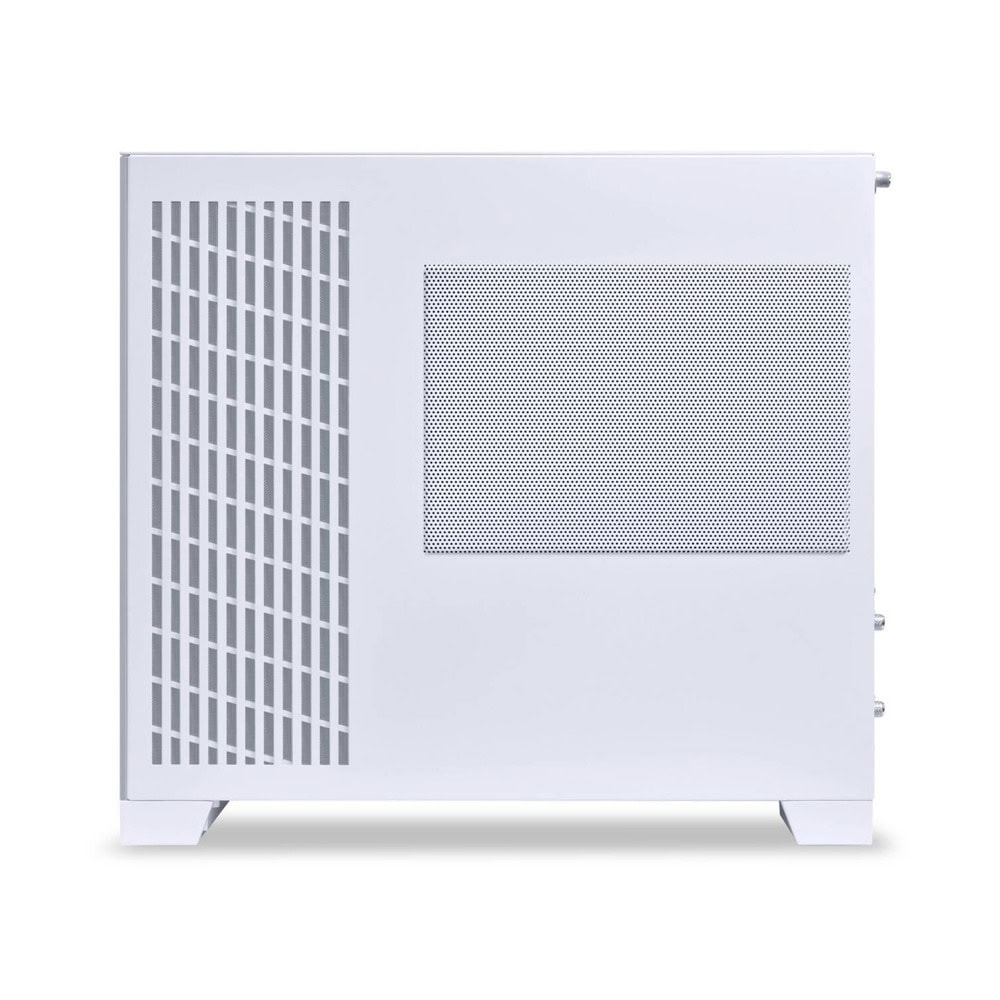

Lian Li O11 Dynamic Mini V2
Precision Resized. Elegantly Efficient
A compact chassis refined for serious performance, offering smart cooling, modular flexibility, and clean aesthetics in one sleek build.

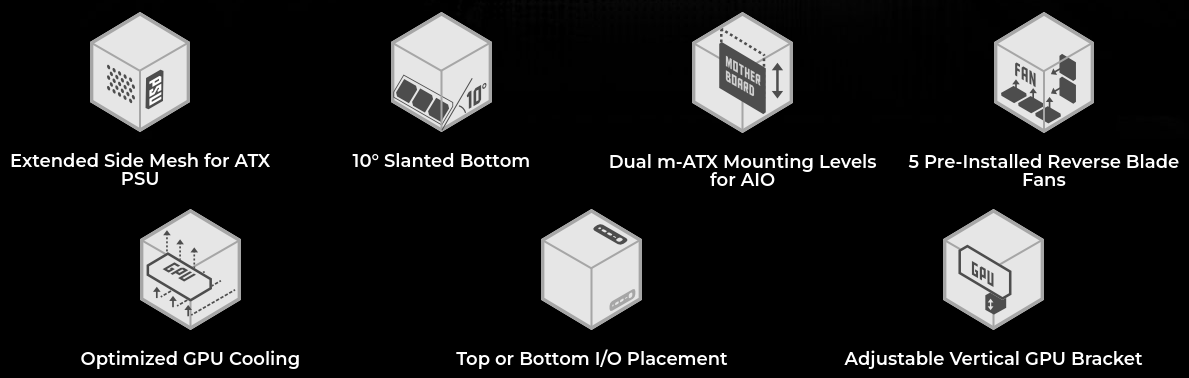

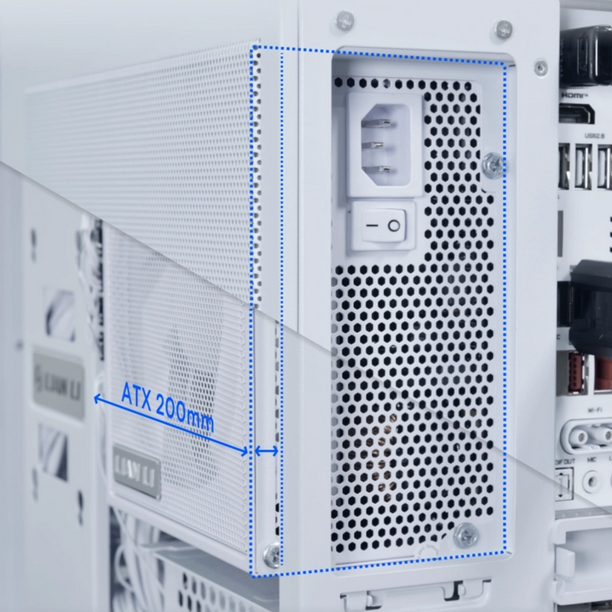

 | Side mesh extension for a larger PSU An extended side mesh design accommodates ATX PSUs up to 200mm without increasing the case width. Note: Ensure the PSU’s power socket is at least 12 mm from the edge for a proper fit. |

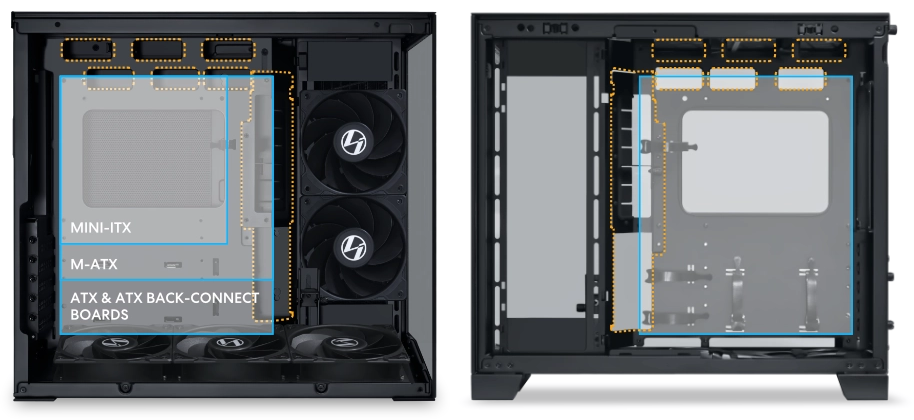

ATX Back-Connect motherboard support
The case offers broad motherboard support, including standard ATX, M-ATX, and Mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards.

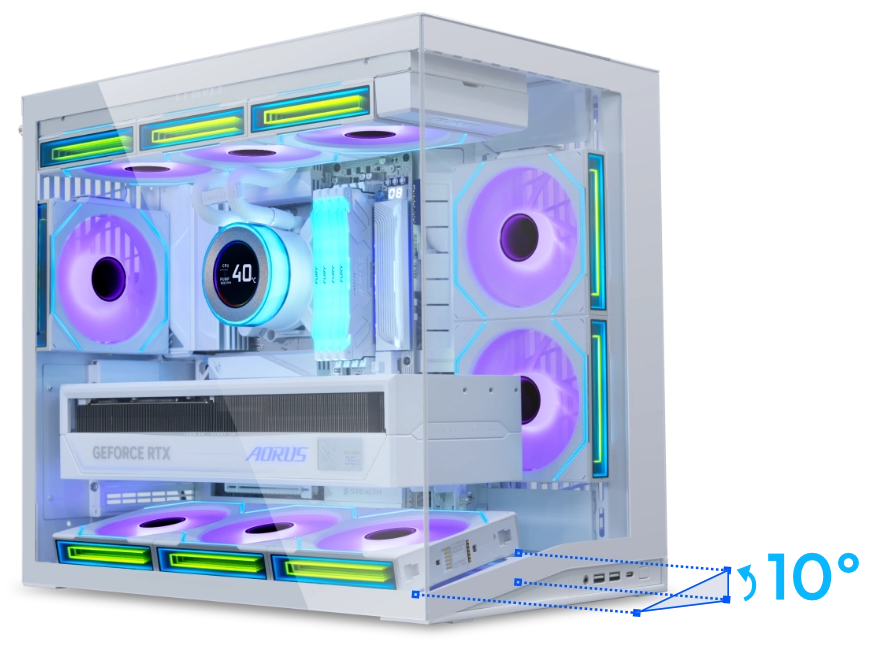

Angled base for direct GPU airflow
A 10° slanted bottom channels cool air directly to the GPU for better cooling performance and a cleaner look.

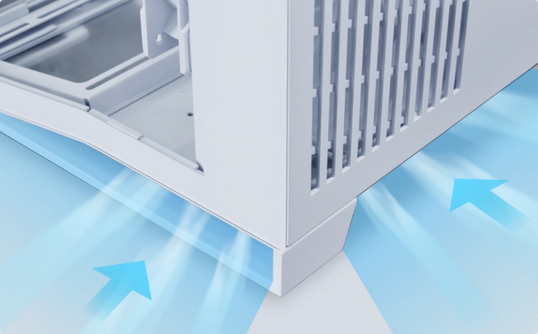

 | Improved airflow and portability with removable bottom I/O and cover With the I/O module relocated to the top, the lower I/O and cover can now be removed to enhance bottom intake airflow. An optimization aimed at improving thermal efficiency and ease of transport. |

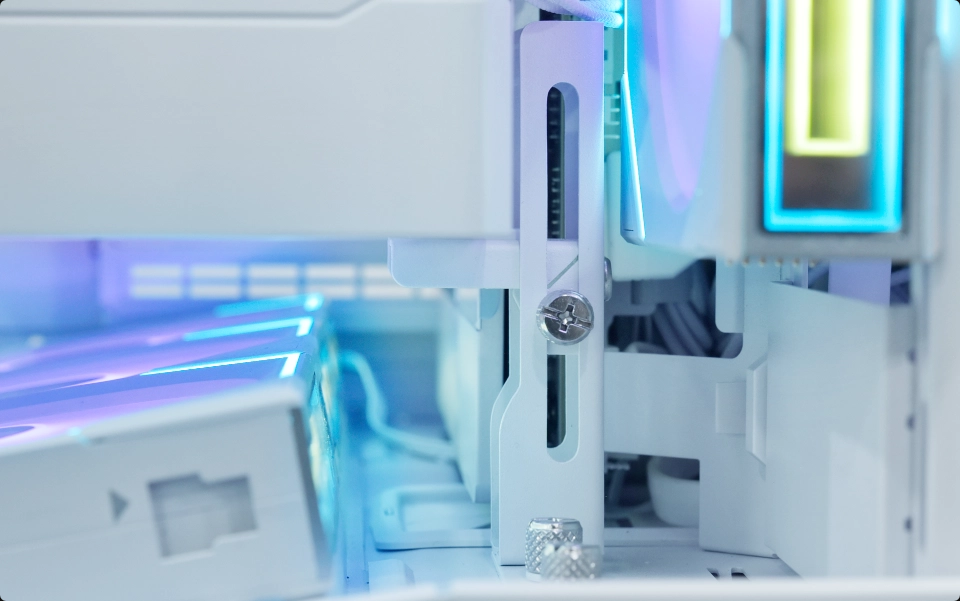

.png) | GPU Anti-sag support Horizontal and Vertical GPU brackets are included out of the box, giving users the freedom to choose their GPU orientation. |
Specifications
DIMENSIONS: 423.6mm x 273.3mm x 391.95mm (DxWxH)
MATERIALS: 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass
MOTHERBOARD SUPPORT: Back-Connect ATX/ATX / Micro-ATX / Mini-ITX
EXPANSION SLOT: 5
STORAGE: Drive Cage: 2.5” SSD x 2 or 3.5” HDD x 2 ; Behind MB Tray: 2.5″ SSD x 2
GPU LENGTH CLEARANCE: 400 mm
CPU COOLER HEIGHT CLEARANCE: 160 mm
PSU SUPPORT: ATX (Under 200mm)
RADIATOR SUPPORT: Top - 240mm / 280mm / 360mm (Note: 280mm radiator requires mounting motherboard one slot lower) ; Side - 240mm
FAN SUPPORT: Top - 120mm x 3 or 140mm x 2 ; Side - 120mm x 2 ; Bottom - 120mm x 3 ; Rear - 120mm x 1
INCLUDED FANS: N/A
DUST FILTER: Bottom x 1
I/O PORTS: USB 3.0 x 2 ; USB 3.2 Type C x 1 ; Audio x 1 ; Power Button x 1
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Lian Li
Виж всички Компютърни кутии в категорията
| Захранване: | Не |
|---|---|
| Прозорец: | Да |
| Цвят: | Бял |
| E-ATX: | Не |
| ATX: | Да |
| Micro-ATX: | Да |
| Mini-ITX: | Да |
