Antec DP505W
Mid-Tower E-ATX Gaming Case Outstanding Compatible Performance

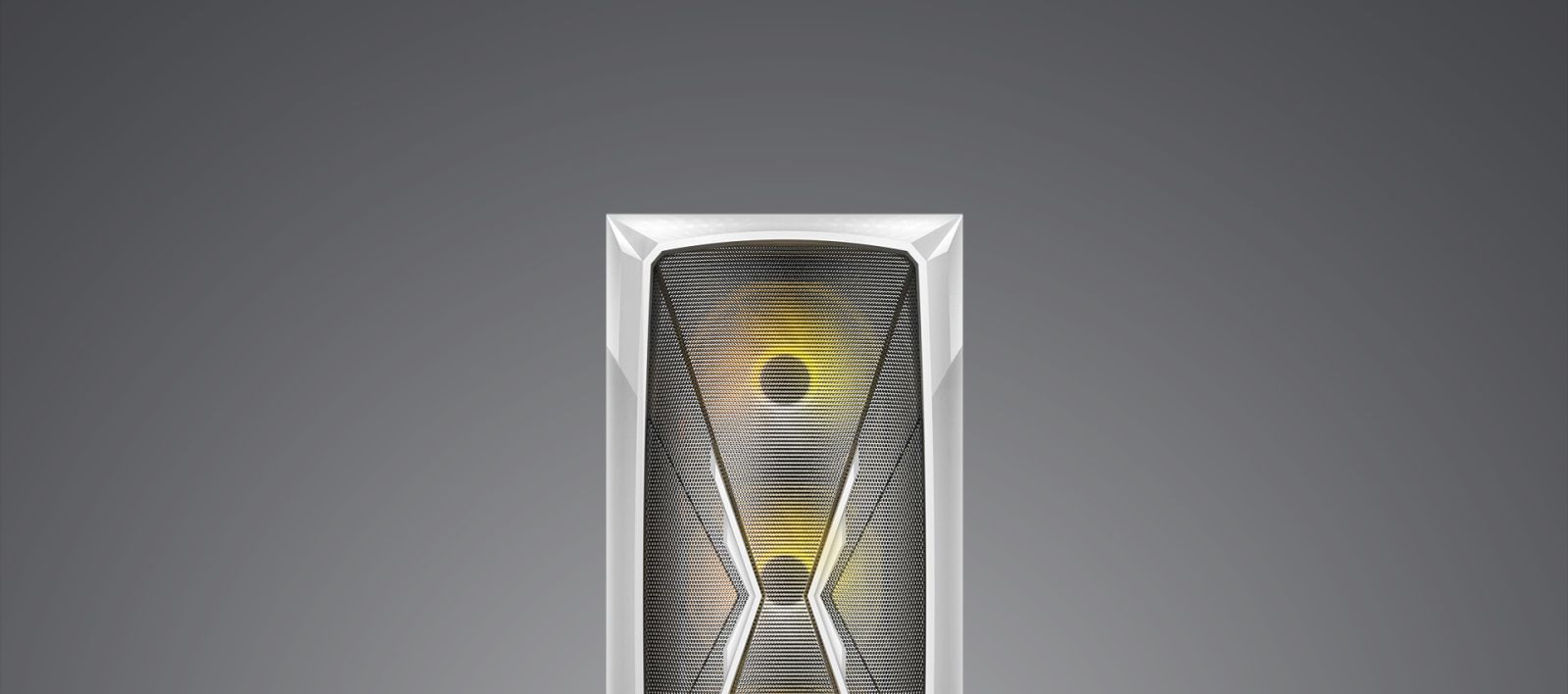

Three addressable RGB fans Included
Pre-installed at the front for efficient airflow and customizable RGB lighting.
BUILT-IN DEVICES

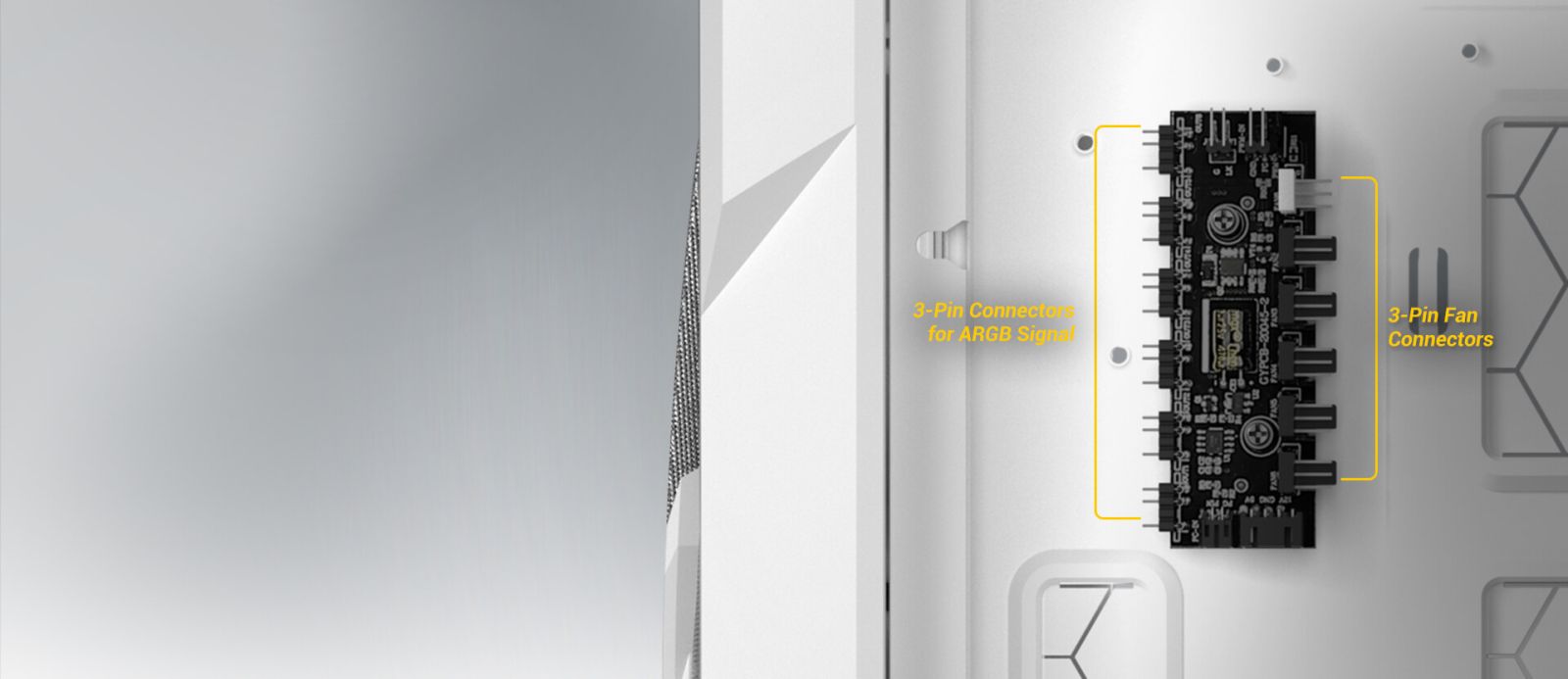

ARGB & PWM
control Hub
The control hub supports up to 6 fans and 6 LED device.
Connect it to your motherboard for 16.8 million possible colors.

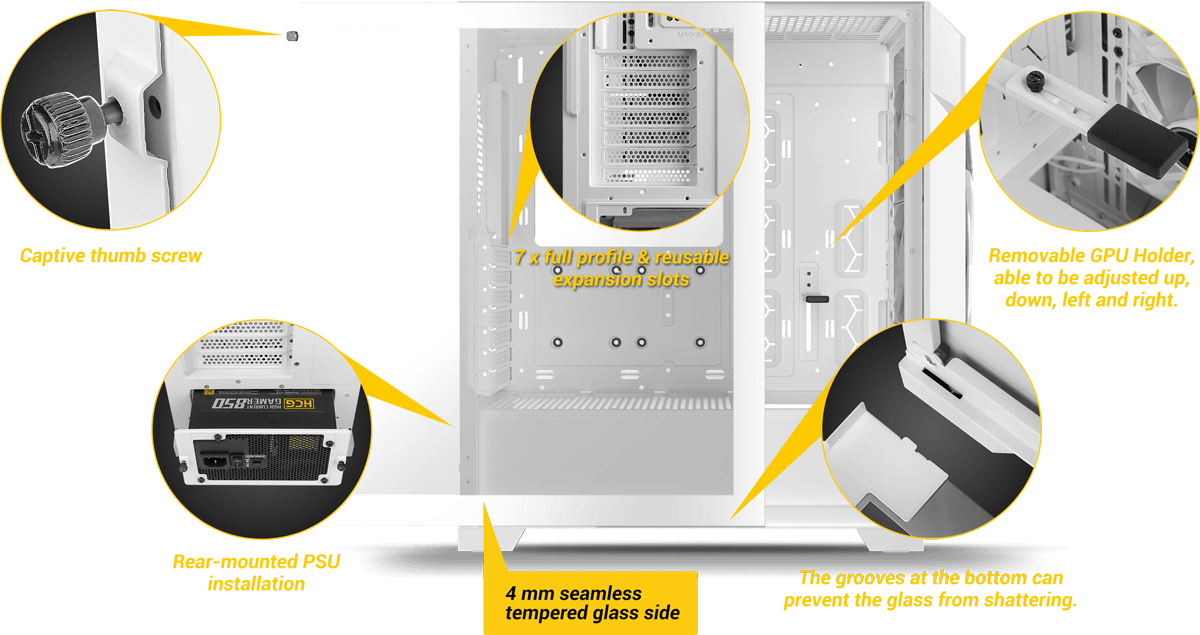

THOUGHTFUL DESIGN
Detailed Features
SPECIFICATIONS
| Case Specification | Details |
|---|---|
| Dimensions | 481 x 220 x 490mm (DWH) |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic |
| Mainboard Support | E-ATX, ATX, Micro-ATX, ITX |
| Front Access & Controls | Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 |
| Side Panel | 4mm Tempered Glass |
Drive Bays & Expansion Slots
| Category | Details |
|---|---|
| Expansion Slots | 7 |
| 3.5" / 2.5" Bays | 2 / 2 |
| 2.5" Bays | 2 |
Fan Support
| Location | Supported Fans |
|---|---|
| Front | 120mm x 3 / 140mm x 3 / 185mm x 2 |
| Top | 120mm x 3 / 140mm x 2 |
| Power Supply Shroud | 120mm x 2 |
| Rear | 120mm x 1 |
| Included Fans | 120mm ARGB fans in front x 3 |
Radiator Support
| Location | Supported Radiators |
|---|---|
| Front | 120 / 140 / 240 / 280 / 360mm |
| Top | 120 / 140 / 240 / 280 / 360mm |
| Rear | 120mm |
Clearance
| Component | Maximum Length |
|---|---|
| Max GPU Length | ≤ 375mm |
| Max CPU Cooler Height | ≤ 170mm |
| Max PSU Length | ≤ 205mm (with HDD) / ≤ 410mm (without HDD) |
| Cable Routing Space | ≤ 23mm |
Accessories
| Accessory | Included |
|---|---|
| Fan & LED Control Hub | Yes |
| GPU Holder | Yes |
| Cable Routing Grommets | Yes, 8 pcs |
| Fixed Cable Ties | Yes, 3 pcs |
| Captive Thumb Screws | Yes (Side panels, GPU Holder, PSU Brace) |
Miscellaneous
| Feature | Details |
|---|---|
| Dust Filter | Top / Bottom |
| Net Weight | 8.1 kgs |
| Gross Weight | 9.1 kgs |
