Кутия Cooler Master MasterFrame 360 Panorama, ATX/microATX/Mini-ITX, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-A, с прозорец, черна, без захранване

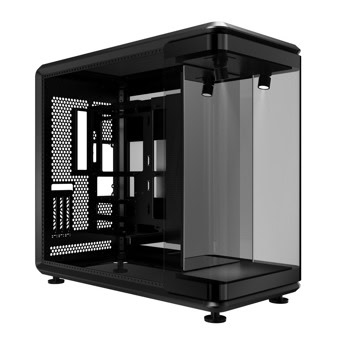

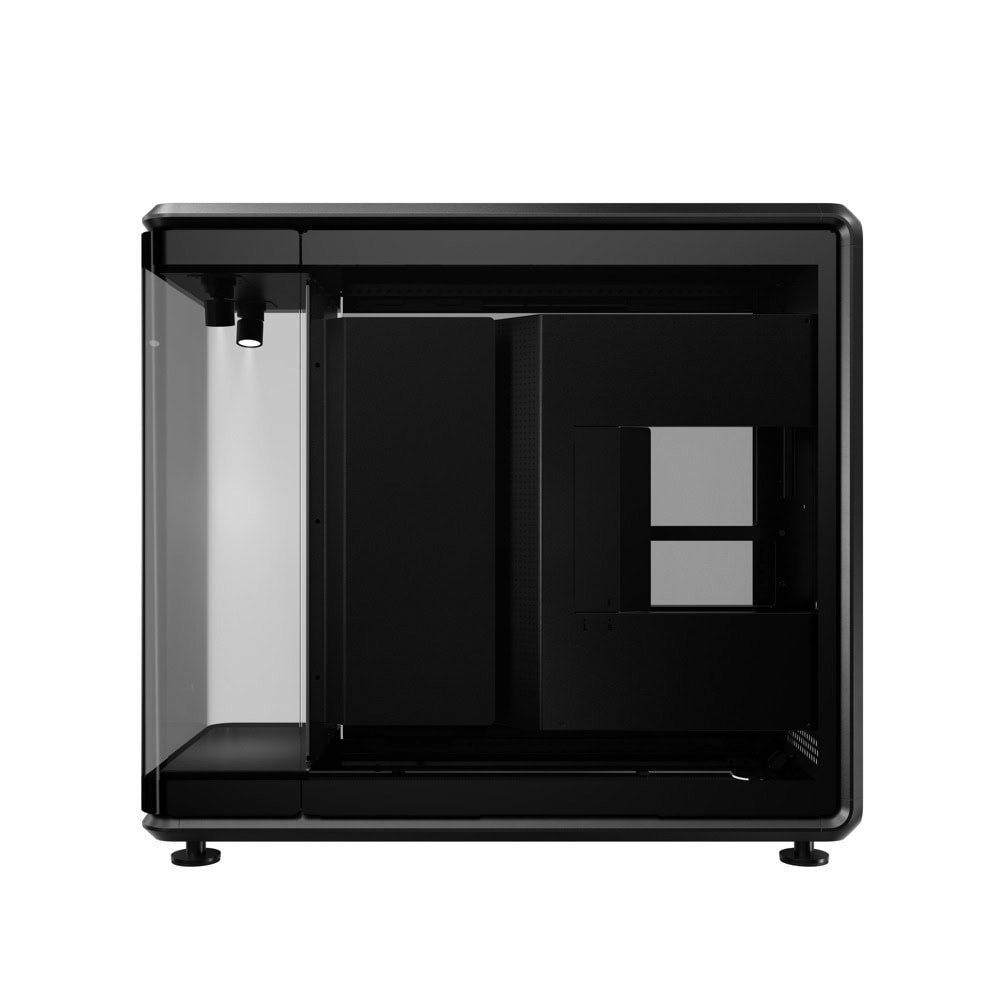

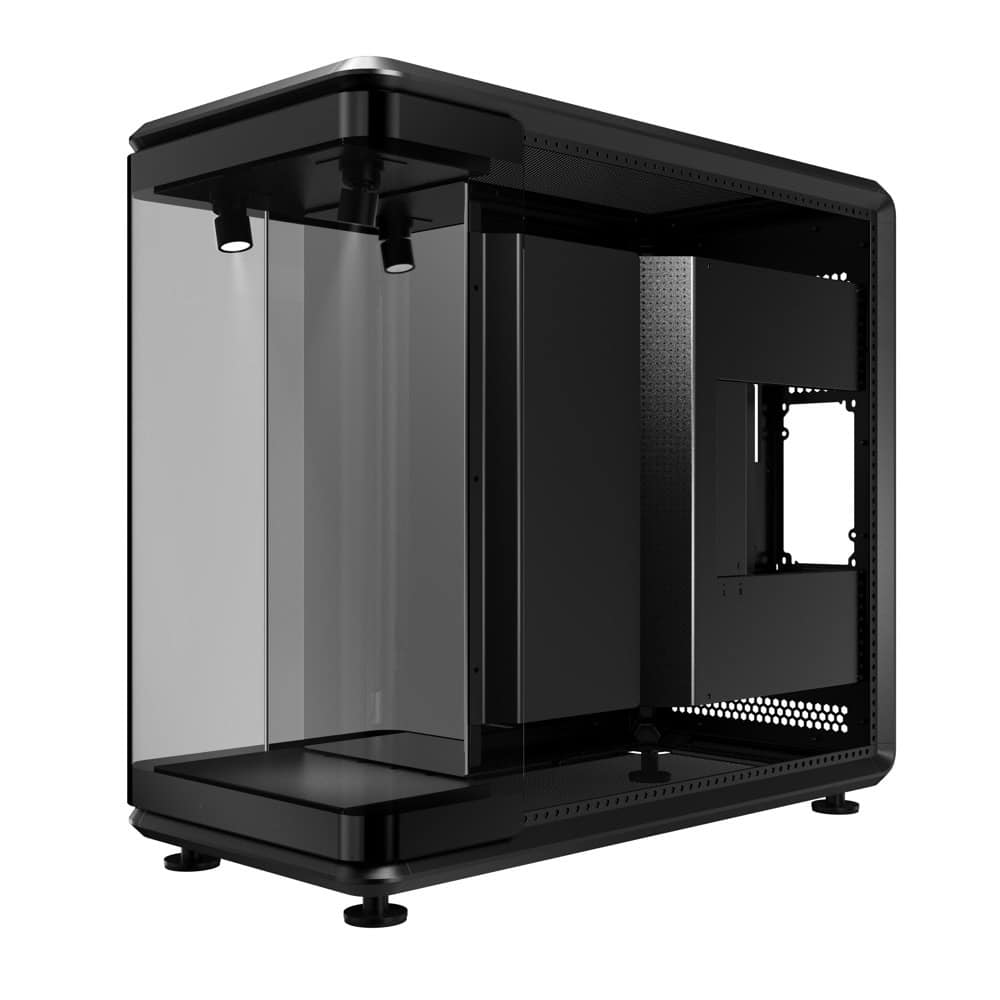

Cooler Master MasterFrame 360 Panorama

Designed to Showcase. Built to Inspire. Designed to spotlight your hardware, collectibles, and creativity - MasterFrame 360 Panorama provides a platform to transform your gaming rig into a personal showcase.

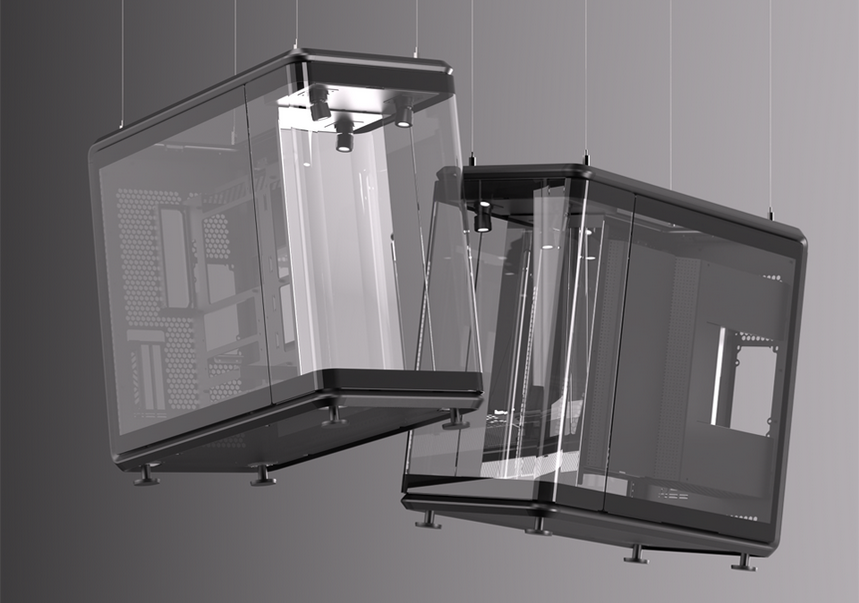

Crystal Clear Design. Show every detail that defines your build, from powerful hardware to your unique style, all in plain view.

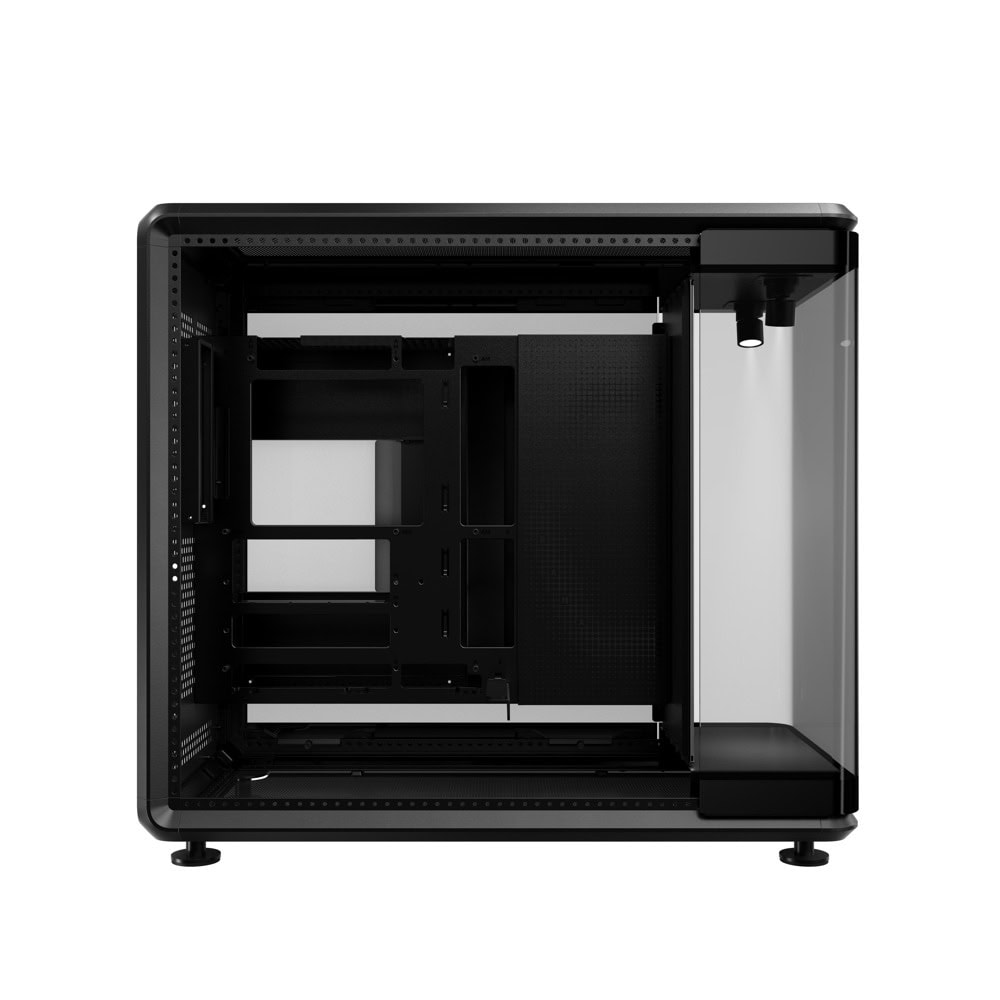

Dual-Chamber Layout Keeps hardware and cables separated for a cleaner build.

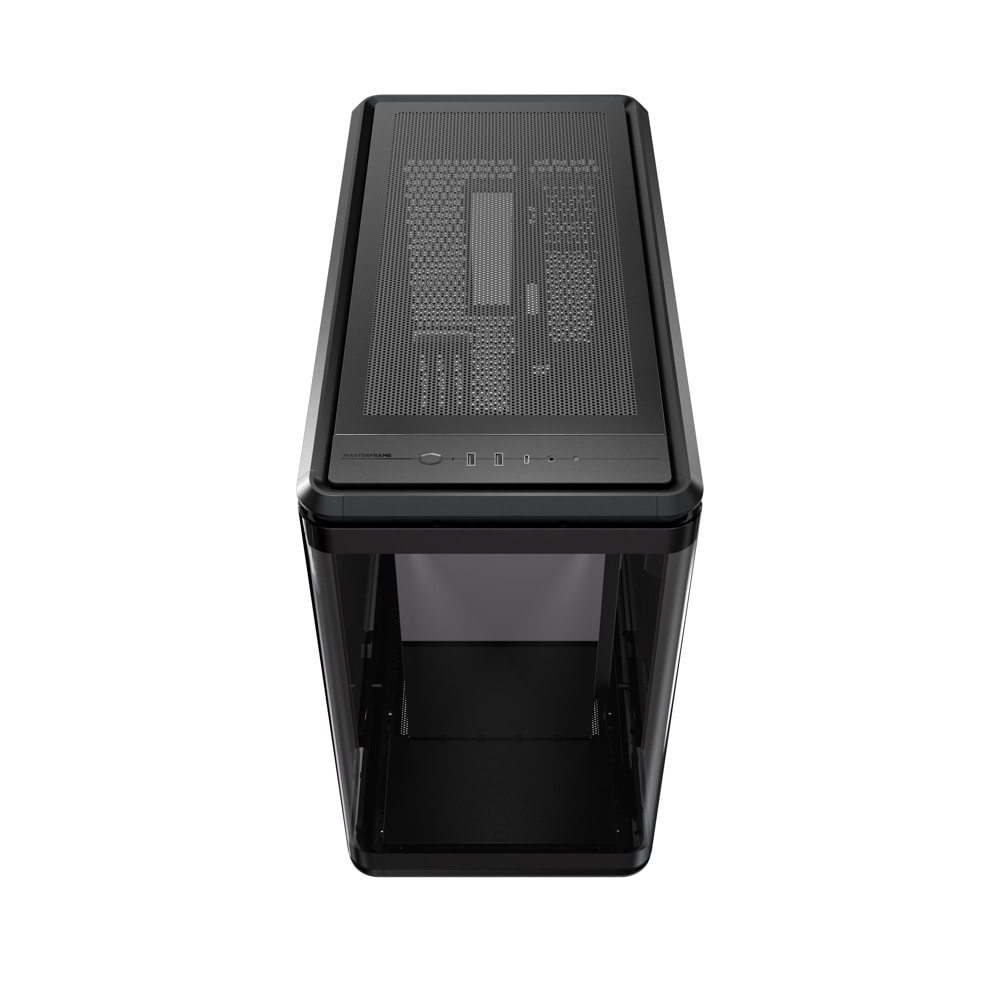

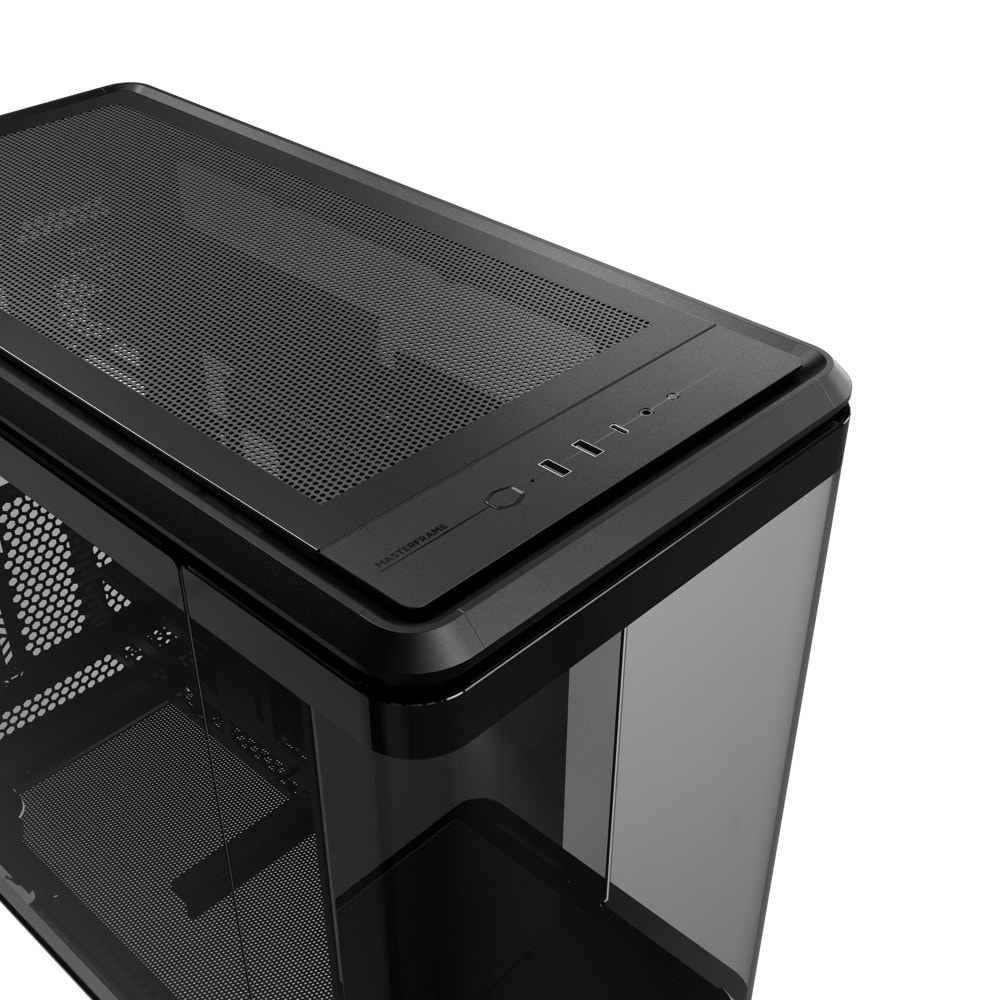

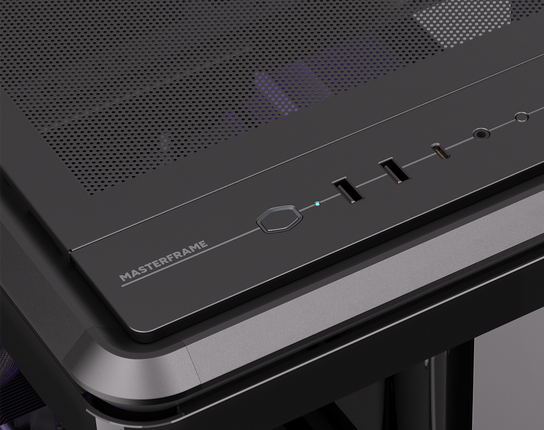

Simplified I/O Panel Essential ports with a minimal, streamlined design for easy access.

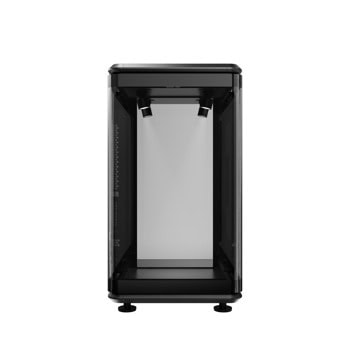

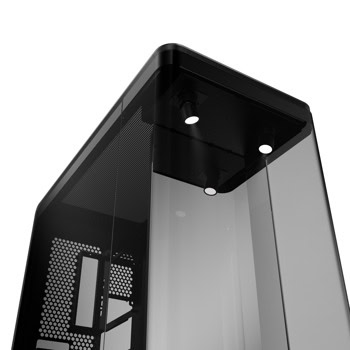

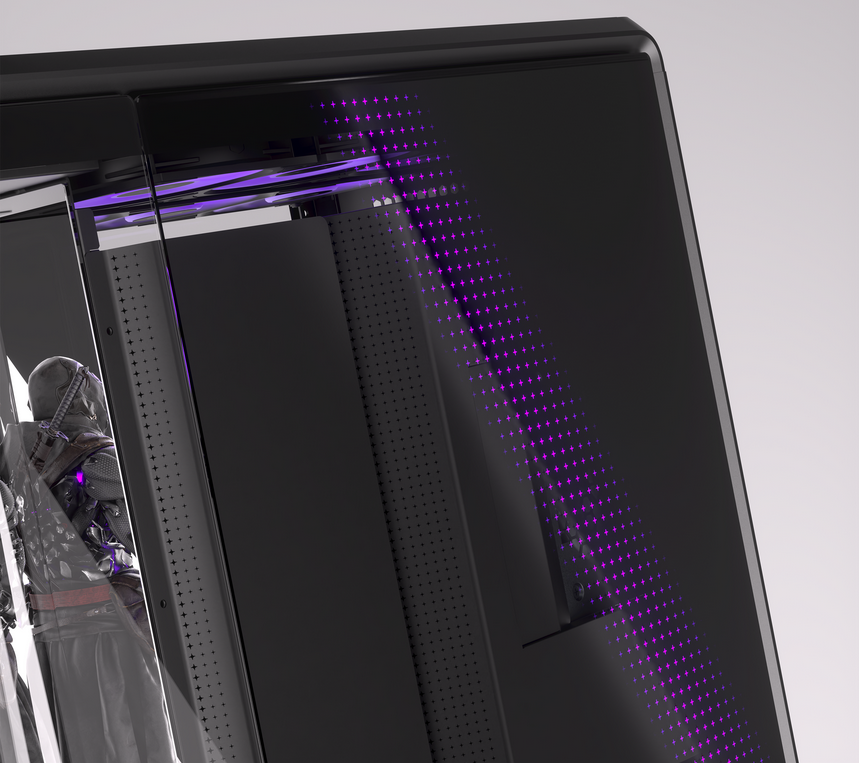

Dual ARGB Spotlights Mounted on the front display stage to illuminate your collectibles with vivid ARGB lighting.

Specifications

Materials - Exterior: SGCC

Materials - Side panel (Right / Left): TG

Dimensions (L x W x H): 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)

Volume: 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)

Motherboard Support: Mini-ITX, Micro-ATX, ATX, BTF (ATX)

Power Supply Support: ATX

PCI Expansion Slots: 3.5

Drive bay support - 3.5" Drive Bays: 0

Drive bay support - 2.5" / 3.5" Drive Bays (or SSD): 1x HDD or 2x SSD

Preinstalled Drive bay - 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity): 1x HDD or 2x SSD

I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type-A 5G​, 1x USB 3.2 Gen 2x2 Type-C 20G

I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

Fan Support - Top: 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm

Fan Support - Bottom: 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm

Radiator Support - Top: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Radiator Support - Bottom: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)​

Dust Filters: Mesh Only (Removable Filters)

Other electronic components: 1x PCI-e 5.0 Riser / 2x ARGB spotlight

Maximum Dimensions for Front Collectibles Display (H x W x D): 328 x 290 x 110 mm

DIY tank & Pump support: Yes (with right side tank & pump bracket)

Toolbox: Yes

Clearances - CPU Cooler: 145 mm

Clearances - Power Supply: 210 mm

Clearances - Graphics Card: 430 mm

Cable Routing - Behind Motherboard Tray: 110 mm

Size: Mid Tower
