Name: Кутия be quiet! Pure Base 501, ATX/microATX/Mini-ITX, 2x USB 3.2, 1x USB 3.2 Gen 2 Type-C, 2x 140mm вентилатора, черна, без захранване
Brand: be quiet!
SKU: CASEPBEQUIETBG073
Price: 88.52 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

be quiet! Pure Base 501

Specifications

General data

Model	Pure Base 501
Color option	Black
Motherboard compatibility	ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm)	450 x 231 x 449
Case size incl. stands (L x W x H), (mm)	450 x 231 x 463
Volume (l)	24.4
PSU form factor	ATX PS/2
Net weight (kg)	6.7
Expansion slots	7

Pre-installed fans

Fan at top	-
Fan at front	1x Pure Wings 3 140mm PWM
Fan at side	-
Fan at rear	1x Pure Wings 3 140mm PWM
Fan at bottom	-
Dimensions (L x W x H), (mm)	Front: 140 x 25 x 140 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm)	1200
Airflow at 100% PWM / 12V (CFM / m3/h)	57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O)	0.96
Noise level at 100% PWM / 12V (dB(A))	21.9
Voltage range (V DC)	5 - 13.2
Input power (W)	3.6
Input current (A)	0.06
Connector	4-pin PWM
Lifespan (h / 25°C)	80,000
Fan controller	-

Maximum fan installation

Maximum fans	6
Top (mm)	2x 140 / 2x 120
Front (mm)	2x 140 / 3x 120
Side (mm)	-
Rear (mm)	1x 140 / 1x 120
Bottom (mm)	-
PSU shroud	-

Optional radiator installation

Top (mm)	120 / 240
Front (mm)	120 / 140 / 240 / 280 / 360
Side (mm)	-
Rear (mm)	120 / 140
Bottom (mm)	-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)	180
Maximum dimensions incl. bottom fan (mm)	180

Graphics card

HDD cage (in height of graphics card) installed (mm)	368
HDD cage (in height of graphics card) removed (mm)	368
Maximum PCIe slots with vertical graphics card (pcs.)	5

Drive bay capacity

5.25 bays (pcs.)	-
3.5 slots (scope of delivery)	2
3.5 slots (max.)	2
2.5 slots (scope of delivery)	5
2.5 slots (max.)	5

Cooling

Max.construction height of CPU cooler unit (mm)	178
Airflow channel	-

Lighting

LED illumination	-
LEDs (pcs.)	-
LED type	-
LEDs synchronizable with controller/motherboard	-

I/O Panel

USB 3.2 Gen. 2 Type C	1
USB 3.2 Type A	2
USB 2.0	-
HD Audio I/O	Mic + Audio
Qi charger / Quick Charging Option (W)	-

Insulation and damping

Top panel insulation mats	-
Front panel insulation mats	-
Side panel insulation mats	Yes
Anti-vibration decoupled HDD	Yes
Anti-vibration decoupled fan	Yes
Anti-vibration decoupled PSU	Yes
Anti-vibration decoupled motherboard-tray	Yes

Removeable dust filters

Top	1
Front	1
Side	-
Bottom	1

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.

Виж още Компютърни кутии be quiet!
Виж всички Компютърни кутии в категорията

Технически характеристики

Захранване:	Не
Прозорец:	Не
Цвят:	Черен
E-ATX:	Не
ATX:	Да
Micro-ATX:	Да
Mini-ITX:	Да

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

Вземи на изплащане

Какво пазаруват другите
Най-продавани продукти
Промоционални продукти

Свързани продукти и тагове:

Изгодни Компютърни кутии цени от 70лв. до 140 лв. (270)

Виж повече

	REDUCED TO THE MAX Classic appearance Without any distractions, Pure Base 501 is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.

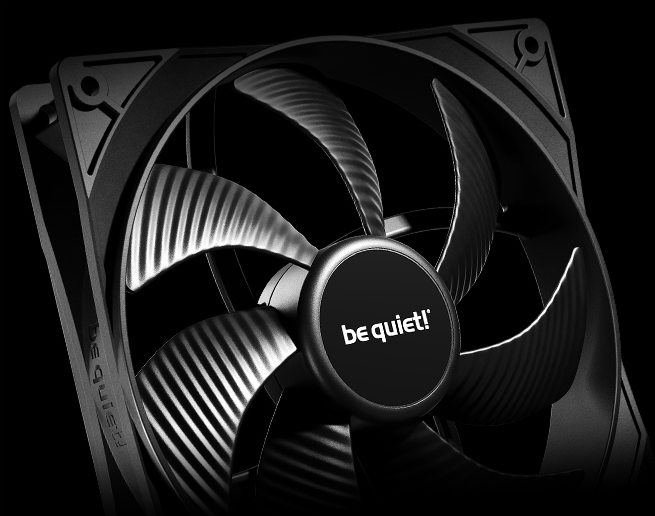

PERFECT CASE FAN Fan blades optimized for high airflow With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.

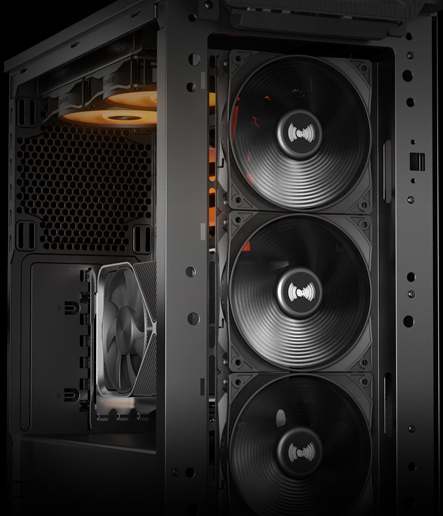

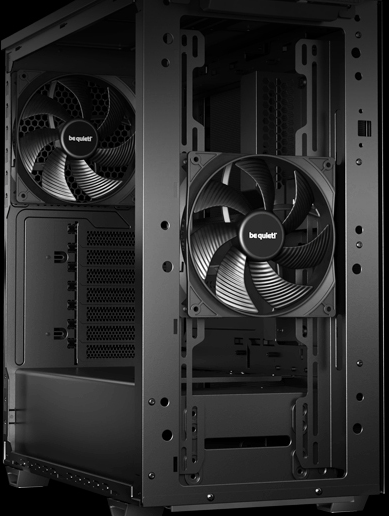

	MORE THAN MEETS THE EYE Generous space for high-end hardware Despite its compact dimensions, Pure Base 501 offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.

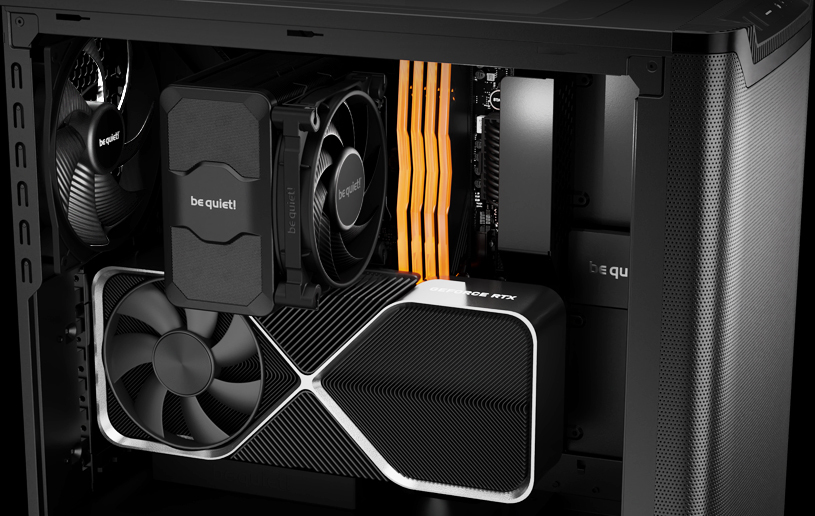

WAY UP! With rotatable PCIe slots Why not try something else with your GPU? The PCIe slots of the Pure Base 501 can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.

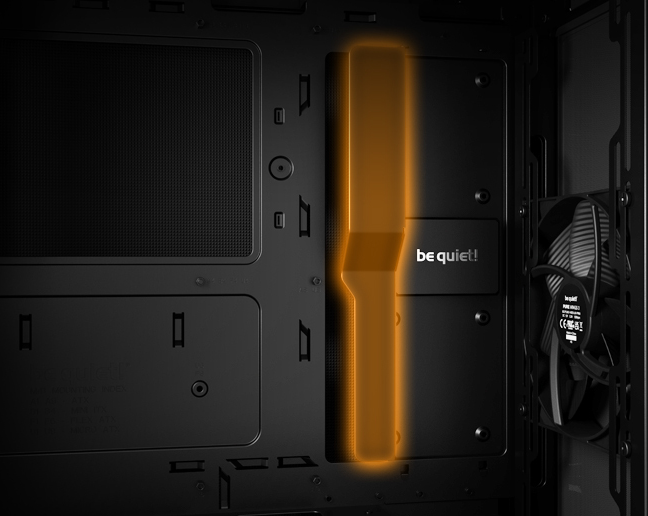

	INVENTORY MANAGEMENT With smart cable routing options As a compact PC case, Pure Base 501 optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.

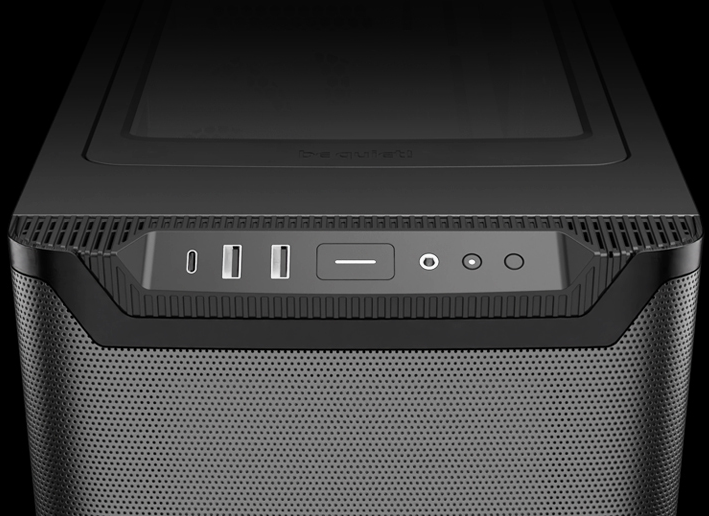

CONNECT WITH ME State-of-the-art technology for your system A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
