Кутия Cooler Master MasterFrame 360 Mirror Stage, ATX / microATX / Mini-ITX, 2x USB 3.2 Gen 1, 1x USB 4.0, с огледало, черна, без захранване

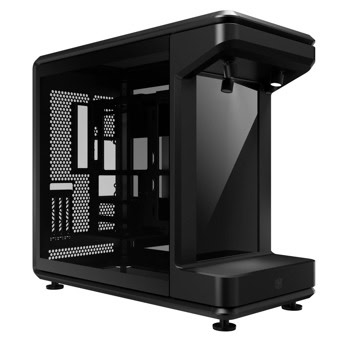

Cooler Master MasterFrame 360 Mirror Stage

Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.​

The PC is no longer just a machine — it’s a statement.​

SHOWCASE WITHOUT COMPROMISE

Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.​

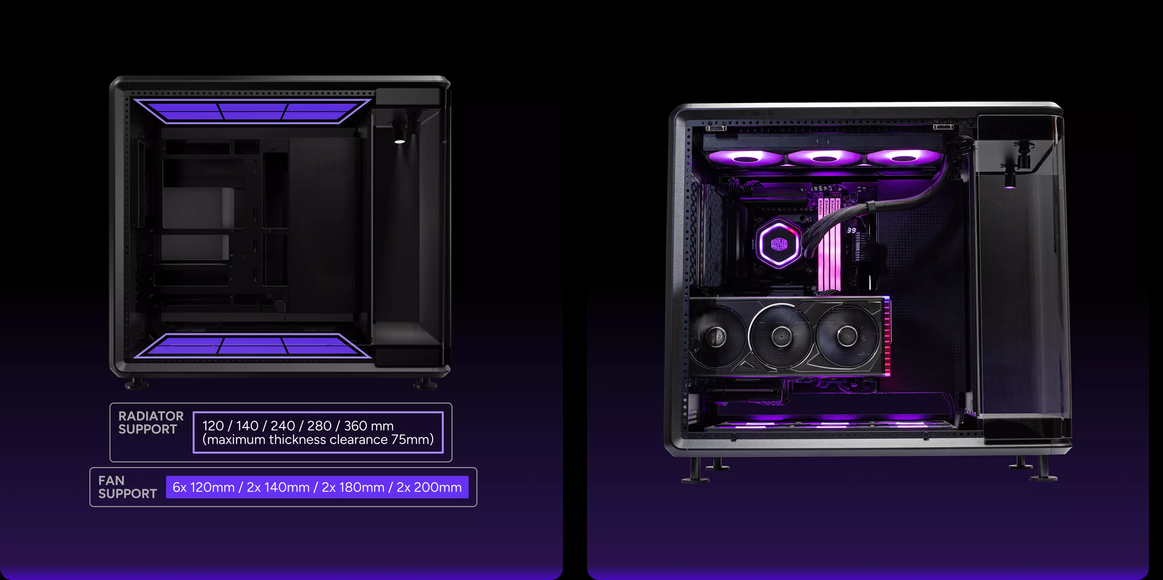

Massive Cooling Compatibility

Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.

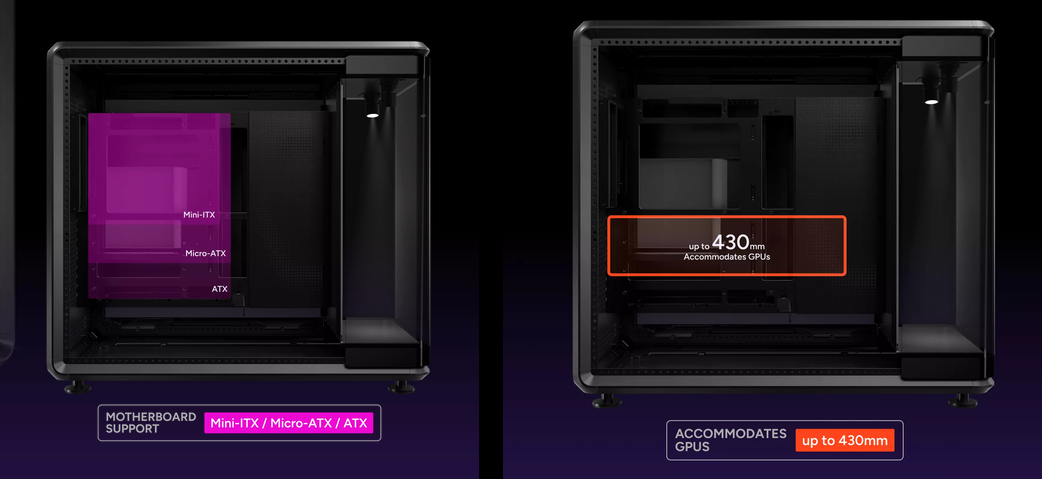

Wide Component Compatibility ​

Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise.​ Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.​

Features 110 mm of cable routing clearance for a clean and clutter-free showcase.​

Materials - Side panel (Right / Left) TG / TG​

Dimensions (L x W x H) 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)

Volume 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)

Motherboard Support Mini-ITX, Micro-ATX, ATX, BTF (ATX)

Power Supply Support ATX

PCI Expansion Slots 3.5

Drive bay support - 3.5" Drive Bays 0

Drive bay support - 2.5" / 3.5" Drive Bays (or SSD) 1x HDD or 2x SSD

Preinstalled Drive bay - 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity) 1x HDD or 2x SSD

I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type-A 5G​, 1x USB 4.0 Gen 2x2 Type-C 20G

I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)

Fan Support - Top 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm

Fan Support - Bottom 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm

Radiator Support - Top 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Radiator Support - Bottom 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)​

Dust Filters Mesh Only (Removable Filters)

Other electronic components 1x PCI-e 5.0 Riser / 2x ARGB spotlight

Maximum Dimensions for Front Collectibles Display (H x W x D) 328 x 290 x 110 mm

DIY tank & Pump support MASTERFRAME 360 STAGE LCD & MIRROR: Yes (Left side)

Toolbox Yes

Clearances - CPU Cooler 145 mm

Clearances - Power Supply 210 mm

Clearances - Graphics Card 430 mm

Cable Routing - Behind Motherboard Tray 110 mm

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
