Захранване BitFenix Whisper 650 M, 650W, Active PFC, модулно, 80 Plus Gold, 140mm вентилатор

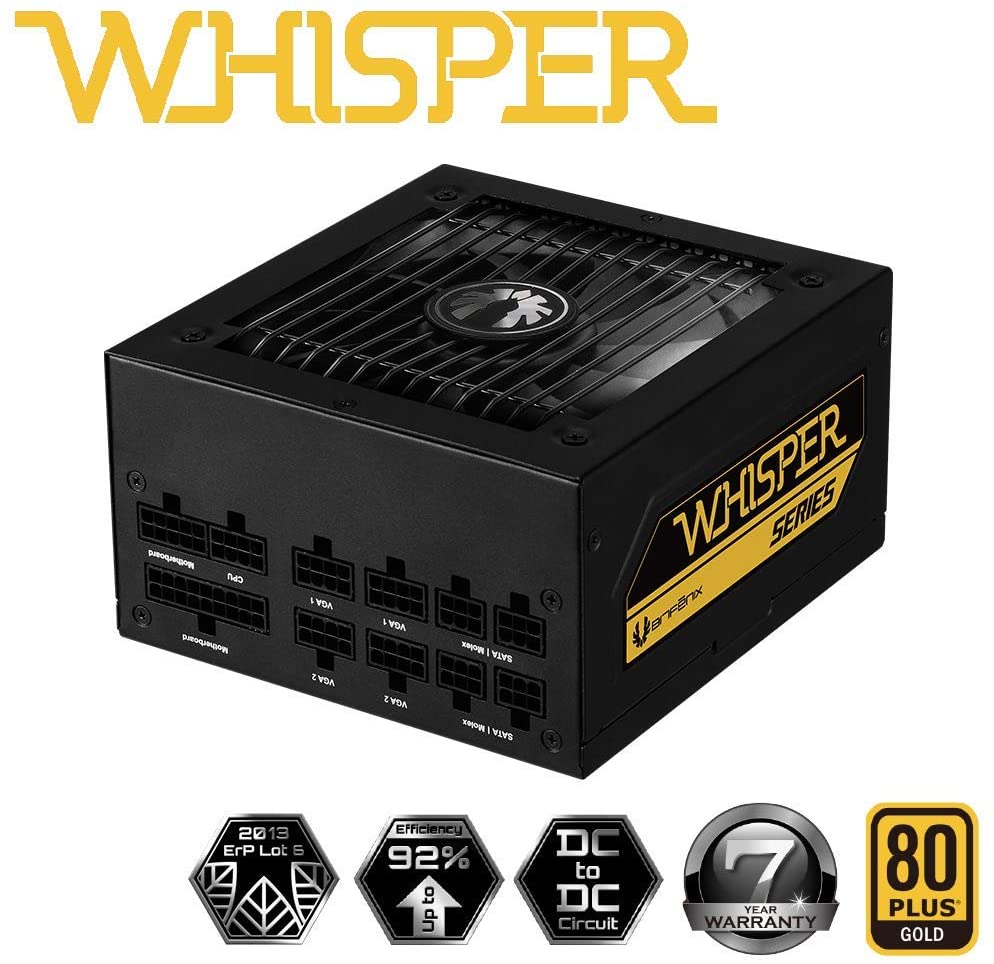

BitFenix Whisper 650 M

(BP-WG650UMAG)

Introducing you the newest line up of BitFenix power supplies that boasts of extreme quality and world’s best performance with 80+ Gold Efficiency and up to 92% efficiency at typical loading. The new BitFenix Whisper power supply line up comes with a wide range of power options starting with 450W all the way up to 850 incrementing by 100W

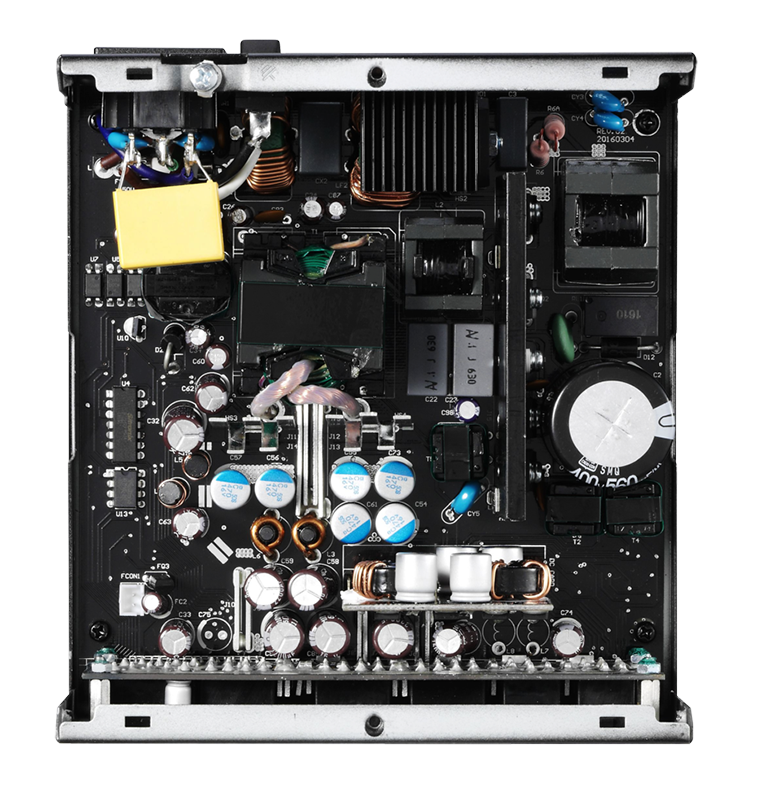

High Efficiency Layout

As the name suggests, Whisper is an extremely silent power supply with an 80+ Gold Efficiency certification. Because of the high efficiency layout and use of high quality components, the Whisper is capable of functioning with a very low noise and heat level while providing stable currents at highest loads.

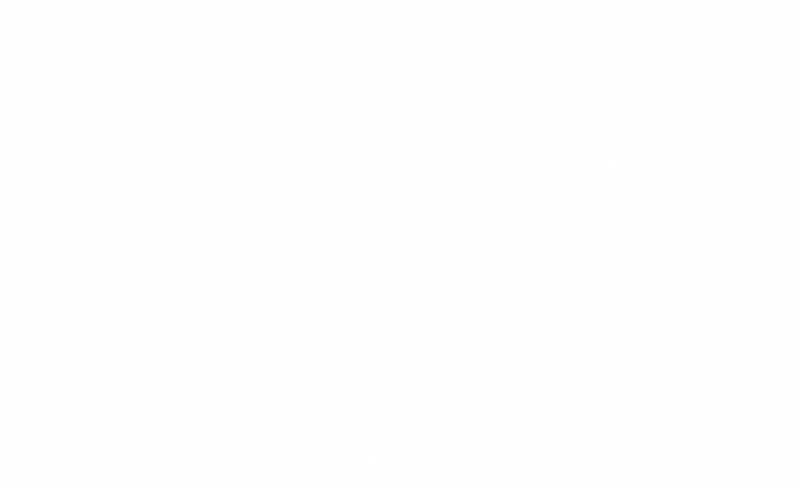

Intelligent Fan-Curve

Thanks to the use of an Intelligent Fan Control Curve the fan speed is intelligently controlled to minimize the noise levels while maintaining optimum temperatures.
Whisper can operate at room temperature with minimum noise even at 60% load, meaning that the noise level is dead silent even carrying out intensive work loads.

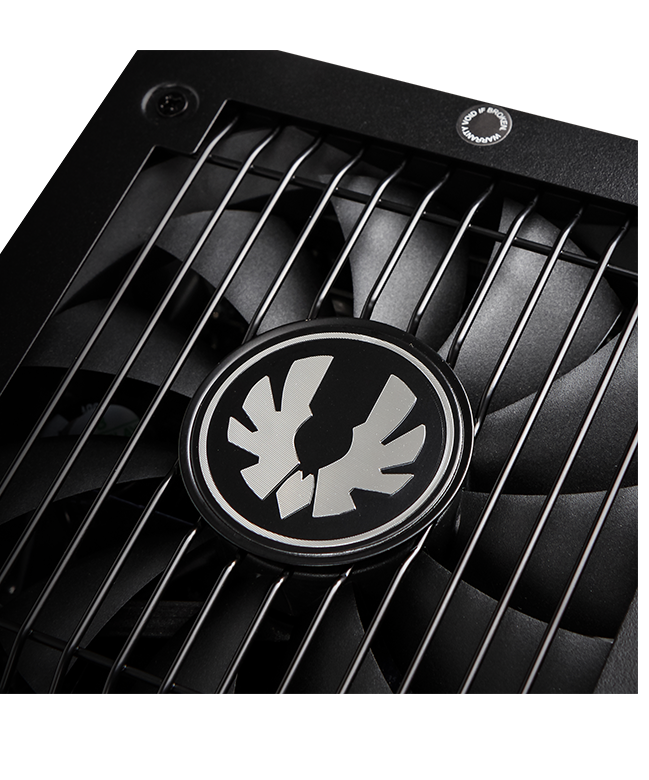

Industrial Quality Fan

Unlike regular PSUs, Whisper M comes with a 140mm FDB fan that starts working at a much lower voltage of 3.5v the fan can start working at 500rpm ± 10%. Because of these unique features together with ultra-low bearing noise and high life expectancy of the fan, BitFenix Whisper can operate at noise levels lower than 18dBA while PSU load is lower than 60% at 25°C

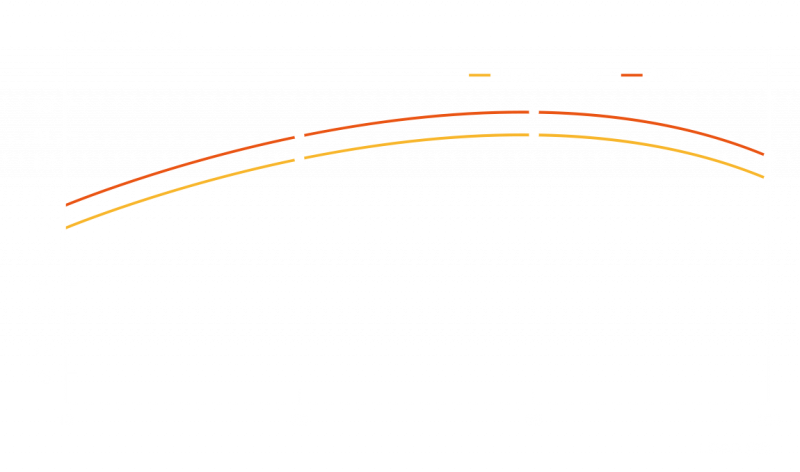

Ultra Efficient

Whisper is rated at a Power Factor of 0.99, and is extremely efficient with an 80+ Gold efficiency certification. With 87+ (20% to 100% load)/ 90+ (40% to 70% load) high efficiency design, Whisper saves both energy and money for the user while providing extremely stable power output at a very low noise level

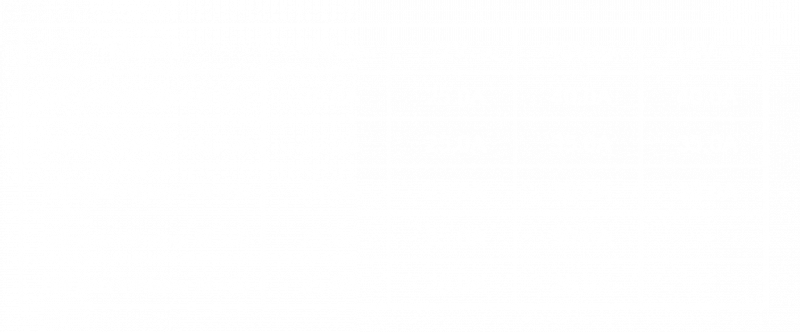

Dedicated Quad Rails

A dedicated quad rail design together with an advance voltage switching circuit from +12V to minor rail provides the best stability and output quality. The main quad +12V rails on all BitFenix Whisper models are dedicated as Motherboard + Peripherals, CPU, GPU 1 and GPU 2 (450W and 550W models only come with GPU1). All of these rails have dedicated Over Current Protection (OCP) circuits to keep your High-End-components safe all the time

Specifications:

BWG650M

Intel Specification     ATX 12V V2.4
Dimension(DxWxH)     160mm(D) x 150mm(W) x 86mm(H)
AC Input     100-240Vac
Input Current     10A
Frequency     47-63Hz
APFC PF value     > 0.99
80Plus Certification     80Plus Gold, up to 92%
Operating Temp.     0-50°C
Fan Size     140mm
Protection     OPP/ OVP/ OCP/ UVP/ SCP/ NLO/ OTP/ SIP
Safety     cTUVus, TUV, CB, CE, FCC, BSMI
ErP regulation     ErP 2013 Lot 6
MTBF     > 100,000hrs
Output cable Type     Fully Modular │ Flat Cable
Connector Quantity     24Pin x 1 │ 4+4Pin CPU x 1 │ 6+2Pin VGA x 4 │ SATA x 8 │ Molex x 4
