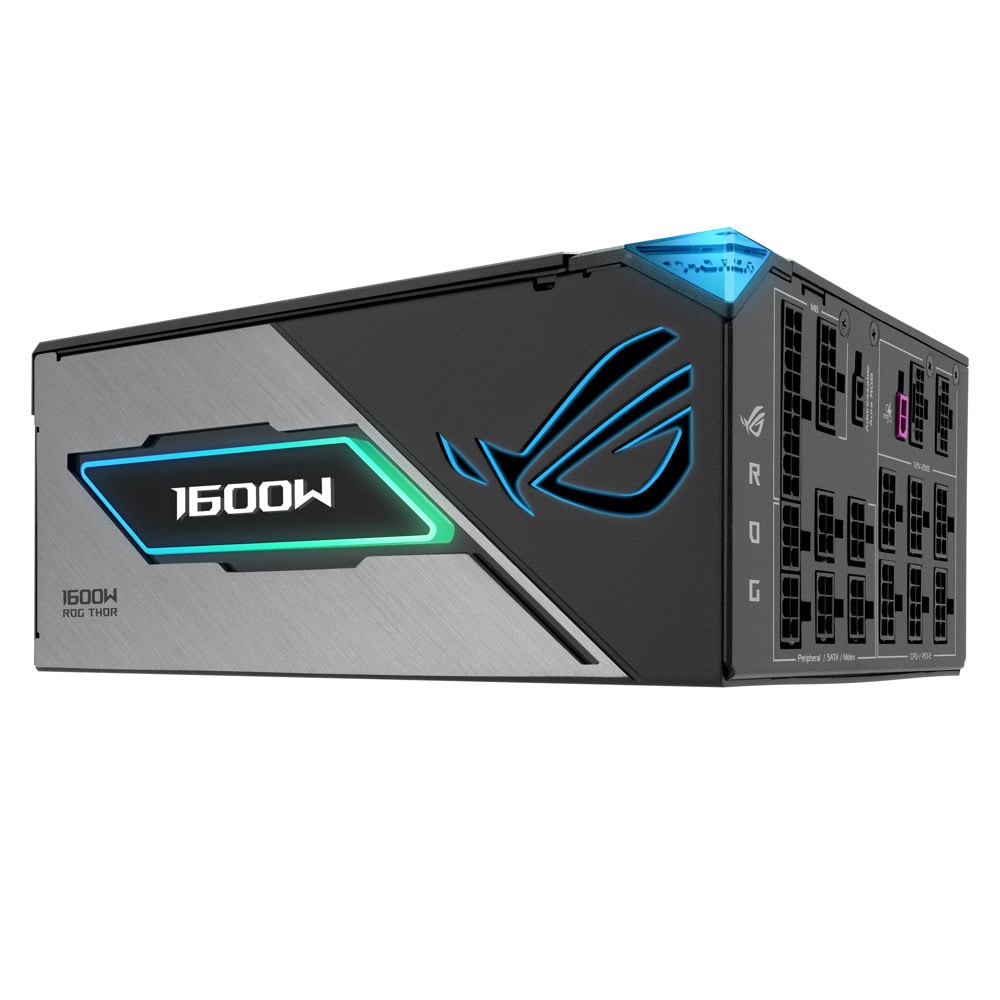

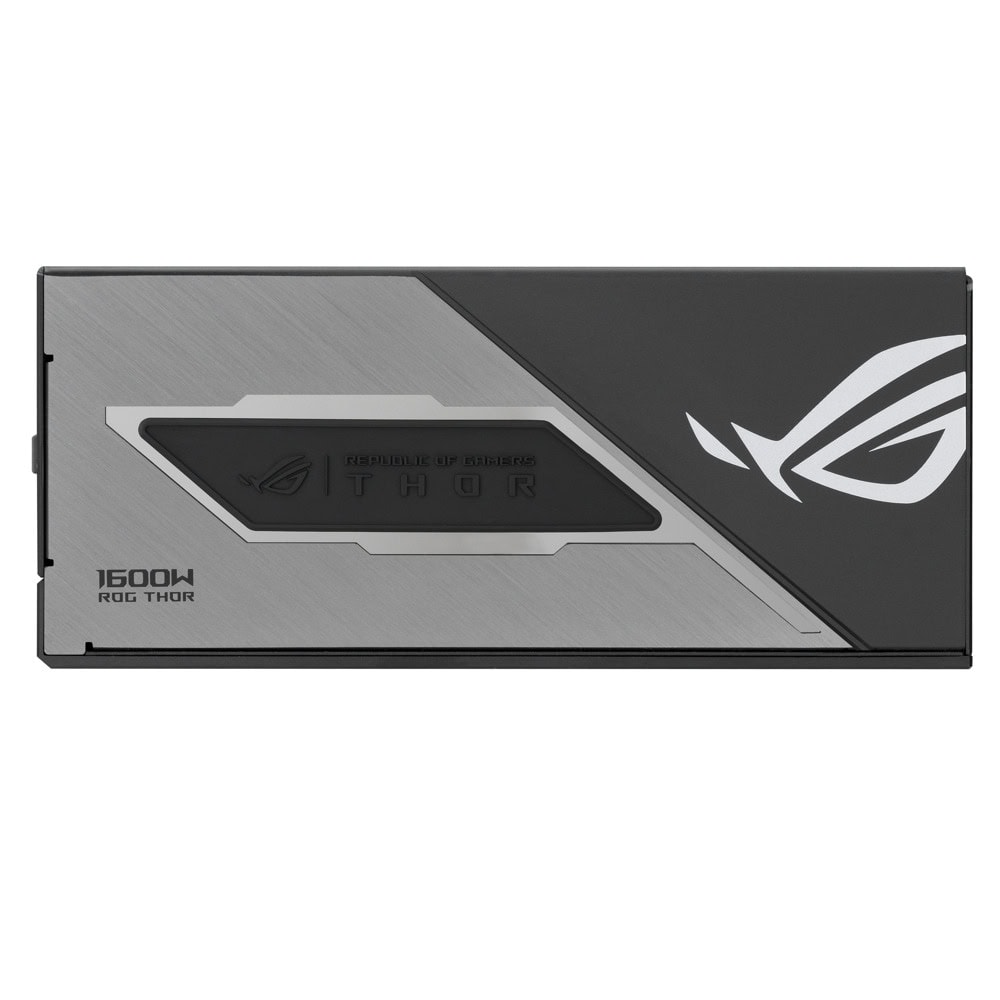

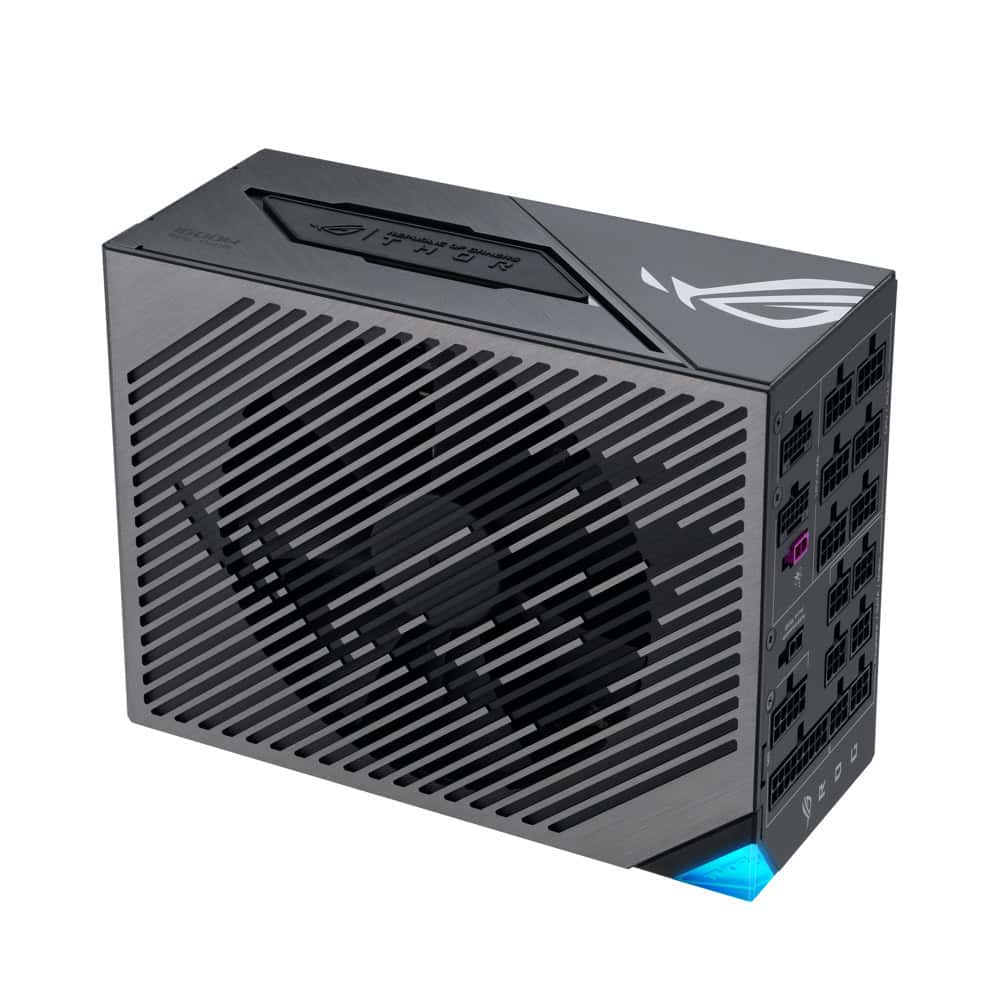

Захранване Asus ROG THOR III, 1600W, Active PFC, 80 Plus Platinum

ROG THOR 1600W Titanium III

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1600W Titanium III delivers unmatched performance and rock-solid stability for your ultimate PC build

• GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
• "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.

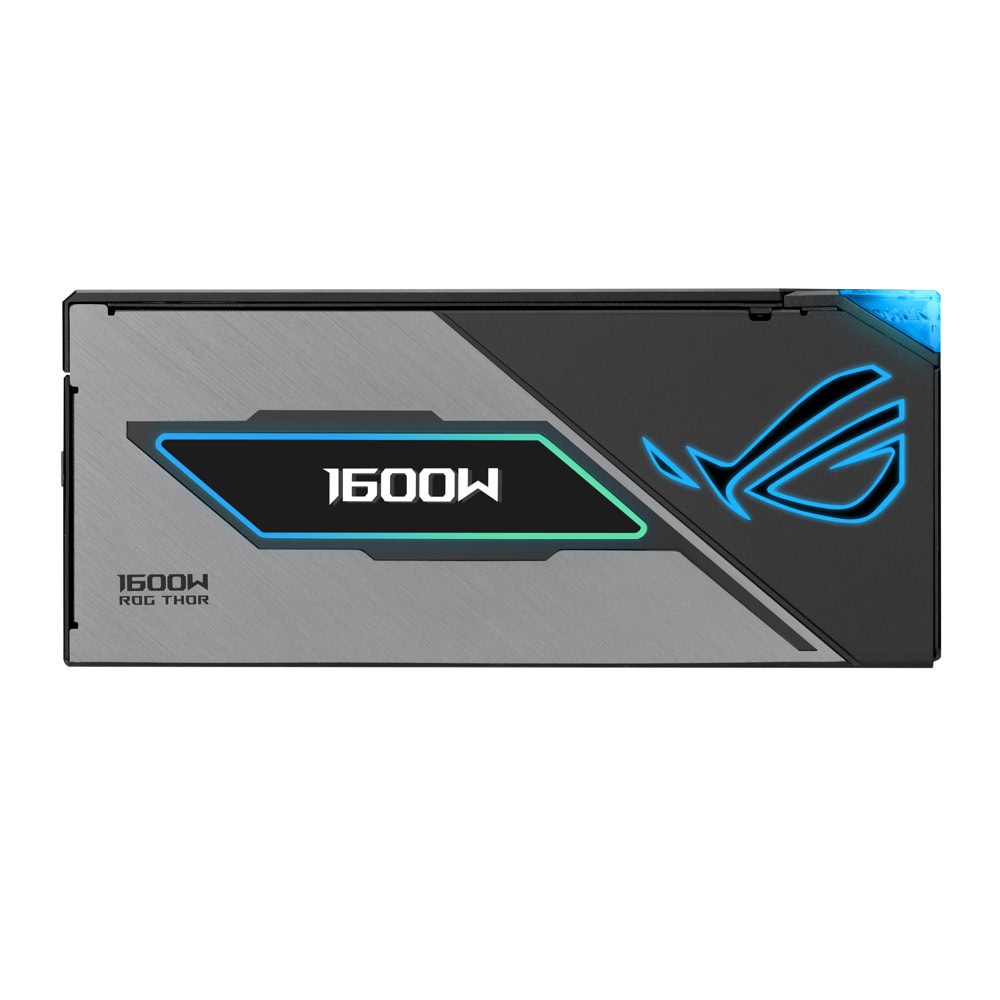

• Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

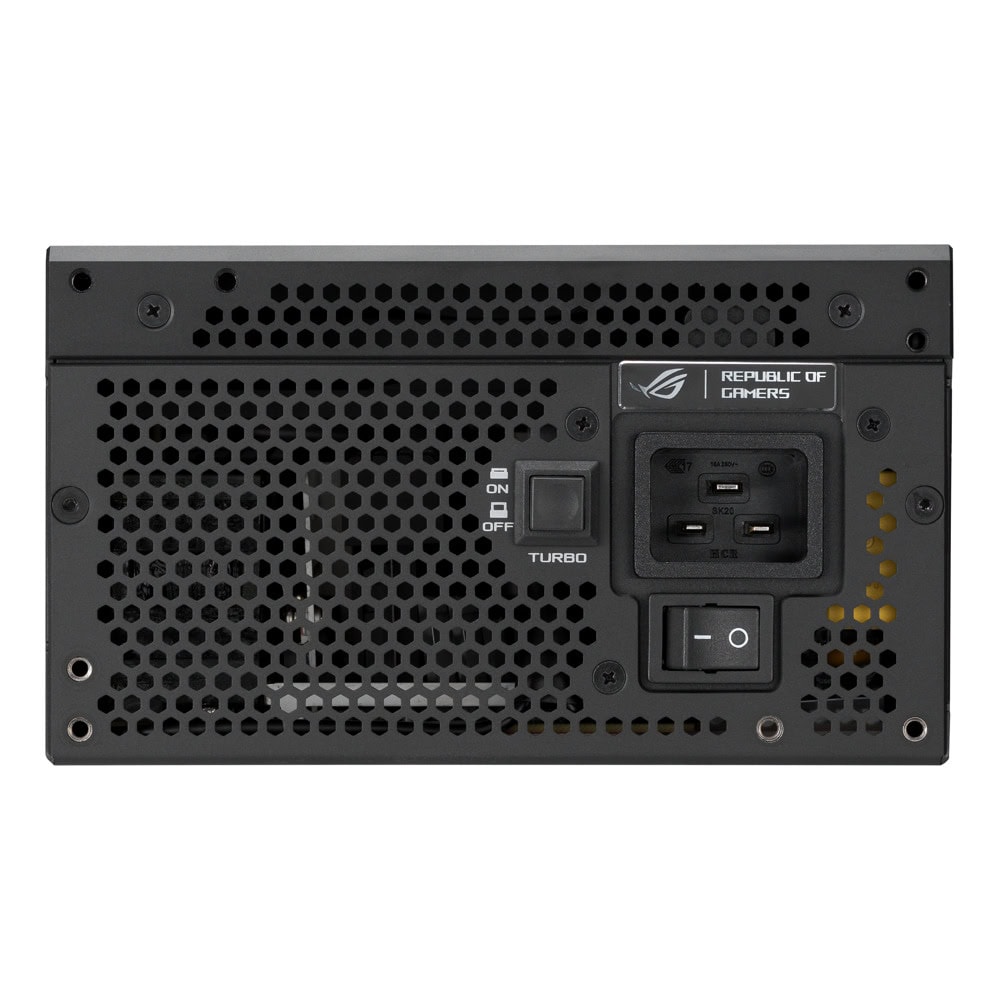

• Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
• ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
• Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
• ATX 3.1 compatible: ROG Thor Titanium III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
• Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
• 80 PLUS Titanium certified: ROG Thor Titanium III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.

GaN MOSFET

The ROG Thor 1600W Titanium III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

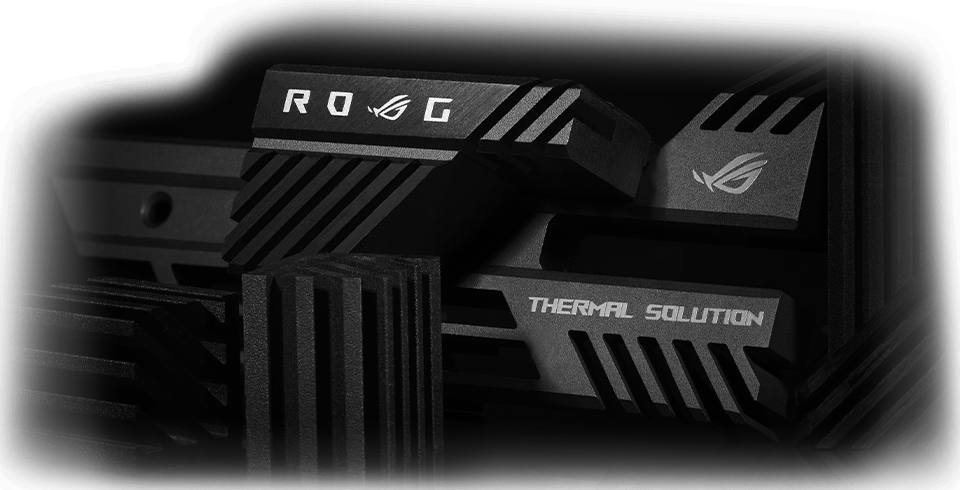

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

200 x 150 x 86 mm

Efficiency

80Plus Titanium

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

30A 25A 133.3A 0.3A 3A

Combined Load

125W 125W 1600W 3.6W 15W

Total Output

1600W

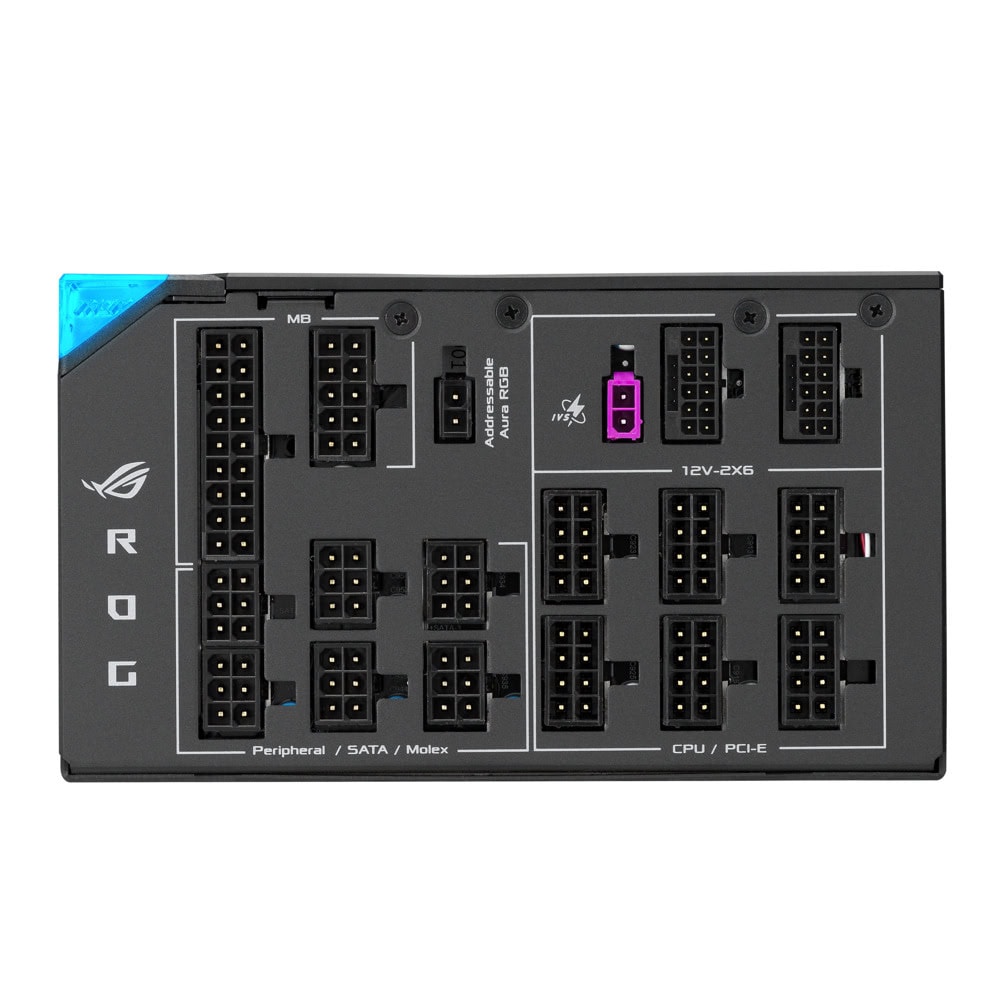

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 4
PCI-E 16-pin x 2
SATA x 10
PERIPHERAL x 9

Weight

2.80 kg (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

TBD

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
